- Page 1 Sun Gold Power Co.,Ltd www.sungoldpower.com APV Series Pure Sine Wave Inverter/Charger User’s Manual Version 1.0...
-
Page 2: Table Of Contents
Sun Gold Power Co.,Ltd www.sungoldpower.com Table of Contents 1. Important Safety Information ........................3 1-1. General Safety Precautions.........................3 1-2. Precautions When Working with Batteries ....................3 2. Introduction..............................4 2-1. General Information ...........................4 2-2. Application..............................4 2.3 Mechanical Drawing............................5 2-4. Features...............................8 2.5 Electrical Performance..........................8 2.5.1 Invert ..............................8... -
Page 3: Important Safety Information
Sun Gold Power Co.,Ltd www.sungoldpower.com 1. Important Safety Information WARNING! Before using the Inverter, you need to read and save the safety instructions. 1-1. General Safety Precautions 1-1-1.Do not expose the Inverter to rain, snow, spray, bilge or dust. To reduce risk of hazard, do not cover or obstruct the ventilation openings. -
Page 4: Introduction

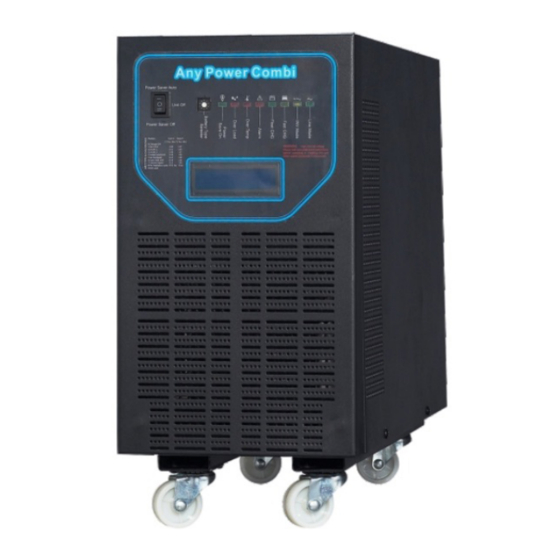

2. Introduction 2-1. General Information APV Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%. It is packed with unique features and it is one of the most advanced inverter/chargers in the market today. -
Page 5: Mechanical Drawing
Sun Gold Power Co.,Ltd www.sungoldpower.com 2.3 Mechanical Drawing Model No: APV1500W12V230V (below) - Page 6 Sun Gold Power Co.,Ltd www.sungoldpower.com Model No: APV1500W12V120V, APV3000W12V120V, APV3000W24V120V (below)
- Page 7 Sun Gold Power Co.,Ltd www.sungoldpower.com Model No: APV6000W24V240VS...
-
Page 8: Features
2.5.2 AC Charger APV Series is equipped with an active PFC (Power Factor Corrected) multistage battery charger. The PFC feature is used to control the amount of power used to charge the batteries in order to obtain a power factor as close as possible to 1. - Page 9 The APV series inverter is with a strong charging current of 90Amp (for 3KW,12V), and the max charge current can be adjusted from 0%-100% via a liner switch at the right of the battery type selector. This will be helpful if you are using our powerful charger on a small capacity battery bank.
- Page 10 Sun Gold Power Co.,Ltd www.sungoldpower.com Battery type selector Switch setting Description Boost / Vdc Float / Vdc Charger Off Gel USA 14.0 13.7 AGM 1 14.1 13.4 AGM 2 14.6 13.7 Sealed lead acid 14.4 13.6 Gel EURO 14.4 13.8 Open lead acid 14.8...
-
Page 11: Transfer
Sun Gold Power Co.,Ltd www.sungoldpower.com For 12VDC model, after the battery voltage goes below 10V, if the switch is still (and always) kept in "ON" position, the inverter is always connected with battery, and the battery voltage doesn’t drop below 2V, the inverter will be able to charge the battery once qualified AC inputs are present. -
Page 12: Auto Frequency Adjust
Sun Gold Power Co.,Ltd www.sungoldpower.com equipment powered up. There is a 15-second delay from the time the inverter senses that continuously qualified AC is present at the input terminals to when the transfer is made. This delay is built in to provide time for a generator to spin-up to a stable voltage and avoid relay chattering. - Page 13 Sun Gold Power Co.,Ltd www.sungoldpower.com Altitude Operating 5000 m, Non-Operating 16000 m Protection class IP21 BTS - optional remote battery temperature sensor for increased Battery temperature sensor charging precision Terminal size (fine/single wire) #8 AWG NOTE: The optional battery temp erature sensor automatically adjusts the charging process of the controller ①...
-
Page 14: Power Saver
Power saver on Power saver off Power saver on(Load detected) Note: The minimum power of load to take inverter out of sleep mode (Power Saver On) is 25 Watts. APV Series Idle Power Consumption Power Saver Off Power Saver Auto Model... -
Page 15: Protections
2.5.7 Protections The APV series inverter is equipped with extensive protections against various harsh situations/faults. These protections include: AC Input over voltage protection/AC Input low voltage protection... -
Page 16: Led Indicator & Lcd
Sun Gold Power Co.,Ltd www.sungoldpower.com WARNING Never cut the telephone cable when the cable is attached to inverter and battery is connected to the inverter. Even if the inverter is turned off. It will damage the remote PCB inside if the cable is short circuited during cutting. -
Page 17: Audible Alarm
Sun Gold Power Co.,Ltd www.sungoldpower.com 2.5.10 Audible Alarm Inverter green LED lit, and the buzzer beeps 0.5s every 5s. Battery Voltage Low Inverter green LED lit, and the buzzer beeps 0.5s every 1s and Fault after Battery Voltage High 60s. -
Page 18: Output Socket
Sun Gold Power Co.,Ltd www.sungoldpower.com Switch NO Switch Function Position: 0 Position: 1 Low Battery Trip Volt 10.0VDC 10.5VDC *2 for 24VDC, *4 for 48VDC SW2(230V) AC Input Range 184-253VAC 154-253VAC SW2(120V) AC Input Range 100-135VAC 90-135VAC Load Sensing Cycle... - Page 19 Sun Gold Power Co.,Ltd www.sungoldpower.com function helps to save the users extra labor to reactivate the inverter when the low battery voltage returns to an acceptable range in the renewable energy systems. The built in battery charger will automatically reactivate as soon as city/generator ac has been stable for 15 seconds.
-
Page 20: Installation
Sun Gold Power Co.,Ltd www.sungoldpower.com 3 Installation 3.1 Location Follow all the local regulations to install the inverter. Please install the equipment in a location that is Dry, Clean, Cool and that has good ventilation. Working temperature: ‐10℃‐40℃ Storage temperature: ‐40‐70℃... - Page 21 Sun Gold Power Co.,Ltd www.sungoldpower.com Wiring Option 1 230V single phase/120V single phase Input: Hot line+Neutral+Ground Output: Hot line+Neutral+Ground Wiring Option 2 230V split phase Input: Hot line+ Hot line +Ground Output: Hot line+ Hot line +Neutral Wiring Option 3...
-
Page 22: Install Flange
Sun Gold Power Co.,Ltd www.sungoldpower.com 3.4 Install Flange 1-3KW Model... -
Page 23: Troubleshooting Guide
Sun Gold Power Co.,Ltd www.sungoldpower.com 4 Troubleshooting Guide Troubleshooting contains information about how to troubleshoot possible error conditions while using the APV Inverter & Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures. - Page 24 Sun Gold Power Co.,Ltd www.sungoldpower.com Symptom Possible Cause Recommended Solution Inverter will not turn on during Batteries are not connected, loose Check the batteries and cable initial power up. battery-side connections. connections. Check DC fuse and breaker. Low battery voltage.
-
Page 25: Warranty
Sun Gold Power Co.,Ltd www.sungoldpower.com Figure 1 5 Warranty We offer a 1 year limited warranty. The following cases are not covered under warranty. 1 DC polarity reverse. The inverter is designed without DC polarity reverse protection. A polarity reverse may severely damage the inverter. -
Page 26: Appendix 1
Sun Gold Power Co.,Ltd www.sungoldpower.com Appendix 1 Electrical Specifications Model 1000W 1500W 2000W 3000W 4000W 5000W 6000W Continuous Output Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W Surge Rating(20s) 3000W 4500W 6000W 9000W 12000W 15000W 18000W Output Waveform Pure Sine wave/Same as input(Bypass mode) Nominal Efficiency >88%(Peak) - Page 27 Sun Gold Power Co.,Ltd www.sungoldpower.com Rated Voltage 12V/24V Solar Input Voltage Range 15-30Vdc/30-55Vdc Rated Charge Current Rated Output Current Self Consumption < 10mA Bulk Charge 14.5V(default) Floating Charge 13.5V(default) Solar Charger Equalization Charge 14.0V(default) Over Charge Disconnection 14.8V ( *2 for 24Vdc, *4...
