SAFETRACK S15 Manual

Angle head brazing gun
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

IN064-01
S15-Angle Head Brazing Gun

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SAFETRACK S15

Summary of Contents for SAFETRACK S15

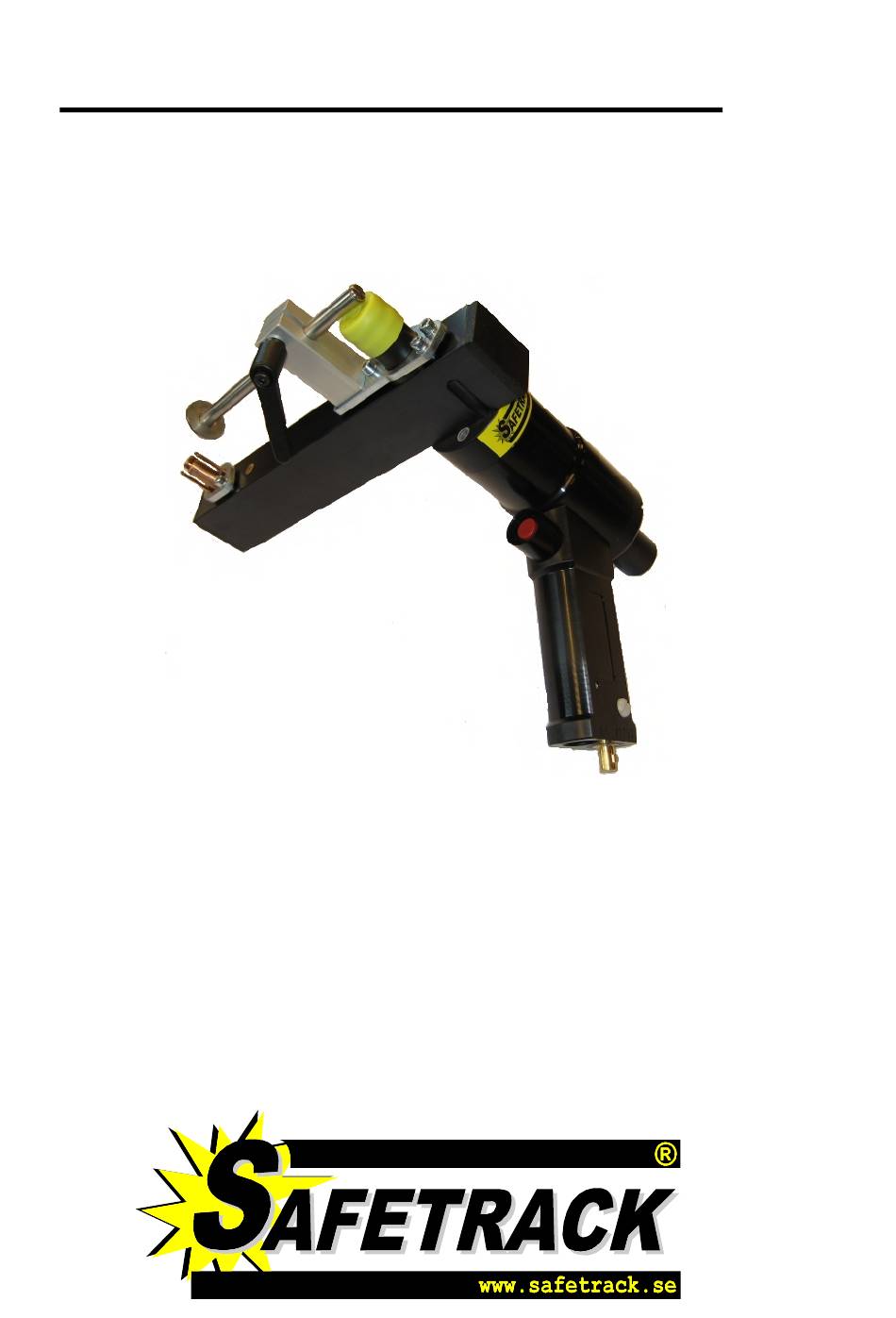

  • Page 1 IN064-01 S15-Angle Head Brazing Gun...
  • Page 2 IN064-01 S15-Angle Head Brazing Gun Adjust the height of the gun with the adjustable rod and lock it. Periodically maintenance of S4-Angle Head Brazing Gun B1.Check that all cables and lugs are tight always twist the plug in to the outlets on the units B2.
  • Page 3 IN064-01 B3. Check that the ring holder is the right type. B4. Load the gun with a 8mm pin and ferrule. Check that the axle move easily with the pin and ferrule fitted when moving back and forward. If not, change either pin holder or ring-holder. If it still doesn´t move easily the axle is damaged And the gun must be sent for repair IMPORTANT! The normal lift height is 2mm (setting 0) this is...
  • Page 4 IN064-01 Advanced maintenance work Adjusting the lift level. B.6. Reset correct lift height on a S4 gun. Only when to reset a maladjusted gun. B.6.1. Fit the instrument SAFE 91245 on the gun as in B.5. B.6.2. Connect the cables to the Pinbrazing unit and switch on the power.

Table of Contents
