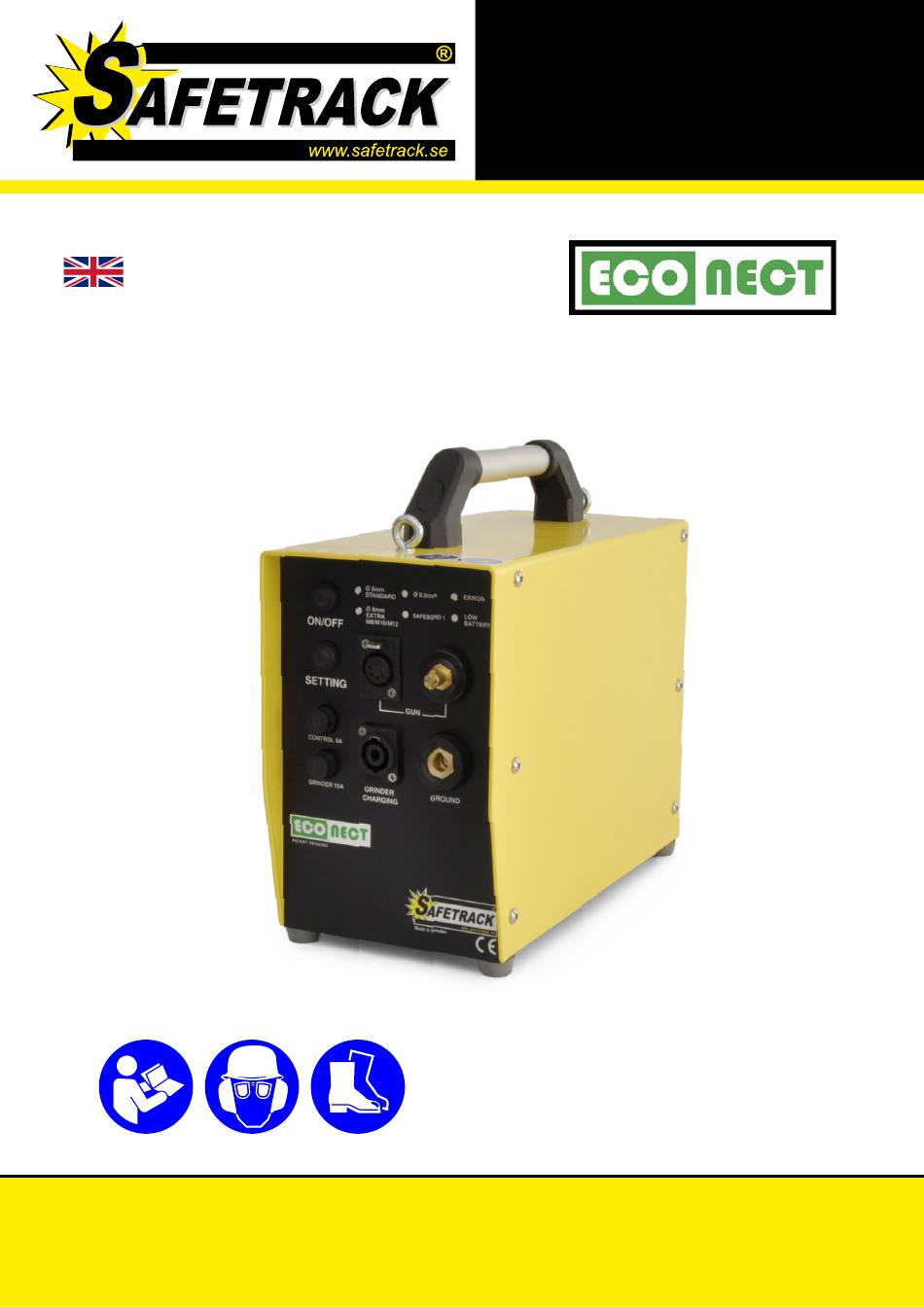

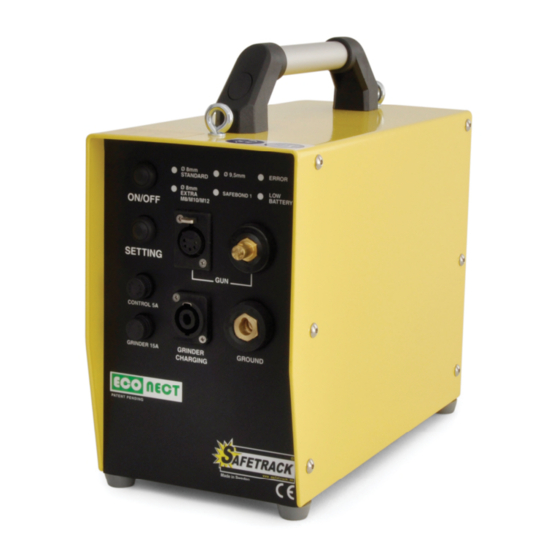

- Page 1 Safely connecting the world! IN-021-09 Electronic PinBrazing unit USER MANUAL Safety, Operation and Maintenance Safetrack Baavhammar AB Möllebergavägen 339-24, 245 93 Staffanstorp, Sweden Phone. +46 (0)40 44 53 00 sales@safetrack.se www.safetrack.se...
-
Page 2: Safety Symbols
SAFETY SYMBOLS Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 3: Safety Precautions
• Always replace parts with replacement parts This tool will provide safe and dependable service if recommended by Safetrack. operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool before operation.Failure to do so could result in personal... -
Page 4: Table Of Contents
WARRANTY Units 12 months, batteries 6 months. Valid only when using original parts, batteries and chargers supplied or approved by Safetrack ® . The warranty will expire if the equipment was used or has been used with non-original spare parts, consumables or not used in accordance with the instructions. -
Page 5: Technical Specification
TECHNICAL SPECIFICATION SAFE 94350 DELIVERED WITH ECONECT SAFE 94452 S15 Gun SAFE 91015 Tool kit SAFE 91250 Ground device SAFE 80730 Check that all parts Grinder SAFE 593070 Tool case SAFE 95240 have been received! Carrying Harness SAFE 9523 Protective eyewear SAFE 8043 Grinding pin/stone SAFE 8025... -
Page 6: Protection/Cleaning/Storage
GENERAL OPERATIONS GENERAL PROTECTION Use only recommended repair and replacement parts and materials specified in the spareparts list section of this manual. Use only recommended accessories also specified in the spareparts list section of this manual. Do not use the Electronic PinBrazing unit for applications it was not designed for. Use the carrying handle to transport the unit from location to location. - Page 7 NOTICE Use only battery charger specially made for pin brazing units (36V DC) approved by Safetrack.
-
Page 8: Operation
CHARGING THE BATTERY NOTICE CHARGING THE BATTERY CAN ONLY BE CARRIED OUT BETWEEN 0°C to +45°C CAUTION If the batteries are left uncharged, they may be damaged. Connect the charger to the grinder / charging outlet on the unit then to the mains. The battery is fully charged after about 1 hour (if completely discharged). -
Page 9: Grinding
Always use eye protection when grinding and brazing. NOTICE Note, use only SAFETRACK´s grinding wheel specially made for brazing, other type of wheels will leave a surface not suitable for brazings. Keep the grinding wheel clean and free from oil etc. -
Page 10: Preparing The Econect Unit
PREPARING THE ECONECT UNIT NOTICE If the temperature of the battery is below 12ºC, the ERROR will flash and the battery will be heated. When battery has right temperature ERROR will stop flashing and unit is ready to use. Heating time and number of brazings The build-in heating element automatically heat up the batteries. -
Page 11: Pinbrazing
PINBRAZING 1. Connect the brazing gun (power and trigger) cable & ground device to the unit. 2. Select brazing pins and ceramic rings to match the specifications of the bonding cable you selected. 3. Check that the pin holder and ring holder on the gun are the correct sizes for the brazing pins and ceramic rings you selected. -
Page 12: Troubleshooting
TROUBLESHOOTING ERROR INDICATIONS ON THE UNIT: ERROR led is lit - The temperature of the battery is over +55 °C. Action: Wait until the light goes out, then the temperature dropped and it is possible to braze again. ERROR led flashes - The temperature of the battery is below +10 °C. -
Page 13: Maintenance
Grinder: 15A fuse NOTICE In addition to the Safetrack Precautions in this manual, observe the following for equipment protection and care. • Check that the pin holder is not burnt and holds the pin tightly. If not, remove the ring holder, clean all the parts and squeeze the fingers of the pin holder together. -
Page 14: Econect Special Functions
ECONECT SPECIAL FUNCTIONS & PIN/RING HOLDER OPTIONS SPECIAL FUNCTIONS 1. BATTERY INDICATOR Press and hold the “SETTING” button, and then push the “ON/OFF” button. “LOW BATTERY” LED will light. Release the buttons. The LEDs on the front panel show the charge status of battery. -
Page 15: S15 Brazing Gun
MAINTENANCE ON S15 PERIODICAL MAINTENANCE ON S15 AUTOMATIC GUN 1. Check that all cables and lugs are without damages and properly tighten in gun and unit. 2. Check that the right pin holder is fitted in the gun. Make sure the pin holder is tight on the gun, otherwise a spark can destroy the axle. -
Page 16: Checking/Calibrating Lift Height
CHECKING LIFT HEIGHT Lift level tool: SAFE 91245 IMPORTANT The normal lift height is 2 mm. This is very important for the arc and energy amount. Too high lift height increase the risk of a “cold brazing”, too low lift height reduce the time and increase misfires. - Page 17 CALIBRATE LIFT HEIGHT Calibrate lift height on a S15 gun. Only calibrate if the gun is maladjusted. 1. On the PinBrazing unit Econect, press and hold “SETTING” and press ”ON/OFF”. When “LOW BATTERY” is lit, release buttons. Press “SETTING” and the leds will start to blink. In this mode it is able to check the lift height.
-
Page 18: Accessories & Spare Parts
Carbide burr, Type C 8014 Carbide burr, Type C Extended 8014XL Fuse holder 91197 Fuse 200mAT (on circuit board) 91180 Fuse 1AT 91182 Fuse 15AT 91181 Accessories case 95240 Carrying harness 9523 Protective eyewear 8043 For more information, please visit www.safetrack.se. - Page 19 ACCESSORIES AND SPARE PARTS Heavy Duty Case Inside fits the following (not included): • Grinding Machine • Grounding Device • PinBrazing Gun including cable • Protective Eyewear • Carrying Harness • 2 tins (for Brazing pins & Ferrules) Insulation Bag for Econect Dimensions: 459x319x160 mm Increased capacity in even colder weather.
-
Page 20: Pinbrazing Materials
PINBRAZING MATERIAL T-connectors Brazing pins & ferrules Pinbrazing clamps 10011 (8mm) 2003 10101 (8mm X) 10131 2009 (9,5mm) 10641 (M8) 10741 (M10) 2012 10561 (M12) Rail bonds & connectors Installation examples... -
Page 21: Repairs/Returns
We insist that you do not return used/faulty Econect units with the battery still inside. Please contact us for instructions on how to remove the battery. SAFETRACK BAAVHAMMAR AB Möllebergavägen 339-24, 245 93 Staffanstorp, Sweden Phone. +46 (0)40 44 53 00 sales@safetrack.se www.safetrack.se... -
Page 22: Notepad
NOTEPAD... -
Page 23: Ce Declaration Of Conformity
CE DECLARATION DECLARATION OF CONFORMITY according to EN ISO 17050-1:2010 Manufacturers name: SAFETRACK BAAVHAMMAR AB Manufacturers address: SAFETRACK BAAVHAMMAR AB Möllebergavägen 339-24 245 93 STAFFANSTORP SWEDEN Product: Pinbrazing / SafeBond® unit Model number: ECONECT (X15) The object of the declaration described above is in conformity with the relevant... - Page 24 SCAN THE QR CODE TO DOWNLOAD OR READ THIS MANUAL ONLINE ISO 9001 Certified SAFETRACK BAAVHAMMAR AB ISO 14001 Certified...
