- Page 1 IN-021-07 SAFETRACK BAAVHAMMAR AB L.Mölleberga, 245 93 Staffanstorp, Sverige Phone. +46 (0)40 44 53 00, Fax: +46 (0)40 44 55 53 Sales@safetrack.se www.safetrack.se...
- Page 2 Guarantee: Units 12 months, batteries 6 months. Valid only when using original parts, ® batteries and chargers supplied or approved by SAFETRACK The guarantee will expire if the equipment was used or has been used with non-original spare parts, consumables or not used in accordance with the instructions.

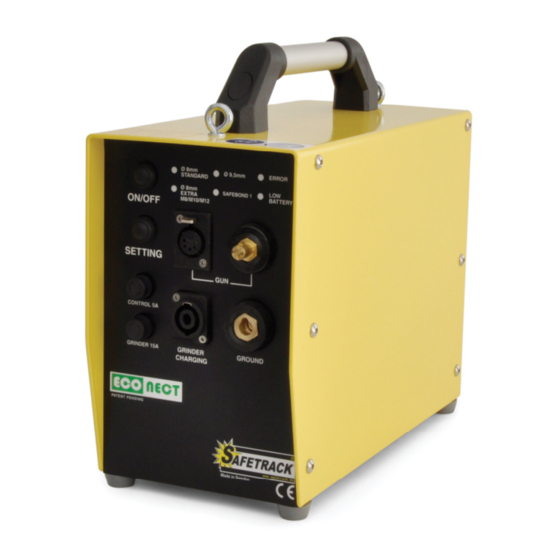

- Page 3 TECHNICAL SPECIFICATION Selected setting. Error Indication ON/OFF Battery indicator Pin setting Gun power Gun control Fuse for electronics Grinding / charge Ground Fuse for grinding / charge Technical specifi cation Voltage 39V DC No. of brazings/charge 40-60 Unit weight incl.batteries 9,8 Kg Dimensions LxWxH (mm) 250x265x255...
- Page 4 CHARGING THE BATTERY NOTICE! CHARGING THE BATTERY CAN ONLY BE CARRIED OUT BETWEEN 0°C to +45°C Connect the charger to the grinder / charging outlet on the unit then to the mains. The battery is fully charged after about 1 hours (if completely discharged). After charging is completed the charger can be disconnected.
- Page 5 Always use eye protectors when grinding and brazing! NOTICE! Note, use only SAFETRACK´s grinding wheel specially made for brazing, other type of wheels will leave a surface not suitable for brazings. Keep the grinding wheel clean and free from oil etc.
- Page 6 PINBRAZING Note! If the temperature of the battery is below 12ºC the ERROR will fl ash and the battery will be heated. When battery has right temperature ERROR will stop fl ashing and unit is ready to use. Heating time and number of brazings The build-in heating element automatically heat up the batteries.
- Page 7 PINBRAZING Operation. - Connect the brazing gun, power and trigger cable to the unit. - Connect the ground device to the unit. - Press on/off button and select the right pin type by pressing the ”setting” button. The unit will remember what setting was used last. - Load the gun with brazing pin and ferrule.
- Page 8 MAINTENANCE PIN HOLDERS Squeeze the fi ngers on the pin holder together each time you feel that the brazing pin goes in too easy when mounting them into the pin holder. This is important since all the current goes thru the pin holder to the brazing pin.
- Page 9 MAINTENANCE Error indications on the unit: “ERROR” led is lit. - The temperature of the battery is over +55 °C. Action: Wait until the light goes out, then the temperature dropped and it is possible to braze again. “ERROR” led fl ashes. - The temperature of the battery is below +10 °C.
- Page 10 MAINTENANCE Replace the fuses: Push and unscrew anti-clockwise to remove fuse holder. Replace fuse and mount fuse holder. NOTE! Control: 5A fuse. Grinder: 15A fuse. Special functions: Battery indicator: Press and hold the “SETTING” button, while you push the “ON / OFF” button. “LOW BATTERY”...
- Page 11 MAINTENANCE Periodically maintenance of S15 automatic gun IN-039-01 B.1. Check that all cables and lugs are without damages and properly tighten in gun and unit. B.2. Check that the right pinholder is fi tted in the gun. SAFE No. For brazing pin Mark 9211 8-9,5 mm...
- Page 12 MAINTENANCE Lift level tool SAFE 91245 2002-09-05 IMPORTANT! The normal liftheight is 2mm. This is very important for the arc and energy amount. Too high liftheight increase the risk of a “coldbrazing”, too low liftheight reduce the time and increase misfi res. B.5.1.
- Page 13 B.5. If all is ok, fi t the plug in the hole again. If not ok, send for repair. SAFETRACK BAAVHAMMAR AB L.Mölleberga, 245 93 Staffanstorp, Sverige Phone. +46 (0)40 44 53 00, Fax: +46 (0)40 44 55 53 Sales@safetrack.se...
