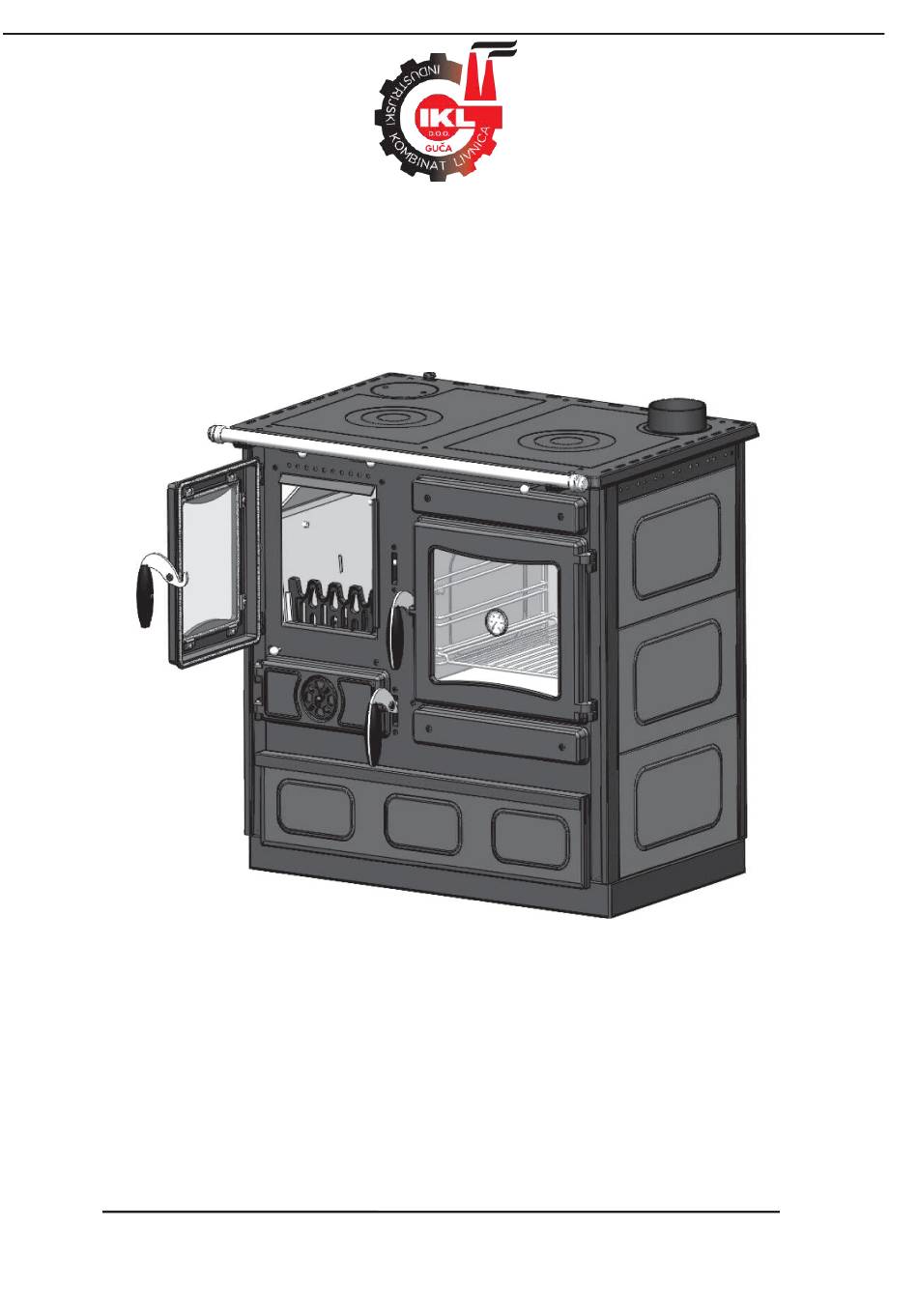

- Page 1 Model: GULIVER TERMO USER MANUAL IKL-INDUSTRIJSKI KOMBINAT LIVNICA DOO GUČA Srbija,32230 Guča, Albanske spomenice bb Tel/centrala:+381(0)32 306 000 , prodaja i servis;+381(0)32 854 305...
-
Page 2: Table Of Contents
Dear user, By purchasing our product you have shown us trust which will not be failed because Guliver termo stove is the leading product in its category due to its design and characteristics. Please read these instructions carefully to learn about Guliver stove’s characteristics and possibilities before first operating it, and keep them for future reference to ensure avoiding irregularities in your stove’s operation. -
Page 3: Introductory Notes
1. INTRODUCTORY NOTES Please read and observe the instruction carefully. Hereinafter, you shall find the data regarding the stove and recommendations for the installation and maintenance. The efficiency depends on the correct installation, which must be carried out by a professional observing the standards and valid security regulations. -
Page 5: Technical Data
2. TECHNICAL DATA Total power (kW) The power delivered to water (kW) 8 Power delivered to room (kW) The optimum water temperature 71 - 78 (°C) Hardworking maximum pressure (bar) Rated output (kg / h) Boiler capacity (l) Efficiency (%) Flue pipe diameter (mm) Heat capacity (m3) 190 - 250... - Page 6 3. INSTALATION Picture.1 1. Top plate frame 11. Side 21. Handle for decoration shaking of embers 2. Top plate 12. Back 22. Fire door batten 3. Burner 13. Stand 23. Door handle frame 4. Smoke exaust 14. Front 24. Regulation of batten secondary air 5.
- Page 7 If you want smoke exaust from the back side, unscrew the screws that bind the drain cover and back of the stove, and place with the screws fix the drain plug on that place. Cover bolts connect with the frame of the stove on the appropriate place.Make sure that gaskets that are on the cover and on the connector are in the channels and tightened sufficiently to prevent the passage of smoke.
- Page 8 and charge. This device works this way in case of damage the sensitive element. Note: Thermal fuse is not part of the product and not included with the product. The guarantee storey stove applies only with built-in thermal fuse. Both ways of installation of closed central heating system is placed closed expansion vessel.
- Page 9 Picture 4, Schemeofclosedsystem...
- Page 10 Picture 5, Schemeofclosedsystem...
- Page 11 Picture 6, Schemeofopensystem...
-
Page 12: Chimney
4. CHIMNEY Special attention should be drawn to the chimney quality which has to be manufactured according to standards. The maintenance of the chimney has to be regular. The stove is connected to the chimney through the fitting via appropriate smoke pipes, in order to provide the adequate tightness and the flow of smoke from the stove to the chimney. -
Page 13: Lighting
5. LIGHTING Prior to the first stove lighting, it is necessary to wipe all stove surfaces with a dry cloth, remove dust, oil and impurities from the stove plate and the oven in order to avoid their combustion and uccurence of unpleasant odours and smoke. The first time that the appliance is lit, there will be an unpleasant odour and smoke given off, especially from the stove plate surface, as well as from the other parts protected with a heat resistant paint. -
Page 14: Stove Operation
6. STOVE OPERATION We recommend to split the quantity of fuel into half and to gradually heat the stove when used for the first time, in order to control and test the operation. The hearth door should be opened only when necessary, in order to add new quantity of wood. - Page 15 Regulation of the draft Combustion rate and thus the amount of heat which gives the stove, depends on the amount of combustion air that is brought into the space below grill. Regulation of the amount of air is achieved automatically through the controller of draft Rathgeber placed on the back of the stove (Picture 9), or manually, by turning of the button on the stove frame connected with the draft regulator...
-
Page 16: Consumables
the glass on the hearth door and for better combustion. During the stove operation, the movable part of the regulator is heated, so use the additional equipment during regulation. 7. CLEANING THE STOVE We recommend removing the ash produced every day. Never allow the ash accumulate to the point where it touches the grate;... -
Page 17: What To Do If You Do Not Intend To Use The Stove For An
9. WHAT TO DO IF YOU DO NOT INTEND TO USE THE STOVE FOR AN EXTENDED PERIOD First, clean the hearth, the smoke pipes and the flue, trying to eliminate completely the ash and other residuals. In case you disconnect the appliance from the chimney, close its opening in order to allow operation of other possible appliances connected to the same flue. -
Page 18: What To Do If Your Stove Does Not Operate As Indicated
The chimney stove must operate exclusively with the ash drawer inserted. The solid residue of the combustion (ashes) must be collected in a hermetic container, resistant to fire. The stove must never be ignited when there are gas or steam emissions (e.g. glue, gasoline, etc.). -
Page 19: General Notes
– Wrong regulation: if the secondary regulator is closed, the glass gets dirty after short time. 12.5 Condensation – During first few ignitions, condensation is normal. – If the problem lasts, check the wood you use; it must not be wet or poorly dried. –...
