TLD7002-16SHIELD
User guide
Z8F80318869
About this document
Scope and purpose
The TLD7002-16SHIELD is an LED driver shield compatible with Arduino UNO. The TLD7002-16ES is a 16
independent-channel-LED driver with individual output current from 5 mA to 76 mA and UART over CAN
interface.
The scope of this user manual is to provide instructions on use of the TLD7002-16SHIELD for a jump-start on the
TLD7002-16ES programming with the simple Arduino IDE.
This user guide describes the TLD7002-16SHIELD with PCB version P03 and P04 in which, only thermal vias are
changed. Additionally, schematic version S03 is described.
This board will be used during design-in, for evaluation and proof of concepts for new projects adopting the
TLD7002-16ES.

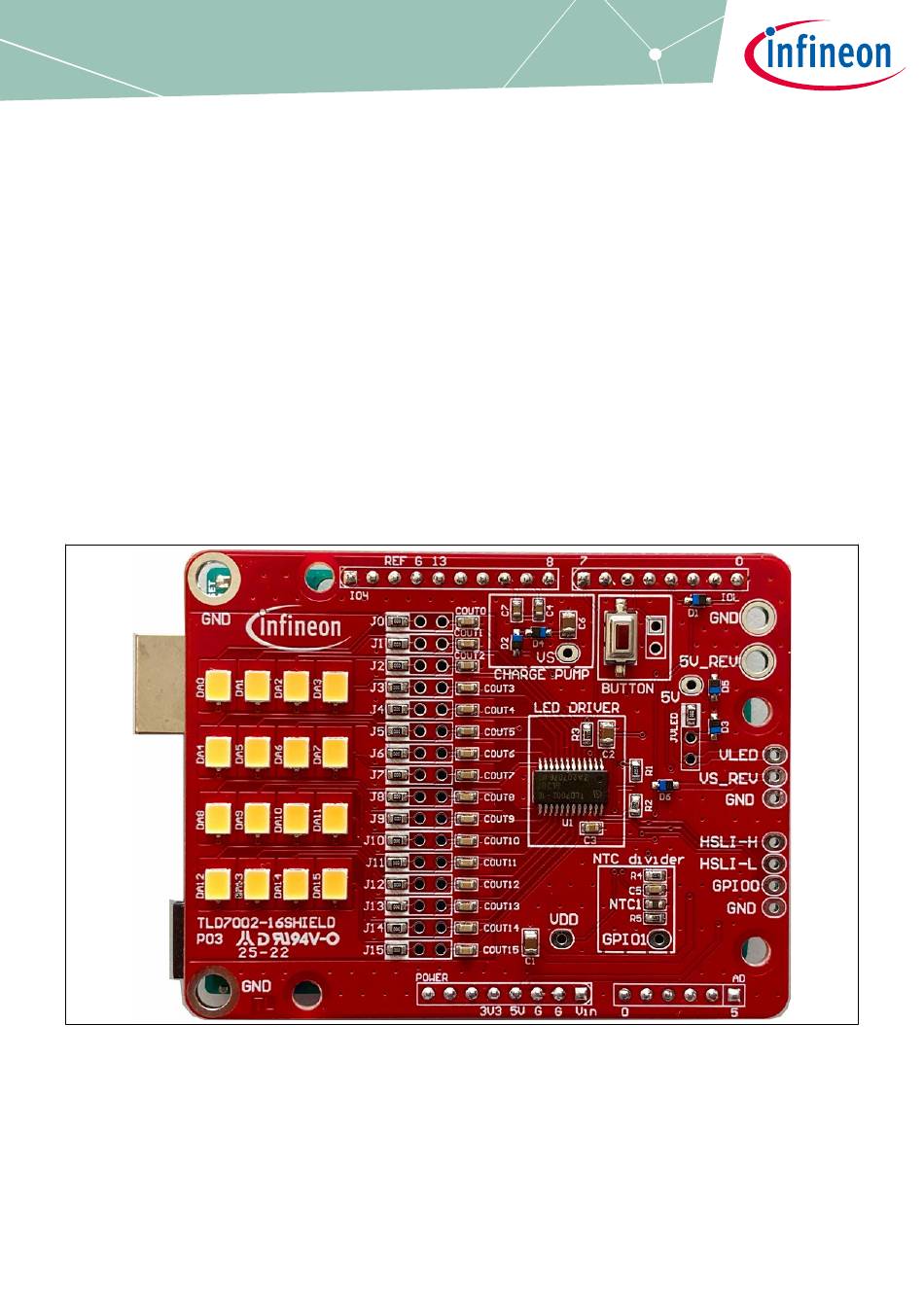

Figure 1
TLD7002-16SHIELD
Intended audience
Hardware engineers and software engineers
User guide
Please read the sections "Important notice" and "Warnings" at the end of this document
Rev.1.00
www.infineon.com
2022-07-26
Advertisement
Table of Contents
Related Manuals for Infineon TLD7002-16SHIELD
Summary of Contents for Infineon TLD7002-16SHIELD
-
Page 1: About This Document
5 mA to 76 mA and UART over CAN interface. The scope of this user manual is to provide instructions on use of the TLD7002-16SHIELD for a jump-start on the TLD7002-16ES programming with the simple Arduino IDE. -
Page 2: Table Of Contents
TLD7002-16SHIELD User guide Table of contents Table of contents About this document ..............1 Table of contents . -
Page 3: Description
TLD7002-16SHIELD User guide 1 Description Description The core of the shields is the TLD7002-16ES which features: • Output current up to 16 x 76.5 mA • UART over CAN interface up to 2 Mbit/s compliant with ISO11898-2 (2016) CAN physical layer •... -
Page 4: Tld7002-16Es Power Supply Options
TX and RX connected to TLD7002-16ES UART. The soft serial library has been slightly modified in order to handle the 230 kbps with reduced delay on adjacent bytes. The Arduino UNO can be programmed even if the TLD7002-16SHIELD is plugged into the Arduino. TLD7002-16ES Power supply options The TLD7002-16ES applications has 2 supply rails: •... - Page 5 VS_REV Figure 4 TLD7002-16SHIELD power supply connections with Arduino UNO R3 The TLD7002-16ES output currents can be as high as 76.5 mA per channel, for a total current of 1224 mA in case all outputs are on @100% duty. The current setting on the TLD7002-16ES outputs must be adjusted in order to avoid damages to the Arduino UNO circuitry.
-
Page 6: Quick Start Procedure
TLD7002-16SHIELD plugged in the Arduino UNO with USB cable The TLD7002-16SHIELD is equipped with efficient white LEDs, therefore in order to keep the glare low, a duty cycle is set to 10% on the TLD7002-16DEMO sketch V.1.0. The brightness can be easily increased by modifying the provided sketch. - Page 7 Then search for OTP Wizard (point 1) and click on Install (point 2). Figure 7 Searching Tools Once OTP wizard installation has completed, select My Tools tab (point 3) in Infineon Toolbox, then click on Start (point 4) in OTP Wizard to start the tool. Figure 8...
-
Page 8: Electrical Characteristics
99.9 – 1997 – The input current on the TLD7002-16SHIELD is equal to the sum of all of the following: • The LED currents multiplied by their duty cycle • The TLD7002-16ES supply current (VS pin) multiplied by 2, due to the charge pump •... -
Page 9: Bill Of Material
TLD7002-16SHIELD User guide 4 Bill of material Bill of material Table 2 Bill of material Designator Description Footprint Quantity 5V, GND3, GND4, GPIO0, GPIO1, HSLI-H, NO_POP_KEYSTONE 5117-1 TESTPAD KEYSTONE HSLI-L, VDD, VLED, VS, VS_REV 5117-1 NO_POP_Head 6 STRIP 6V P2.54 MD... -
Page 10: Pcb Layout
TLD7002-16SHIELD User guide 5 PCB layout PCB layout JBUT COUT0 COUT1 COUT2 5V_REV CHARGE PUMP BUTTON COUT3 LED DRIVER COUT4 COUT5 VLED COUT6 COUT7 VS_REV DA10 DA11 COUT8 COUT9 HSLI-H COUT10 DA12 DA13 DA14 DA15 NTC divider HSLI-L COUT11 GPIO0... -
Page 11: Schematics
TLD7002-16SHIELD User guide 6 Schematics Schematics Figure 11 TLD7002-16ES schematic User guide Rev.1.00 2022-07-26... -
Page 12: References
TLD7002-16SHIELD User guide References References Arduino IDE downloads; https://www.arduino.cc/en/software Infineon Developer Center Launcher ; https://www.infineon.com/cms/en/design-support/tools/utilities/ infineon-developer-center-idc-launcher/ Infineon Developer Center; https://softwaretools.infineon.com/welcome? _ga=2.13126193.788892259.1654090253-547430173.1617093564 Launcherhttps://softwaretools.infineon.com/tools/com.ifx.tb.launcher2 User guide Rev.1.00 2022-07-26... -
Page 13: Revision History
TLD7002-16SHIELD User guide Revision history Revision history Document Date of Description of changes version release Rev.1.00 2022-07-26 • Initial release User guide Rev.1.00 2022-07-26... -
