- Page 1 Model Portable energy storage power supply(PPS100) Capacity 5000MAH * 3 series 2 parallel Battery Cell 21700/4000mAh 0.5C Battery Power 88WH AC Power Correction wave AC 220V/50Hz AC Peak Value 200W peak duration < 50ms Conversion Efficiency More than 85%...
-
Page 2: Table Of Contents
Table of contents 1.Product description........................3 2.Technical parameter of product....................3 3. Product discharge time.........................4 4.Electrical characteristics of product ternary lithium protective plate........4 5.Product reliability testing....................... 5 6.Product panel description......................5 7.Product Operation Instruction.......................6 8.Product size.............................7 9.Product packing list........................8 10.Product packing instructions...................... -
Page 3: Product Description
1.Product description The design system is composed of ternary(three-element) lithium 3S2P Battery Protection Board, DC charging circuit, MCU control circuit, inverter circuit and LCD screen. AC 220V/50Hz correction wave of 100W is based on pure resistance load and USB port 5V/2a (Total) . Applicable to camping, emergency communications, medical rescue, fire rescue and other fields 2.Technical parameter of product Categories... -
Page 4: Product Discharge Time
temperature protection protection of Over temperature recovery ≤80℃ inverter 3.Product discharge time Use of Equipment Power Discharge time equipment 4000mAh About 5 times Cell phone Tungsten bulb About two hours Household fan About an hour Laptop About 2.5 hours Note: the test time of the above equipment is for reference only. It varies with different products. 4. -
Page 5: Product Reliability Testing
5.Product reliability testing Serial Inspection item Inspection Standard Test number results A fully charged power supply is placed in a temperature control box at 40 °C ± 5 °C with a relative humidity of 90%- Constant 95% for 12 hours. After being taken out and placed at 25 °C temperature and ±... -
Page 6: Product Operation Instruction

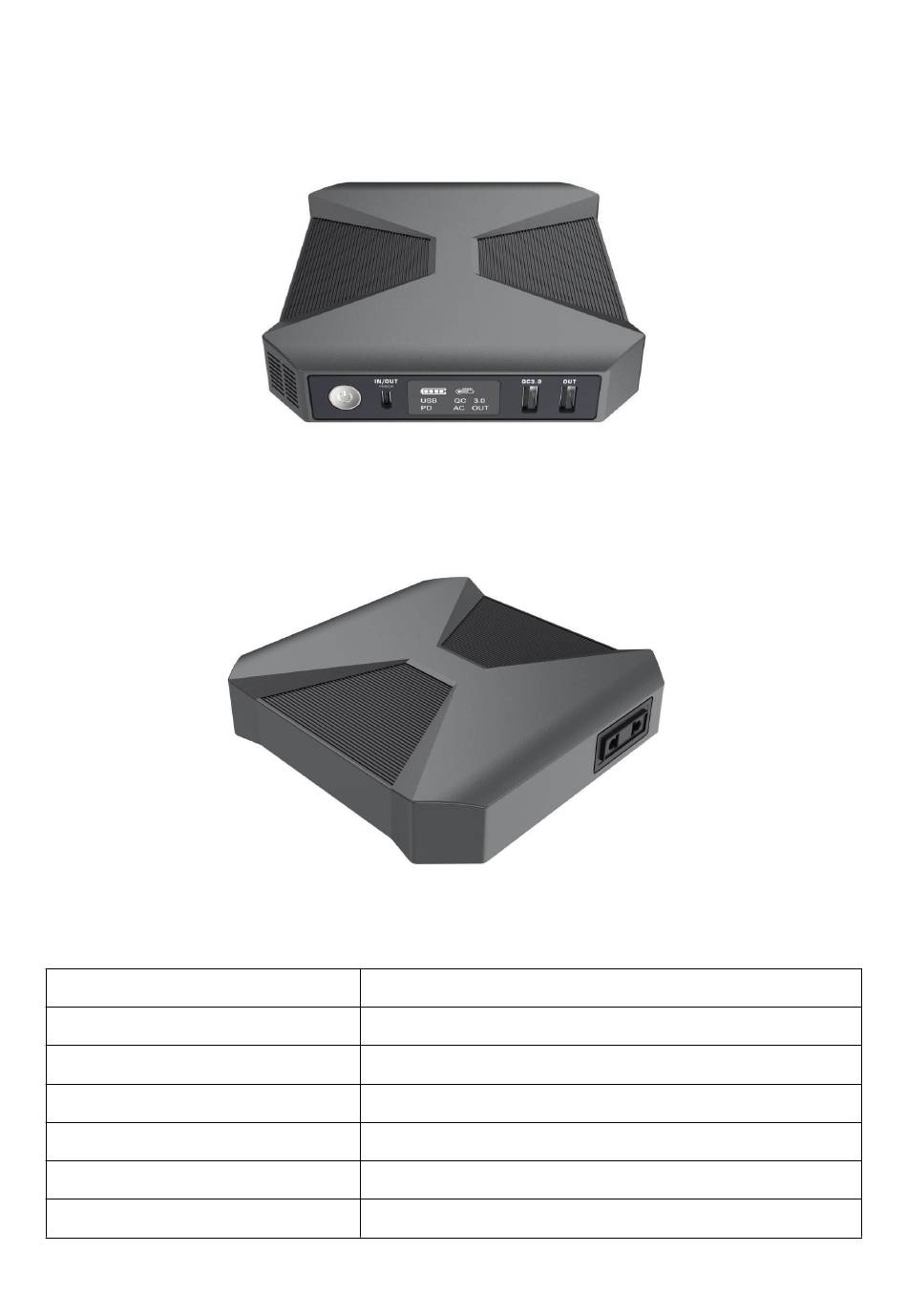

Port serial number Quantity Port State Main power switch ① TYPE-C(PD60W) ② LCD display ③ USB 2.4A ④ ① ② ③ ④ ⑤ USB QC 3.0 ⑤ 6.2 rear panel Port State Quantity Port serial number AC 220V input interface ⑥... -
Page 7: Product Size
7.1.4 please turn off the power switch immediately when abnormal operation occurs and check whether the equipment in use is abnormal. 7.1.5 after use, unplug the device and turn off the power switch. 7.1.6 turn off the unit output when the battery voltage is close to the protection voltage or when the low voltage protection is reached. -
Page 8: Product Packing List
9.Product packing list Specification type Material Code Name of material Unit Dosage Mainframes PPS100 Instruction manual Instruction manual Color Box Hand-held Power Cord 5A TYPE-C-TYPE-C line 10.Product packing instructions 10.1number of packages: 1PCS 10.2 box size: 22.9*18.8*4.7cm 10.3 packing case gross weight: 0.7 kg... -
Page 9: 11.Points For Attention In Product Operation
11.Points for attention in product operation 11.1when using this product, follow the instructions exactly. 11.2 for the product heat dissipation space, a 5CM space is reserved around the product to allow heat dissipation convection. 11.3 when the power supply of the product is insufficient, the load power exceeds the rated power or the ambient temperature is too high, the product will automatically start the protection function and turn off the output.
