Summary of Contents for Tactacam SOLO XTREME

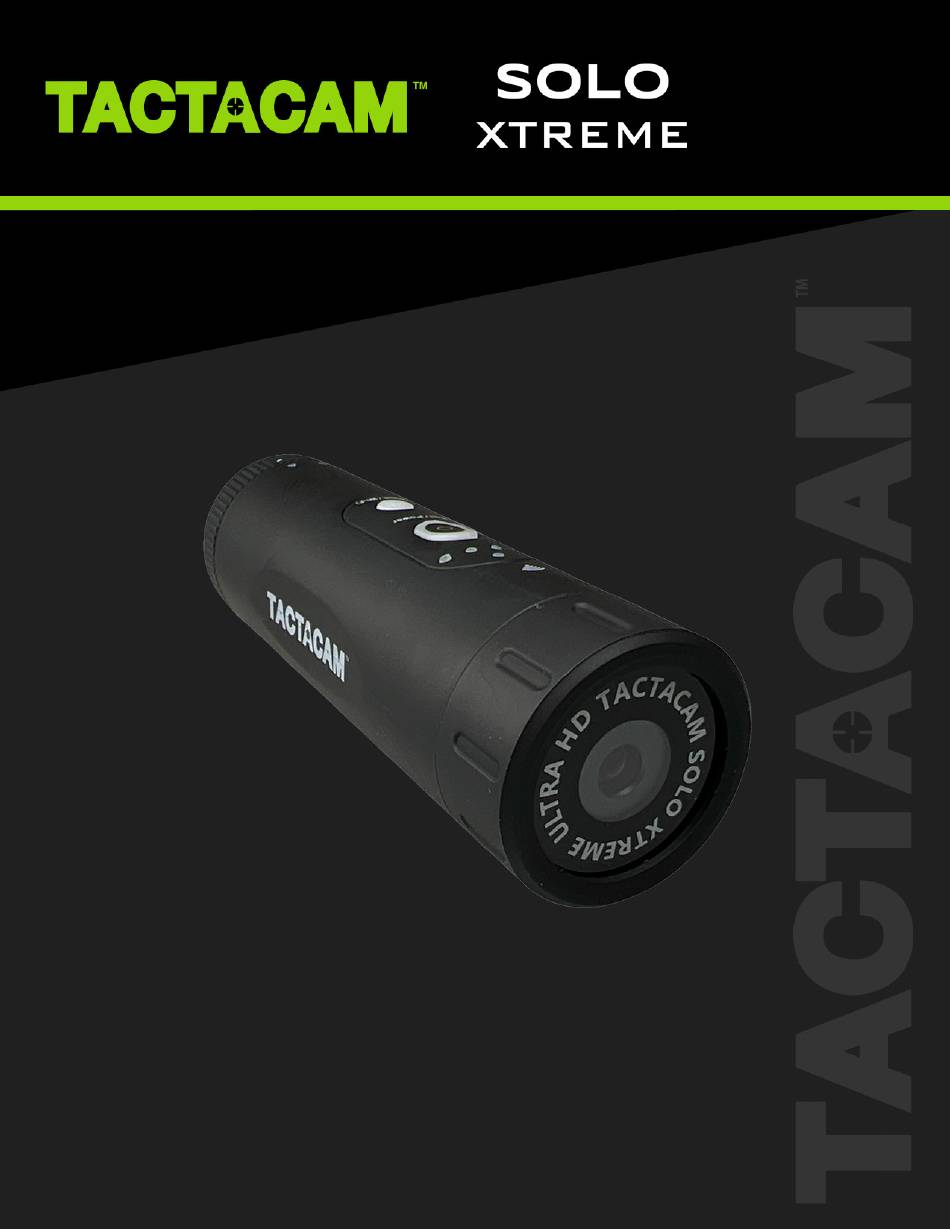

- Page 1 INSTRUCTION MANUAL TACTACAM.COM...
-
Page 2: Table Of Contents
HD @30 with Auto Adjust Low light to Reformatting Your SD Card 15fps | 2.7k@30fps | 1080p@120fps, 60fps and 30fps | CONNECT TO THE TACTACAM APP 720@240fps, 120fps, 60fps and 30fps PLAYING BACK CONTENT 7. External Waterproof Mic HELPFUL TIPS... -
Page 3: Quick Start Guide
240FPS, high frame rate video for a better shooting experience. Please use a microSD card that meets the following specifications: 1. Use U3 or higher with your Solo Xtreme (Class 10 U1 cards are not compatible and are too slow) 2. - Page 4 QUICK START GUIDE Before you start filming, charge your Tactacam completely. Twist counter clockwise to the unlock position to access the components listed below. You will see the following. SD card slot USB C port (for charging and downloading) Removable battery (up to 2.5 hours continuous recording time)
-
Page 5: Charge Your Tactacam
Using the included USB cord, plug your Tactacam into a wall outlet. USB C You will see the solid red light illuminate on your Tactacam and it will remain lit until your camera is fully charged. When the light has shut off, you can then unplug your... -
Page 6: Powering On And Recording
POWERING ON AND RECORDING 1. Push the Rec/Power button. You will feel the camera vibrate 2 times and see a blinking green light around the Rec/Power button. The green LED must be blinking for the camera to be recording. The process takes approximately 3 seconds. NOTE: If light does not begin to flash, make sure your SD card is installed, formatted, and not filled with videos. -
Page 7: Quick Change Modes
Best results are with lighted arrow nock or tracer round ammo BLACKOUT MODE Activate blackout mode in the Tactacam Connect app camera settings by turning black out mode on. Then enter Blackout mode by pressing the MODE button when the camera is recording. -
Page 8: Customizable Modes
Tactacam’s Wi-Fi with the Tactacam Connect app. MODE 2 BLUE = Zoom Mode This setting is optimal for use when the subject is in the distance. The Tactacam Solo Xtreme is set at 8x. You are able to customize the zoom setting on your Tactacam Solo Xtreme, connect to the Tactacam Connect app and select your desired zoom setting. -
Page 9: Remote Control
LCD screen: Number of connected cameras, Record length, Remote Battery life and the Green LED indicates Recording, Pause/On and Off Tactacam Remote has been optimized at 100 feet giving you the distance and control over your cameras. NOTE: Tactacam Remote is only compatible with Tactacam... -
Page 10: Reformatting Your Sd Card
Tactacam Solo Xtreme only. Note: You should always format your SD card before using it in your Tactacam for the first time or after it has been used in any other device. Only use high quality microSD cards. - Page 11 Notes: It is best to format your SD cards before using. Only use the recommended SD cards for Tactacam cameras. When formatting your SD card use ExFAT. For a list of the recommended microSD cards, visit www.tactacam.com/support Use care when handling memory cards.
-
Page 12: Connect To The Tactacam App
Follow the app’s on-screen instructions. 2. Connect to your Tactacam To turn on your Tactacam Wi-Fi: While your Tactacam is in pause mode push and hold the Mode Button for 3 seconds. (Tactacam Solo Xtreme hold the Rec/Power Button for 3 seconds.) You will see the blue LED indicator light turn on and start... - Page 13 DATE & TIME - MANUAL Your Tactacam will install a Text file on your SD card. This Text file will allow you to set the date and time.
-
Page 14: Playing Back Content
PLAYING BACK CONTENT PLAYING BACK CONTENT ON A COMPUTER Viewing, editing and sharing 1. Connect your Tactacam to your computer using the provided USB cable or by using the microSD adapter and your computers card port. 2. Open the Tactacam Video File 3. -
Page 15: Helpful Tips
DO NOT remove the battery from the camera when in use or your data will be lost. On your Tactacam Solo Xtreme there are 4 Green LED battery indicator lights. When all 4 lights are illuminated the camera battery is full. As the battery levels decreases the lights will begin to reduce in numbers till there is one LED light remaining. -
Page 16: Charging/Battery Info
USB output settings. USING THE CAMERA WHILE CHARGING Control the Tactacam Solo Xtreme with Wi-Fi while the camera is plugged into a USB charging adapter, including the Tactacam wall charger. (You cannot record while charging the camera through a computer.) Your Tactacam Solo Xtreme can also capture video when connected to a USB external charging device. - Page 17 Avoid dramatic change in temperature or humidity when using the camera, as condensation may form on or within the camera. When storing your Tactacam, charge the battery so it’s 75% or higher. Remove the battery to eliminate the possibility of internal corrosion. Replace the back cap to protect against dust and other unwanted substances.
-
Page 18: Troubleshooting
You need a Ultra 3 microSD card, at least 64GB for the Tactacam Solo, 3.0 and 4.0. Tactacam 3.0 and 4.0 will take up to a 64GB card. 5.0 will take up to 128GB. Your SD card is the heart of your camera, you can’t purchase a $430 camera and put a $6 SD card in it. - Page 19 TROUBLESHOOTING HOW DO I GET MY VIDEOS OFF MY TACTACAM? You have a few different options that. First, you can plug the camera directly into your computer using the USB cord included in your package, be sure you hit the power button once the camera is connected to make it readable by your computer.
- Page 20 Picatinny Mount or Under Scope Mount to secure their Tactacam. We also have a universal mount that you can use that works with any action camera style mount, some of which will mount onto the riser of your bow.
- Page 21 • iPhone: If the Tactacam Wi-Fi is not showing up, the customer can reset the network settings and then it should show up. • If the Tactacam Wi-Fi is turning on and showing up but they can’t connect to it, another person’s device may be connecting to it before the customer can. This can happen in a busy setting like the shop.
-
Page 22: Warranty
Tactacam is dedicated to providing the best possible service. To reach Tactacam’s Support, visit www.tactacam.com/support WARRANTY INFORMATION Register your Tactacam and sign up for the newsletter. Receive your 1 year warranty, updates, contests info and more. www.tactacam.com/warranty-registration/ Changes or modifications not expressly approved by Tactacam LLC could void the user’s authority to operate this device... - Page 23 DO NOT RETURN THIS PRODUCT TO YOUR RETAILER For any warranty issues or questions on how to film your hunts with Tactacam: CALL 218-282-5650 EMAIL SUPPORT@TACTACAM.COM 110 N Sunset Blvd, Caledonia, MN 55921 www.revealcellcam.com...
