Quick Start

PRESTIGE X570 CREATION
Thank you for purchasing the MSI
motherboard. This
®
Quick Start section provides demonstration diagrams about how to install your
computer. Some of the installations also provide video demonstrations. Please link to
the URL to watch it with the web browser on your phone or tablet. You may have even
link to the URL by scanning the QR code.

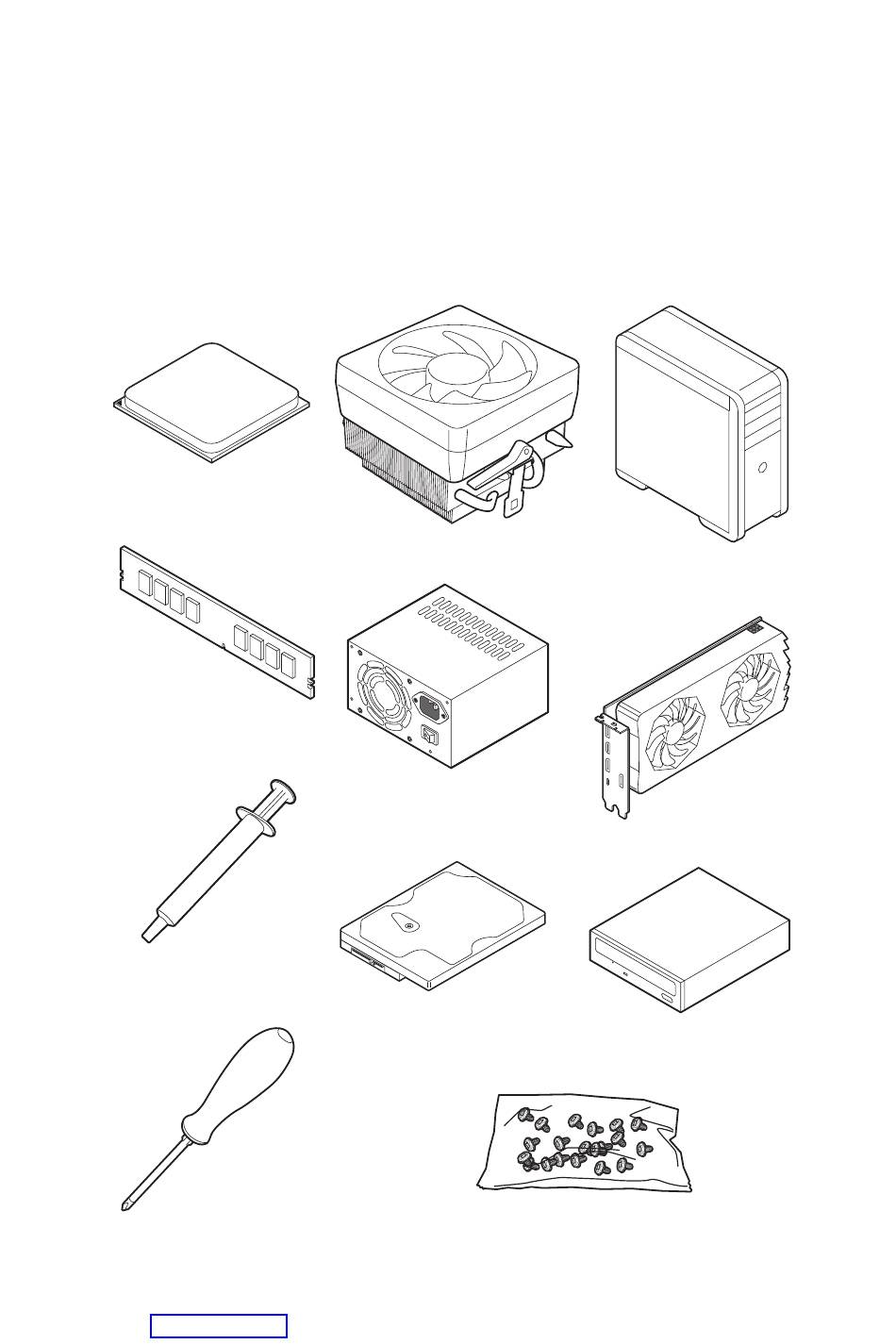

Preparing Tools and Components

AMD
AM4 CPU
®
CPU Fan
Chassis
DDR4 Memory
Power Supply Unit
Graphics Card
Thermal Paste
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
1
Quick Start
Downloaded from
ManualsNet.com
search engine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRESTIGE X570 CREATION and is the answer not in the manual?

Questions and answers

Related Manuals for MSI PRESTIGE X570 CREATION

Summary of Contents for MSI PRESTIGE X570 CREATION

  • Page 1: Quick Start

    Quick Start PRESTIGE X570 CREATION Thank you for purchasing the MSI motherboard. This ® Quick Start section provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

  • Page 2: Safety Information

    Safety Information y The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. y Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

  • Page 3: Installing A Processor

    Installing a Processor https://youtu.be/Xv89nhFk1vc Quick Start Downloaded from ManualsNet.com search engine...
  • Page 4 Important If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink. Quick Start Downloaded from ManualsNet.com search engine...

  • Page 5: Installing Ddr4 Memory

    Installing DDR4 memory http://youtu.be/T03aDrJPyQs DIMMA1 DIMMA2 DIMMA2 DIMMA2 DIMMB2 DIMMB1 DIMMB2 Quick Start Downloaded from ManualsNet.com search engine...

  • Page 6: Connecting The Front Panel Header

    Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +...

  • Page 7: Installing The Motherboard

    Installing the Motherboard Quick Start Downloaded from ManualsNet.com search engine...

  • Page 8: Connecting The Power Connectors

    Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR2 CPU_PWR1 Quick Start Downloaded from ManualsNet.com search engine...

  • Page 9: Installing Sata Drives

    Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start Downloaded from ManualsNet.com search engine...

  • Page 10: Installing A Graphics Card

    Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start Downloaded from ManualsNet.com search engine...

  • Page 11: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start Downloaded from ManualsNet.com search engine...

  • Page 12: Power On

    Power On Quick Start Downloaded from ManualsNet.com search engine...

  • Page 13: Table Of Contents

    Contents Quick Start ......................1 Preparing Tools and Components ................1 Safety Information ....................2 Installing a Processor ..................... 3 Installing DDR4 memory ..................5 Connecting the Front Panel Header ............... 6 Installing the Motherboard ..................7 Connecting the Power Connectors ................. 8 Installing SATA Drives.....................
  • Page 14 JTPM1: TPM Module Connector ................45 JRGB1: RGB LED connector ................. 46 JRAINBOW1~2: Addressable RGB LED connectors ..........47 JCORSAIR1: CORSAIR Connector ................ 48 Onboard LEDs ...................... 49 EZ Debug LED ....................... 49 A-XMP LED ......................49 JPWRLED1: LED power input ................49 CPU Power LED ....................
  • Page 15 AMD RAID Configuration ..................79 Enabling RAIDXpert2 Configuration Utility ............79 Initializing Disks ....................80 Creating Arrays ..................... 81 Deleting Arrays ..................... 82 Installing RAID Driver ................... 83 Troubleshooting ....................84 Contents Downloaded from ManualsNet.com search engine...

  • Page 16: Specifications

    Supports non-ECC UDIMM memory y Supports ECC UDIMM memory (non-ECC mode) y Supports un-buffered memory * Please refer www.msi.com for more information on compatible memory. y 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5) ƒ 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 mode ƒ...
  • Page 17 Continued from previous page y 6x SATA 6Gb/s ports ƒ SATA1~SATA4 ports (from AMD X570 Chipset) ® ƒ SATA5~SATA6 ports (from ASMedia ASM1061) y 2x M.2 slots (Key M)* ƒ M2_1 slot (from AMD Processor) supports PCIe ® 4.0 x4 (3rd Gen AMD Ryzen™) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™...
  • Page 18 Continued from previous page 1x Realtek ALC1220 Codec ® Audio y 7.1-Channel High Definition Audio y Supports S/PDIF output y 1x Clear CMOS button y 1x PS/2 keyboard/ mouse combo port y 2x USB 2.0 ports y 2x Wi-Fi Antenna connectors y 10x USB 3.2 Gen1 Type-A ports Back Panel y 1x Gigabit LAN (RJ45) port...
  • Page 19 Multi-language y Drivers y CREATOR CENTER y Nahimic Audio Software y CPU-Z MSI GAMING y MSI App Player (BlueStacks) y Google Chrome™, Google Toolbar, Google Drive y Norton™ Internet Security Solution y CREATOR OPTIMIZATION y High Performance y Hardware Monitor...
  • Page 20 Continued from previous page y Audio ƒ Audio Boost 4 ƒ Nahimic 3 ƒ Voice Boost y Network ƒ 10G SUPER LAN ƒ GAMING LAN with Gaming LAN Manager ƒ Intel WiFi y Storage Special Features ƒ Lightning Gen4 M.2 ƒ...

  • Page 21: Jcorsair1 Connector Specification

    Continued from previous page y Performance ƒ Lightning Gen4 PCI-E Slot ƒ Multi GPU-SLI Technology ƒ Multi GPU-CrossFire Technology ƒ DDR4 Boost ƒ Core Boost ƒ GAME Boost ƒ USB with type A+C ƒ AMD Turbo USB 3.2 Gen 2 ƒ...

  • Page 22: Package Contents

    Package contents Please check the contents of your motherboard package. It should contain: Motherboard PRESTIGE X570 CREATION SATA 6Gb/s Cables 1 to 2 RGB LED Extension Y Cable 80cm Cable CORSAIR RGB LED Extension Cable 50cm RAINBOW RGB LED Extension Cable 80cm...

  • Page 23: Block Diagram

    Block Diagram Rear Audio Jacks NUVOTON Realtek 6797 ALC1220 2 Channel DDR4 Memory Processor 1x M.2 Switch PCI Express Bus 2x USB 3.2 Gen1 2x USB 3.2 Gen2 1x M.2 PCIE 4x SATA 6Gb/s 1x Intel Wi-Fi 6 AX200 ® 2x SATA 6Gb/s 1061 1x Intel...

  • Page 24: Rear I/O Panel

    Rear I/O Panel Gigabit 10Gigabit Audio Ports Wi-Fi Antenna connectors PS/2 Clear CMOS button Optical S/PDIF-Out USB 2.0 Type-A USB 3.2 Gen1 USB 3.2 Gen1 USB 3.2 Gen2 Type-A* USB 3.2 Gen2 Type-C* *USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™...

  • Page 25: Realtek Audio Console

    Realtek Audio Console After Realtek Audio Console is installed. You can use it to change sound settings to get better sound experience. Application Enhancement Device Selection Main Volume Connector Settings Jack Status y Device Selection - allows you to select a audio output source to change the related options.
  • Page 26 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel Downloaded from ManualsNet.com search engine...
  • Page 27 Installing Antennas 1. Combine the antenna with the base. 2. Screw two antenna cables tight to the WiFi antenna connectors as shown. 3. Place the antenna as high as possible. Rear I/O Panel Downloaded from ManualsNet.com search engine...

  • Page 28: Overview Of Components

    Overview of Components CPU Socket CPU_PWR2 PUMP_FAN1 JRGB1 CPU_PWR1 CPU_FAN1 SYS_FAN1 JCORSAIR1 T_SEN1 T_SEN2 SYS_FAN7 SYS_FAN6 DIMMB2 DIMMB1 DIMMA2 DIMMA1 ATX_PWR1 JUSB5 PCI_E1 PCI_E2 SATA▼1▲2 PCI_E3 SATA▼3▲4 M2_1 SATA▼5▲6 PCI_E4 PCI_E5 JUSB4 M2_2 PCI_E6 JUSB3 PCI_E7 JRAINBOW1 JAUD1 JRAINBOW2 JFP1 SYS_FAN2 JFP2 JTPM1...
  • Page 29 Component Contents Port Name Port Type Page CPU_FAN1, PUMP_FAN1, Fan Connectors SYS_FAN1~7 CPU_PWR1~2, ATX_PWR1 Power Connectors CPU Socket AM4 Socket DIMMA1/A2/B1/B2 DIMM Slots JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JCORSAIR1 CORSAIR Connector JFP1, JFP2 Front Panel Connectors JPWRLED1...

  • Page 30: Cpu Socket

    This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommended. MSI does not guarantee the damages or risks caused by inadequate ®...

  • Page 31: Dimm Slots

    Due to AM4 CPU/memory controller official specification limitation, the frequency of memory modules may operate lower than the marked value under the default state. Please refer www.msi.com for more information on compatible memory. Overview of Components Downloaded from ManualsNet.com...

  • Page 32: Pci_E1~7: Pcie Expansion Slots

    PCI_E1~7: PCIe Expansion Slots Ryzen™ with Radeon™ Vega 3rd Gen AMD 2nd Gen AMD Slots Graphics and 2nd Gen AMD Ryzen™ Ryzen™ Ryzen™ with Radeon™ Graphics PCI_E1 PCIe 2.0 x1 PCIe 2.0 x1 PCIe 2.0 x1 PCI_E2 PCIe 4.0 x16 PCIe 3.0 x16 PCIe 3.0 x8 PCI_E3...
  • Page 33 Important If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. For a single PCIe x16 expansion card installation with optimum performance, using the PCI_E2 slot is recommended.
  • Page 34 Installing SLI graphics cards For power supply recommendations for SLI configurations, please refer to the user guide of your graphics card to make sure you meet all the system requirements. To install SLI graphics cards: 1. Turn off your computer and disconnect the power cord, install two graphics cards into the PCI_E2 and PCI_E5 slots.

  • Page 35: M2_1~2: M.2 Slots (Key M)

    M2_1~2: M.2 Slots (Key M) The following table describes the relationship between the M.2 slots and the PCIe bandwidth of the processors. Ryzen™ with Radeon™ 3rd Gen 2nd Gen Vega Graphics and 2nd Gen Slots AMD Ryzen™ with Radeon™ Ryzen™ Ryzen™...

  • Page 36: Jaud1: Front Audio Connector

    3. Move the position of the standoffs according to your M.2 SSDs length if need. 4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle. 5. Secure the M.2 SSD in place with the supplied M.2 8.5H screw. 30º...
  • Page 37 Installing M.2 XPANDER-Z GEN 4 To install the M.2 XPANDER-Z GEN 4 card, please follows the steps below. 1. Remove the heatsink by loosening four screws on the back of the M.2 XPANDER-Z GEN 4 card. 2. Loosen M.2 screw from M.2 standoff. 3.
  • Page 38 1. Insert the M.2 XPANDER-Z GEN 4 card into the PCI_E5 slot. Important PCI_E2 and PCI_E5 slots support the M.2 XPANDER-Z GEN 4 card. 2. Use the screw to secure the M.2 XPANDER-Z GEN 4 card. PCI_E5 3. Connect the PCIE_PWR1 to the power supply. 4.

  • Page 39: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch...

  • Page 40: Cpu_Pwr1~2, Atx_Pwr1: Power Connectors

    CPU_PWR1~2, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1/ CPU_PWR2 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V...

  • Page 41: Cpu_Fan1, Pump_Fan1, Sys_Fan1~7: Fan Connectors

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~7: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. This motherboard can automatically detect PWM and DC mode.

  • Page 42: T_Sen1~2: Thermal Sensor Connectors

    T_SEN1~2: Thermal Sensor Connectors These connectors allow you to connect the thermistor cable and use it to monitor the temperature of the detection point. Thermistor cable Sense JUSB5: USB 3.2 Gen2 Type-C Connector This connector allows you to connect the USB 3.2 Gen2 Type-C connector on the front panel.

  • Page 43: Jusb3~4: Usb 3.2 Gen1 Connectors

    No Pin Important Note that the VCC and Ground pins must be connected correctly to avoid possible damage. In order to recharge your iPad,iPhone and iPod through USB ports, please install MSI CREATOR CENTER utility. Overview of Components Downloaded from ManualsNet.com...

  • Page 44: Power1, Reset1: Power Button, Reset Button

    POWER1, RESET1: Power Button, Reset Button The Power / Reset button allows you to power on / reset the computer. Reset button Power button JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data.

  • Page 45: Jci1: Chassis Intrusion Connector

    JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event (default) Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2.

  • Page 46: Jrgb1: Rgb Led Connector

    (12V/G/R/B) with the maximum power rating of 3A (12V). Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’ s software to control the extended LED strip. Overview of Components Downloaded from ManualsNet.com...

  • Page 47: Jrainbow1~2: Addressable Rgb Led Connectors

    20% brightness, the connector supports up to 200 LEDs. Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’ s software to control the extended LED strip. Overview of Components Downloaded from ManualsNet.com...

  • Page 48: Jcorsair1: Corsair Connector

    The JCORSAIR1 connector allows you to connect the CORSAIR Individually Addressable RGB LED strips 5V or CORSAIR RGB LED fans with the CORSAIR fan hub. Once all items are connected properly, you can control the CORSAIR RGB LED strips and fans with MSI's software. JCORSAIR1 Data...

  • Page 49: Onboard Leds

    Onboard LEDs EZ Debug LED These LEDs indicate the debug status of the motherboard. CPU - indicates CPU is not detected or fail. DRAM - indicates DRAM is not detected or fail. VGA - indicates GPU is not detected or fail. BOOT - indicates the booting device is not detected or fail.

  • Page 50: Cpu Power Led

    CPU Power LED This LED indicates that the 8-pin CPU power connectors (CPU_PWR1 and CPU_PWR2) are only connected to the 4-pin power connector. Important When the CPU Power LED is lit, your computer may be started, but insufficient power may cause system stability issues. CPU Power LED LED color CPU power connectors status...

  • Page 51: Debug Code Led

    Debug Code LED The Debug Code LED displays progress and error codes during and after POST. Refer to the Debug Code LED table for details. Debug Code LED Hexadecimal Character Table Hexadecimal 0 1 2 3 4 5 6 7 8 9 A B C D E F Debug Code LED display Boot Phases...
  • Page 52 SEC Error Codes 0C - 0D Reserved for future AMI SEC error codes Microcode not found Microcode not loaded PEI Progress Codes PEI Core is started Pre-memory CPU initialization is started 12 - 14 Pre-memory CPU initialization (CPU module specific) Pre-memory System Agent initialization is started 16 - 18 Pre-Memory System Agent initialization (System Agent module specific)
  • Page 53 64 - 67 CPU DXE initialization (CPU module specific) PCI host bridge initialization System Agent DXE initialization is started System Agent DXE SMM initialization is started 6B - 6F System Agent DXE initialization (System Agent module specific) PCH DXE initialization is started PCH DXE SMM initialization is started PCH devices initialization 73 - 77...
  • Page 54 Ready To Boot event Legacy Boot event Exit Boot Services event Runtime Set Virtual Address MAP Begin Runtime Set Virtual Address MAP End Legacy Option ROM Initialization System Reset USB hot plug PCI bus hot plug Clean-up of NVRAM Configuration Reset (reset of NVRAM settings) B8 - BF Reserved for future AMI codes DXE Error Codes...

  • Page 55: Acpi States Codes

    S3 OS Wake Error EC - EF Reserved for future AMI error codes Recovery Progress Codes Recovery condition triggered by firmware (Auto recovery) Recovery condition triggered by user (Forced recovery) Recovery process started Recovery firmware image is found Recovery firmware image is loaded F5 - F7 Reserved for future AMI progress codes Recovery Error Codes...

  • Page 56: Installing Os, Drivers & Utilities

    Installing OS, Drivers & Utilities Please download and update the latest utilities and drivers at www.msi.com Installing Windows ® 1. Power on the computer. 2. Insert the Windows ® 10 installation disc/USB into your computer. 3. Press the Restart button on the computer case.

  • Page 57: Bios Setup

    BIOS Setup The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS. Important BIOS items are continuously update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be for reference only.

  • Page 58: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port.

  • Page 59: Ez Mode

    EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. A-XMP switch Setup Mode switch Screenshot...
  • Page 60 y Information display - click on the CPU, Memory, Storage, Fan Info and Help buttons on left side to display related information. y Function buttons - enable or disable the LAN Option ROM, CSM/UEFI, ErP Ready, AHCI, RAID, Indication LED Control and RGB Light Control by clicking on their respective button.

  • Page 61: Advanced Mode

    Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. A-XMP switch Setup Mode switch Screenshot Search Language System information Boot device GAME BOOST priority bar switch BIOS menu BIOS menu selection selection...

  • Page 62: Settings

    SETTINGS System Status f System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>...
  • Page 63 fPCI_EX - Max Link Speed [Auto] Sets PCI Express protocol of CPU-controlled PCIe x16 slots to match different installed devices. [Auto] This item will be configured automatically by BIOS. [Gen1] Enables PCIe Gen1 support only. [Gen2] Enables PCIe Gen2 support only. [Gen3] Enables PCIe Gen3 support only.
  • Page 64 fNetwork Stack [Disabled] Sets UEFI network stack for optimizing IPv4 / IPv6 function. This item is available when Onboard LAN Controller is Enabled. [Enabled] Enables UEFI network stack. [Disabled] Disables UEFI network stack. fIpv4 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv4 protocol. This item will appear when Network Stack is Enabled.
  • Page 65 f Power Management Setup Sets system Power Management of ErP Ready and AC Power Loss behaviors. Press Enter to enter the sub-menu. fErP Ready [Disabled] Enables or disables the system power consumption according to ErP regulation. [Enabled] Optimize the system power consumption according to ErP regulation.
  • Page 66 fDate (of month) Alarm/ Time (hh:mm:ss) Alarm Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the system will automatically resume (boot up) on a specified date/hour/minute/second in these fields (using the + and - keys to select the date & time settings). fResume By PCI-E Device [Disabled] Enables or disables the wake up function of installed PCI/ PCI-E expansion cards, integrated LAN controllers or USB devices which are supported by third party...

  • Page 67: Boot

    Boot Sets the sequence of system boot devices. f Full Screen Logo Display [Enabled] Enables or disables to show the full screen logo while system POST. [Enabled] Shows the logo in full screen. [Disabled] Shows the POST messages. f Bootup NumLock State [On] Select the keyboard NumLock state upon bootup.

  • Page 68: Security

    Security f Administrator Password Sets administrator password for system security. User has full rights to change the BIOS items with administrator password. After setting the administrator password, the state of this item will show Installed. f User Password Sets User Password for system security. User has limited rights to change the BIOS items with user password.

  • Page 69: Save & Exit

    fChassis Intrusion [Disabled] Enables or disables recording messages while the chassis is opened. This function is ready for the chassis equips a chassis intrusion switch. [Enabled] Once the chassis is opened, the system will record and issue a warning message. [Reset] Clear the warning message.
  • Page 70 Important Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty or severely damage your hardware. If you are unfamiliar with overclocking, we advise you to use GAME BOOST function for easy overclocking.
  • Page 71 f Memory Retry Count [5] Sets counts for memory OC retrying. When memory OC has failed, setting this item as [5] will allow system to reboot 5 times with the same overclocked configuration. If overclocking has failed every time, the system will restore the defaults. f Advanced DRAM Configuration (optional) Press Enter to enter the sub-menu.
  • Page 72 f CPU Features Press Enter to enter the sub-menu. fSimultaneous Multi-Threading [Enabled] (optional) Enables/ disables the AMD Simultaneous Multi-Threading. This item appears when the installed CPU supports this technology. fGlobal C-state Control [Enabled] (optional) Enables/ disables IO based C-state generation and DF C-states. fOpcache Control [Auto] (optional) Enables/ disables Opcache.

  • Page 73: M-Flash

    M-FLASH provides the way to update BIOS with a USB flash drive. Please down-load the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS.

  • Page 74: Oc Profile

    OC PROFILE f Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub- menu. fSet Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. fSave Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Save the current overclocking profile.

  • Page 75: Hardware Monitor

    HARDWARE MONITOR Speed Fan Manage Setting Buttons Temperature Voltage f Speed/ Temperature/ Voltage Instantly display fan speed, temperature, and voltage for CPU, memory, and system environments. f Fan Manage ƒ PWM - allows you to select the PWM mode for fan operation. ƒ...

  • Page 76: Nahimic 3

    Sound Tracker. Installation and Update Nahimic 3 is included in the audio driver. If you need to install it or update it, please use the Driver Disc with your motherboard or download the driver from MSI’ s official website. Audio Tab From this tab, you can access all of Nahimic 3’...

  • Page 77: Microphone Tab

    ƒ Voices - it boosts (or removes) the speech in movies, video games and incoming communication from -12 to +12 dB. ƒ Bass - increases (or decreases) the energy in low frequencies from -12 to +12 dB. ƒ Treble - increases (or decreases) the energy in high frequencies from -12 to +12 y Reset Button - restores the current profile to its default values.

  • Page 78: Sound Tracker Tab

    Sound Tracker Tab The Sound Tracker is an FPS oriented feature that provides a visual indication localizing the sources of the sounds while in a game. These are represented by dynamic segments pointing the direction of the sounds: the more opaque they are, the stronger the sounds are.

  • Page 79: Amd Raid Configuration

    AMD RAID Configuration The following are the RAID levels supported by RAIDXpert2. RAID 0 (Striping) breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 (Mirroring) provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.

  • Page 80: Initializing Disks

    Initializing Disks New disks and legacy disks must be initialized before they can be used to create an AMD-RAID array. Initialization writes AMD-RAID configuration information (metadata) to a disk. Important If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization. To initial the disk anyway, delete the AMD-RAID array.

  • Page 81: Creating Arrays

    Creating Arrays Arrays can be created after the disks are initialized. Important For redundant arrays, the Create process is not started until after the operating system and AMD-RAID OS drivers have been installed and the system has booted to the operating system. However, the arrays are immediately available to use for either a bootable array or a data array.

  • Page 82: Deleting Arrays

    Deleting Arrays Important Deleting an array permanently destroys all data that is on the array. This action cannot be undone and it is very unlikely that the data can be recovered. Do not delete the first array listed in the Arrays section, if it is the AMD-RAID bootable array.

  • Page 83: Installing Raid Driver

    2. When prompted, insert the USB flash drive with AMD RAID Drivers and then click Browse. ƒ To make an AMD RAID Drivers USB flash drive. Insert the MSI Driver Disc into the optical drive. Copy all the contents in \\Storage\AMD\AMD\Packages\Drivers\ SBDrv\RAID_NVMe 3.

  • Page 84: Troubleshooting

    Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting ∙ Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below.
  • Page 85 The point of contact for regulatory matters is MSI, recycling and disposing of their end-of-life products. MSI-NL Eindhoven 5706 5692 ER Son. y Visit the MSI website and locate a nearby distributor B급 기기 (가정용 방송통신기자재) for further recycling information.
  • Page 86 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.
  • Page 87 及醫療用電波輻射性電機設備之干擾 。 saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva Products with radio functionality (EMF) ritirando tutti i prodotti marchiati MSI che sono stati This product incorporates a radio transmitting venduti all’interno dell’Unione Europea alla fine del...
  • Page 88 Micro-Star Int’ l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. MSI reserves the right to make changes to this document without prior notice. Technical Support...
