Trionic 20-00-001 Assembly Instructions

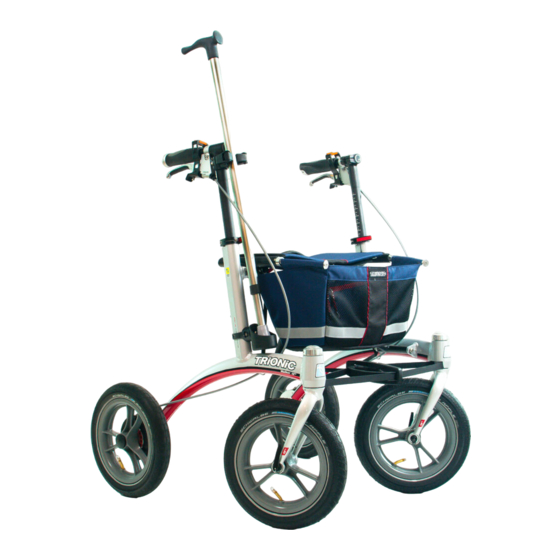

Walker Caneholder – Assembly Instructions
2-piece cane holder that is attached to the handle and
the frame of the Walker. The upper part has a smart
quick-lock function, and the cane can quickly be at-
tached and removed. Fits the rollators Walker 9er, 12er
and, 14er.
Needed tools: Allan key (size 4 mm),
Scan the QR-code with your
Phillips screwdriver and Nippers
smart phone or device to view
video instructions.
❶
Turn the upper holder so that the logotype is facing up-
wards.
Note: The logo facing upwards.
❷
Snap the holder onto the upper part of the hand grip tube.
Snap the holder onto the upper part of the hand grip tube and
then screw it in place with a Phillips screwdriver.
❸
If you attach the both Cane Holder and the Backrest
Note: You need to tilt the backrest outwards, approximately 30
degrees, to be able to fit the cane holder and the backrest on
the Walker.
