Intellisystem IT I320SIR Quick Start Manual

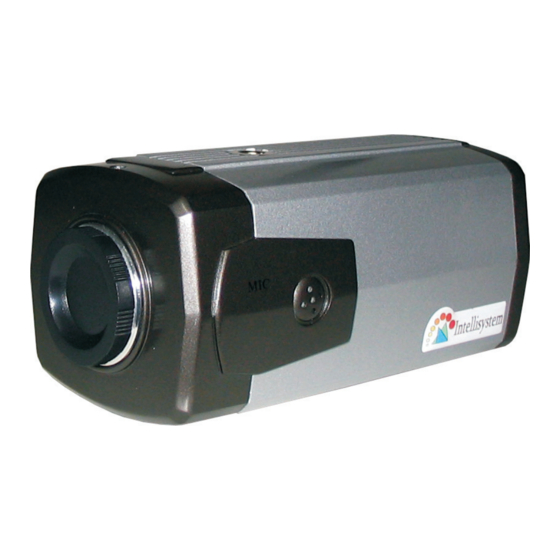

IT I320SIR
Day&Nigth Digital CCD Camera
The IT I320SIR is a professional high quality
Digital Day&Nigth CCD Camera with SONY
SuperHAD CCD technology and digital signal
processor (DSP).
o r d e r t o b e s t r o n g l y r e s i s t a n t t o
electromagnetic field and to be installed in a
wide range of operating temperature.
lightweight and compact size, this camera is
the perfect solution for professional
monitoring and surveillance application.

CAUTIONS

1. The applied power supply is DC 11.5
current should not be more than 300mA.
2. Do not expose the camera to rainy or highly
moist conditions.
3. Avoid using under abnormally high or low
t e m p e r a t u r e c o n d i t i o n s . ( R e c o m m e n d e d
temperature range: -10
4. Do not install the camera in places with direct
sunlight.
5. Installing under fluorescent or incandescent light
immediately may cause flicker of the monitor. It
does not mean the camera is damaged.
6. When installing the camera in an industrial estate
or downtown (i.e. within workshops or near to other
electronic devices, etc.), make sure to avoid any
The camera is designed in
5 0 ).
strong electromagnetic field.
7. Do not connect any power supply directly to
the terminal of the VIDEO OUT connector,
which may cause damage.
DAY
8. When using a video/power multiplex
&
NIGHT
transmission cable, check the specifications of
420
your monitor so as to connect with the video
TV LINE
signal terminal of the camera properly.
CCD
9. Do not make any connections or operations
1/3"
to the camera with the wet hands. This may
12
cause an electric shock.
VDC
10. Once the camera not worked properly, cut
off the power supply immediately, then check all
connectors power supply cables and video
cables to see whether they are properly
connected.
NOTE : Facing the camera lens to sun light
directly may cause damages to the CCD.
With its

OPERATION

1. Before the lens mounting, loosen the two
screws on the ring and rotate this ring clockwise
until it stops. If the ring is not fixed, the inner
glass of lens or CCD image sensor may be
damaged.
14V, the
Mount the lens by turning it clockwise on the
!
lens mount of the camera.
Connect the lens cable to the auto iris lens
!
mount of the camera.
2. Focus or Back Focal Adjustment.
The following adjustment should be made by
qualified service personnel or system installers.
Loosen the screws on the back focal adjusting
!
ring.
Turn the back focal adjusting ring to desired
!
position.
CAUTION: When the lens is mounted, do not
rotate the ring counter clockwise by force. If the
ring is rotated by force, the inner glass of lens
or CCD image sensor may be damaged.
3. Tighten the screws on the back focal
adjusting ring.
,
telli system.it
