Preface Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co�, Ltd� All rights reserved� The MSI logo used is a registered trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be trademarks of their respective owners� No warranty as to accuracy or completeness is expressed or implied�... -
Page 4: Upgrade And Warranty
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor� Alternatively, please try the following help resources for further guidance� Visit the MSI website for technical guide, BIOS updates, driver updates and other information via https://www�msi�com/... -
Page 5: Environmental Policy
Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products� ◙ Visit the MSI website and locate a nearby distributor for further recycling information� ◙ Users may also reach us at gpcontdev@msi�com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products�... -
Page 6: Safety Instructions
Safety Instructions ◙ Read the safety instructions carefully and thoroughly� ◙ All cautions and warnings on the equipment or user’s manual should be noted� Keep the User’s Guide that comes with the package for future reference� Keep this equipment away from humidity and high temperature� Lay this equipment on a reliable flat surface before setting it up. - Page 7 Preface Do not leave the equipment in an unconditioned environment with a storage temperature above 60 C or below 0 C, which may damage the equipment� NOTE: The maximum operating temperature is around 40 C� Never pour any liquid into the opening that could damage or cause electrical shock�...
-
Page 8: Ce Conformity
CE Conformity Hereby, Micro-Star International CO�, LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive� FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules�... -
Page 9: Rohs Statement
Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products�... - Page 10 Downloaded from ManualsNet.com search engine...
-
Page 11: Overview

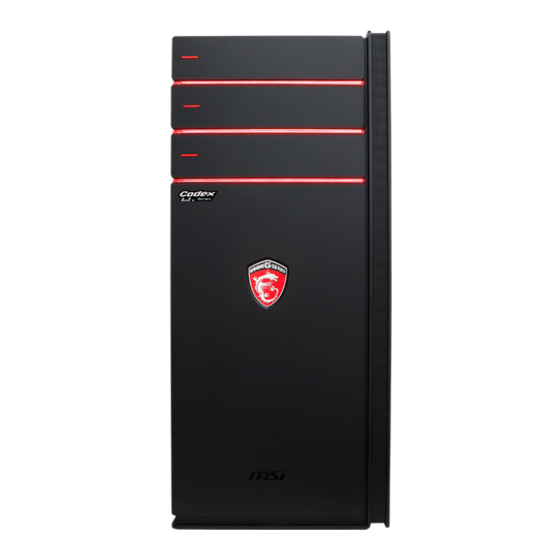

Overview Congratulations for purchasing the Codex Series Personal Computer System� This system is your best PC choice� With the fantastic appearance, it can easily be set anywhere� The feature packed platform also gives you an exciting PC experience� Downloaded from ManualsNet.com... -
Page 12: Packing Contents
Packing Contents Driver/ Utility Disc (Optional) System AC Power Cord User Manual & Warranty Card & Mouse (Optional) Quick Guide (Optional) Warranty Book Keyboard (Optional) * Please contact us immediately if any of the items is damaged or missing� * The illustrations are for reference only and your packing contents may slightly vary depending on the model you purchased�... -
Page 13: System Overview
Overview System Overview 17 16 Codex 3 B913 (H310M PRO-M2)/ Codex 3 8 B913, Codex 3 9 B913 (H310M PRO-M2 PLUS) Downloaded from ManualsNet.com search engine... - Page 14 17 16 Codex 3F B913 (H310-F PRO)/ Codex 3BF B913 (B360-F PRO) Downloaded from ManualsNet.com search engine...
- Page 15 Overview Power Button Press the power button to turn the system on and off. Hard Disk Drive LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected�...
- Page 16 HDMI-Out Port The High-Definition Multimedia Interface (HDMI) is an all-digital audio/ video interface capable of transmitting uncompressed streams� HDMI supports all TV format, including standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable� LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN)�...
- Page 17 Overview Ventilator The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating� Do not cover the ventilator� Power Supply Switch Switch this switch to I can turn on the power supply� Switch it to 0 to cut off the power circulation.
- Page 18 19 18 22 21 Codex XE Plus B913 (Z390-A PRO) Downloaded from ManualsNet.com search engine...
- Page 19 Overview Power Button Press the power button to turn the system on and off. Hard Disk Drive LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected�...
- Page 20 DVI-D Port (Optional) The DVI-D (Digital Visual Interface-Digital) connector allows you to connect a LCD monitor� It provides a high-speed digital interconnection between the computer and its display device� To connect an LCD monitor, simply plug your monitor cable into the DVI-D connector, and make sure that the other end of the cable is properly connected to your monitor (refer to your monitor manual for more information�) DisplayPort...
- Page 21 Overview Line-In Jack Used for connecting external audio outputting devices� Line-Out Jack Used as a connector for speakers or headphones� Microphone Jack This connector is provided for microphones� RS-Out Rear surround sound line out in 4/ 5�1/ 7�1 channel mode� CS-Out Center/ subwoofer line out in 5�1/ 7�1 channel mode�...
-
Page 22: Component Replacement & Upgrade
Component Replacement & Upgrade Please note that certain components preinstalled in the product may be upgradable or replaceable by user’s request depending on the models users purchased� 1-12 For any further information on the product users purchased, please contact the local dealer�... -
Page 23: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures� While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity� Downloaded from ManualsNet.com search engine... -
Page 24: Safety & Comfort Tips
Safety & Comfort Tips Choosing a good workspace is important if you have to work with your PC for a long period of time� 1� Your work area should have enough illumination� 2� Choose the proper desk and chair and adjust their height to fit your posture when operating�... -
Page 25: Hardware Setup
Getting Started Hardware Setup Connecting the AC Power 1. Unpack the package to find the AC power cord. Plug one end of the AC power cord to the Personal Computer System� 2� Plug the male end to the electrical outlet� Disconnecting the AC Power 3. - Page 26 Powering on the System Press the power button to power on the system� Downloaded from ManualsNet.com search engine...
-
Page 27: System Operations
System Operations This chapter provides you with essential information on system operations� Important All information is subject to change without prior notice� Downloaded from ManualsNet.com search engine... -
Page 28: Power Management
Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity�... - Page 29 System Operations Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ■ the power button, ■ the network (Wake On LAN), ■ the mouse, ■...
-
Page 30: Network Connection (Windows 10)
Network Connection (Windows 10) Wired Network 1� Right-click [Start] and select [Network Connections] from the list� 2� Select [Ethernet] and then [Network and Sharing Center]� 3� Select [Set up a new connection or network]� Downloaded from ManualsNet.com search engine... - Page 31 System Operations 4� Choose [Connect to the Internet] and click [Next]� 5� Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password� 6� Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection�...
- Page 32 Wireless Network 1� Go to [Start] , click [Settings] and select [Network and Internet]� 2� A list of available WLAN connections pops up� Choose a connection from the list� 3� To establish a new connection, select [Network and Sharing Center]� 4�...
-
Page 33: System Recovery (Windows 10)
System Operations System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ■ Restore the system back to the initial status of original manufacturer’s default settings� ■ When some errors have occurred to the operating system in use� ■... - Page 34 Reset this PC 1� Go to [Start] , click [Settings] and select [Update and security]� 2� Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery� 3� The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything]�...
- Page 35 System Operations Keep my files 1� Select [Keep my files]. 2� The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs� Click [Next] to continue� 3� The next screen will show the changes to be made during the process� Click [Reset] to start the system reset�...
- Page 36 Remove everything 1� Select [Remove everything]� 2� If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]� 3� Then select between [Just remove my files] and [Remove files and clean the drive]. 3-10 4�...
-
Page 37: System Recovery (F3 Hotkey Recovery)
Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1� Restart the PC� 2� Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display� 3� On the “Choose an Option” screen, tap “Troubleshoot”�... - Page 38 Downloaded from ManualsNet.com search engine...
