Pacific Image RapidScan One Reader
(Non-sterile)
User Manual
2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RapidScan One and is the answer not in the manual?

Questions and answers

Related Manuals for Pacific Image Electronics RapidScan One

Summary of Contents for Pacific Image Electronics RapidScan One

  • Page 1 Pacific Image RapidScan One Reader (Non-sterile) User Manual 2021...
  • Page 2 Product Name Pacific Image RapidScan One Reader (Non-sterile) Purpose of Usage Use the instrument to objectively read the C or T line of the rapid test. Principle Reflectance Pacific Image RapidScan One Intended Use Reader (Non-sterile) uses the principle of reflectance to analyze the C &...

  • Page 3: Table Of Contents

    Contents Appearance introduction……………………………………………..P4 Stand-alone operation — Indicator light………..…….…………………………………………..P6 Mobile device connection operation — Connect teaching……………………………..……………………...P8 — Home screen………….…………………..………………………..….P9 System page ………………………………………………………………P11 — User & User-Add……………………..…………………………….P12 — User Management..……………………………………………….P13 — Test Profile…….…………….…………………………………………P14 — Database………………………………………..………………………P15 — Setting-Network (AP mode)…………………………..……P16 — Setting-Network (Client mode)………………….………..P17 —...
  • Page 4 Product Introduction...

  • Page 5: Appearance Introduction

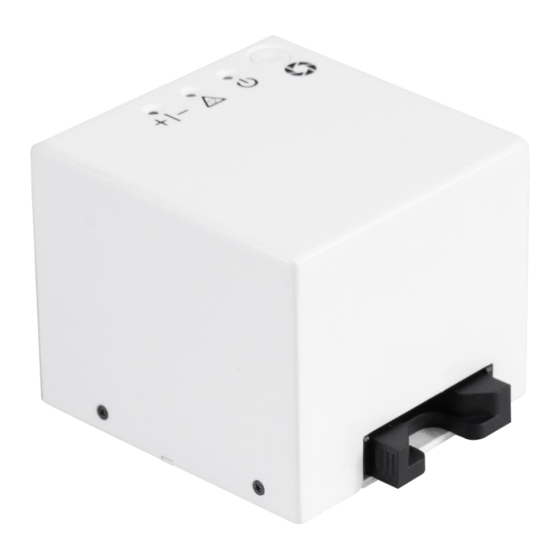

    Appearance Introduction Indicator light Analysis button, switch button (Short press to turn on, long press to turn off) For Ethernet cable and USB port Rapid test insertion port Power supply insertion hole Heat-transfer passage...
  • Page 6 Non-exclusive match • We need to communicate and cooperate with the rapid test manufacturer about the reader in advance, and the manufacturer will define the criteria of the image value after the experiment, and then set the cut-off value and the judgment standard of negative and positive.
  • Page 7 Instructions • There are two ways to use: stand-alone operation & mobile device connection operation (more detailed instructions will be given after page 9.) • For stand-alone operation, you can easily use the button to analyze the reading value, and use the indicator light on the surface to determine whether the sample is positive or negative.
  • Page 8 Software description & working principle • It is necessary for the rapid test manufacturer to use software to set the detection range of the C line and T line, and conduct experiments through the cooperation of both parties; after the experiment, the results are converted into data settings in the reader, and then the threshold for judging negative and positive is defined.

  • Page 9: Stand-Alone Operation

    Stand-alone operation...

  • Page 10: Indicator Light

    Indicator light Flashing red light: UV-C disinfection Orange light: positive (+) No light: UV-C off Green light: negative (-) Turn on for 3 seconds when the analysis Flashing orange light: is complete, and turn on for 3 seconds invalid result when the rapid test is taken out.

  • Page 11: Mobile Device Connection Operation

    Mobile device connection operation...
  • Page 12 Connect Reader to mobile device via Wi-Fi Turn on the Wi-Fi of your mobile device and find "RS_One_xxxxxxx", which is the SSID of RapidScan One. (No password required when connecting to Wi-Fi) If you encounter any difficulties, please contact your provider.
  • Page 13 Home Page System For system settings Test Profile Select product information from this section. Information The inspector (the account name used when logging in and cannot be changed) and sample No. (can be changed) Run Test Press the button to get instant results.
  • Page 14 Home Page Time Date/time of the most recent test Click the picture to enlarge the image. Test Result 1. C line value 2. T line value (T2, T3 line... etc.) 3. Result: value or statement (positive or negative) 4. Image captured by the reader...
  • Page 15 System Click the gear wheel User Manage user accounts Test Profile Add or delete product information Database Test results are sorted by date/time Settings Management system settings Logout Log out of current account This is the serial number of the software and firmware version.
  • Page 16 System: User User Admin users can add/remove user accounts in this section. System: User-Add User-Add Set ID/password and various levels of users. Only Admin can use this function. Provide 3 authorization levels (from low to high): User User-all Admin...

  • Page 17: User Management

    User Management • Rapid Test View software has permission management function, which enables users of different levels to obtain different test results. • ADMIN – ADMIN is the user's management level: he/she can view all test results. – ADMIN can add/delete/edit USER-ALL and USER level users –...

  • Page 18: Test Profile

    System: Test Profile Calibrate Insert blank rapid test for calibration Import File Add product information Scan QR Scan QR code Delete Delete product information Live Viewer Only the administrator (Admin) can preview the current screen.

  • Page 19: Database

    System: Database Database Record all test results information; users can select date/time to find test results. Click the button pointed by the red circle, you can choose to download the test data to your mobile device or USB disk. Click on the picture to Scroll down to see more test enlarge the picture.
  • Page 20 System: Settings-Network (AP Mode) In AP mode, One acts as the host, which can establish a connection via WiFi and use the webpage to operate. Admin level users can change the SSID of the reader here. Do not change the settings here.
  • Page 21 System: Settings-Network (Client Mode) Client Mode allows users to connect to the Internet for more diverse operations during connecting to the reader. The prerequisite for successfully establishing a connection is that the mobile device & the reader must be in the same Internet domain.

  • Page 22: Ip Finder

    IP Finder PC： Click here to search for readers. Cell-phones： Click here to search for readers.
  • Page 23 IP Finder Continued from the picture description on page 18: After establishing the Client Mode network connection, use the IP Finder of your computer or mobile phone to find the IP address. The result will be displayed in the red circle, and the user can log in to the URL. Alternative method: If IP Finder does not work properly: Before the reader is restarted, insert a USB disk into the...
  • Page 24 System: Update Firmware Select File Click this button to open a new firmware file. Update After selecting the file, click Update. The system will display the update completion dialog, then return to the main screen and click to confirm whether the version is wrong.
  • Page 25 System: Information Lab information You can fill in the company/laboratory name, address, phone number and other information.

  • Page 26: Information

    Rd., Xizhi Dist., New Taipei 221, Taiwan (R.O.C.) Name：AsiaGen Corporation GMP Manufacturer Plant-1 Information Address：4F., No. 1, Nanke 3rd Rd., Xinshi Dist., Tainan City, Taiwan (R.O.C.) Made in Taiwan PACIFIC IMAGE ELECTRONICS CO., LTD TEL: +886 2 8692 1800 FAX: +886 2 8692 1860 www.scanace.com...
