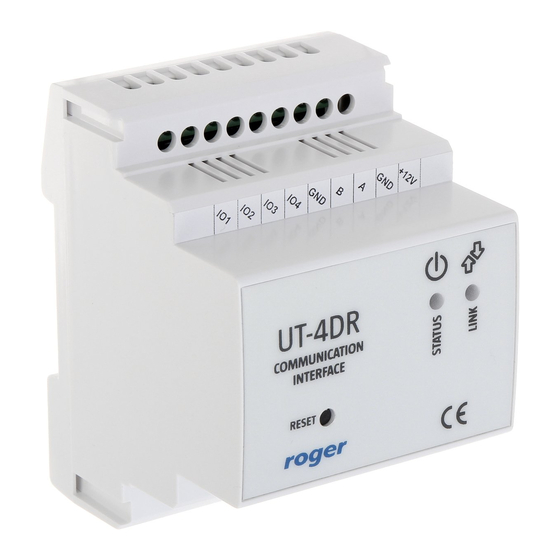

Roger UT-4DR User Manual

Communication interface
Hide thumbs Also See for UT-4DR:
Table of Contents

Advertisement

Quick Links

Download this manual
Roger Access Control System
User manual for
UT-4DR communication interface
Firmware version: 1.0.6 or newer
Hardware version: 1.0
Document version: Rev. G
© 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at
the
www.roger.pl
website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT-4DR and is the answer not in the manual?

Questions and answers

Related Manuals for Roger UT-4DR

Summary of Contents for Roger UT-4DR

  • Page 1 Hardware version: 1.0 Document version: Rev. G © 2016 ROGER sp. z o.o. sp.k. All rights reserved. This document is subject to the Terms of Use in their current version published at www.roger.pl website of the Roger sp. z o.o. sp.k. company (hereinafter referred to as ROGER).

  • Page 2: Table Of Contents

    UT-4DR User Manual Rev.G.doc 2022-06-01 Contents 1. Introduction ........................3 1.1 This manual ........................3 2. Description and specification ..................3 3. Installation ........................4 3.1 Terminals and connection diagram ..................4 3.2 Front panel ........................4 3.3 Power supply ........................5 3.4 Communication with interface .....................

  • Page 3: Introduction

    Note: In case of use in RACS 4 system, the UT-4DR requires PR Master software in version 4.4.6 or newer. Note: It is not possible to use UT-4DR interface as a virtual serial port so it cannot be used for firmware upgrade of PR series controllers connected to RS485 bus.

  • Page 4: Installation

    Fig.1 Typical connection diagram for UT-4DR interface 3.2 Front panel According to fig. 2, the UT-4DR interface is equipped with LED indicators on front panel to indicate various states of the device and with RESET button to restart the controller in the same way as in case of powering device off and then on.

  • Page 5: Power Supply

    Note: The operation of UT-4DR in dedicated LAN is guaranteed by Roger. Practical tests proved that the interface can be also used in LAN, where multiple systems are operated as well as in WAN but in such case UT-4DR functioning is not guaranteed by Roger due to number of possible and unpredictable network conditions.

  • Page 6: Input And Output Lines

    UT-4DR webpage opened with web browser. Note: In order to connect with UT-4DR in local area network (LAN), the computer must be in the same subnet. In case of UT-4DR with default IP address, the IP address of computer should be 192.168.0.xxx.
  • Page 7 (periodically). Network Statistics In this window some statistics regarding connection with UT-4DR and NTP synchronization are available. FW Upgrade In this window UT-4DR firmware can be upgraded. More information is given in section 4.6 Firmware update 7/11...

  • Page 8: Configuration With Pr Master Software

    Add network. In the newly opened window (see fig. 5) in the field Communication port select UT-4DR, in the field Server IP enter IP address of UT-4DR and in the field Server Port enter TCP port of UT-4DR. Additionally in the field Interface it is possible to select if the interface is operated in LAN or WAN which results in different levels of acceptable communication delays.

  • Page 9: Configuration With Telnet

    Each UT-4DR interface must have individual IP address but they can use the same TCP port. 4.3 Configuration with Telnet In order to log in to the UT-4DR, please type in the command line: telnet <device IP address>, e.g. telnet 192.168.0.38. Then please log in as a default user (user: root, password: dbps). Then after entering help command, a list of available commands shall be displayed.

  • Page 10: Time Synchronisation

    • Remove the jumper from contacts • Restart the interface (press RESET button or switch power supply off/on) • The UT-4DR shall switch to normal mode with default settings. Default settings of the UT-4DR are specified in paragraph 4.1 Configuration with web browser.

  • Page 11: Ordering Information

    It is not necessary to disconnect the interface from access control system. In the tab FW Upgrade (see fig. 4) select *.frg firmware file and upload it to the UT-4DR. Note: After firmware update it might be necessary to perform Memory Reset according to section 4.5 Memory Reset...
