SofTec Microsystems IDB-HC08AP User Manual

IDB-HC08AP
Evaluation Board
For Freescale MC68HC908AP
User's Manual (Rev. 2.0)

1. Introduction

Copyright © 2006 SofTec Microsystems
DC01020
Downloaded from Elcodis.com electronic components distributor
Overview

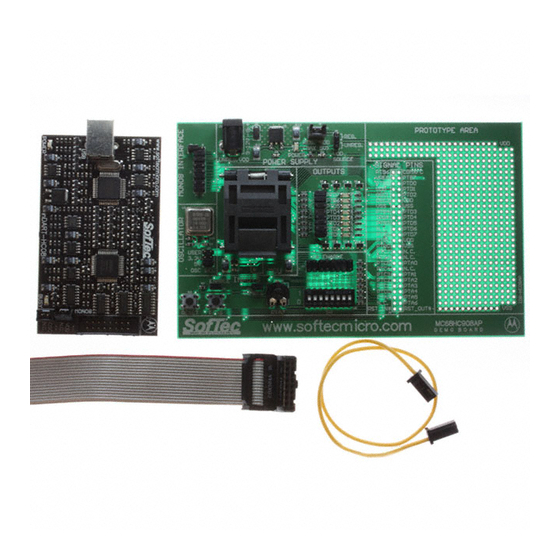

The IDB-HC08AP Evaluation Board demonstrates the capabilities of the
48-pin MC68HC908AP devices. The IDB-HC08AP Evaluation Board can
be used as a standalone application or with an emulator system, such as
inDART-HC08, through a MON08-compatible connection.

Board Features

The IDB-HC08AP Evaluation Board has the following hardware features:
1. An MC68HC908AP64 microcontroller (in QFP48 package, already
programmed with a demo application—in addition, you can also use
any of the pin-to-pin-compatible MC68HC908AP family devices);
2. ZIF socket for the microcontroller;
3. A standard MON08 connector;
4. Eight jumpers to connect/disconnect each of the eight DIP-switches
to/from their respective Port B pins;
5. Eight general-purpose DIP-switched connected to Port B;
