- Page 1 AXIS T8310 SERIES VIDEO SURVEILLANCE CONTROL BOARD INTEGRATION COMPLETEVIEW VERSION 4.7.3...
-
Page 2: Table Of Contents
Table of Contents Introduction Installation Plug and Play Device Management AXIS T8311 Joystick AXIS T8311 Joystick Functions AXIS T8312 Keypad AXIS T8312 Keypad Functions Mouse Mode AXIS T8313 Jog Dial AXIS T8313 Jog Dial Functions Troubleshooting Additional Resources... -
Page 3: Introduction

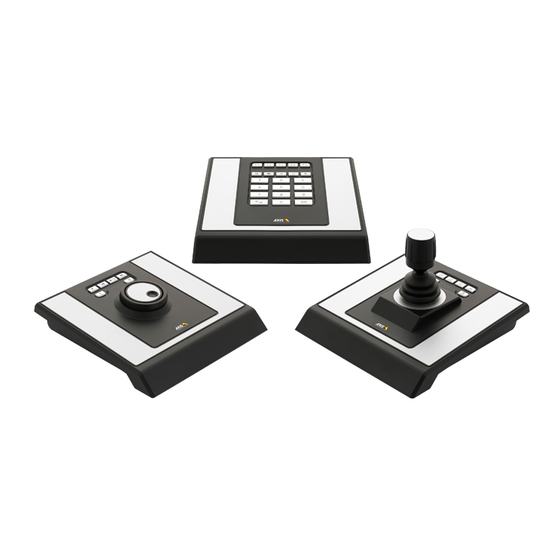

All the units are powered through a standard USB con- nection. As of CompleteView version 4.7.3, Salient features full integration with the AXIS T8310 Video Surveillance Control Board. Upon successful installation of the AXIS T8310 Video Surveillance Control Board, all buttons, controls, and presets on the control board will be configured auto- matically for optimal use with CompleteView. -
Page 4: Installation
NSTALLATION The AXIS T8310 Video Surveillance Control Board adheres to traditional Windows hardware installation paradigms. Plug and Play Installation of the AXIS T8310 Video Surveillance Control Board driver is Plug and Play. The AXIS T8311 Video Surveillance Joystick, AXIS T8312 Video Surveillance Keypad, and AXIS T8313 Video Surveillance Jog Dial can be connected separately or together as one unit using the AXIS T8312 Video Surveillance Keypad as a USB hub. - Page 5 In addition, the joystick will also appear as a game controller. Select Start > Control Panel > Game Controllers to view it.
-
Page 6: Axis T8311 Joystick
AXIS T8311 J OYSTICK The AXIS T8311 joystick is a USB device that can be used to pan, tilt, and zoom in the camera view. It can also be used as a mouse. AXIS T8311 Joystick Functions The diagram below provides an overview of the functions of the joystick specific to Com- pleteView. - Page 7 Control Description Joystick X-Axis Pan Right/Pan Left and Mouse Control Joystick Y-Axis Pan Up/Pan Down and Mouse Control Joystick Z-Axis Zoom In/Out...
-
Page 8: Axis T8312 Keypad
AXIS T8312 K EYPAD The AXIS T8312 Video Surveillance Keypad is a USB device used to quickly navigate between workspaces, cameras, views, and PTZ presets. AXIS T8312 Keypad Functions Detailed in the diagram below are the preset functions specific to CompleteView. See the table for more detail. -
Page 9: Mouse Mode
Control Description the View button will navigate to the first view ID matching the number entered. Pressing the Camera button navigates to the next camera in the Tree View. Pressing the Alt+Camera button navigates to the previous cam- era in the Tree View. Entering a number on the keypad (0-9) and then pressing the Camera button goes to the first camera ID matching the Camera number entered from the list under the server. -
Page 10: Axis T8313 Jog Dial
AXIS T8313 J The AXIS T8313 Video Surveillance Jog Dial is a USB device used to jog and shuttle through recorded video. AXIS T8313 Jog Dial Functions Detailed in the diagram below are the preset functions specific to CompleteView. See the table for more information. - Page 11 Control Description will also pause a video clip that is already playing. Selection of this button in the Playback window will select the next clip from the list of video clips. Selecting this button in Multi Playback Forward Button window will seek to the end of the currently playing clip. Take a Snapshot in Live mode.
-
Page 12: Troubleshooting
ROUBLESHOOTING If the AXIS T8310 Video Surveillance Control Board is or becomes unresponsive, begin troubleshooting by restarting the CompleteView Video Client. If the unit is still unresponsive after relaunching the Video Client, perform the following steps in the order given: 1. -
Page 13: Additional Resources
Salient Systems 4616 W. Howard Ln. Building 1, Suite 100 Austin, TX 78728 512.617.4800 512.617.4801 Fax www.salientsys.com ©2017 Salient Systems Corporation. Company and product names mentioned are registered trademarks of their respective owners.
