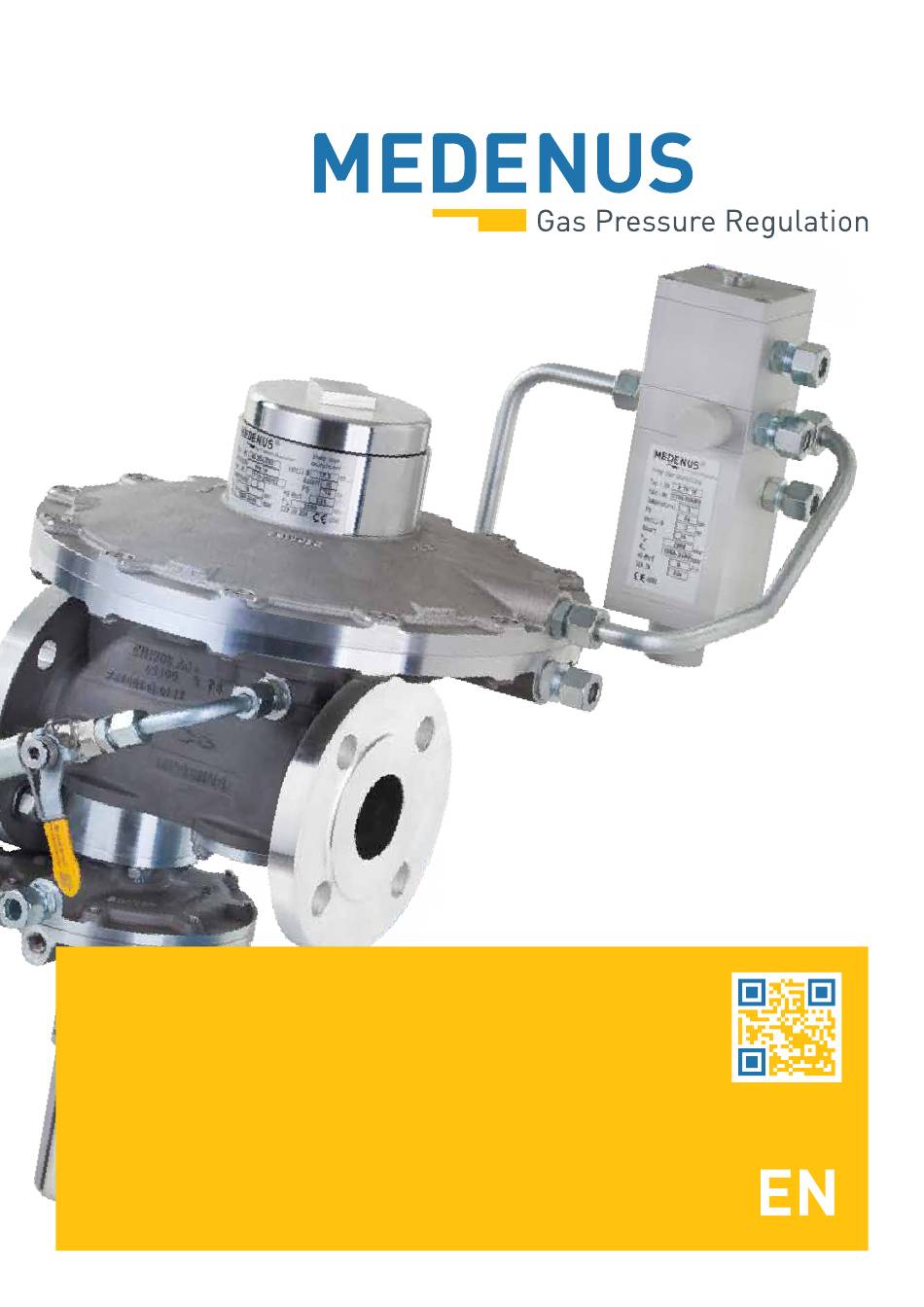

- Page 1 Gas Pressure Regulator RSP 254 / RSP 255 Regulator R 70-10 / R 70-20 / R 70-100 Actuator AS 254 / AS 255 Operating and Maintenance Instructions © 05.2022...
- Page 2 Connections R70 Connection R70-10 R70-20 R70-100 Inlet pressure line Inlet pressure line Inlet pressure line Setting pressure line Setting pressure line Setting pressure line Bypass line Bypass line Bypass line Measurement line Measurement line Breather line Breather Pneumatic follow- Breather Pneumatic follow- line up setpoint (I/P...
- Page 3 Design of the gas pressure regulator RSP Gas pressure regulator RSP 254 with integrated SSV indirect-acting Breather line Regulator R 70-20/1 with pneumatic 1:2 follow-up setpoint converter 4-20 mA I/P converter Compressed air supply 1:2 pressure converter Double-diaphragm system Pneumatic...
-
Page 4: Table Of Contents
Table of Contents 1 General Information 1.1 Warranty and Liability 1.2 Symbols, Notes 1.3 Terms, Abbreviations 2 Application, Characteristics 2.1 Application 2.2 Characteristics 2.3 Types of Models (Options) 3 Reasonably Foreseeable Misuse 4 Safety Instructions 4.1 Hazards of Handling the Device 4.2 Personnel Requirements 4.3 Country-Specific Requirements 4.4 Handover of the Operating and Maintenance Instructions... - Page 5 12 Accessories / Options 12.1 Noise Reduction 12.2 BV Breather Valve 12.3 RSD Restrictor Valve 12.4 Signal Transmitter/ Reed Contact 12.5 Inductive Signal Transmitter 12.6 SSV Remote Release 12.6 SSV Remote Release 12.7 Fine Filter FF 13 Tools 13.1 SSV Tightening Tool Notes Declaration of Conformity Contact...
-
Page 6: General Information
The figures in these instructions are provided for basic understanding and may differ from the actual design. The contents of these instructions are protected by copyright. They may be used as part of operating the device. Any other use and/or reproduction is not permitted without prior authorization by MEDENUS Gas- Druckregeltechnik GmbH. -
Page 7: Symbols, Notes
1.2 Symbols, Notes The instructions contain safety instructions marked with symbols to indicate possible consequences in case of non- observance: This combination of symbol and signal word indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, damage ATTENTION to the device, the breakdown of the system, and material or environmental damage. -
Page 8: Application, Characteristics
2 Application, Character- istics 2.1 Application Gas pressure regulator (GDR), indirect-acting (operating with auxiliary power), for systems acc. to DVGW work sheets G 491 (A) and G 600 (A) (TRGI). Can be used as an equipment component on gas consumption facilities as defined in EC Directive EU/2016/426 Can be used for the gases defined in DVGW work sheet G 260 / G 262 and neutral non-aggressive gases. -
Page 9: Safety Instructions
The application limits of the device with respect to the medium, operating pressure and operating temperature can be found on the nameplate affixed to the device or on the acceptance test certificate. Using the device under different operating conditions must be agreed upon in consultation with MEDENUS Gas- Druckregeltechnik GmbH. -
Page 10: Safety In Operation
(alarm and hazard prevention plan). In particular, the following applies: • The operator is obliged to perform work on MEDENUS devices during the warranty period only © after consultation with the manufacturer. Otherwise the claims under warranty will become void. -
Page 11: Transport, Storage And Packaging
6 Transport, Storage and Packaging 6.1 Transport The device is delivered with flange protection caps. They must be removed prior to installation. Note Make sure that the device is transported horizontally using suitable lifting gear. The device must be handled carefully and secured against impacts and knocks. In case of transport damage, we will require the following information from the nameplate affixed to the device: •... -
Page 12: Mounting And Commissioning
7 Mounting and Commissioning 7.1 Safety Instructions and Preparation Prior to starting work on pressurized components: DANGER • Close all connections to the gas line. • Depressurize all pressurized components. Also discharge residual energies. • Defective components charged with pressure in operation must be replaced immediately by an appropriate expert. - Page 13 7.32 7.04 I/P converter Detail p.16 7.31 7.33 7.11 7.12 7.30 Measuring Fine filter FF point 7.03 7.05 7.02 7.45 7.13 Measuring point 7.08 7.28 Fig. 7.1 7.01 7.06 7.07 The illustration shows the gas pressure regulator RSP 255 with actuator AS 255, regulator R 70-20 with follow-up setpoint, SSV with breather valve BV and fine filter FF (image detail) •...
-
Page 14: Leakage Test (Test For External Leakage)
7.3 Leakage Test (Test for External Leakage) The devices are subjected to a strength and leakage test ex works at MEDENUS Gas-Druckregeltechnik GmbH. The leakage test in the fully assembled system must be performed prior to commissioning and following maintenance work. -
Page 15: Initial Commissioning / Recommissioning
Initial commissioning of the system components shall be carried out by the operator. For commissioning, please refer to the documents listed under item 1 “General Information” and the system operator's work instruction. The devices delivered by MEDENUS Gas-Druckregeltechnik GmbH are factory-set to the operating data specified by the customer. This data is listed on the type plate and the Acceptance Test Certificate (ATC). - Page 16 • For the functional test of the GPR, let gas or other suitable media flow via the discharge line to the outside atmosphere and read the set regulating pressure on the outlet pressure gauge (item 7.12). • After closing the discharge line, a constant closing pressure within the closing pressure class can be read on the outlet pressure gauge (item 7.12).
-
Page 17: Ssv Setpoint Spring Table - Control Device
7.5 SSV setpoint spring table - Control device direct-acting RSP 254: DN 25 - 100 / RSP 255: DN 50 - 80 small ball lock MD-R 300 mbar 3500 mbar 16000 mbar ds o ds o ds o Lower Upper response... -
Page 18: Regulator Setpoint Spring Table
7.6 Regulator Setpoint Spring Table R70-100 R70-20 R70-10 Spring data [mbar] [mbar] [mbar] (1:2) [mbar] [mbar] (1:1) Spring no. Color [RAL] d100 d20s d10s 0-37 0-180 FD 911 2002 30-85 150-400 300-850 FD 912 6010 55-160 250-750 550-1600 FD 913 5015 100-260 550-1250... -
Page 19: Decommissioning
7.7 Decommissioning For decommissioning, please refer to the documents listed under item 1 “General Information” and the system operator's work instruction. Procedure (fig. 7.1) • Slowly close the outlet shut-off valve (item 7.13) and • Close the ball valve upstream of the valves and fittings (item 7.01). Note • Depressurize the system (item 7.11). (Venting is always performed via the outlet side P ≥... -
Page 20: Maintenance Procedure
8.2 Maintenance Procedure Instructions for our products can be found in the download area of our website. Should you have any problems, please feel free to contact us directly. ATTENTION If components have been removed, make sure they are mounted correctly, reinstall all fastening elements and observe the screw tightening torques (8.3 Table of Screw Tightening Torques M Prior to recommissioning, observe the following: •... -
Page 21: Table Of Screw Tightening Torques M
8.3 Table of Screw Tightening Torques M Actuator AS 254 / 025 AS 254 / 150 AS 254 / 050 AS 254 / 200 Item no. Exception AS 254 / 080 AS 255 / 080 AS 254 / 100 AS 255 / 100 AS 255 / 050 M8 / 18 Nm M10 / 36 Nm... -
Page 22: Troubleshooting
9 Troubleshooting 9.1 Gas Pressure Regulator Description of the error Possible cause Elimination Check valve plate (seal) and valve seat for damage Actuator dirty or damaged and dirt, replace valve plate, if necessary Static sealing elements defective Replace O-rings Clamping of the compensating diaphragm has come off Check compensating diaphragm for fastening, Closing pressure too... -
Page 23: Safety Shut-Off Valve
SSV spindle can be pulled Difference between response pressure Correct response pressure settings consider and operating pressure or between required re-engagement differential (see RSP 254 / upper and lower response pressure is 255 product overview) too small Only in case of underpressure... -
Page 24: Replacement And Disposal
Metals should be scrapped • The remaining components should be disposed of after sorting according to material. For technical information, please contact our customer service: MEDENUS Gas-Druckregeltechnik GmbH Phone +49 (0) 2761 / 82788-0 E-mail service@medenus.de Im Langen Feld 3 Fax +49 (0) 2761 / 82788-9 Internet www.medenus.de... -
Page 25: Spare Parts
11 Spare Parts 11.1 Spare Parts Drawing Example: RSP254 DN080 Detail X Example: HD-SAV Closing spring bottom*** Attention: Sealing cover is under tension! 1x O-ring at RE 385 4x O-ring at RE 330 / 390 8x O-ring at RE 485 ***) For the nominal widths DN025 and DN050,... -
Page 26: Spare Parts Drawing Fine Filter Ff
11.2 Spare Parts Drawing Option Fine Filter FF 11.3 Spare Parts Drawing R 70-10 / R 70-20 / R 70-100 R 70-10 R 70-20 © 05.2022... - Page 27 R 70-100 © 05.2022...
-
Page 28: Parts For Maintenance Work Actuator
11.4 Parts for Maintenance Work Actuator Main diaphragm and O-ring Item Name Pcs. AS 254 / 025 AS 254 / 080; AS 254 / 100; AS 255 / 050 AS 254 / 050 AS 255 / 080; AS 254 / 150; AS 255 / 100; AS 254 / 200 RE 385 / 390 RE 330... - Page 29 O-ring and sealing ring sets Item Name Quantity Exception AS 254 / 025 AS 254 / 080 AS 255 / 080 AS 254 / 150 AS 254 / 200 pcs. AS 254 / 050 AS 254 / 100 AS 255 / 100 AS 255 / 050 O-014 O-018...
-
Page 30: Parts For Maintenance Work Regulator
11.5 Parts for Maintenance Work Regulator Diaphragm Item Name Pcs. R 70-10 R 70-20 R 70-100 M-204 M-204 M-204 M-205 Diaphragm M-201 O-ring set Valve plate Item Name Pcs. R 70-10 R 70-20 R 70-100 Item Name Pcs. R 70-10 R 70-20 O-014 O-014... - Page 31 Example: DN - RE - D - Nozzle (valve Designation: Type Nominal Diaphragm Control diameter) width assembly device Gas pressure 27.5 MD-R regulator: Spare parts according to tables in 11.5 Spare parts according to tables in 11.6 Example: Actuator AS254/080/390/27.5 Example: Regulator R 70-10 MS-162 M-204 (2 Stk.)
- Page 32 Notes ................
-
Page 33: Accessories / Options
12 Accessories / Options 12.1 Noise Reduction 12.1.1 Use • Gas pressure regulators RS 250 / RS 251 • Gas pressure regulators RS 254 / RS 255 • Gas pressure regulators RS 254 / RSP 255 • Gas pressure regulators R101 12.1.2 Application / Function The noise reduction made of metallic foam is inserted into the housing of the gas pressure regulator between the valve seat and the housing cover and reduces noise in... - Page 34 12.1.4 Determination of the sound pressure level L The noise of gas expansion at a maximum flow rate of approx. 65 m/s on the outlet side is shown. 128000 96000 64000 48000 32000 24000 16000 12000 8000 6000 4000 3000 2000 1500 1000...
-
Page 35: Bv Breather Valve
12.2 BV Breather Valve 12.2.1 Use • On SAV control devices • On regulators (pilots) • On the SRV (SL10) 12.2.2 Application / Function The breather valve is used as replacement for the costly and time-consuming laying of breather lines and for securing the installation room against inadmissible escape of gas from diaphragm comparator compartments of gas pressure regulators and safety shut-off valves. -
Page 36: Rsd Restrictor Valve
12.3 RSD Restrictor Valve 12.3.1 Use • For installation in the measurement line of the gas pressure regulator 12.3.2 Application / Function • For finer adjustment of the control behavior of the regulator • For vibration-free outlet pressure regulation. The RSD is a throttle valve that affects the volumetric flow in the measurement line from outside by means of a continuously adjustable narrowing of the cross-section. The adjustment is done by means of an Allen key (4 mm). -
Page 37: Signal Transmitter/ Reed Contact
• On SAV control devices 12.4.2 Application / Function The signal transmitter, in conjunction with products from Medenus GmbH, is used for monitoring the position (position closed or open) of the safety shut-off valve via remote display. A built-in neodymium magnet in the pull knob of the SSV and a set switching distance to the reed contact cause a sensor to query the position of the safety shut-off valve and to transmit a signal via remote display. - Page 38 12.4.4 Mounting • Replace the pull knob of the SSV spindle with the pull knob with the neodymium magnet. • Mount the SSV cap included in the delivery, make sure that the SSV is open and slide the signal transmitter into the groove provided for this purpose at the SSV cap.
- Page 39 Safety instructions Must be read prior to using the neodymium magnet! Important safety instructions for general and responsible handling of the neodymium magnet Please pass on these instructions to all employees, customers and other people who are handling our products or parts derived from them.
-
Page 40: Inductive Signal Transmitter
• On SAV control devices 12.5.2 Application / Function The inductive transmitter, in conjunction with products from Medenus GmbH, is used for monitoring the position (position closed or open) of the safety shut-off valve via remote display. A sensor queries the position of the safety shut-off valve and a signal is transmitted via remote display. If the SSV drops into the closed position, the switching distance will be exceeded and the sensor will lose the signal. - Page 41 2/BU M12x1 12.5.5 Mounting • Unscrew the SSV cap of your Medenus gas pressure regulator (-) and replace it with the SSV cap with M12 threaded hole for the inductive transmitter and the pull knob, if necessary. (During mounting, make sure that the O-ring has been...
-
Page 42: Ssv Remote Release
12.6. SSV Remote Release 12.6.1 Use • On SAV control devices 12.6.2 Application / Function The direct-acting solenoid valve is used as electromagnetic remote release for closing the safety shut-off valve. Only for SSV control devices of functional class A. Upon being energized or in case of power failure, the valve closes the impulse line, resulting in the pressure falling below the response pressure to be monitored. - Page 43 approx. 101 12.6.4 Application example Breather line 3/2-way valve Breather line Impulse line © 05.2022...
-
Page 44: Ssv Remote Release
12.7 SSV Manual Release 12.7.1 Use • On SAV control devices 12.7.2 Application / Function By actuating the ball valve, the safety shut-off valve SSV is triggered and seals the gas flow gas-tight. The SSV manual release is only available for the SSV control devices of functional class A. After being released, the safety shut-off valve can only be opened by hand and engaged in the open position. -
Page 45: Fine Filter Ff
12.8 Fine Filter FF 12.8.1 Use • for regulator R70 12.8.2 Application / Function Fine filters FF are intended to separate gas impurities such as dust, rust, and other solids in gas-carrying lines at a defined point. They are used in the inlet pressure line between the actuator RSP and the regulator R70. - Page 46 G1/4“ G1/4“ Ø62 12.8.4 Application example Inlet pressure line R70-20 Fine filter © 05.2022...
-
Page 47: Tools
13 Tools 13.2 SSV Tightening Tool The tightening tool made of stainless steel is used for replacing the SSV diaphragm in your MEDENUS safety shut- off valve. Old design Old design • Width across flats 22 • Stainless steel 42CrMo4 New design • Width across flats 32... - Page 48 Notes ................
- Page 49 Notes ................
-
Page 50: Declaration Of Conformity
© 05.2022... - Page 51 In the download area of our homepage, this document is available in different languages. You can use the following QR codes and links to go directly to this document in your language. German: English: http://medenus.de/files/upload/ http://medenus.de/files/upload/ downloads/RSP254/ downloads/RS254/ BWA_RSP254_255_de.pdf BWA_RS254_255_en.pdf...
- Page 52 MEDENUS Gas-Druckregeltechnik GmbH Phone +49 (0)2761 82788-0 +49 (0)2761 82788-9 Im Langen Feld 3 / D-57462 Olpe info@medenus.de www.medenus.de...
