  • Page 2 The Bidop 3 should only be used by skilled personnel. CAUTION The Bidop 3 has not been evaluated for safety and compatibility in the MR environment. The Bidop 3 has not been tested for heating or migration in the MR environment.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION 1 Basic Operation (Vascular) Warnings & Cautions Introduction ........................1 Features ........................1 Indications for Use, Contraindications, & Applications ........2 1-1 Doppler Arterial & Venous Applications ............…2 1-2 PPG (Photoplethysmography) Arterial & Venous Applications ......2 1-3 Fetal Applications .....................
  • Page 4 TABLE OF CONTENTS 6-2-16 Others – Auto-Off (Automatic Shut Off) ..........28 6-2-17 Others - PRB20MHZ (20 Mhz Probe Selection) ......28 Mode Settings for Optional Photplethysmography (PPG) Probe 6-2-18 AC / DC (Arterial / Venous) .............. 28 6-2-19 COUNT ..................... 28 Mode Settings for Optional 2.25 MHz Probe 6-2-20 DISP (Display Mode) ................
  • Page 5: Section 1 Basic Operation (Vascular)

    Section 1 Section 1 Basic Operation...
  • Page 6: Warnings & Cautions Introduction

    The Bidop 3 should only be used by skilled personnel. CAUTION The Bidop 3 has not been evaluated for safety and compatibility in the MR environment. The Bidop 3 has not been tested for heating or migration in the MR environment.
  • Page 7: Indications For Use, Contraindications, & Applications

    APPLICATIONS INDICATIONS FOR USE The Bidop 3 is used for the detection of arterial and venous blood flow in extremities as well as fetal heart sounds. It displays bidirectional velocity waveform, numerical data and fetal heart rate with heart beat indicator.
  • Page 8: Lower Extremity Doppler Arterial Waveform Pattern Analysis

    Bidop 3 LOWER EXTREMITY DOPPLER ARTERIAL WAVEFORM PATTERN ANALYSIS The Doppler arterial waveforms obtained from the lower extremity may be classified into six categories as an aid in interpretation. TYPE TYPICAL WAVEFORM FINDINGS The contour exhibits a steeply rising upslope at the onset of systole, rapid systolic downslope, and reverse flow (below baseline).
  • Page 9: Controls

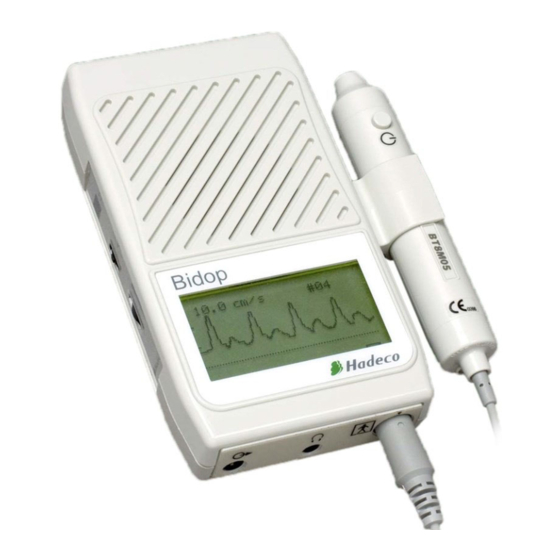

    Bidop 3 CONTROLS FRONT VIEW PROBE CONNECTOR To connect the probe to the Doppler HEADSET CONNECTOR To connect a headset (not provided) COMMUNICATION PORT To connect the Doppler to a computer (for use with optional Smart-V-Link software and cable) VOLUME CONTROL...
  • Page 10: Rear Panel

    Bidop 3 CONTROLS REAR VIEW PROBE HOLDER For probe placement when not in use STRAP HOLES To connect the carry strap BATTERY COVER For battery placement See 4-1 “Replacing the Battery” for details. Choose from 2.25, 5, 8, & 10 MHz...
  • Page 11: Setup & Operation

    Bidop 3 SETUP & OPERATION REPLACING THE BATTERY Replace the battery when the low battery icon appears in the lower right corner of the LCD. Low Battery indicator NOTE If the battery is extremely low, the LCD display will not operate and no speaker sounds will be present.
  • Page 12: Turning The Unit On/Off

    TURNING THE UNIT ON / OFF Install (1) 9 volt alkaline battery. See 4-1 “Replacing the Battery” for details. Connect the probe to the Bidop 3 with the alignment mark on the probe connector pointed up (12 o’clock position). Alignment Mark Press the probe button or the shuttle button to turn the unit ON.
  • Page 13: Basic Operation

    Bidop 3 to measure blood velocity. For detailed instructions on performing specific tests, please refer to Section 2 Vascular Testing Instructions. Connect the probe to the Bidop 3 with the Alignment Mark alignment mark on the probe connector pointed to the 12 o’clock position.
  • Page 14 Bidop 3 BASIC OPERATION MEASURING BLOOD VELOCITY (cont.) Figure A Place the probe on the measurement area at an angle of approximately 45° to 60° against flow and locate the point where maximum Doppler sounds are heard. CAUTION The probe transducer tip is thin and delicate.
  • Page 15: Ppg: Arterial Pulse Waveform Studies

    Toe Brachial Index (TBI) ratio, please refer to Section 2 Vascular Testing Instructions. Connect the PG-21 probe to the Bidop 3 with the alignment mark on the probe connector pointed up (12 o’clock position). Press the probe button or the shuttle button to turn the Doppler ON.
  • Page 16: Measuring Fetal Heart Rate (Fhr)

    MEASURING FETAL HEART RATE (FHR)(2.25 MHz probe, DATA mode) (Required optional fetal probe, supplied separately) This section explains the fundamentals of using the Bidop 3 with a fetal probe to measure fetal heart rate. Connect the 2.25 MHz probe to the Bidop 3 with the alignment mark on the probe connector pointed up (12 o’clock position).
  • Page 17 Bidop 3 BASIC OPERATION MEASURING FETAL HEART RATE (FHR)(2.25 MHz probe, DATA mode) (cont.) Place the probe on the middle of the abdomen at a right angle (90°) to the skin surface, and move slowly to locate maximum Doppler heart beat sounds. The probe needs to just lightly touch the skin.
  • Page 18: Fetal Heart Rate (Fhr) Monitoring

    FETAL HEART RATE (FHR) MONITORING (2.25 MHz Monitoring Probe, WAVE mode) (Required optional 2.25 MHz flat monitoring probe, supplied separately) This section explains the fundamentals of using the Bidop 3 with a fetal monitoring probe to monitor fetal heart rate over a period of time.
  • Page 19 Bidop 3 BASIC OPERATION FETAL HEART RATE (FHR) MONITORING (2.25 MHz Monitoring Probe, WAVE mode) (cont.) Freeze indicator Page number The LCD will show the monitoring waveform and numerical heart rate. Press the probe button or the BACK button to freeze the waveform. Up to 33 minutes of FHR monitoring can be displayed over 4 screens (approx.
  • Page 20: Air Emboli Monitoring

    AIR EMBOLI MONITORING (2.25 MHz Monitoring Probe, BEEP mode) (Requires optional 2.25 MHz flat monitoring probe, supplied separately) This section explains the fundamentals of using the Bidop 3 with the 2.25 MHz monitoring probe in BEEP mode for performing air emboli monitoring.
  • Page 21: Mode & Menu Settings

    6-1-2 through 6-1-4 Press the shuttle button on the left side of the Doppler to display the MENU. The Bidop 3 will display the available menu options. Move the shuttle button up or down to scroll through the available MENU options.
  • Page 22: Menu For Blood Velocity Measurement Mode

    Bidop 3 MODE & MENU SETTINGS MENU (Cont.) 6-1-2 Menu for Blood Velocity Measurement Mode For measuring blood flow velocity Connect a 5, 8, or 10 MHz probe to select Bold face selections in the table indicate default settings. Menu...
  • Page 23: Menu For Blood Velocity Freeze Mode

    Bidop 3 MODE & MENU SETTINGS MENU (Cont.) 6-1-3 Menu for Blood Velocity Freeze Mode For observing waveforms and numerical data Press the probe button to select; press again to exit NOTE If the probe button is pressed for longer than 2 seconds, the unit will shut OFF.
  • Page 24: Menu For Ppg (Photoplethysmography)(Measurement & Freeze)

    Bidop 3 MODE & MENU SETTINGS MENU (Cont.) 6-1-4 Menu for PPG (Photoplethysmography) (Measurement & Freeze) For measuring and observing PPG waveforms Connect the PPG probe (PG-21) to select measurement Press the probe button to select freeze mode; press again to exit NOTE If the probe button is pressed for longer than 2 seconds, the unit will shut OFF.
  • Page 25: Menu For Fetal Heart Rate (Fhr) Mode (Measurement & Freeze)

    Bidop 3 MODE & MENU SETTINGS MENU (Cont.) 6-1-5 Menu for Fetal Heart Rate (FHR) Mode (Measurement & Freeze) For measuring Fetal Heart Rate (FHR) and observing FHR monitoring waveforms Connect a 2.25 MHz fetal probe to select measurement Press the probe button to select freeze mode; press again to exit NOTE If the probe button is pressed for longer than 2 seconds, the unit will shut OFF.
  • Page 26: Menu For 2.25 Mhz Beep Mode (Measurement & Freeze)

    Bidop 3 MODE & MENU SETTINGS MENU (Cont.) 6-1-6 Menu for 2.25 MHz BEEP Mode (Measurement & Freeze) For air emboli monitoring Connect the 2.25 MHz monitoring probe to select measurement Press the BACK button or probe button to select freeze mode; press again to exit NOTE If the probe button is pressed for longer than 2 seconds, the unit will shut OFF.
  • Page 27: Mode Setting Details

    MODE SETTING DETAILS NOTE Once mode settings have been selected, the Bidop 3 will revert to these settings automatically. However, if battery life becomes depleted, or if more than 1 minute is taken to replace the battery, the settings will revert back to the default settings.
  • Page 28: Memory - Read

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) 6-2-2 MEMORY – READ Press in on the shuttle button to go to the MENU screen. Choose MEMORY and press in on the shuttle button to display the sub menu.
  • Page 29: Mode (Baseline Mode)

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) 6-2-4 MODE (Baseline Mode) Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select MODE. Press in on the shuttle button to change.
  • Page 30: Others - Language

    MODE SETTING DETAILS (Cont.) 6-2-7 FLOW (Blood Volume Flow) / DIAMETER (Estimated Vessel Diameter) The FLOW setting is used to enable the Bidop 3 to calculate and show blood volume flow MAX and MN values on the DATA display mode.
  • Page 31: Others - Filter

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) 6-2-10 OTHERS – FILTER (Arterial / Venous) Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select OTHERS. Press in on the shuttle button to display the sub menu.
  • Page 32: Others - Cal (Calibration)

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) 6-2-13 OTHERS – CAL (Calibration) Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select OTHERS. Press in on the shuttle button to display the sub menu.
  • Page 33: Others - Auto-Off (Automatic Shut Off)

    6-2-17 OTHERS - PRB20MHZ (20 MHz Probe Selection) To use the Bidop 3 with a 20 MHz probe, turn option on before connecting the probe. Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select OTHERS.
  • Page 34: Mode Settings For Optional 2.25 Mhz Probe

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) MODE SETTINGS FOR OPTIONAL 2.25 MHZ PROBE (supplied separately) 6-2-20 DISP (Display Mode) Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select DISP.
  • Page 35: Disp/Beep (Display For Beep Mode, Waveform / Numerical Data)

    Bidop 3 MODE & MENU SETTINGS MODE SETTING DETAILS (Cont.) 6-2-24 DISP/BEEP (Display for BEEP mode, Waveform / Numerical data) Press in on the shuttle button to go to the MENU screen. Move the shuttle button up or down to select BEEP. Press in on the shuttle button to change.
  • Page 36: Lcd Display

    LCD DISPLAY BLOOD VELOCITY MODE 7-1-1 WAVEFORMS The baseline on the LCD is automatically located at best position. Bidop 3 has 4 baseline settings; bottom, ¼ from bottom, center, and ¾ from bottom. The waveform amplitude is automatically adjusted. The amplitude scale (velocity or frequency per division) is displayed in the upper left corner of the LCD.
  • Page 37: Numerical Data

    Bidop 3 LCD DISPLAY BLOOD VELOCITY MODE (cont.) 7-1-2 NUMERICAL DATA To switch between waveform and numerical data on the LCD, press the BACK button. To change the display mode using the menu screen see 6-2-11 OTHERS-DISP (Display Mode) for details.
  • Page 38: Fetal Heart Rate Mode

    Bidop 3 LCD DISPLAY NOTE FETAL HEART RATE MODE The heart movement speed is indicated in 3 different heart 7-2-1 REAL TIME HEART RATE (DATA mode) mark sizes. Once the Bidop has received sufficient data, HR is calculated and displayed based on a 4-beat average.
  • Page 39: External Outputs

    Used to connect the Bidop to a computer to use with the optional Smart-V-Link software for observation of the waveform in high resolution or to create a report of standardized testing modules. Connect the Bidop 3 to your computer using the dedicated cable (optional). NOTE For cable installation, refer to the Smart-V-Link Operation Manual (included with software purchase).
  • Page 40: Maintenance

    Bidop 3 MAINTENANCE Perform the following performance check at least once a year. Make sure there is no damage to the unit or any of its components. Gently shake the Doppler and make sure there are no sounds of loose components inside.
  • Page 41: Operating Principles

    Bidop 3 11. OPERATING PRINCIPLES Model Bidop 3 is designed to obtain blood flow velocity through the use of ultrasound, which is transmitted from the probe to the patient’s body and reflected by the blood (hemocyte, etc.) The unit amplifies the high frequency oscillation output and then supplies it to the transmitter transducer.
  • Page 42: Block Diagram

    Bidop 3 12. BLOCK DIAGRAM Isolation circuit RAM + ROM Battery Pre-amplifier Power amplifier Power Supply Headset Probe...
  • Page 43: Specifications

    Bidop 3 13. SPECIFICATIONS Battery: DC 9-volt, alkaline battery Battery Life: Approx. 2.5 hours (alkaline) Auto Shut Off: No signal: 2 min. Freeze: 5 min. Others: 15 min. (only FHR WAVE mode: 35 min.) Frequency Range: 80 / 200 Hz to 5 kHz...
  • Page 44: Operation, Storage & Transport Environments

    Do not use excessive force when disconnecting cables. 15. SYSTEM INCLUDES Carrying case ......1 CAUTION Ultrasonic gel ....... 1 Use only designated Bidop 3 Battery (9-volt alkaline) ....1 accessories. Probe (Specify frequency) ... 1 OPTIONAL ACCESSORIES SUPPLIED SEPARATELY...
  • Page 45: Cleaning

    Canada Inc. at 204-943-2596 or info@koven.com. The warranty does not cover defects resulting from accidents or misuse and is void if modifications of parts are attempted without permission. If the warranty period has expired, please contact Koven Technology Canada Inc. for a charged repair service.
  • Page 46: Disposal Of Device

    Guidance and Manufacturer’s Declarations Electromagnetic Emissions The Bidop 3 is intended for use in the electromagnetic environment specified below. The user of the Bidop 3 should assure that it is used in such an environment. Emissions test...
  • Page 47 Bidop 3 Guidance and Manufacturer’s Declarations (cont.) Electromagnetic Immunity The Bidop 3 is intended for use in the electromagnetic environment specified below. The user of the Bidop 3 should assure that it is used in such an environment. Immunity test...
  • Page 48 To access the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Bidop 3 is used exceeds the applica- ble RF compliance level above, the Bidop 3 should be observed to verify normal operation. If abnormal performance is...
  • Page 49: Section 2 Vascular Testing Instructions

    Section 2 Section 2 Vascular Testing Instructions...
  • Page 50: Ankle Brachial Index

    Bidop 3 Testing Instructions 1. ANKLE BRACHIAL INDEX (ABI) The Ankle Brachial Index is the ratio of the highest systolic pressure at the arm to the systolic pressure at the ankle. This simple test is performed much like taking a standard blood pressure, except that a Doppler is used instead of stethoscope.
  • Page 51 Bidop 3 Testing Instructions 1. ANKLE BRACHIAL INDEX (ABI) (Cont.) To calculate the ABI, use the highest arm systolic pressure to rule out subclavian steal syndrome. Take the systolic pressures at the ankle Place a blood pressure cuff snugly above the ankle and connect a sphyg to the cuff.
  • Page 52: Segmental Blood Pressures

    Bidop 3 Testing Instructions 2. SEGMENTAL BLOOD PRESSURES Segmental pressure studies are performed with the same method as an Ankle Brachial Index, but incorporate additional cuffs wrapped above and below the knee, and optionally at the high thigh, in addition to the ankle. Significant pressure differences between adjacent cuff sites indicate narrowing of the artery or blockage in that portion of the leg.
  • Page 53 Bidop 3 Testing Instructions 2. SEGMENTAL BLOOD PRESSURES Interpreting the Results Observe pressure differences between adjacent cuff sites on the same leg. Pressure differences between cuff sites are used to localize the disease. Pressure difference between two adjacent levels of less than 20 mmHg is considered normal within limits.
  • Page 54: Venous Compression Studies

    Following this maneuver, continue to hold the Doppler probe in place and squeeze the calf muscle in a downward motion without moving the hand. The Bidop 3 will display the dual baseline reflecting the Venous Augmentation augmented or diminished sounds. Press the probe button to freeze the waveform.
  • Page 55 Bidop 3 Testing Instructions 3. VENOUS COMPRESSION STUDIES Interpreting the Results During proximal compression, a brief loud sound that rapidly concludes as blood movement is stopped by competent valves, is expected. A long sound that continues as long as compression is applied may indicate valvular incompetence.
  • Page 56: Ppg Toe Pressures & Toe Brachial Index

    Bidop 3 Testing Instructions 4. PPG TOE PRESSURES & TOE BRACHIAL INDEX (TBI) (Requires the optional PPG probe {PG-21}) PPG (photoplethysmography) toe pressure studies and related TBI’s (Toe Brachial Index) are performed to assess the vascular condition of the foot by obtaining systolic pressures at the toe.
  • Page 57 Bidop 3 Testing Instructions 4. PPG TOE PRESSURES & TOE BRACHIAL INDEX (TBI) (Cont.) Once the waveform becomes stable, inflate the cuff to 20 mmHg above the point where waveform motion ceases. Deflate the cuff at a slow rate of 2-3 mmHg per second until waveform motion returns.
  • Page 58: Venous Reflux

    Bidop 3 Testing Instructions 5. VENOUS REFLUX (Requires the optional PPG probe {PG-21}) Venous reflux studies use a PPG probe affixed adjacent to the posterior tibial artery. The patient is asked to dorsiflex the foot, which acts as a pump for venous augmentation.
  • Page 59 After dorsiflexing, the patient should relax the foot and avoid all movement. The test is complete when the waveform on the LCD returns to the baseline amplitude. The Bidop 3 will automatically freeze and display the results. NOTE Recovery time can range from 1 to 74 seconds when a count of 5 dorsiflexions is performed for a maximum test time of 80 seconds.
  • Page 60 Manufactured by Koven Technology Canada Inc. 305-287 Broadway Winnipeg, Manitoba R3C 0R9 Tel: 204-943-2596 Fax: 204-943-2652 www.koven.ca Bidop 3 Operation Manual OM-1651 rev1 Copyright © Koven Technology Canada Inc.
