Summary of Contents for Koven FASTSphyg

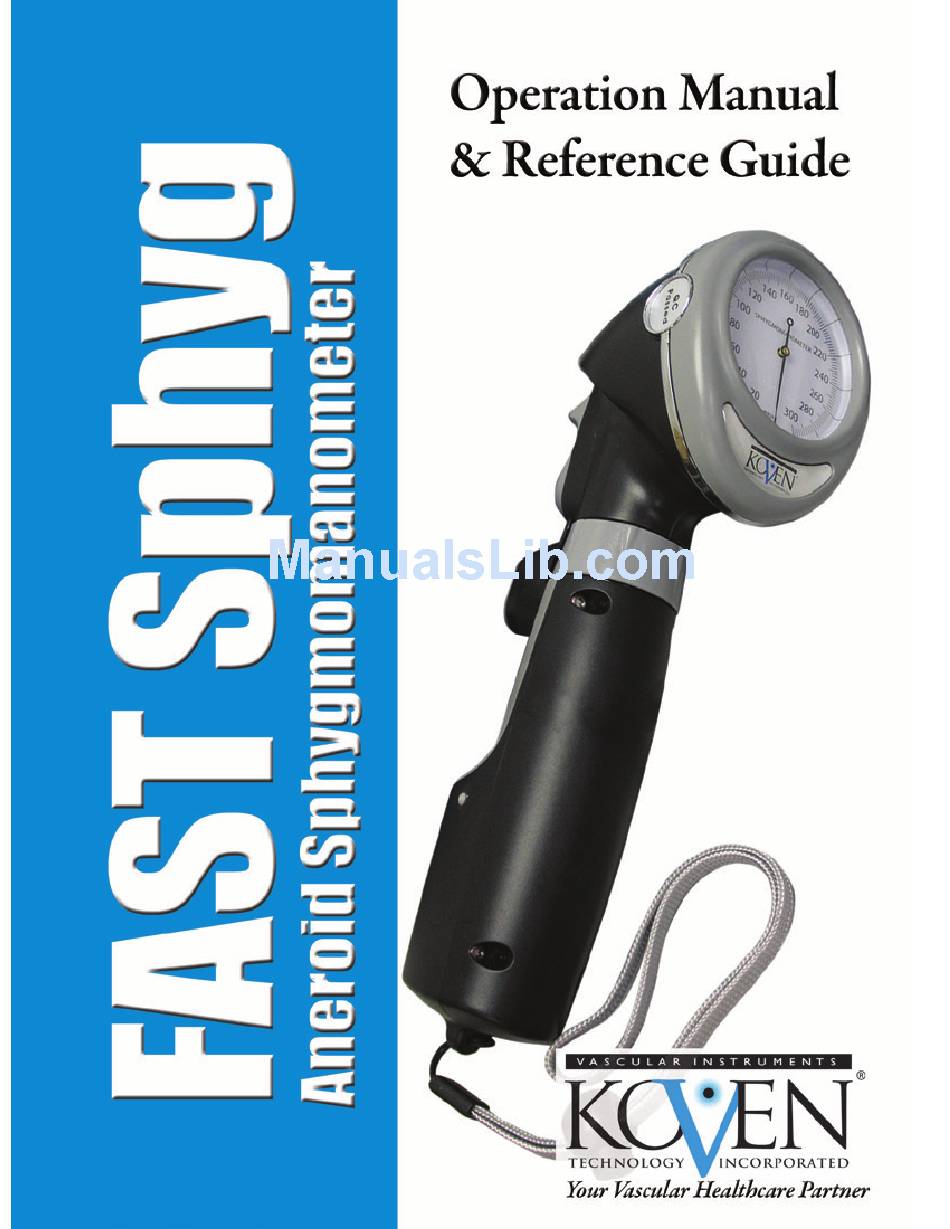

- Page 1 GTIN: 00894912002920...
-
Page 2: Table Of Contents
FAST Sphyg by Koven TABLE OF CONTENTS Introduction ........................1 Features ...........................1 Indications for Use ......................1 Contraindications ......................1 Warnings & Precautions ....................2 Controls ..........................3 Operation ..........................4 Recharging the Battery .....................5 Replacing the Battery .......................5 Symbols ..........................5 Specifications ........................6 Cleaning & Maintenance ....................7 Warranty ...........................7... -
Page 3: Introduction
The FAST is a sphygmomanometer intended to be used with a stethoscope or Doppler for indirect measurement of arterial blood pressure. This FAST sphyg includes an aneroid gauge. Koven Technology, Inc. intends to provide the FAST sphyg for use by healthcare providers. Our products are for both hospital and clinical use and are intended for pediatric through adults, excluding neonates. -
Page 4: Warnings & Precautions
WARNING: If modifications are performed to this device, appropriate inspection and testing must be conducted to ensure its continued safe use. WARNING: Use only the Koven AC Charger provided. Other chargers may damage the battery. PRECAUTION: Use the proper cuff size. Use of improper cuff sizes may result in erroneous readings. -
Page 5: Controls
FAST Sphyg by Koven CONTROLS Gauge Face Displays the pressure reading in mmHg Trigger Valve To deflate the cuff Actuator Button To inflate the cuff Tubing Connector Port To connect extender tubing Battery Status Indicator To indicate battery charge status... -
Page 6: Operation
FAST Sphyg by Koven OPERATION Ask the patient to sit or lie comfortably with legs uncrossed. Make sure the arm is level with the heart and that the arm and back are supported. The patient should relax comfortably for five (5) minutes before testing and should be instructed not to talk or move during the measurement. -
Page 7: Recharging The Battery
NOTE: The device will not operate while plugged in. REPLACING THE BATTERY Average battery life is approximately 2 years. Battery replacement should only be performed by the manufacturer. For battery replacement, please contact Koven Technology, Inc. at 314-542-2101 or info@koven.com. SYMBOLS... -
Page 8: Specifications
FAST Sphyg by Koven SPECIFICATIONS Nominal Pressure Range: 0 - 300 mmHg Pressure Accuracy: ≤ ± 3 mmHg Max. Air Leakage Rate: ≤ 4 mmHg / minute Power: Rechargeable Li-ion Battery Voltage: 3.7 Volts Battery Life (before recharge): Approx. 250 readings AC Charger: Input Voltage: 100 to 240 Vac. -
Page 9: Cleaning & Maintenance
Inc. at 314-542-2101 or info@koven.com. The warranty does not cover defects resulting from accidents or misuse and is void if modifications of parts are attempted without permission. If the warranty period has expired, please contact Koven Technology, Inc. for a charged repair service. -
Page 10: Safety Standards
FAST Sphyg by Koven SAFETY STANDARDS The FAST conforms to the following standards: Manufacturing standard: IEC60601-1 Protection class against electric shock : Class II device : Internally powered equipment Protection grade against electric shock : Type B applied part Guidance and manufacturer’s declaration - Electromagnetic emissions &... - Page 11 FAST Sphyg by Koven Guidance and Manufacturer’s Declarations (cont.) Electromagnetic Immunity The FAST Sphyg is intended for use in the electromagnetic environment specified below. The user of the FAST Sphyg should assure that it is used in such as environment.
- Page 12 FAST Sphyg by Koven Guidance and Manufacturer’s Declarations (cont.) Electromagnetic Immunity (cont.) The FAST Sphyg is intended for use in the electromagnetic environment specified below. The user of the FAST Sphyg should assure that it is used in such an environment.
-
Page 13: Recommended Separation Distances
FAST Sphyg by Koven Guidance and Manufacturer’s Declarations (cont.) Recommended Separation Distances The FAST Sphyg is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the FAST Sphyg can help prevent... - Page 14 Atlantico Systems 477 N. Lindbergh Blvd., Suite 220 34 Oldfield St. Louis, MO 63141 Kingston, Galway, Ireland Tel: 800-521-8342 • Fax: 314-542-6020 T: +35.39.144.3609 E-mail: info@koven.com www.koven.com GLN: 0894912002005 OM-1554 r08 8/4/16 FAST Sphyg Operation Manual Copyright © Koven Technology, Inc.
