Quick Set Up for Lithium Ion Batteries – 48100 / 4850
Compatible Inverters: Voltacon Off Grid 5kW, 7.2kW, 8kW, 11Kw.

Step 1. Set Dip Switches

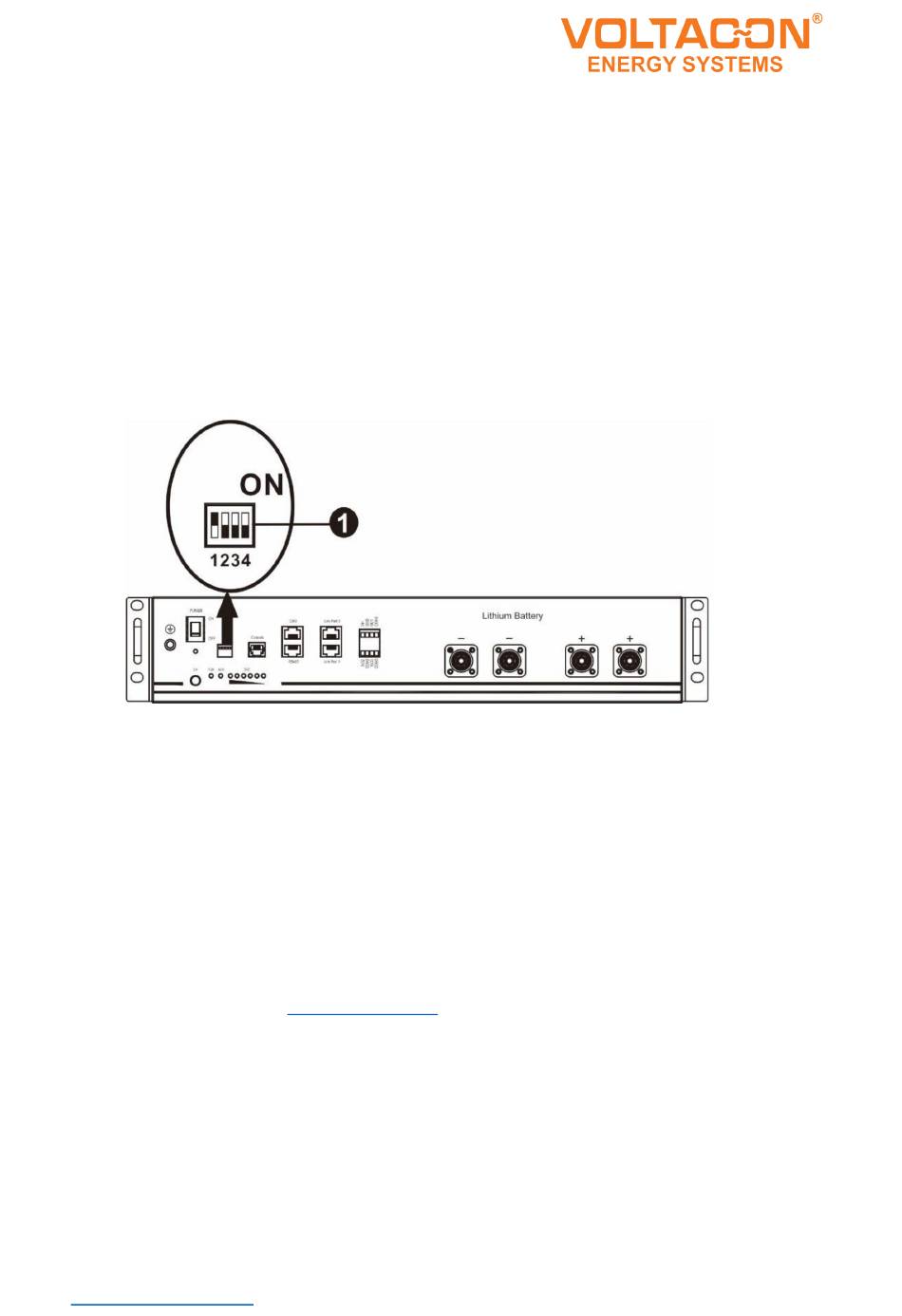

Dip Switch Master Battery Only : There are 4 Dip Switches that sets different baud rate and battery
group address. If switch position is turned to the "OFF" position, it means "0". If switch position is
turned to the "ON" position, it means "1". Dip 1 is "ON" to represent the baud rate 9600. Dip 2, 3 and 4
are reserved for battery group address. Dip switch 2, 3 and 4 on master battery (first battery) are to
set up or change the group address.
The "Slave" batteries should have the dip-switches unchanged (default setting)

Step 2. BMS Cable for Voltacon Inverters

Connect the BMS cable from the RS485 port on the battery to the dedicated Li-Ion port on the
inverter terminals.
Off-grid Voltacon Inverter: BMS Cable Pins (Battery)1-3(Inverter),(Battery) 2-5 (Inverter).
Hybrid Voltacon Inverter: BMS Cable Pins (Battery)1-4(Inverter),(Battery) 2-5 (Inverter).
Please do not use any standard RJ45 ethernet cable with the Voltacon inverters. If in doubt
contact our technical team:
info@voltacon.com
(Use reference: How to Set Up My BMS)
www.voltaconsolar.com
Set up guide for lithium ion batteries 1.3.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Voltacon 48100

  • Page 1 Off-grid Voltacon Inverter: BMS Cable Pins (Battery)1-3(Inverter),(Battery) 2-5 (Inverter). Hybrid Voltacon Inverter: BMS Cable Pins (Battery)1-4(Inverter),(Battery) 2-5 (Inverter). Please do not use any standard RJ45 ethernet cable with the Voltacon inverters. If in doubt contact our technical team: info@voltacon.com (Use reference: How to Set Up My BMS) www.voltaconsolar.com...
  • Page 2 Link Communication Cables Between Batteries Step 3. Select Battery Type and Communication Protocol , if error 61 appears on the screen In menu 5 of the inverter, select the protocol repeat the process and select LIC. It will take up to 3 minutes for the battery to reboot and communicate with the inverter.
  • Page 3 The new battery is always the Master/Host. BMS Cable is also connected to the Master battery. NOTICE: Installation of 4850 and 48100 in the same circuit is not allowed. The new BMS communication cable is require from the RS485 port of the battery to the inverter Li-Ion port.
  • Page 4 Manual Set Up without BMS Communication – Old Inverters without BMS The following settings should be used when the inverter does not support communication with battery via serial/CAN bus. The parameters have to be set manually. If the following numbers are entered the battery will be charged and discharged according to the manufacturer's specifications Inverter Program Settings/Value...
