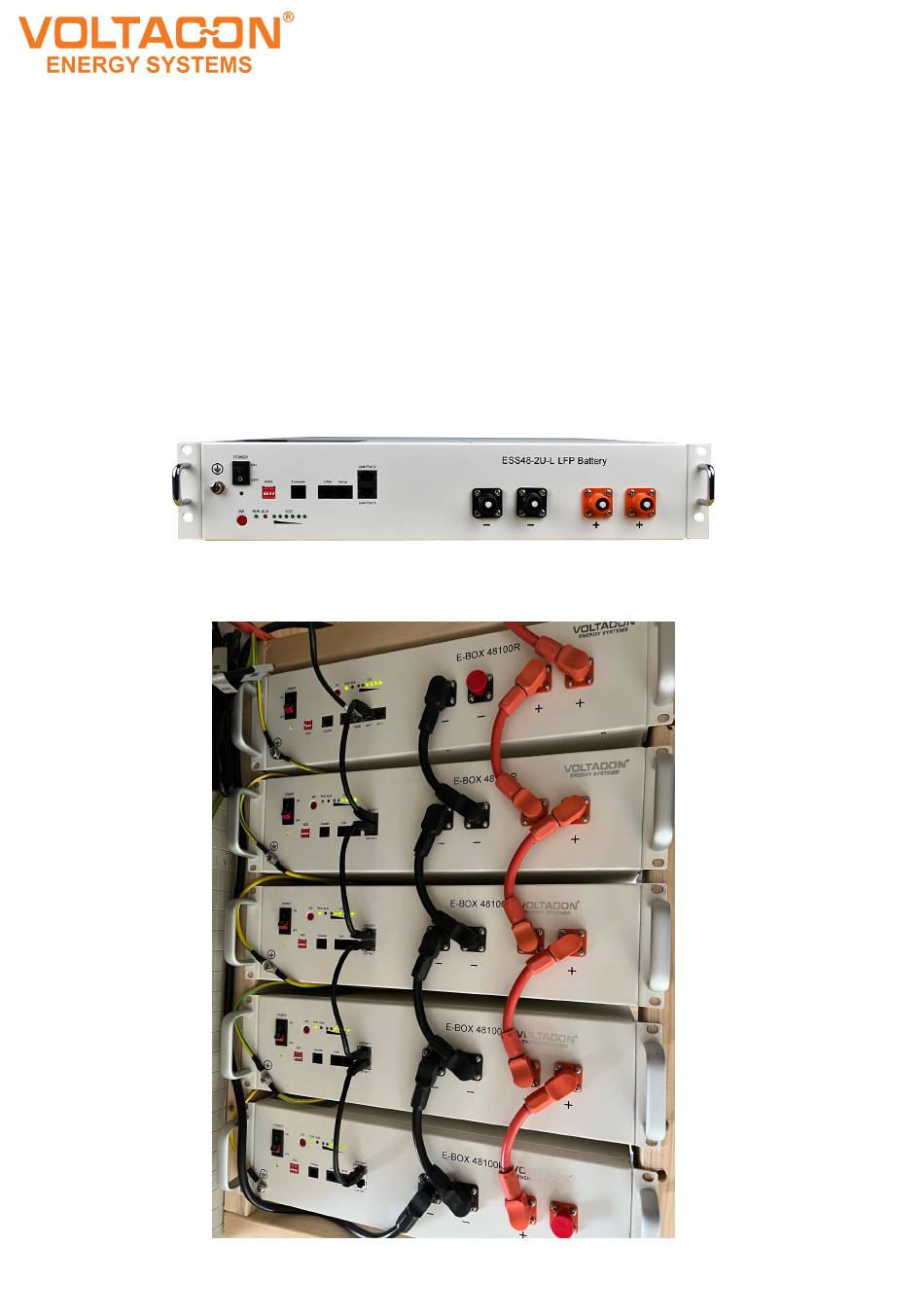

- Page 1 V2.0 User Manual Lithium Ion Battery 48V 50Ah / 100Ah 48100B / 4850B...
- Page 2 Voltacon Energy Storage LFP Battery User Manual Dear customer, This is your Voltacon LFP battery for home energy storage system. We provide safe, well-designed and high-performance standard LFP battery packs for you. The battery pack is compact, easy to install, free of maintenance and is used as the basic building block of an energy storage system by connecting in parallel.
- Page 3 Voltacon 5.12kWh Lithium Battery User Manual Before Using Read and understand the following instructions: Warning 1.This equipment may only be installed, operated and maintained by qualified skilled person(electrician). 2.The local safety regulations and relevant operating procedures must be observed during the installation, operation and maintenance of the equipment, otherwise the equipment may get damaged.
- Page 4 Voltacon 5.12kWh Lithium Battery User Manual e) Wear personal protective equipment. f) Ensure that if the battery is either intentionally or inadvertently grounded. Contacting with any part of a grounded battery can cause electric shock and burns by high short-circuit current. The risk of such hazards can be reduced if ground surroundings are removed during installation and maintenance by a skilled person.
- Page 5 Voltacon 5.12kWh Lithium Battery User Manual Symbols Read the instruction manual before starting installation and operation. caution, do not dispose of batteries in a fire, the battery may explode. caution, a battery can present a risk of electric shock and burns by high short-circuit current.
-
Page 6: Table Of Contents
Voltacon 5.12kWh Lithium Battery User Manual Contents 1 Specifications ....................7 1.1 Product standard configuration ............8 1.2 BMS function ..................9 2 Interface and protection functions ............. 9 2.1 Battery front panel schematic ............9 2.2 Components ..................9 3 Operating Environment ................ - Page 7 Voltacon 5.12kWh Lithium Battery User Manual 7.4 ALM constantly on ................22...
-
Page 8: Specifications
Voltacon 5.12kWh Lithium Battery User Manual 1 Specifications Table 1-1 Battery Pack Specifications LI2022 ESS-48100R LI2021 ESS-4850 LI2022 ESS-48100C Battery Model Chemistry Nominal Voltage 51.2V 51.2V Voltage Range 45V-54V 47.5V-57.6V 47.5V-57.6V Nominal Capacity 50Ah 100Ah 100Ah Nominal Energy 2.4kWh 5.12kWh 5.12kWh... -
Page 9: Product Standard Configuration
Voltacon 5.12kWh Lithium Battery User Manual Certificates IEC62619 / UN38.3 IEC62619 / UN38.3 UL1973, IEC62619 / UN38.3 Storage Temperature Within 1month: Within 1month: Within 1month: -20~45° C -20~45° C -20~45° C 1-3months: 1-3months: 1-3months: -20~35° C -20~35° C -20~35° C... -
Page 10: Bms Function
Voltacon 5.12kWh Lithium Battery User Manual 1.2 BMS function Protection and Alarm Management and Monitor Charge/Discharge End Cell Balance Charging over Voltage Intelligent Charge Model Charge/Discharge Over Current Charge/Discharge current Limit High/Low Temperature Capacity Retention Calculation Short Circuit Administrator Monitor... - Page 11 Voltacon 5.12kWh Lithium Battery User Manual Press and hold this button for 1 Soft start switches second while the switch key is "ON" to enter Start or Sleep mode Select the matching manufacturer, DIP switch see the match list (appendix A) Green light.
-
Page 12: Operating Environment
Voltacon 5.12kWh Lithium Battery User Manual 3 Operating Environment Battery operating environment requirements: Operating Temperature: -10℃~50℃ Relative Humidity: 20%-80%, no condensation Altitude: ＜4000m Site environment requirements: Keep away from heat source, avoid direct sunlight, no corrosive gas, no explosive gas, no insulating gas, no insulating conductive dust. -
Page 13: Installation And Configuration
Voltacon 5.12kWh Lithium Battery User Manual Keep the battery SOC to 40%-60% during storage. The Self-discharge of the LFP battery pack is 1-2% per month. Disconnect the LFP battery from all loads and, if present, the charging device. Store the battery in a cool and dry place without direct sunlight. -
Page 14: Unpacking
Voltacon 5.12kWh Lithium Battery User Manual 5.1.3 Tools The tools that may be used are shown in Table 5-1. Table 5-1 Tools Tools Screwdriver (Slotted, Phillips) Multimeter Wrench Clip-on ammeter Diagonal pliers Insulating tape Thermometer Pliers Anti-static wrist ring Clip Pliers... -
Page 15: The Preparatory Work
Voltacon 5.12kWh Lithium Battery User Manual and stored properly and prevented from the direct sunshine and rain. Before installation, check if there is any component missing according to 1.1 product standard configuration and check whether the box appearance is intact;... - Page 16 Voltacon 5.12kWh Lithium Battery User Manual Note: The grounding resistance should be less than 0.1Ω. 5.4.3 Connecting the power cable Before connecting the power cable, connect and disconnect the cable to identify the positive and negative terminal, then make a mark respectively.
- Page 17 Voltacon 5.12kWh Lithium Battery User Manual inverter (or the junction box) with a red and black cable respectively. Multiple batteries (Max number 8): The connection of several batteries is only permitted in parallel. Firstly, connect the positive poles with the supplied red cables, and connect the negative poles with the supplied black cables.
- Page 18 Voltacon 5.12kWh Lithium Battery User Manual Note: The battery must be placed in a locked cabinet or room, and a 5cm cooling gap is reserved when installing the battery, and the battery cabinet should have a load capacity of more than 100kg Figure 5-1 Schematic diagram of battery connection 5.4.4 Connecting communication cables...
- Page 19 Voltacon 5.12kWh Lithium Battery User Manual 1. The host Link Port 0 must be kept free; 2. The end slave Link Port 1 must be kept free; Note: The system may not be able to communicate if not followed the instruction.
-
Page 20: Communication
Voltacon 5.12kWh Lithium Battery User Manual 6 Communication There are RS-232C, RS485and CAN communication ports on the battery. The battery status can be obtained and the battery internal parameters can be modified via a host computer. CAN communication Terminal (RJ45 port) follow CAN protocol, to output batteries information. -
Page 21: Rs485 Port And Can Port
Voltacon 5.12kWh Lithium Battery User Manual 6.2 RS485 port and CAN port. Default baud rate of RS-485 port: 9600bps Default baud rate of CAN port: 500K able 6-2 RS485 and CAN Connector Pin Assignments Pin number Serial RS485B RS485A CANH... -
Page 22: Unable To Start
Voltacon 5.12kWh Lithium Battery User Manual Warning: Do not repair the battery if no authorization from Voltacon! 7.1 Unable to start Problem Troubleshooting Steps Solution 1. If the battery enters 1. Confirm that the POWER Press the POWER button to charging mode, the button remains in the "ON"... -
Page 23: Unable To Discharge
Voltacon 5.12kWh Lithium Battery User Manual 7.3 Unable to discharge Problem Troubleshooting Steps Solution 1. Confirm that the battery is turned on; 2. Check the power cables to ensure that they are properly connected. If the battery still does not discharge 3. - Page 24 Voltacon 5.12kWh Lithium Battery User Manual Warranty Card Customer information Contact name Phone number Email Address Production information Battery model Inverter brand/model Battery quantity Inverter quantity Purchase date Inverter using time Serial number on-grid/off-grid Installer information Installer name Installing date...
- Page 25 Voltacon 5.12kWh Lithium Battery User Manual VOLTACON UK LIMITED Burnsall Road | Canley | Industrial Est | CV5 6BU | UK +44 2477 675 575 INFO@VOLTACON.COM...
- Page 26 All Rights Reserved Voltacon 2022...
