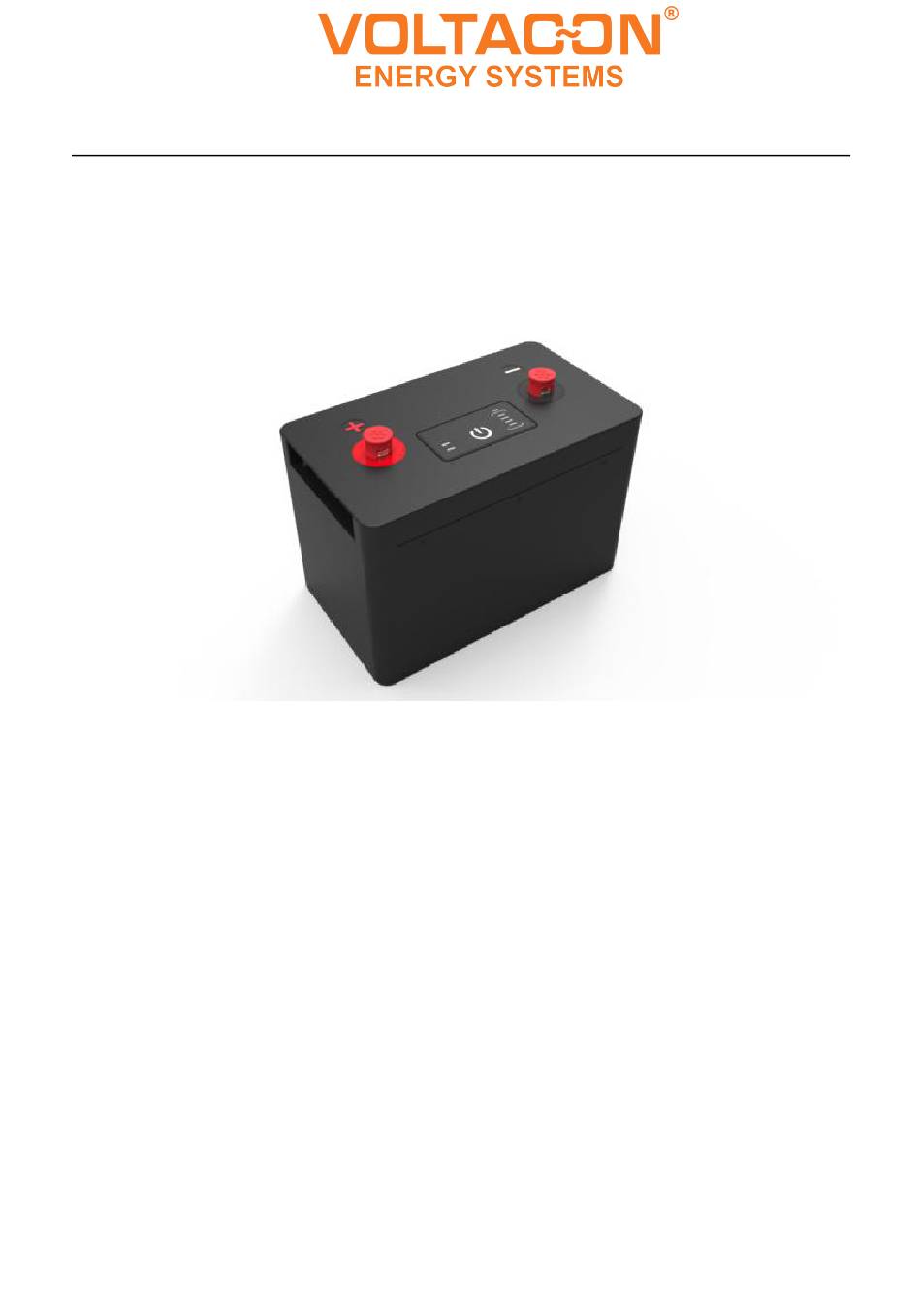

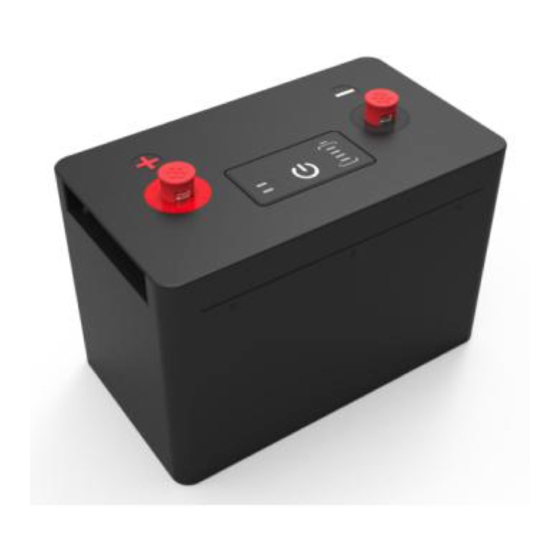

- Page 1 ESS12V100Ah LFP Battery User Manual Rechargeable Li-ion Battery ESS12100 User Manual Information Version: 1.0 20ESS-SV0801...
-
Page 2: Table Of Contents
This manual introduces ESS12100 from Voltacon. Please read this manual before installing the battery and follow the instruction carefully during the installation process. Any questions, please contact Voltacon immediately for advice and clarification. Content 1 Product introduction...................1 1.1 Product features.....................1 1.2 Scope and purpose of application.............. -
Page 3: Product Introduction
1 Product introduction 1.1 Product features Voltacon Lithium Iron Phosphate Battery perfect deep-cycle applications including electric vehicles, solar/wind energy systems, UPS battery backup, telecommunication systems, medical equipment, and more.. Voltage platform: 12V High C rate: the output power reaches sustained 1C ... -
Page 4: Product Parameters
2 Product parameters 2.1Battery module technical parameters Table 4 -Technical parameters of battery module Item Value 100 Ah Nominal capacity Nominal voltage 12.8Vdc Voltage range DC 10V ~14.8V Continuous charging current DC 50A Continuous discharging current DC 100A -20℃～50℃ Working temperature 5～95% Humidity Natural cooling... - Page 5 supported Parallel Connection 2.2 Panel definition Battery switch: Press the Power Button for “1S” and the battery is on. In order to save energy ,after 30s,all the indicator light will shut down. If customers want to see the battery status, please press the power button 1s again.
- Page 6 Status Remark State ●★Ru ●★ SOC4 SOC3 SOC2 SOC1 Turn off All off 0%-25% ● 26%-50 ● ● All SOC Idle ● 51%-75 Light is solid ● ● ● 76%-10 ● ● ● ● ★ 0%-25% 26%-50 ★ ● The SOC top one is Charge ●...
- Page 7 Alarm protected state can be released upon reaching the recovery condition Hardware Protect Protect ● damaged ●： Green light solid ★： Green light flashing (2S flashing) ★★： Green light flashing (4S flashing) ●： Red light solid ★： Red light flashing (2S flashing) ★★：...
- Page 8 Notice: 1、 The number of parallel connections is limited to 4 pcs. 2、 Ensure that the voltage difference between the batteries should not exceed 0.5V before connection. 3、 Each set of the battery external cables should have the same wire diameter and length.
-
Page 9: Installation Environment
1、The number of series connections is limited to 2 pcs，24V. 2、Each battery should have the same capacity and the same voltage. Otherwise it will affect subsequent use.If not, please first connect the battery in parallel to internal balance and then use it in series. 3、If one battery goes into protective mode, the whole system will shutdown. -
Page 10: Transportation And Storage Requirements
Long-term storage: before storage, the SOC should be more than 80%, and the battery should be recharged every six months.The charging amount should exceed 80% of the capacity VOLTACON UK LIMITED Energy Systems Burnsall Road Industrial Estate Coventry. CV5 6BU United Kingdom www.voltaconsolar.com Email: info@voltacon.com...
