SONARAY WP-5040 Installation Manual

www.sonarayled.com
Non Cutoff Wall Pack Light Installation Guide

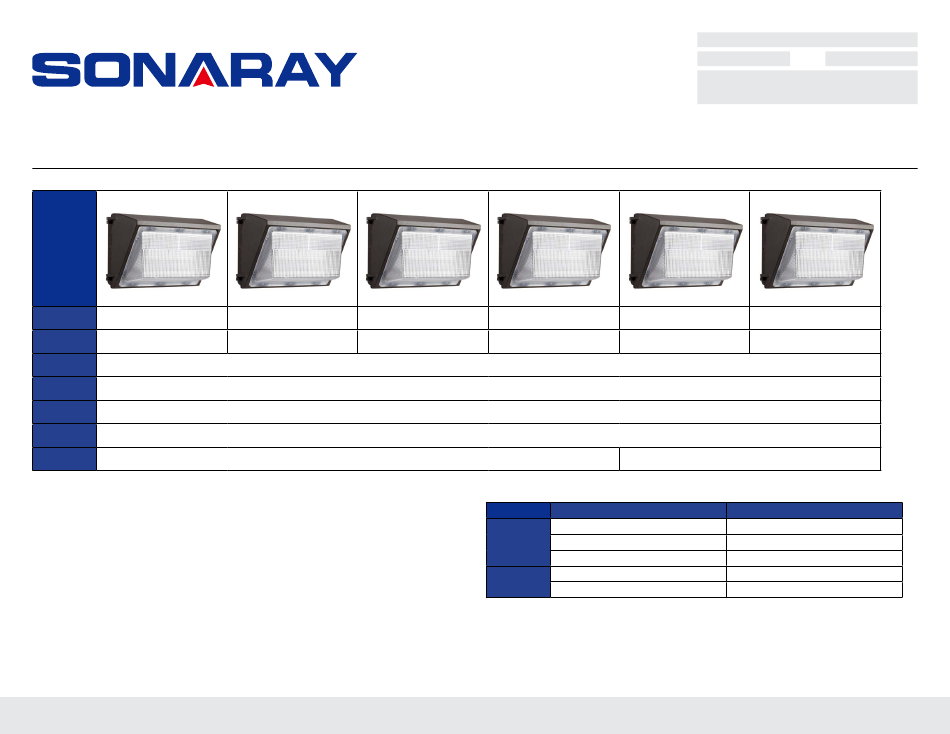

TECHNICAL PARAMETERS

PRODUCT
MODEL
WP-5040
NUMBER
POWER
40W
CONSUMPTION
OPERATING
VOLTAGE
HOUSING
MATERIAL
OPERATING
TEMPERATURE
IP
RATING
DIMENSIONS

ATTENTION

This manual instructs the important information of installation and operation. Be sure to strictly follow
the instructions before use. To ensure correct installation and operation of the product, carefully read
and understand all contents of this guide. Any mechanical or electrical modifications to the product
will void warranty and may cause dangerous hazards. To avoid potential issues caused by high
temperature, be sure no objects are on the lens while the product is switched on.
INSTALLATION PREPERATION
1. Take out the luminaire from the box and place it on a level platform for easy installation.
2. For proper operation, a qualified electrician should perform the installation.
3. Ensure the normal ambient temperature of the installation location is between -20°C ~ +50°C.
4. Ensure the voltage of the luminaire is capatable with the onsite voltage before installation.
5. Any luminaire with damaged power cord should not be installed.
Note: The power must be cut off before installation.
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
®
WP-5060 WP-5080
60W 80W
100-277V AC ~ 50/60Hz
-20°C ~ +50°C / -4°F ~ +122°F
14.56 x 9.05 x 7.48
WP-5100
100W
Aluminum
65

TROUBLESHOOTING

SITUATION POSSIBLE REASON
LED Incorrect input wiring
DOES NOT
No power to the luminaire
LIGHT UP
Incorrect voltage
LED Poor power connection
FLICKER
Input voltage fluctation

GENERAL MAINTENANCE

Make sure there is no power running to the luminaire when performing maintenance.
The lens and the housing can be cleaned using a soft cloth without any corrosive material.
PROJECT
DATE TYPE
NOTES
REV: 21 0101 0000
WP-5120 WP-5150
120W 150W
18.30 x 9.29 x 8.97
POSSIBLE SOLUTION
Confirm wire colors
Recycle power or check power connection
Confirm voltage
Check power connection
Confirm voltage
