SONARAY SR-2050 Installation Manual

www.sonarayled.com
All-in-One Solar Light Installation Guide

TECHNICAL PARAMETERS

PRODUCT
MODEL
SR-2050
NUMBER
POWER
50W
CONSUMPTION
OPERATING
VOLTAGE
HOUSING
MATERIAL
OPERATING
-30°C ~ +50°C / -22°F ~ +122°F
TEMPERATURE
IP
RATING
EPA
1.70 ft²
RATING
BUG
B3-U1-G0
RATING
16.97
WEIGHT
DIMENSIONS 23.62 x 8.66 x 4.01
ATTENTION
This manual instructs the important information of installation and operation. Be sure to strictly follow
the instructions before use. To ensure correct installation and operation of the product, carefully read
and understand all contents of this guide. Any mechanical or electrical modifications to the product
will void warranty and may cause dangerous hazards. To avoid potential issues caused by high
temperature, be sure no objects are on the lens while the product is switched on.
INSTALLATION PREPERATION
1. Take out the luminaire from the box and place it on a level platform for easy installation.
2. For proper operation, a qualified electrician should perform the installation.
3. Ensure the normal ambient temperature of the installation location is between -40°C ~ +45°C.
4. Ensure the voltage of the luminaire is capatable with the onsite voltage before installation.
5. Any luminaire with damaged power cord should not be installed.
Note: The power must be cut off before installation.
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
®
SR-2070
70W
12-24V DC
Aluminum
66
2.92 ft²
B3-U1-G1
16.97
32.10 x 9.74 x 4.98

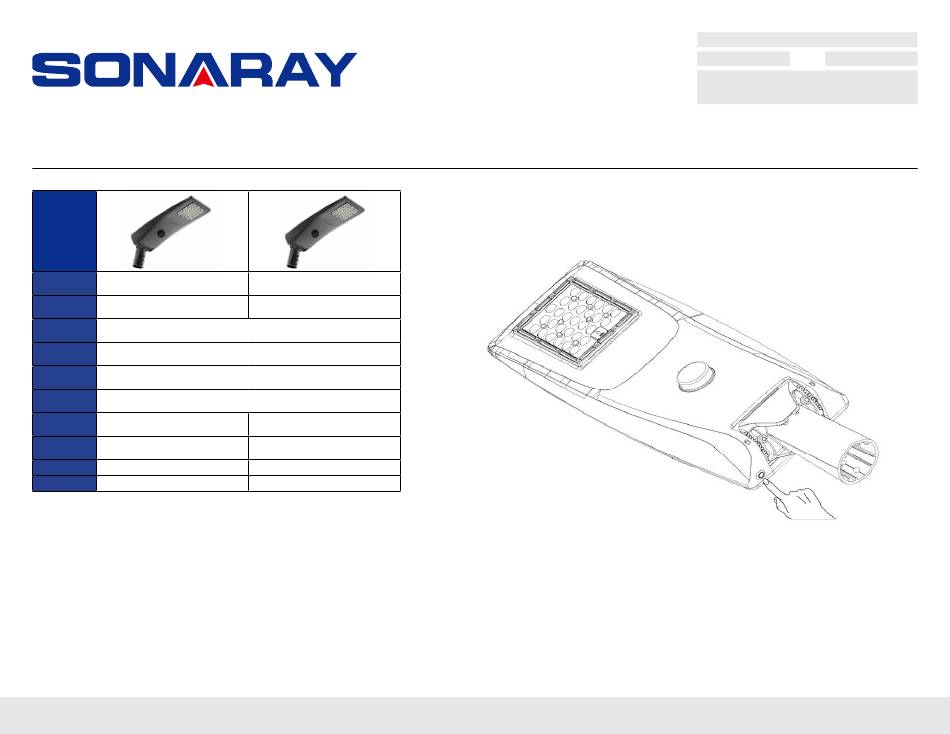

Installation Diagram
1. Press the on/off button near the mount of the solar light.
PROJECT
DATE TYPE
NOTES
REV: 21 0101 0000
