SONARAY ST-5150 Installation Manual

www.sonarayled.com

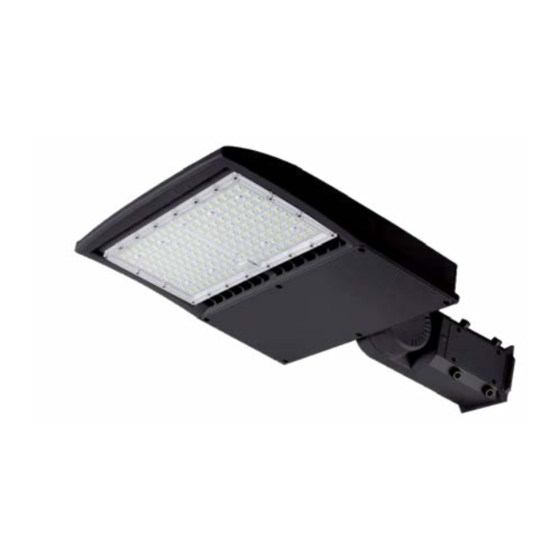

Shoebox Area Light Installation Guide
TECHNICAL PARAMETERS
PRODUCT
MODEL
ST-5150
NUMBER
POWER
148W
CONSUMPTION
OPERATING
100-277V AC ~ 50/60Hz
VOLTAGE
HOUSING
MATERIAL
OPERATING
-40°C ~ +45°C / -40°F ~ +113°F
TEMPERATURE
IP
RATING
EPA
2.21 ft²
RATING
BUG
B3-U2-G3
RATING
13.09
WEIGHT
DIMENSIONS 20.27 x 13.11 x 3.14
ATTENTION
This manual instructs the important information of installation and operation. Be sure to strictly follow
the instructions before use. To ensure correct installation and operation of the product, carefully read
and understand all contents of this guide. Any mechanical or electrical modifications to the product
will void warranty and may cause dangerous hazards. To avoid potential issues caused by high
temperature, be sure no objects are on the lens while the product is switched on.
INSTALLATION PREPERATION
1. Take out the luminaire from the box and place it on a level platform for easy installation.
2. For proper operation, a qualified electrician should perform the installation.
3. Ensure the normal ambient temperature of the installation location is between -40°C ~ +45°C.
4. Ensure the voltage of the luminaire is capatable with the onsite voltage before installation.
5. Any luminaire with damaged power cord should not be installed.
Note: The power must be cut off before installation.
©2021 | SONARAY LED LIGHTING HEADQUARTERS | 34 LAKEVIEW COURT VERONA, VA 24482 USA | OFFICE 844.202.5606 | FAX 540.242.7221
®
ST-5300
304W
Aluminum
65
2.95 ft²
B4-U2-G4
18.70
26.96 x 13.11 x 3.54

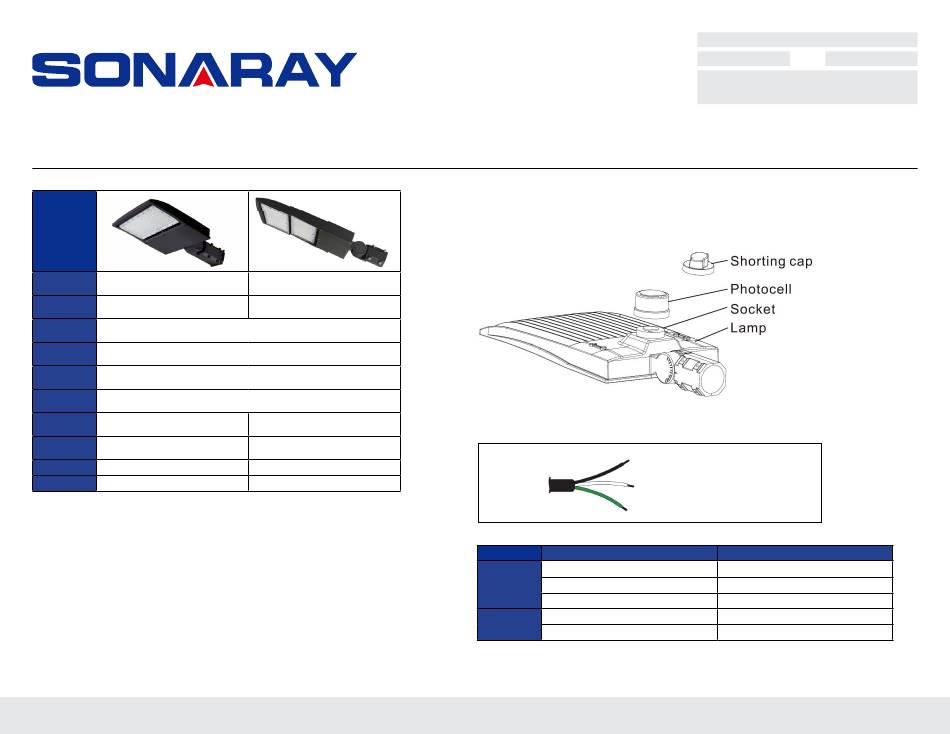

INSTALLATION DIAGRAM (PC - PHOTOCELL)
1. When the photocell function is required, the photocell should ne installed on the back of the fixture. When it's
not required, a shorting cap will be installed on the back of the lamp.
LIVE = BLACK
NEUTRAL = WHITE
GROUND = GREEN
TROUBLESHOOTING
SITUATION POSSIBLE REASON
Incorrect input wiring
LED
DOES NOT
No power to the luminaire
LIGHT UP
Incorrect voltage
Poor power connection
LED
FLICKER
Input voltage fluctation
GENERAL MAINTENANCE
Make sure there is no power running to the luminaire when performing maintenance.
The lens and the housing can be cleaned using a soft cloth without any corrosive material.
PROJECT
DATE TYPE
NOTES
REV: 21 0101 0000
POSSIBLE SOLUTION
Confirm wire colors
Recycle power or check power connection
Confirm voltage
Check power connection
Confirm voltage
