SI 780-780T-900-1100 FST Twin
Freestanding TAPER TOP Twin Open Wood Fire
Note: FLUE SYSTEMS Casing....
Flue System may require to be Doubled Lined to Comply.
Ref ASNZS:2918:2001 4.3 Flue pipe casing
Gib Ceiling
Gib Walls
Freestanding
Taper Top Cabinet
Freestanding
Plinth & Hearth
Visit
Keep these Instructions for further reference......Ensure that you have the correct and current Installation details for the Warmington Fire
The Warmington unit is to be Installed by a Certified Warmington Installer or an Approved NZHHA Installation Technician .
Read all the Instructions carefully before commencing the Installation. Failure to follow these Instructions may result in a Fire Hazard and void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
1
Installation Instructions
Roof
www.warmington.co.nz
Fire, Flue System and Instructions to Comply with ASNZS 2918:2001
See www.homeheat.co.nz/members for a Certified NZHHA SFAIT Installer in your area .
All Dimension are in mm.............Copyright ©
for Spec's, DWG's and PDF uploads of Fires
Installation
IMPORTANT
5 April 2019

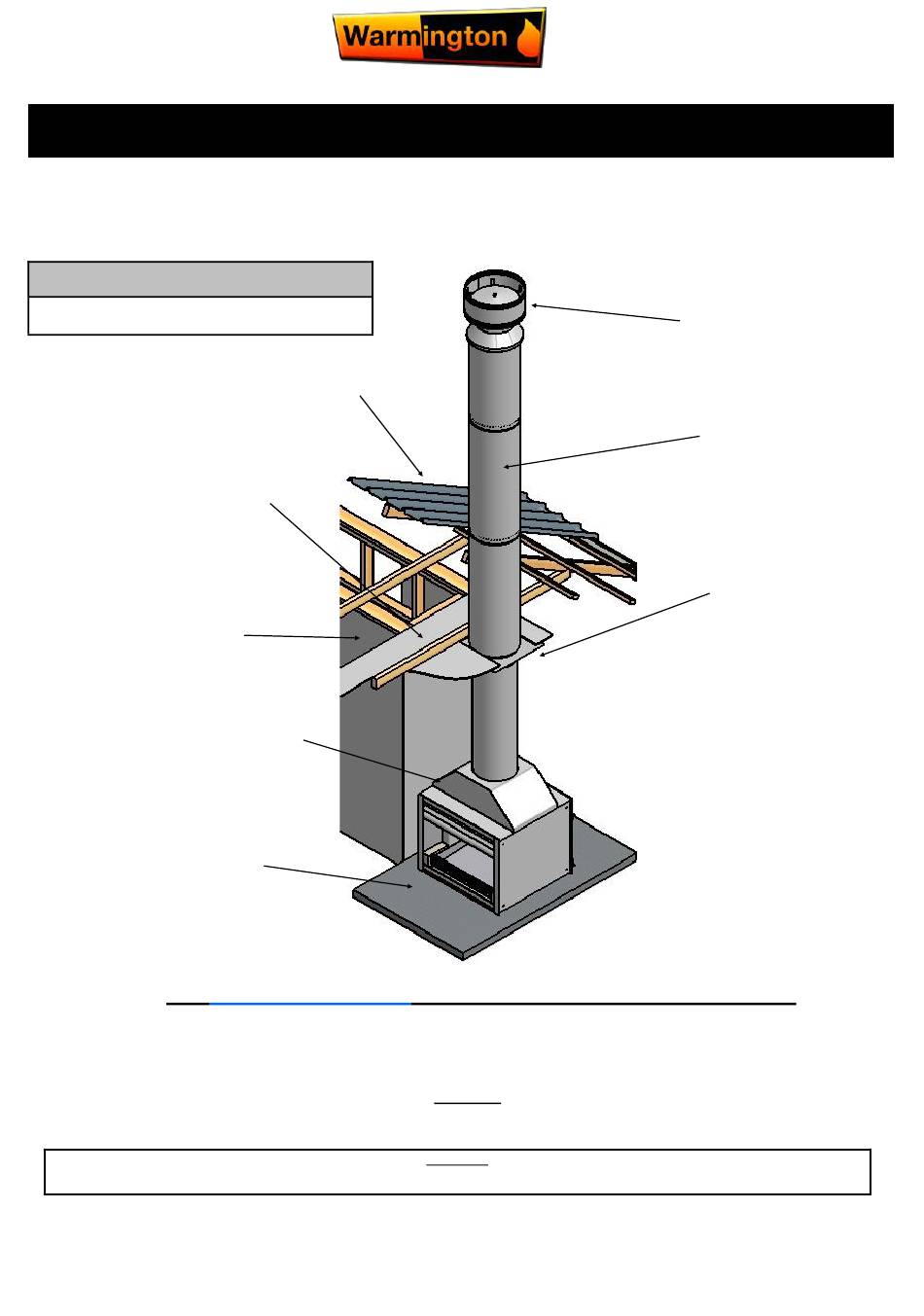

Cowl, Cone & Spider
Freestanding
Flue System
Ceiling Plate
