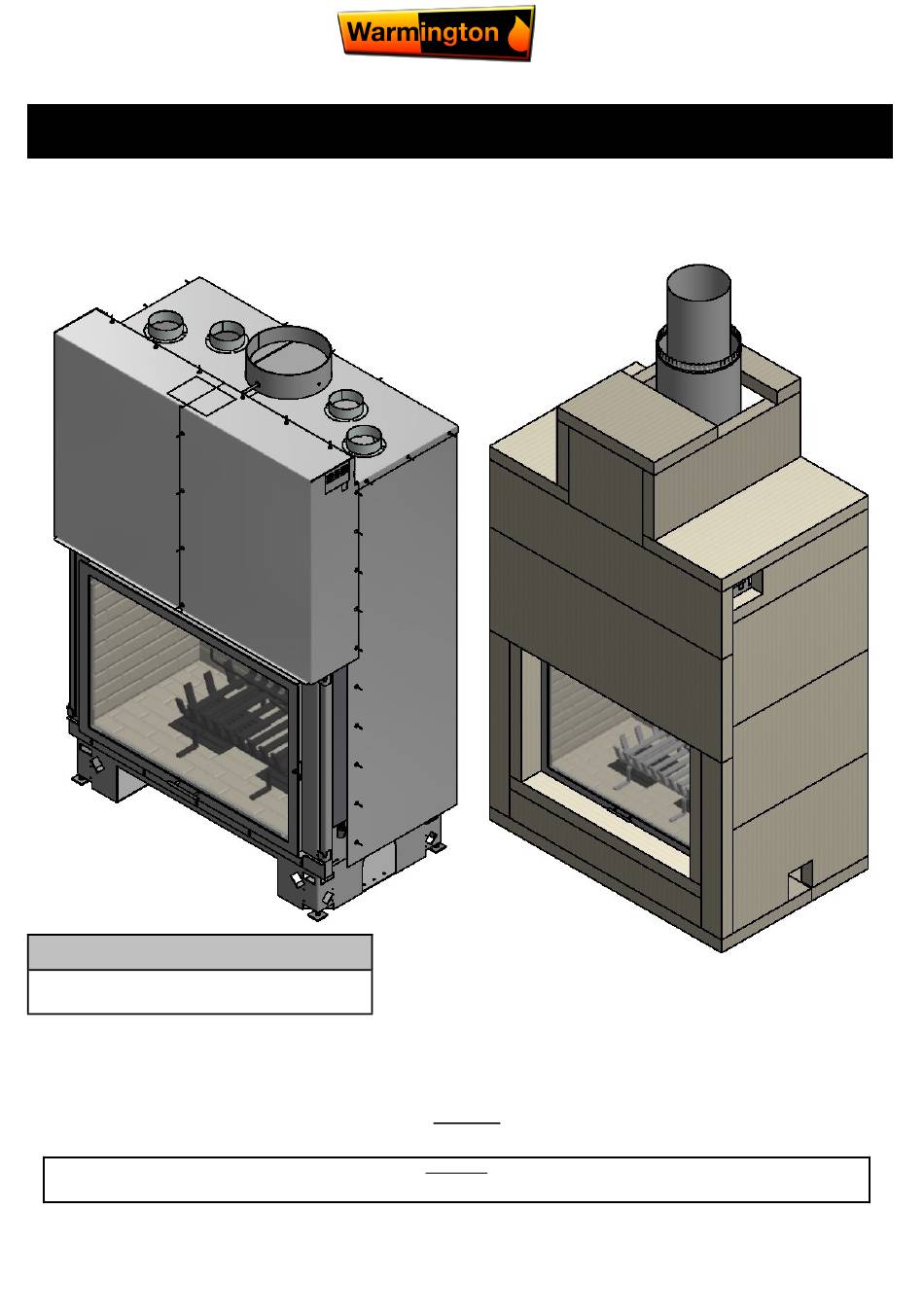

Warmington Evoque 1300
Solid fuel burner, bricked fire
Installation Instructions
Note flue system casing:
Flue system may require to be doubled lined to comply to
ASNZS:2918:2001 4.3 Flue pipe casing.
Fire, flue system and instructions to comply with ASNZS 2918:2001 & Building Code C1 Outbreak of Fire
Keep these Instructions for further reference. Ensure that you have the correct and current installation details for the Warmington Fire
Installation
The Warmington unit is to be installed by a certified Warmington installer or an Approved NZHHA Installation Technician.
IMPORTANT
Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
1
All Dimension are in mm..........Copyright
