Warmington SI 780 Twin Installation Instructions Manual

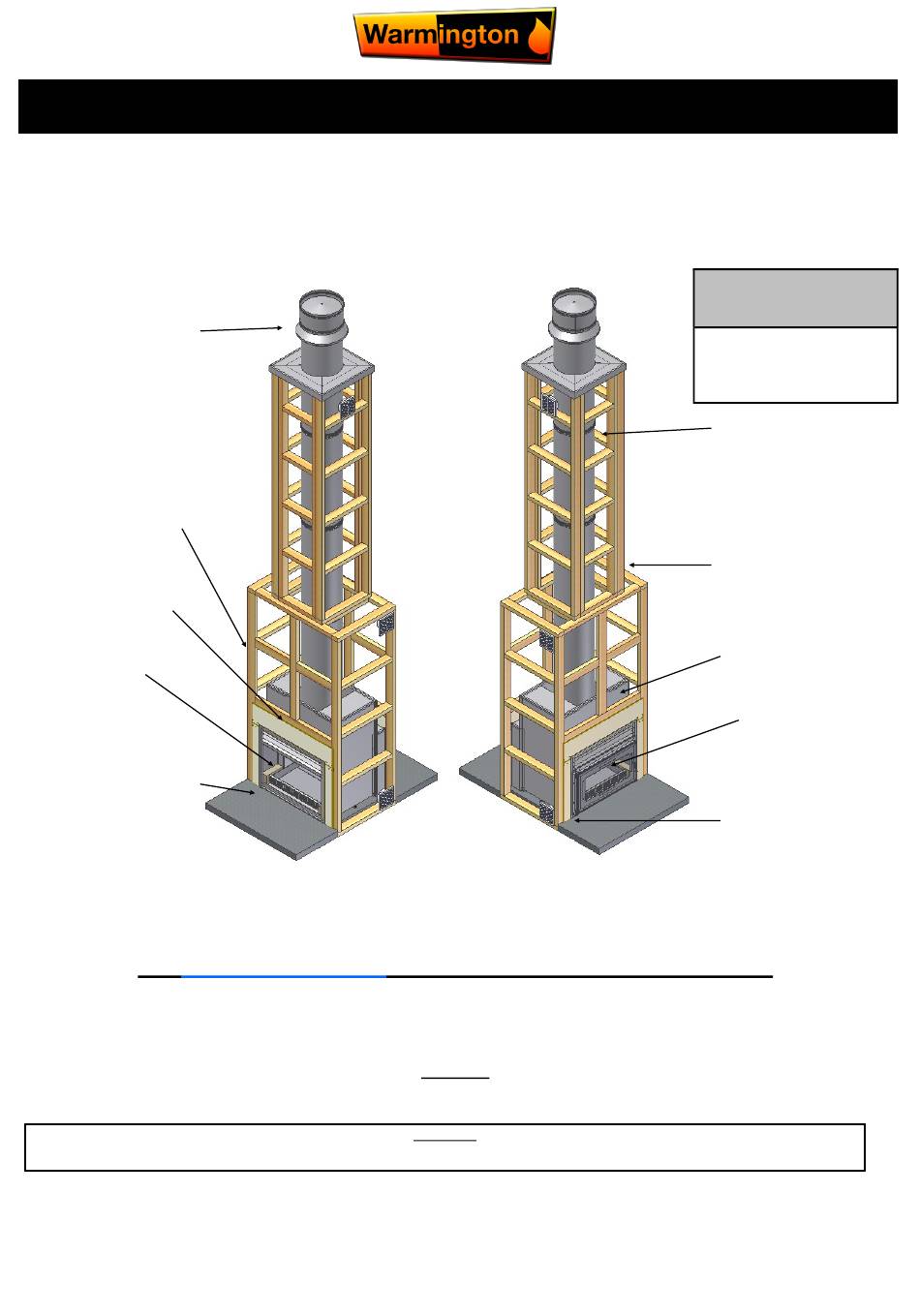

Installation Instructions into Wood or Block Alcoves
Cowl, Cone & Spider
Gib Board Wall
Promina Fascia
Open on one
side only
Floor Protector :
75mm Hebel over Com-
bustible floor. See de-
tails for dimensions
Visit www.warmington.co.nz
Keep these Instructions for further reference......Ensure that you have the correct and current Installation details for the Warmington Fire
The Warmington unit is to be Installed by a Certified Warmington Installer or an Approved NZHHA Installation Technician .
Read all the Instructions carefully before commencing the Installation. Failure to follow these Instructions may result in a Fire Hazard and void the warranty
1
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
SI 780-780T-900-1100 Twin
Twin Open Fires - Wood Burner
Effective From 1
Fire, Flue System and Instructions to Comply with ASNZS 2918:2001
See www.homeheat.co.nz/members for a Certified NZHHA SFAIT Installer in your area .
All Dimension are in mm....... Copyright on all products and Specifications ©
September 2005
st
for Spec's, DWG's and PDF uploads of fires
Installation
IMPORTANT
11 November 2020
Note: FLUE SYSTEMS
casing.
Flue system may require to be
Doubled lined to comply. Ref
ASNZS:2918:2001 4.3 Flue pipe
casing.
Flue System
Timber Framing
Heat Shield
Door on one
side only
Vents for cooling
and "CAITEC"
