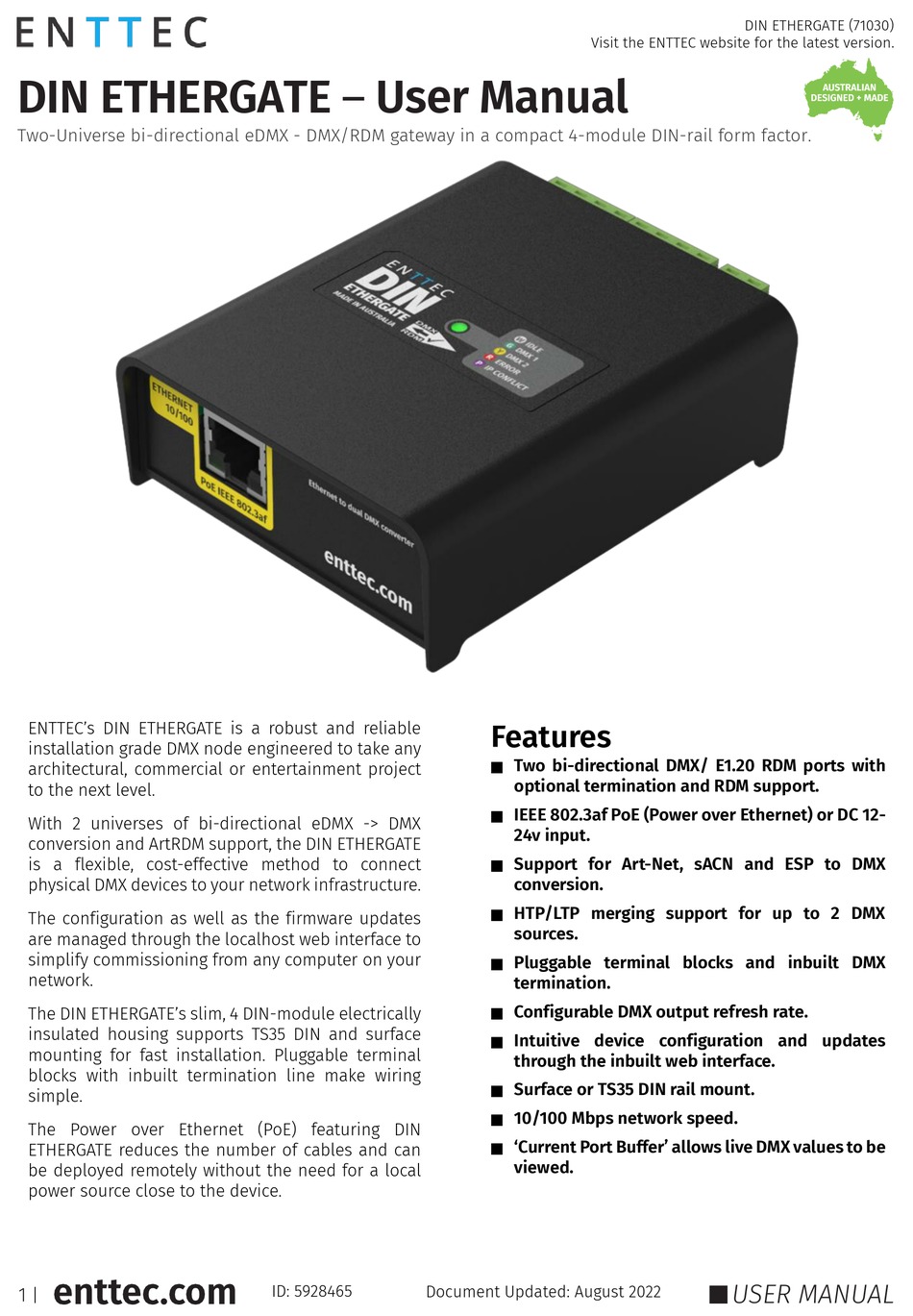

DIN ETHERGATE – User Manual
Two-Universe bi-directional eDMX - DMX/RDM gateway in a compact 4-module DIN-rail form factor.
ENTTEC's DIN ETHERGATE is a robust and reliable
installation grade DMX node engineered to take any
architectural, commercial or entertainment project
to the next level.
With 2 universes of bi-directional eDMX -> DMX
conversion and ArtRDM support, the DIN ETHERGATE
is a flexible, cost-effective method to connect
physical DMX devices to your network infrastructure.
The configuration as well as the firmware updates
are managed through the localhost web interface to
simplify commissioning from any computer on your
network.
The DIN ETHERGATE's slim, 4 DIN-module electrically
insulated housing supports TS35 DIN and surface
mounting for fast installation. Pluggable terminal
blocks with inbuilt termination line make wiring
simple.
The Power over Ethernet (PoE) featuring DIN
ETHERGATE reduces the number of cables and can
be deployed remotely without the need for a local
power source close to the device.
1
|
ID: 5928465
Document Updated: August 2022
Visit the ENTTEC website for the latest version.
Features
Two bi-directional DMX/ E1.20 RDM ports with
optional termination and RDM support.
IEEE 802.3af PoE (Power over Ethernet) or DC 12-
24v input.
Support for Art-Net, sACN and ESP to DMX
conversion.
HTP/LTP merging support for up to 2 DMX
sources.
Pluggable terminal blocks and inbuilt DMX
termination.
Configurable DMX output refresh rate.
Intuitive device configuration and updates
through the inbuilt web interface.
Surface or TS35 DIN rail mount.
10/100 Mbps network speed.
'Current Port Buffer' allows live DMX values to be
viewed.
DIN ETHERGATE (71030)
USER MANUAL
..
Advertisement
Table of Contents
Related Manuals for Enttec DIN ETHERGATE
Summary of Contents for Enttec DIN ETHERGATE
- Page 1 Visit the ENTTEC website for the latest version. DIN ETHERGATE – User Manual Two-Universe bi-directional eDMX - DMX/RDM gateway in a compact 4-module DIN-rail form factor. ENTTEC’s DIN ETHERGATE is a robust and reliable Features installation grade DMX node engineered to take any Two bi-directional DMX/ E1.20 RDM ports with...
-
Page 2: Table Of Contents
DIN ETHERGATE (71030) Visit the ENTTEC website for the latest version. Content Safety ............................................3 Electrical safety ............................................. 3 System Planning and Specification ....................................3 Protection from Injury During Installation ..................................4 Installation Safety Guidelines ....................................... 4 Physical Dimensions ......................................4 Wiring Diagrams ........................................ -
Page 3: Safety
ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance. -
Page 4: Protection From Injury During Installation
Keep the DIN ETHERGATE and its accessories in its protective packaging until final installation. Note the serial number of each DIN ETHERGATE and add it to your layout plan for future reference when servicing. -
Page 5: Wiring Diagrams
The maximum cable distance DMX can be run without re-buffering is 300m (ft 984ft). Never exceed 32 devices in a DMX chain without an intermediary DMX splitter or buffer (i.e. ENTTEC’s DIN RDS4). Terminate all DMX chains with a DMX terminator to eliminate signal bounce back. When using the DIN ... -
Page 6: Mounting Options
DIN ETHERGATE (71030) Visit the ENTTEC website for the latest version. Mounting Options USER MANUAL ID: 5928465 Document Updated: August 2022 ... -
Page 7: Functional Features
If the DIN ETHERGATE receives more sources than expected (Disabled – 1 source & HTP/LTP – 2 sources) the DMX Output will send this unexpected data, affecting the lighting fixtures, potentially causing flicker. The DIN ETHERGATE will display a warning on the home page of the web interface and the status LED will blink at a high rate. -
Page 8: Hardware Features
DMX line. PoE (Power over Ethernet) The DIN ETHERGATE supports IEEE 802.3af Power over Ethernet. This allows the device to be powered via the RJ45 EtherCon Connection, reducing the number of cables and the ability to remotely deploy the DIN ETHERGATE without the need for a local power source close to the device. -
Page 9: Out Of The Box
Out of the Box The DIN ETHERGATE will be set to a DHCP IP address as default. If the DHCP server is slow to respond, or your network does not have a DHCP server, the DIN ETHERGATE will fall back to the Static IP address which will be 192.168.0.10 as default. -
Page 10: Home
192.168.0.20. It is also recommended that all devices Subnet Mask are the same across your network. Home The landing page for the DIN ETHERGATE web interface is the Home tab. This tab is designed to give you a read-only device overview. This will display: System Information: Node Name ... - Page 11 Ethernet-DMX protocol’s input Universe. Refresh Rate: The rate at which the DIN ETHERGATE will output the Data from its DMX port (40 Frames per second is default). It will repeat the last received frame to comply with DMX standard. Options: additional configuration is available depending on port type and protocol.
-
Page 12: Network Stats
Next click on the Update Firmware button to begin updating. After the update has completed, the web interface will load the Home tab, where you can check the update was successful under Firmware Version. Once the Home tab has loaded, the DIN ETHERGATE will resume operation USER MANUAL... -
Page 13: Servicing, Inspection & Maintenance
Do not spray device or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth. -
Page 14: Package Contents
Firmware version V2.0 and 12V-24V DC input voltage range implemented from Serial Number 2361126 onwards (July 2022). Please check your serial number and artwork on your device. Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No.
