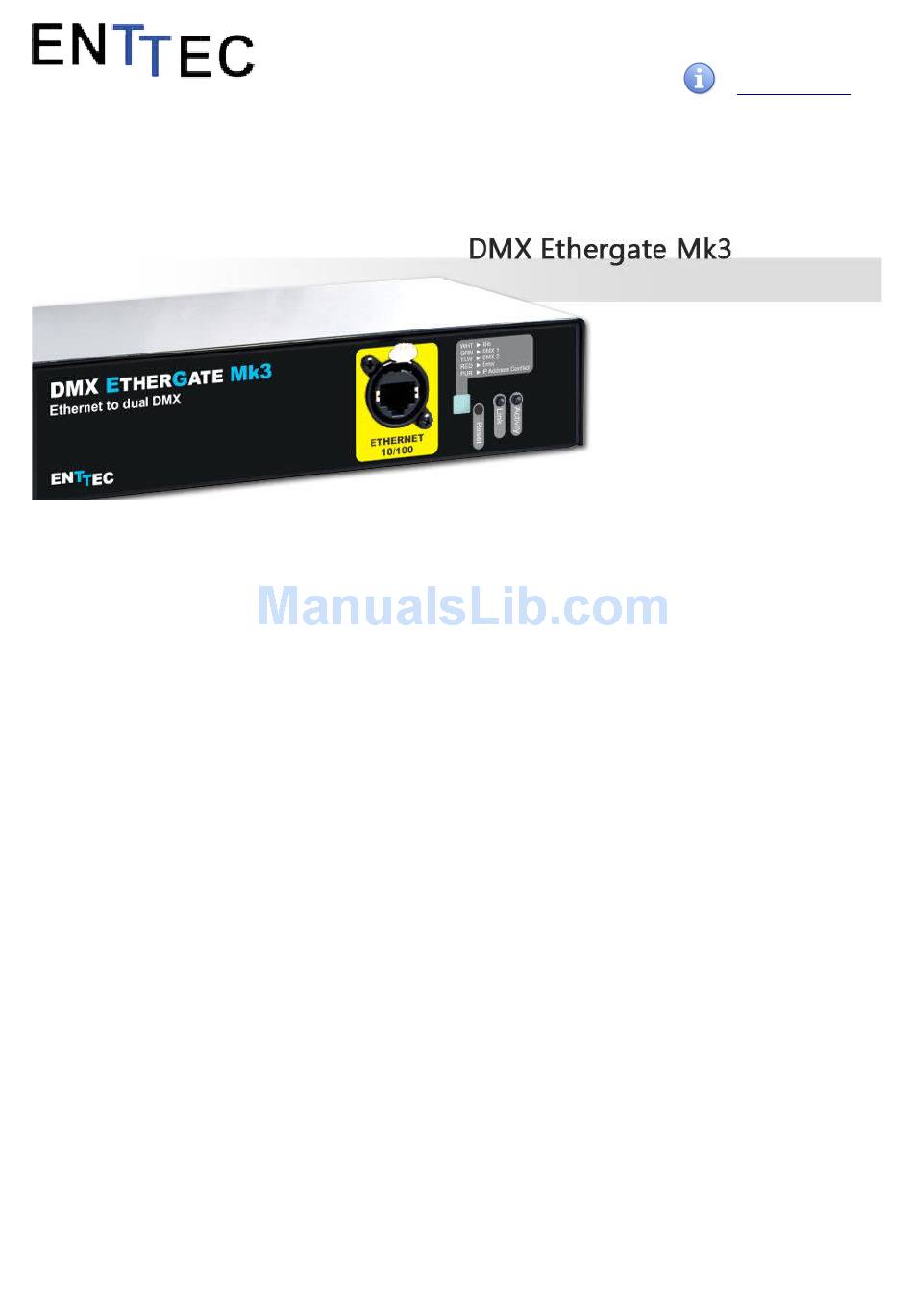

DMX ETHERGATE MK3
Box Contents
DMX Ethergate Mk3 (pn: 70070)
•
Straight connect Ethernet lead (pn: 79102)
•
IEC power cord (country dependent plug)
•
This user manual
•
1RU Mount Bracket Kit (pn: 79105)
•
Features
2 fully independent bi-directional DMX ports (5
•
pin Female XLR connectors).
2 Universe Ethernet to DMX node (Output mode)
•
2 Universe DMX to Ethernet (Input mode)
•
Can be used as either 2 input, 2 output or 1 in 1
•
out ports.
Easy to setup & update through any web browser
•
Supports following DMX over Ethernet protocols:
•
◦ Art-Net
◦ Streaming ACN (sACN)
◦ ESP
Supports RDM over Art-Net
•
RGB LED shows current system status
•
HTP Merging support : up-to 2 DMX sources can
•
be merged (if enabled).
1 RJ45 Ethercon connector (10/100)
•
( P N 7 0 0 7 0 )
Static or Dynamic (DHCP) IP configuration (DHCP by
•
default)
Easy firmware upgrades via any web browser
•
Reset button to perform factory restore
•
Inbuilt Auto ranging (90-260V) Mains power supply
•
Safety
Do not expose the Ethergate Mk3 to rain or
•
moisture, doing this will void the warranty
Do not remove the cover, live voltage inside
•
This unit is intended for indoor use only
•
Basic Setup
Right out of the box, the Ethergate Mk3 is factory configured
to be a DMX OUTPUT device, listening to the first two Art-
Net Universes (starting from 0x00). It is also set as a DHCP
node, so you can plug it into your existing router, and it's
good to go.
To make any changes to the configuration, you will need the
IP address of Ethergate. ENTTEC provides a free App
(available for Windows and Mac) called NMU, which will find
the Ethergate on your network and display its IP address.
Using the IP address one can access the built-in web-
interface inside the Ethergate Mk3 via any modern web-
browser. The web-interface allows the settings of the unit to
be changed.
Quick Start Manual
50687 (NC)
for more information visit:
www.enttec.com/e3
