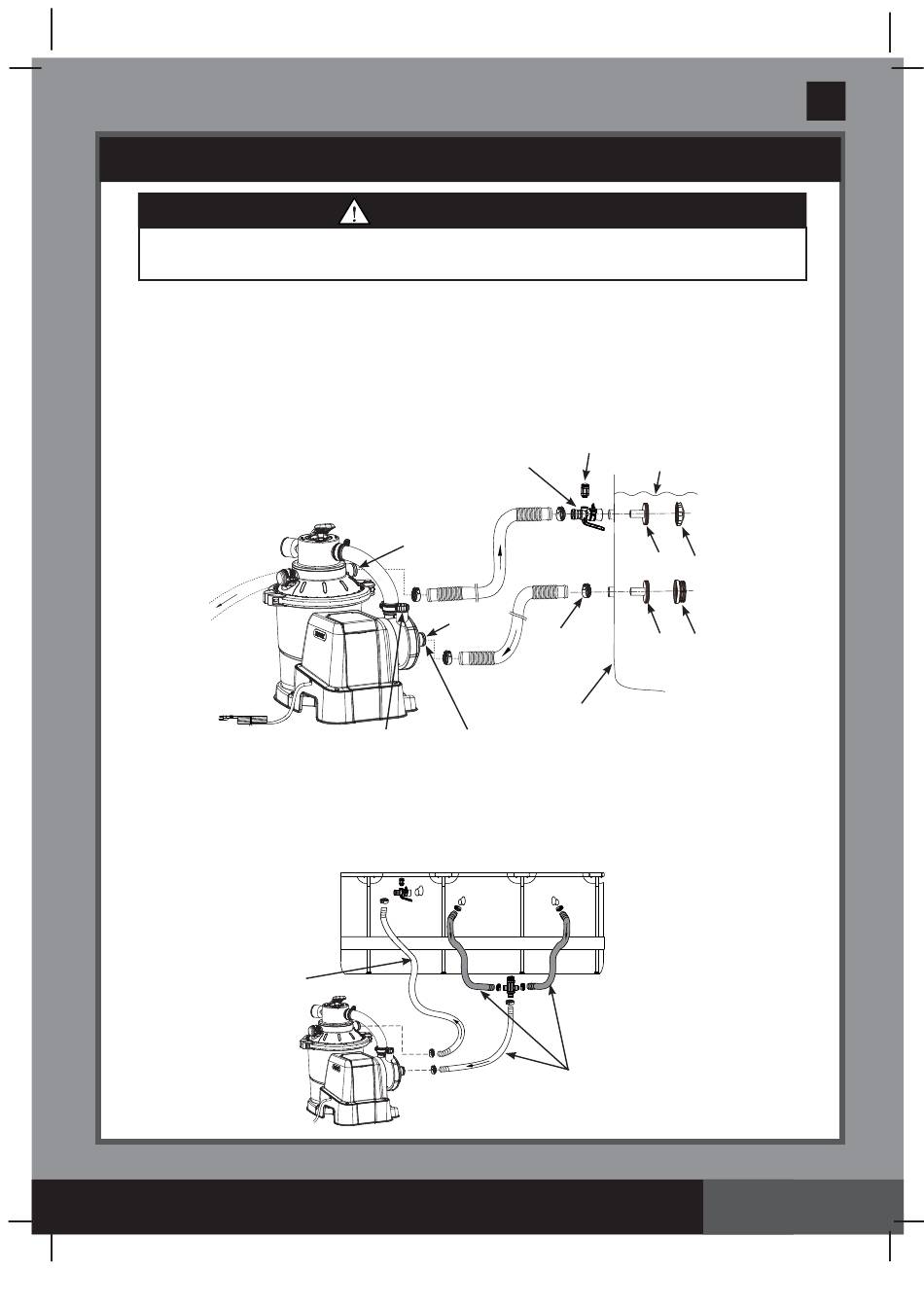

SAND FILTER PUMP HOSE CONNECTION SETUP
• Position this product away from the pool, so as to prevent children from climbing
on it and accessing the pool.
The 4-way valve has three hose connection ports.
1. Connect one hose (12) end to the pump motor inlet and the other end of the hose to the
lower connector with the strainer. Ensure the hoses are securely tightened.
2. Connect the second hose (12) between the 4-way valve water outlet and the upper
connector with the inlet-nozzle. Ensure the hoses are securely tighten.
3. The third hose connection port (drain/waste outlet) on the 4-way valve shall be directed to
a proper draining receptacle using a hose or pipe (not provided). Make sure the drain outlet
cover is removed before attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pool.
TO
DRAIN
For Pools with Dual Suction Outlets Configuration:
In order to comply with the requirement of the Virginia Grahame Baker Act (for USA and
Canada), your pool is designed with dual suction outlets and one inlet fittings. Parts in grey
highlight on this page are supplied with the pool set package and are shown here for assembly
purposes only. If this pump was purchased as part of a pool set, refer to the pool owner's
manual for more details.
