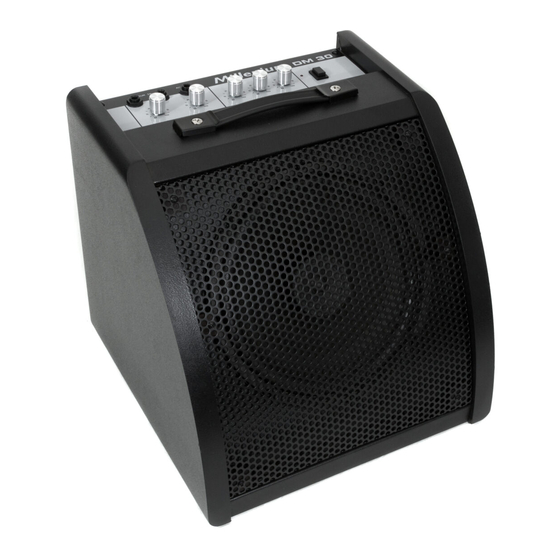

- Page 1 DM-30 E-Drum Monitor...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.06.2022, ID: 137566 (V2)
-
Page 3: Table Of Contents
1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 12 Installation and starting up........................ 13 Connections and operating elements................... 14 Technical specifications........................17 Plug and connection assignment....................19 Protecting the environment......................20 DM-30 E-Drum Monitor... - Page 4 DM-30 E-Drum Monitor...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. DM-30 E-Drum Monitor... -
Page 6: Further Information
Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: DM-30 E-Drum Monitor... -
Page 7: Symbols And Signal Words
NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. DM-30 E-Drum Monitor... - Page 8 General information Warning signs Type of danger Warning – high-voltage. Warning – danger zone. DM-30 E-Drum Monitor...
-
Page 9: Safety Instructions
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. DM-30 E-Drum Monitor... - Page 10 (for example after transport at low outside temperatures). Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. DM-30 E-Drum Monitor...
- Page 11 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if neces‐ sary, i.e. felt pads or similar. DM-30 E-Drum Monitor...
-
Page 12: Features
‘AUX’ : For playback devices (e.g. MP3 player) or the monitor mix of the rest of the band 10" two-way coaxial speakers Separate volume controls for ‘DRUM’ and ‘AUX’ inputs Tone controls for bass, mids and treble Black textured paint Standby function DM-30 E-Drum Monitor... -
Page 13: Installation And Starting Up
Take care when running the cables to prevent tripping hazards. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. DM-30 E-Drum Monitor... -
Page 14: Connections And Operating Elements
Connections and operating elements Connections and operating elements Top side ö L –DRUM IN– R AUX IN DRUM VOLUME AUX VOLUME BASS MIDDLE TREBLE & ä DM-30 E-Drum Monitor... - Page 15 Mains switch. Keep the [POWER] button pressed for a few seconds to turn on / off the device. If the device receives no signal for 20 minutes, it automatically switches to standby mode. Turn on the device using the [POWER] button. DM-30 E-Drum Monitor...
- Page 16 D O N O T E X P O S E T H I S A P P L I A N C E TO R A I N O R M O I S T U R E . USE ONLY WITH A 250 V FUSE AC IN F3 T1AL250V Use only with a 250 volt fuse. Disconnect power before replacing fuses. 8 IEC chassis plug C14 with fuse holder DM-30 E-Drum Monitor...
-
Page 17: Technical Specifications
Bass: ± 6 dB, 100 Hz Output power 30 W (RMS) Load impedance 4 Ω Input impedance 10 kΩ Supply voltage 100 … 240 V (AC), 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow DM-30 E-Drum Monitor... - Page 18 Technical specifications Dimensions (W × H × D) 351 mm × 367 mm × 345 mm Weight 15 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) DM-30 E-Drum Monitor...
-
Page 19: Plug And Connection Assignment
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’ in poor transmission quality! 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding DM-30 E-Drum Monitor... -
Page 20: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. DM-30 E-Drum Monitor... - Page 21 Notes DM-30 E-Drum Monitor...
- Page 22 Notes DM-30 E-Drum Monitor...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
