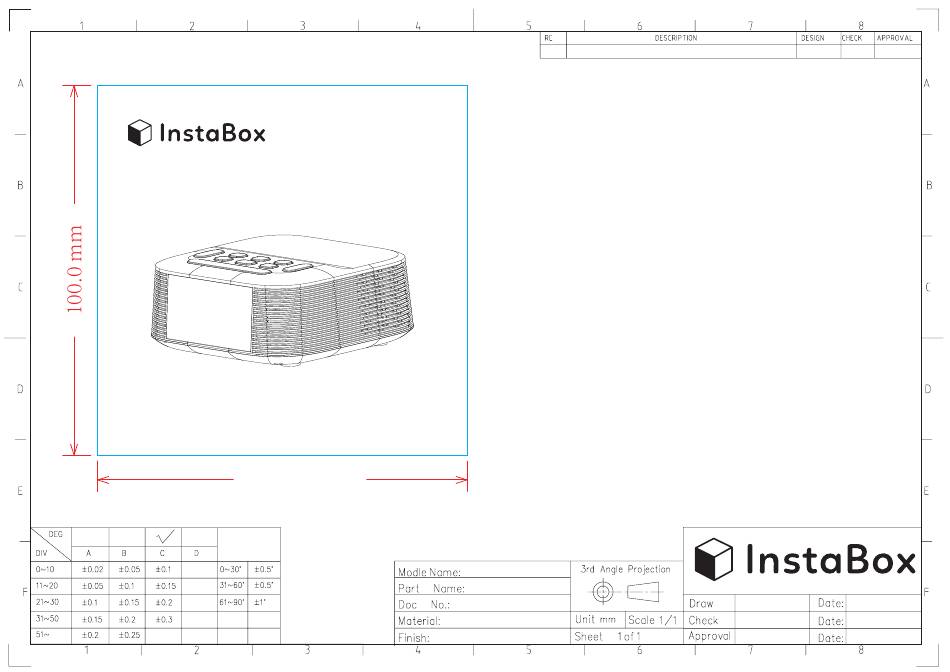

- Page 1 发行A0版图档 Bluetooth Speaker with Alarm Clock and Wireless Charging Function All safety and operation instructions should be read thoroughly before proceeding and please keep the handbook for future reference. 100.0 mm D8qi(InstaBox) 英文说明书 2019-05-16 311-D2QI0001-03 120G道林纸 单黑+两语倒翻钉装 共24P...
- Page 2 Bluetooth Speaker with Alarm Clock and Wireless Charging Function All safety and operation instructions should be read thoroughly before proceeding and please keep the handbook for future reference.
- Page 3 Power On Setting The Time Setting The Daylight-saving Time Alarm Operation Fm Radio Operation Bluetooth Mode Operation Listening To Music Adjusting Display Brightness Usb Charging Backup Battery...
-
Page 5: Set Alarm
SET ALARM 1. Short press on the top of the unit to turn on the alarm. The alarm symbol will flash on the display. 2. Short press on the top of the unit to to adjust the minutes, long press can quickly adjust minutes and hours 3. - Page 6 Bluetooth Version: 4.2 Bluetooth Profiles: HSP, HFP, A2DP and AVRCP Bluetooth Distance: Within 10 meters Output Power: 3W+3W Power Adapter: DC 9V 2A Driver Unit: 4Ω 3W 2in Frequency Range: 40Hz-20KHz: 40Hz-20KHz S/N Ratio: >65dB Distortion Rate: <1% FM Frequency Response: 87.5 - 108MHz USB Charging Port Output: DC 5V 1A Wireless Charging Current: 5V 2A Wireless Charger Output: 10W...
- Page 7 SNOOZE USB Charging Mode Wireless Charging Mode USB Charging Mode Bluetooth Mode SLEEP Alarm Time FM Mode AM/PM Mode Daylight-Saving Mode FM Antenna USB Play/Charging Mode Set Clock - / Daylight-Saving 12H/24H/＋ 5V——1A DST/GMT/－ Set clock time Set Clock +/ 12/24H Switch...
- Page 8 Volume up (Turn up the alarm volume when the alarm rings) Volume down (Turn down the alarm volume when the alarm rings) VOL - Auto scan and store FM station (Up to 60 station storage) SNOOZE 00-10-20-30-40-50-60-70-80-90-00 Minute (Sleep timer feature is available in Bluetooth FM USB mode) SLEEP MODE Switch modes among Bluetooth，FM，USB Play and OFF...
-
Page 9: Setting The Daylight Saving Time
POWER ON It confirms the setting and exits automatically in 3 Connect the power cable into the jack on the bottom of seconds if no operation on any key. the device labeled “DC 9V”,and then plug the power Note: If the RAD alarm sound source is selected for the cable into the socket. -
Page 10: Fm Radio Operation
Go to the Bluetooth setting on your Bluetooth song. enabled device .Search and connect to “D10”. When you want to playback from another Bluetooth The Bluetooth symbol will stop flashing when your device, disconnect the speaker from the Bluetooth device Bluetooth device has been paired successfully. - Page 11 ADJUSTING DISPLAY BRIGHTNESS IMPORTANT NOTES ABOUT WIRELESS CHARGING Repeatedly press to select the a. If your device does not support wireless charging, desired level of display brightness (High-Medi- please purchase a wireless charging case separately. um-Low-Off). b. Use only the approved power supply, otherwise, it will cause danger.
- Page 12 33ft...
- Page 13 * Please comply with the actural product if there is any discrepancy between the product and the content of the manual...
