InstaBox i90 User Manual

Wooden digital multi-functional speaker with bluetooth fm radio
Hide thumbs Also See for i90:
Table of Contents

Advertisement

Quick Links

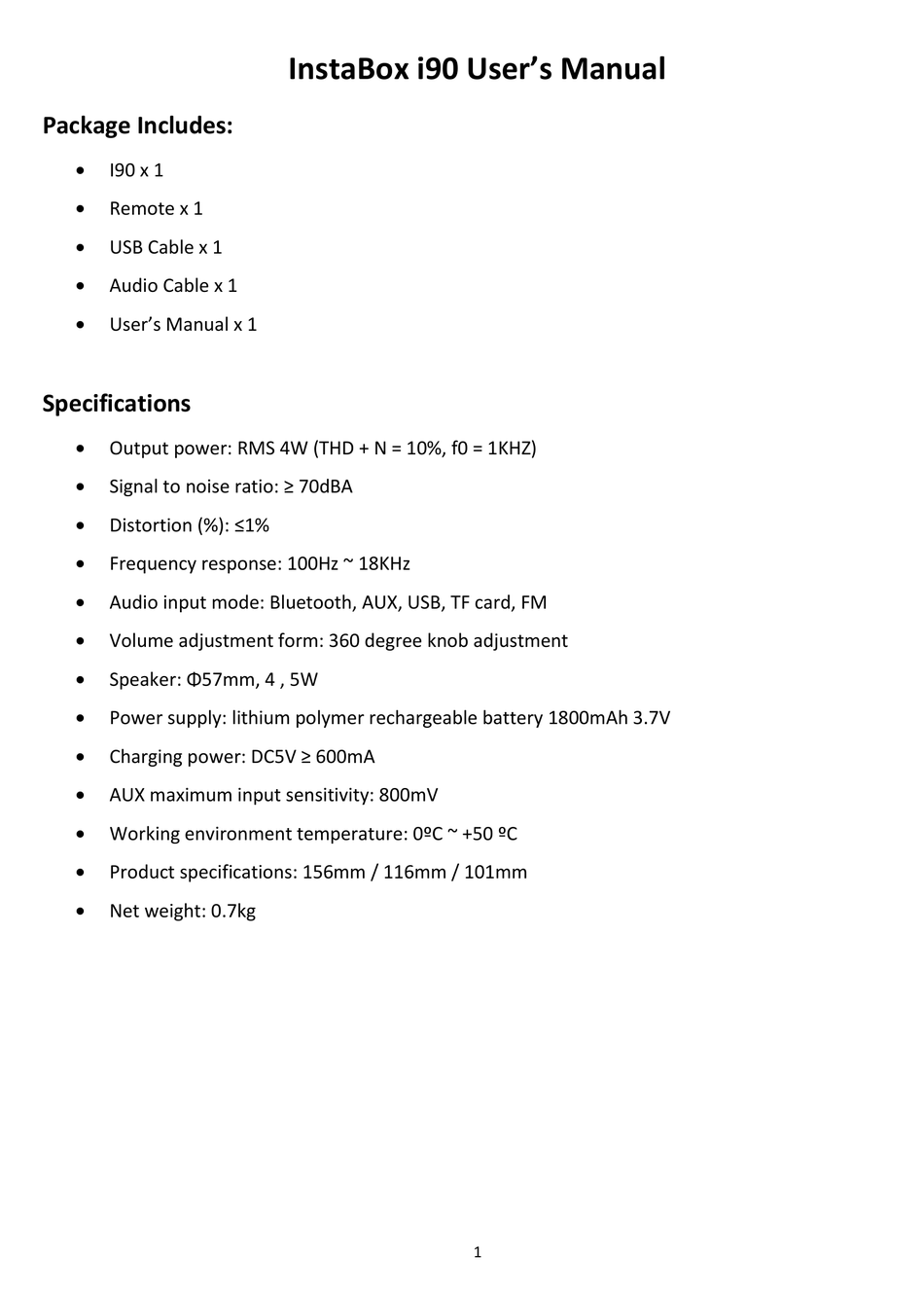

Package Includes:

I90 x 1
Remote x 1
USB Cable x 1
Audio Cable x 1
User's Manual x 1

Specifications

Output power: RMS 4W (THD + N = 10%, f0 = 1KHZ)
Signal to noise ratio: ≥ 70dBA
Distortion (%): ≤1%
Frequency response: 100Hz ~ 18KHz
Audio input mode: Bluetooth, AUX, USB, TF card, FM
Volume adjustment form: 360 degree knob adjustment
Speaker: Φ57mm, 4 , 5W
Power supply: lithium polymer rechargeable battery 1800mAh 3.7V
Charging power: DC5V ≥ 600mA
AUX maximum input sensitivity: 800mV
Working environment temperature: 0ºC ~ +50 ºC
Product specifications: 156mm / 116mm / 101mm
Net weight: 0.7kg
InstaBox i90 User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i90 and is the answer not in the manual?

Questions and answers

Related Manuals for InstaBox i90

Summary of Contents for InstaBox i90

  • Page 1: Specifications

    InstaBox i90 User’s Manual Package Includes:  I90 x 1  Remote x 1  USB Cable x 1  Audio Cable x 1  User’s Manual x 1 Specifications  Output power: RMS 4W (THD + N = 10%, f0 = 1KHZ) ...
  • Page 2 Front View: 1 - Play / Pause Button Radio Mode: Short press—mute/play Long press—auto-search Bluetooth Mode: Short press — play/pause Bluetooth Mode (Call received): Short press—answer/hang up Time Mode: Short press-automatic power off setting When Playing External Audio: Short press—mute When Playing U disk / TF Card Music: Short press—play/pause...
  • Page 3 2 - Back Button Music Mode: (U Disk / SD Card): Short press—previous track Long press—rewind Bluetooth Music Mode: Short press—previous track Radio Mode: Short press—previous channel Long press—reverse search 3 - Forward Button Music Mode: (U Disk / SD Card): Short press—next track Long press—fast forward Bluetooth Music Mode:...
  • Page 4 Audio cable connection for computer, phone, or other source for audio input. 9 – Reset hole Insert paper clip or other pointed device and hold button for 3 seconds to reset i90 to factory defaults settings. 10 – TF or micro SD Card Input Port TF card input for MP3 audio files 11 –...
  • Page 5 Remote Control Note: 1. Please make sure the i90 is ON when you would like to use the remote, the ON/OFF button (01) in the remote is only to set the i90 standby(power saving mode) but not turning on it.
  • Page 6  Please note that the clock only display in 24-hour format.  After setting the clock choose the desired Sleep time for the i90. Choices available are: OFF, 30, 60, 90, 120 minutes. a. Short press play button b. Use the Volume knob to adjust settings c.
  • Page 7 5. To momentarily mute the radio press the Play button on the remote or on the front panel. Note: The i90 external high gain antenna helps guarantee a high quality FM reception. Extend the antenna and position it for the best reception.
  • Page 8 Playing music from a micro-SD card or a Flash drive Ports are provided on the rear panel of the i90 for a Micro-SD card and for a USB Flash drive. When either type of device is plugged into the i90, TF or USB will appear on the screen and MP3 format music will begin to play.
  • Page 9  The i90 is charge from a micro USB connector on the rear panel. It requires DC 5v 600MA for charging. The battery reaches full charge in 4 to 6 hours. The charge light on the rear panel changes from red to green when the battery is fully charged.
