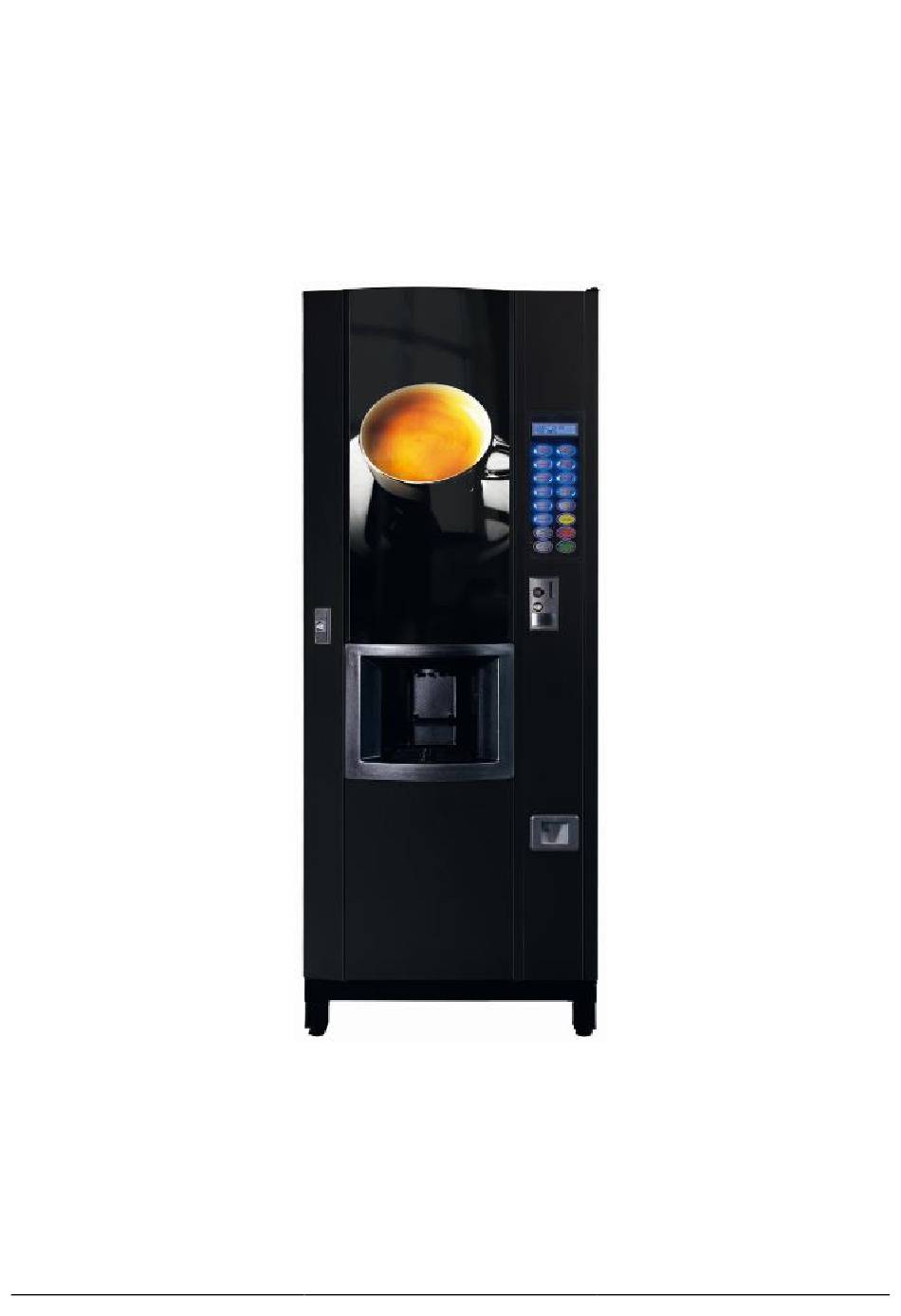

- Page 1 JAVA BEVERAGE MACHINE OPERATORS GUIDE JAVA OPERATORS GUIDE 56574-2...
- Page 2 COFFEtek LTD This page is intentionally blank. JAVA OPERATORS GUIDE 56574-2...
-
Page 3: Table Of Contents
COFFEtek LTD JAVA VENDING MACHINE OPERATORS GUIDE CONTENTS PAGE SAFETY WARNINGS ....................5 FROST WARNING ....................6 HOT WATER WARNING ..................6 Flushing the Machine ....................7 Cleaning the Mixing Systems .................. 8 Cleaning the Tea Brewer ..................10 Refitting the Tea Brewer ..................12 Cleaning the Coffee Brewer Unit ................ - Page 4 COFFEtek LTD This page is intentionally blank. JAVA OPERATORS GUIDE 56574-2...
-
Page 5: Safety Warnings
100mm (4in) clearance between the rear of the cabinet and the wall to allow adequate ventilation, and, if in a corner location, not closer to the right hand wall than 400mm (16in) to accommodate the opening of the door. JAVA OPERATORS GUIDE 56574-2... -
Page 6: Frost Warning
The water available from the option shower head cleaning attachment is hot enough to scald or burn. Appropriate care must be taken when using this attachment. Note: initially the water flowing from the attachment will be cool, but will rapidly become extremely hot. JAVA OPERATORS GUIDE 56574-2... -
Page 7: Flushing The Machine
Ensure that hands and loose clothing are clear of the brewer. Press the brewer flush button. The machine will flush the brewer(s) with clean hot water. Repeat as necessary. Once flushing has ceased, the machine will be ready for use. JAVA OPERATORS GUIDE 56574-2... -
Page 8: Cleaning The Mixing Systems
For each mixing system in turn remove the dispense nozzle from the dispense head and remove the mixing system A by pulling the top forward and downwards as shown. Once removed the steam cover can be detached from the mixing chamber to facilitate cleaning. JAVA OPERATORS GUIDE 56574-2... - Page 9 (10) When all mixing system components have been refitted, switch on the machine and perform a flush operation. Check the mixing systems for leaks and listen for abnormal sounds that may indicate incorrect assembly. JAVA OPERATORS GUIDE 56574-2...
-
Page 10: Cleaning The Tea Brewer
Remove outlet elbow, by pulling gently whilst turning the elbow slightly. Raise the brewer release lever to unlock the carriage assembly. Gently slide carriage assembly towards you and remove it from the machine. Remove mixing bowl. JAVA OPERATORS GUIDE 56574-2... - Page 11 COFFEtek LTD Remove the brewer cylinder by swinging it upwards and then gently pulling it in the direction indicated. Wash the brewer and cylinder in de-staining fluid and rinse with clean water. JAVA OPERATORS GUIDE 56574-2...
-
Page 12: Refitting The Tea Brewer
Turn tea canister dispense chute downward into mixing bowl. Switch machine back on. Ensure that hands and loose clothing are clear of the brewer(s). Close and lock the machine door as instructed. Once machine has reset, test at least one Tea. JAVA OPERATORS GUIDE 56574-2... -
Page 13: Cleaning The Coffee Brewer Unit
Remove the coffee brewer outlet spout . Remove the brewer splashguard , by lifting the cover up and towards you. Pull the brewer shaft from the spindle , by pulling it firmly in the direction indicated. JAVA OPERATORS GUIDE 56574-2... - Page 14 Remove the carriage assembly from the machine by sliding it in the direction indicated. Remove the steam trap and brewer chamber by pulling it towards yourself. Once removed the steam trap can be separated from the brewing chamber. JAVA OPERATORS GUIDE 56574-2...
-
Page 15: Refitting The Coffee Brewer
Align the ingredients chute with the brewer chamber. Ensure that hands and loose clothing are clear of the brewer(s). Switch machine back on. (10) Close and lock the machine. (11) Once machine has reset, test at least one Coffee. JAVA OPERATORS GUIDE 56574-2... -
Page 16: Filter Belt Removal And Replacement
Once the belt has been threaded over all three rollers it can be eased into place by sliding it sideways whilst turning the drive shaft. Once the belt is in place press the red lever to release the tensioning roller and tighten the belt. JAVA OPERATORS GUIDE 56574-2... -
Page 17: Extract Duct Cleaning
Thoroughly clean both the extract duct and its cover. Refit the cover & replace the canisters. Ensure all ingredient chutes are correctly positioned. Switch on the machine and perform a flush operation JAVA OPERATORS GUIDE 56574-2... -
Page 18: Notes
COFFEtek LTD NOTES JAVA OPERATORS GUIDE 56574-2... -
Page 19: Notes To Users Of Beverage Machines
Recycling of products helps to conserve natural resources and protect the environment For further information on collection and recycling systems for this product, please contact the service representative from the company where you purchased JAVA OPERATORS GUIDE 56574-2... - Page 20 COFFETEK LIMITED Tel: +44 (0) 1275 844471 Fax: +44 (0) 1275 844531 Website: www.coffetek.co.uk e-mail: sales@coffetek.co.uk...
