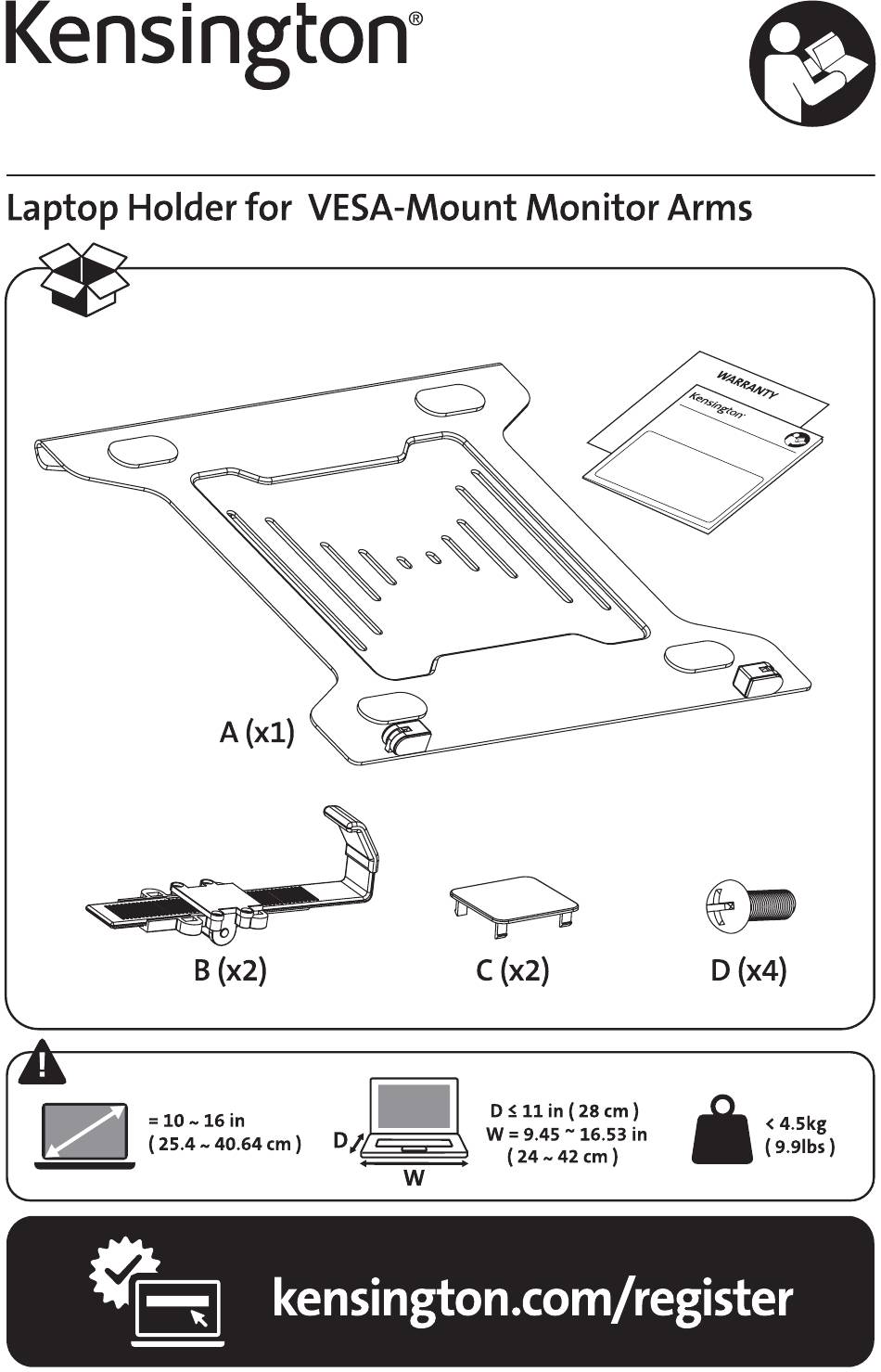

- Page 1 Universal Laptop Holder for Monitor Arms Installation Guide. Register your lock at kensington.com/register.
- Page 2 1. Attach safety tabs. A. Orient the laptop holder so that the adjustable clamps are on the right and left of the holder. B. Pull out the sliding adjustable clamps on the laptop holder until the square-shaped safety tab attachment points are exposed. C.
- Page 3 2. Attach the VESA plate to the laptop holder. D. Using a Phillips head screwdriver, insert the four screws through the VESA plate and into their mounting points on the upper portion of the back of the laptop holder. Tighten until snug.
- Page 4 3. Attach the VESA plate to the monitor arm. Align the set screw hole on the top of the VESA plate with its attachment point on the monitor arm. Insert the set screw and tighten until snug.
- Page 5 4. Adjust clamps to secure your laptop. Flip the adjustable clamps to their outward position. Flip down the tabs on the bottom of the laptop holder. Your laptop will rest on these tabs. Pull out the adjustable clamps and insert your laptop so that it is resting snugly against the bottom tabs and the adjustable clamps have a firm grip. You can now position your laptop as desired.
- Page 6 Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
- Page 10 For support, visit kensington.com/support.
