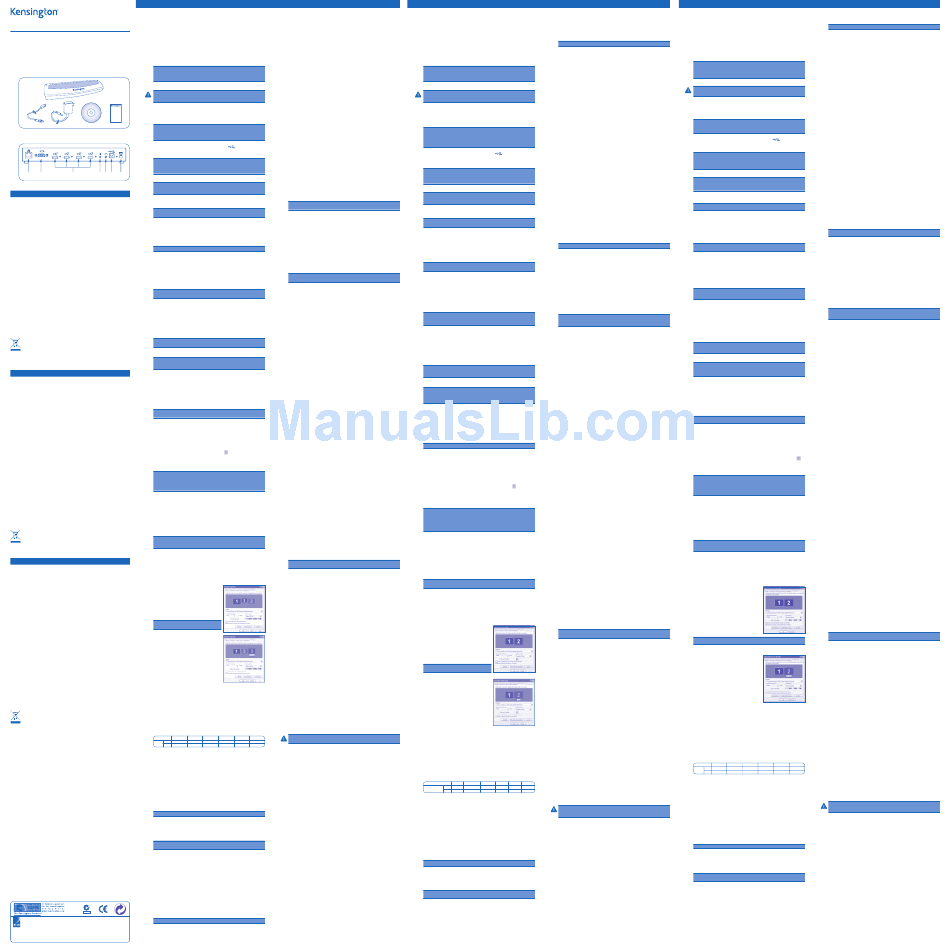

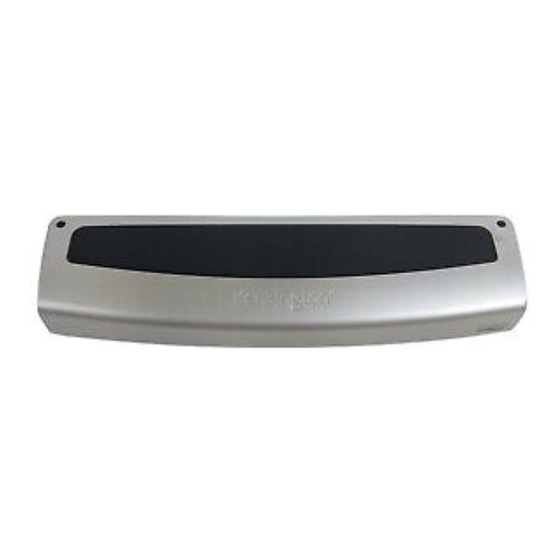

Notebook expansion dock with video

Advertisement

Quick Links

E n g l i s h
Your life just got easier.
No need to plug multiple peripherals into your notebook every time you return to your
desk. Through one simple USB connection, the Kensington Notebook Expansion Dock with
Video connects you instantly to your external monitor, keyboard, and other peripherals. As an
Notebook Expansion Dock with Video
added benefit, placing your notebook on top of the expansion dock allows for better cooling
of your machine.

System Requirements

Instruction Guide
PC with the following specifications:
Guide d'instructions
• Pentium® or compatible processor, 500MHz minimum (1GHz or higher recommended)
• Windows XP with Service Pack 1 or higher
Bedienungsanleitung
• 128MB memory (256MB recommended)
Handleiding
• 30MB of available disk space
• CD-ROM or DVD drive
Istruzioni
• USB 2.0 port
Manual de instrucciones
Note: The Expansion Dock will work if connected to a USB 1.x port on your notebook; however,
the performance of devices connected to the Expansion Dock via a USB 1.x connection could be
compromised. The video output of the Expansion Dock works ONLY when the Dock is connected
to a USB 2.0 port on your notebook.

Installation Instructions

IMPORTANT: The devices connected to the Expansion Dock work only after the installation
process is completed. You must complete the installation instructions before using any device
A
connected to the Expansion Dock.

Connecting the Expansion Dock to Your Notebook

1. Insert the CD (D) into your notebook's CD-ROM or DVD drive.
Instruction Guide
Guide d'instructions
Bedienungsanleitung
2. Plug the power adapter (C) into the jack on the Expansion Dock. Then plug the power adapter
Handleiding
Istruzioni
Manual de instrucciones
into a working electrical outlet.
The red indicator light next to the adapter jack glows when the Expansion Dock is powered.
B
C
D
E
Note: Always keep the Expansion Dock connected to the power adapter supplied with the
product. Video capabilities are NOT supported without the power adapter connected to the
Dock. The performance of other devices connected to the USB ports of the Expansion Dock may
also be limited without the power adapter connected.
3. Plug the square end of the USB cable (B) into the USB upstream connector at the back of
the Expansion Dock. The connector is indicated by the symbol
4. Start your notebook if it is not already on.
5. Plug the other end of the USB cable (B) into an available USB 2.0 port on your notebook.
Note: The Expansion Dock will work if connected to a USB 1.x port on your notebook; however,
the performance of devices connected to the Expansion Dock via a USB 1.x connection could be
compromised. The video output of the Expansion Dock works ONLY when the Dock is connected
to a USB 2.0 port on your notebook.
H
G
F
J
I
L
K

Installing the Software Drivers

Note: You must have Administrator privileges to install the Expansion Dock drivers. If you do
not have Administrator privileges, log off from Windows and log in with a user name that has
these privileges.
E n g l i s h
Once you've connected the Expansion Dock to your notebook, Windows XP detects the
Expansion Dock and begins the driver installation. The drivers are software that allows the
Contents
various components of the Expansion Dock (sound, video, and so on) to work.
A

Expansion Dock with Video (VGA interface)

Note: During the installation of the video (USB-VGA) drivers, your notebook screen may
B
occasionally go blank for a few seconds. This is a normal part of the installation process.
USB 2.0 cable
C
Power adapter
1. The Found New Hardware Wizard should open. If it does not, start the Add New Hardware
Wizard from your notebook's Control Panel, follow the prompts, and skip to step 4.
D
CD
2. If Windows asks for permission to connect to Windows Update, select No, not this time,
and then click Next.
E
Instruction Guide
3. Select Install the software automatically [recommended], and then click Next.
4. When the wizard has finished installing the software, click Finish.
Components
5. Repeat step 2–4 for each device installed through the Found New Hardware Wizard.
F
4 high-speed USB 2.0 ports with status indicator lights
Note: Be sure to check www.kensington.com for driver updates or enhancements.
G
VGA video output port

Using the Expansion Dock

H
10/100 Ethernet port
You may connect devices to the appropriate port on the Expansion Dock while your notebook is
I
Stereo audio output port
running. A slight delay is normal before the notebook recognizes the new device.
J
Microphone input port
USB 2.0 Ports
Connect any USB device to one of the Expansion Dock's four USB ports (F). Each port has a status
K
Power adapter jack
indicator light that shows the status of that port:
L
USB upstream connector
• When no device is connected to the port, the indicator light is off.
• If a device is connected to the port and the connection works properly, the indicator light
glows green (on).

Technical Support

Note: If a USB device is connected to the Expansion Dock and does not work as expected, test
Technical support is available to all registered users of Kensington products.
the device by connecting it directly to one of your notebook's available USB ports.
Web Support
Ethernet Port
You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the
The Expansion Dock's Ethernet port is a USB 2.0-to-Fast-Ethernet adapter.
Support area on the Kensington website: www.kensington.com.
Connect a network cable (sold separately) to the Ethernet port (H) for high-performance network
Telephone Support
access. The Ethernet port's indicator lights work as follows:
There is no charge for technical support except long-distance charges where applicable. Please
• The light to the left of the port glows when there is a network connection.
visit www.kensington.com for telephone support hours.
• The light to the right of the port glows when there is network activity.
Registering Your Kensington Product
Video Port
Connect a VGA cable (sold separately) to the VGA video output port (G) on the Expansion Dock
Register your Kensington product online at www.kensington.com.
and to an external monitor. This cable can be connected and disconnected any time without
The Following Information is Only for EU-member States:
disconnecting the Expansion Dock from the USB port on your notebook.
The use of the symbol indicates that this product may not be treated as household waste.
Note: The Notebook Expansion dock supports all analog CRT and LCD monitors. DVI-A and DVI-I
By ensuring this product is disposed of correctly, you will help prevent potential negative
monitors can also be connected by using a suitable VGA-to-DVI converter.
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling
You can adjust video settings to customize your use of the Expansion Dock with Video; see
of this product, please contact your local city office, your household waste disposal service or
Adjusting Video Settings for information.
the shop where you purchased the product.
Note: We recommend that you auto-adjust the external monitor once in a while to realign its
settings with the video output of the Expansion Dock. Refer to the user manual of your monitor
how to do the auto-adjust procedure.
F r a n ç a i s
If the video output of the Expansion Dock does not work once the Expansion Dock is properly
connected to an external monitor, the video (USB-VGA) driver has probably not been installed
correctly. Follow these steps make sure that the driver is properly installed:
1. Unplug the USB cable (B) from the Expansion Dock; leave the power adapter (C) connected
Contenu
to the Expansion Dock.
A
Station d'accueil Expansion Dock with Video (interface VGA)
2. Insert the CD (D) in your notebook's CD-ROM or DVD drive.
3. Select Start, select My Computer, and then double-click on the CD-ROM or DVD drive where
B
Câble USB 2.0
you have inserted the CD.
C
Adaptateur d'alimentation
4. Double-click on the folder USB VGA.
5. Double-click on the file Setup.exe.
D
CD
E
Note: During driver installation, the screen will go blank a couple of times. This is a normal part
Instruction Guide
of the installation process.
Composants
6. Once the drivers are installed, reconnect the USB cable (B) to the Expansion Dock.
F
7. The computer will automatically detect the new USB device and install it in your computer
4 ports USB 2.0 à haute vitesse avec voyants lumineux d'état
through the Found New Hardware Wizard.
G
Port de sortie vidéo VGA

Disconnecting the Expansion Dock

H
Port Ethernet 10/100
You can connect and disconnect the Expansion Dock while your notebook is running.
I
Port de sortie audio stéréo
1. If the Expansion Dock is transferring data through one of its connections, wait until the data
has finished transferring.
J
Port d'entrée pour microphone
2. If you are connected using the Ethernet port (H), close your network connection.
K
Prise pour adaptateur d'alimentation
3. On your notebook, click the Safely Remove Hardware icon
4. Select Safely Remove USB 2.0 to Fast Ethernet Adapter.
L
USB upstream connector
5. Disconnect the USB cable (B) from your notebook's USB port.
When the USB cable is removed, the display of the external monitor connected to the Expansion
Dock will go blank.
Assistance technique
Une assistance technique est disponible pour tous les utilisateurs de produits
Note: If the video output of the Expansion Dock is configured in Extended Mode (see Video
Kensington enregistrés.
Modes, below), then any open windows on the external monitor move to the primary notebook
screen. When the Expansion Dock is reconnected to the notebook, the video output is again
Assistance Web
configured for Extended Mode with the external monitor. However, windows that were
Il se peut que vous trouviez une solution à votre problème dans la Foire aux questions (FAQ) de la
previously on the external monitor will not move back to that secondary monitor.
zone Assistance du site Web de Kensington : www.kensington.com.
Support téléphonique

Video Modes

The Expansion Dock video output works in two modes:
L'assistance technique est gratuite, à l'exception des coûts d'appel longue distance, le cas
échéant. Veuillez visiter le site www.kensington.com pour les heures d'ouverture de l'assistance
• Clone Mode
téléphonique.
• Extended Mode
Enregistrement de votre produit Kensington
Clone Mode
This mode clones—creates an identical display—from your notebook screen to the external
Enregistrez votre produit Kensington en ligne à l'adresse www.kensington.com.
monitor. This is useful, for example, if you want to use a larger desktop monitor rather than a
Les informations suivantes sont applicables uniquement dans les pays
small notebook screen. In Clone Mode, the Expansion Dock automatically selects the settings
membres de l'Union Européenne :
(screen resolution, color quality, and refresh rate) for the external monitor that will allow the best
resolution based on your notebook's settings.
L'utilisation de ce symbole indique que ce produit ne peut pas être traité comme un déchet
By default, the Expansion Dock uses video output in Clone Mode.
ménager ordinaire. En vous débarrassant de ce produit dans le respect de la réglementation
en vigueur, vous contribuez à éviter les effets négatifs potentiels sur l'environnement et sur la
Note: If you do not see some icons on your external monitor because the monitor display size is
santé humaine. Pour plus de détails sur le recyclage de ce produit, veuillez consulter le service
different from your notebook screen size, scroll over those icons on your notebook and the
municipal compétent, le service de ramassage des ordures ou le revendeur du produit.
monitor display will shift to display the icons.
Extended Mode
Extended Mode lets you split your display across multiple monitors. This provides a number of
advantages to increase productivity:
• Read email on one display; open attachments on the other.
• Expand a spreadsheet across both monitors.
• For graphics editing, increase your working area by putting all the pallets and toolbars on the
Inhalt
second display.
• Keep your desktop on the external monitor and watch a DVD on your notebook screen.
A
Expansion Dock mit Video (VGA-Schnittstelle)
To set up the Expansion Dock to use Extended Mode follow these steps:
B
USB 2.0-Kabel
1. Position the mouse anywhere on your notebook
C
Netzteil
desktop, right-click, and select Properties.
2. On the Display Properties screen, click the Settings tab.
D
CD
In the Display pull-down menu, select the option
containing USB Display Adapter (Newnham).
E
Instruction Guide
3. Check the Extend my Windows desktop onto this
monitor box.
Komponenten
4. Drag the icons in the window at the top of the screen
to match the physical arrangement of your notebook
F
4 Hochgeschwindigkeits-USB-2.0-Schnittstellen mit Statusanzeigen
screen and external monitor.
G
VGA-Videoausgang
Note: Click Identify to identify the different monitors
H
10/100 Ethernet-Anschluss
connected to your system and their positions.
I
Stereo-Audioausgang
5. Click OK to close the Display Properties screen.
J
Mikrofoneingang
Switching from Extended Mode to Clone Mode
If you change the video output to Extended Mode and then
K
Netzteilbuchse
want to switch back to Clone Mode, follow these steps:
L
USB upstream connector
1. Position the mouse anywhere on your notebook
desktop, right-click, and select Properties.
2. On the Display Properties screen, click the Settings tab.
Technische Unterstützung
In the Display pull-down menu, select the option
containing USB Display Adapter (Newnham).
Alle registrierten Benutzer von Kensington-Produkten erhalten technische Unterstützung.
3. Uncheck the Extend my Windows desktop onto this
Unterstützung über Internet
monitor box.
Viele Probleme lassen sich bereits mithilfe der „Häufig gestellten Fragen" (Frequently Asked
4. Click OK to close the Display Properties screen.
Questions, (FAQ)) im Support-Bereich auf der Kensington-Website lösen: www.kensington.com.
Telefonische Unterstützung

Adjusting Video Settings

Mit Ausnahme von eventuellen Ferngesprächsgebühren entstehen keine Kosten für die
For either Clone Mode or Extended Mode, you can adjust one or more of the following video
technische Unterstützung. Die Geschäftszeiten der telefonischen Unterstützung entnehmen
settings. In Clone Mode, the settings apply to both your notebook monitor and the external
Sie bitte unserer Website www.kensington.com.
monitor; in Extended Mode, you can set separate settings for your notebook monitor and
the external monitor.
Registrieren Ihres Kensington-Produkts
• Resolution refers to the number of pixels displayed onscreen horizontally and vertically. A
Registrieren Sie Ihr Kensington-Produkt online unter www.kensington.com.
higher resolution means that you can see more of your image on the screen without scrolling
Die folgenden Informationen betreffen nur Mitgliedsstaaten der EU:
or panning.
• Color depth defines the number of different colors that can be shown on the screen at the
Die Verwendung des Symbols gibt an, dass dieses Produkt nicht als Hausmüll behandelt
same time. The greater the color depth, the better the picture quality.
werden darf. Durch das Sicherstellen der korrekten Beseitigung dieses Produkts tragen
Sie dazu bei, mögliche negative Auswirkungen auf die Umwelt und die Gesundheit von
• Refresh rate (also called vertical frequency) measures the speed that the entire screen is
Menschen zu vermeiden, die anderenfalls bei ungeeigneter Beseitigung dieses Produkts
rescanned. Higher frequencies reduce flicker, because they light the pixels more frequently,
reducing the dimming that causes flicker.
hervorgerufen werden können. Detaillierte Informationen zur Wiederverwertung dieses
Produkts erhalten Sie bei den örtlichen Behörden, bei dem für Ihren Wohnsitz zuständigen
Below is a list of refresh rates supported at various resolutions and color depths for the Expansion
Wertstoffverwerter bzw. dem Geschäft, in dem Sie dieses Produkt erworben haben.
Dock video output:
Resolution
640x480
Color
16 bit
60 72 75
56 60 72 75 85
Depth 32 bit
60 72 75
56 60 72 75 85
1. Position the mouse anywhere on your notebook desktop, right-click, and select Properties.
2. On the Display Properties screen, click the Settings tab.
3. To change the screen resolution or color quality, select those options on the screen.
Be sure to select one of the supported resolutions and color quality numbers in the table
above. For an external monitor, you can also select any resolution or color quality supported
by that monitor.
4. To change the refresh rate, on the Display Properties screen, click Advanced, and then
click Monitor.
5. Select a refresh rate from the Screen refresh rate pull-down list. Be sure to select a refresh
rate that is supported for the resolution and color quality settings, as indicated in the table
above. Click OK.
6. Click OK to close the Display Properties screen.
If you use multiple Expansion Docks with a single notebook—for example, one at work and one
at home—the video settings for each Dock are saved when you disconnect the notebook. So you
can have your Expansion Dock at work set up for Extended Mode while your Expansion Dock at
home is configured for Clone Mode, and those settings will be retained each time you use the
Dock with your notebook.
Note: Only one Expansion Dock can be connected to the notebook at a time.
How Standby or Hibernate Mode Affects Devices Attached to the
Expansion Dock

External Monitors

When the Expansion Dock is connected to a notebook and an external monitor, if the notebook
goes into Standby or Hibernate Mode, the external monitor display goes blank.
Note: Depending on your notebook settings, the notebook might go into Standby or Hibernate
Mode when you close the lid.
When the notebook returns to an active state, the external monitor display keeps the same
settings it had before the notebook went into Standby or Hibernate Mode. However, if the
external monitor was set for Extended Mode, windows that were previously on the external
monitor will not move back to that secondary monitor. Also, if the external monitor is in
Extended Mode and the notebook requires a login after Standby or Hibernate Mode, the login
screen appears on the primary notebook monitor, not the external monitor.
Other Devices
If another device is connected to a port on the Expansion Dock and the notebook goes into
Standby or Hibernate Mode, that device will not function. For example, if you are using the
Ethernet port for high-speed network access, network access will not be available until the
notebook returns to an active state.

Uninstalling the Video (USB-VGA) Software Driver

Occasionally you may need to uninstall the video (USB-VGA) software driver from your
notebook—for example, if you want to update the current driver with a new version
released by Kensington.
1. On your notebook, open the Control Panel and select Add or Remove Programs.
2. Scroll the list of installed programs and select USB Display Adapter.
N1368
3. Click Remove.
Kensington Computer Products Group
ACCO Brands Europe
ACCO Canada Inc.
ACCO Australia
Note: We recommend that you restart your notebook after uninstalling the software.
A Division of ACCO Brands
Oxford House
5 Precidio Court
Level 2, 8 Lord St
333 Twin Dolphin Drive
Oxford Road
Brampton
Botany NSW 2019
Redwood Shores, CA 94065
Aylesbury
Ontario
PO Box 311
Designed in California, U.S.A.
Bucks, HP21 8SZ
L6S 6B7
Rosebery NSW 1445
by Kensington
United Kingdom
Canada
Australia
Assembled in China
www.kensington.com
Troubleshooting
If your Expansion Dock does not operate as expected, first check these items to try and correct
the problem. If the problem persists, please contact Kensington Technical Support. Contact
information is provided in Technical Support, below.
General
The Expansion Dock does not appear to be "on."
1. Check to be sure that the power adapter (C) included with the Expansion Dock is plugged into
the Expansion Dock and into a working electrical outlet. Do not use the adapter that came
with your notebook or adapters other than the one supplied with the Expansion Dock.
2. Unplug the USB cable (B) from either the Expansion Dock or your notebook.
3. If the red light indicator on the back of the Expansion Dock is lit, the power is connected
properly. If not, go to step 4.
4. Use the USB cable (B) to test the Expansion Dock:
• Unplug the power adapter (C) from the Expansion Dock
• Connect the USB cable to the Expansion Dock and to your notebook. Make sure that no other
devices are connected to the Expansion Dock.
5. If the red light indicator is lit, the power adapter (C) does not work properly: be sure that the
power adapter is plugged into a working electrical outlet. If the light is not lit, there may be a
problem with the Expansion Dock.
My notebook will not "connect" to the Expansion Dock.
1. Insert the CD (D) into your notebook's CD-ROM or DVD drive.
2. Unplug and replug the USB cable (B) into both the Expansion Dock and your notebook.
If Windows does not find new hardware, go to step 3.
3. Plug the USB cable (B) from the Expansion Dock into a different USB port on the notebook.
If Windows does not find new hardware, go to step 4.
4. Test the operation of the Expansion Dock with these steps:
• Make sure that the power adapter (C) is connected to the Expansion Dock.
• Plug a USB device, such as a USB mouse, into one of the USB ports of the Expansion Dock.
• Restart the notebook.
• If Windows now finds new hardware, go to Installing the Software Drivers, above, and follow
the steps to reinstall the software drivers. If installation is successful, the USB device plugged
into the Expansion Dock should work properly. If Windows does not find new hardware, there
may be a problem with the Expansion Dock.
Video Output
The display on my monitor is blank.
• Make sure that the USB cable (B) is connected to your notebook and the power adapter (C) is
connected to the Expansion Dock and to a working power outlet. Make sure that the video
.
cable is securely connected to the VGA video output port (G) and secured with the fixing
screws on both sides.
• Make sure that the notebook connected to the Expansion Dock is running properly and is not
in Standby or Hibernate Mode. When the notebook is in Standby and Hibernate Mode, the
monitor display is always blank.
If you check both of the above and your monitor still does not display correctly, you may need to
reinstall the video (USB-VGA) driver. Follow these steps to make sure that the driver is properly
installed:
1. Unplug the USB cable (B) from the Expansion Dock; leave the power adapter (C) connected to
the Expansion Dock.
2. Insert the CD (D) in your notebook's CD-ROM or DVD drive.
3. Select Start, select My Computer, and then double-click on the CD-ROM or DVD drive where
you have inserted the CD.
4. Double-click on the folder USB VGA.
5. Double-click on the file Setup.exe.
Note: During driver installation, the screen will go blank a couple of times. This is a normal part
of the installation process.
6. Once the drivers are installed, reconnect the USB cable (B) to the Expansion Dock.
7. The computer will automatically detect the new USB device and install it in your
computer through the Found New Hardware Wizard, as described in Installing the
Software Drivers, above.
When I close the lid of my notebook the display of the external monitor goes blank.
By default, most the notebooks go into Standby or Hibernate Mode when the lid is closed. To
change these settings, do the following:
1. Open the Control Panel and select Power Options.
2. On the Advanced tab, in the Power buttons section, under the option "When I close the lid of
my portable notebook, " select Do nothing.
The shortcut key on my notebook for cloning a display does not work correctly when I am using an
external monitor in Extended Mode.
Your notebook may have a shortcut key that allows you to clone your notebook display to an
external monitor connected to an external VGA connector such as the Expansion Dock. However,
if the Expansion Dock is in Extended Mode, the shortcut key may not function correctly. Changing
the Expansion Dock to Clone Mode should enable the shortcut key to function correctly; see
Adjusting Video Settings, above, for details.
Note: The shortcut key and its functionality can be different depending on the notebook. Check
your notebook's user manual or contact the manufacturer to identify the shortcut key.
The display on my external monitor is blurred.
We recommend that you auto-adjust the external monitor once in a while to realign its settings
with the video output of the Expansion Dock. This action should fix most of the issues related to
the quality of the video on the external monitor. Refer to the user manual of your monitor how to
do the auto-adjust procedure.
The video display stays on my monitor after I unplug the power adapter.
When you unplug the power adapter (C), the Expansion Dock still gets a small amount of power
from the USB connection with your notebook. However, this power source is limited and can be
unstable, so we recommend you always use the Expansion Dock with the power adapter connect-
ed and plugged into a working outlet.
On the Display Properties screen on my notebook, I do not see an entry for USB Display
Adapter (Newnham).
• Make sure that the Expansion Dock is powered and connected to a USB port on your notebook.
• Make sure that you have successfully installed the software drivers as described in Installing
the Software Drivers, above.
• In some case, you may need to restart your notebook.
My monitor shows an "Unknown Resolution Mode" or similar message.
An error message may appear if the screen resolution is set to a number that is not supported by
either the Expansion Dock (as listed in Adjusting Video Settings, above) or by the external monitor.
Select a lower screen resolution until the Windows display appears on the monitor.
The external monitor connected through the Expansion Dock is flickering.
Flickering is usually associated with CRT monitors caused by a low refresh rate. Always try and use
the maximum refresh rate available:
• In Clone Mode, increase the refresh rate of your notebook screen, which will in turn increase
the refresh rate of the external monitor.
• In Extended Mode, increase the refresh rate of the external monitor.
For supported refresh rates, see Adjusting Video Settings, above.
DVD playback does not work.
DVD playback is controlled by your notebook system and by the DVD application, not by the
Expansion Dock. The audio and video quality of DVD playback depends on your notebook system.
Some systems do not support DVD playback through the Expansion Dock:
• In Clone Mode, if the external monitor screen goes blank when you try to play a DVD,
then your system and the DVD application do not support DVD playback through the
Expansion Dock.
• In Extended Mode, if the following message appears on the external monitor screen:
"Due to limitations of your notebook's display device, this video can only play back on
one of your monitors. Please, move the video window completely onto that monitor."
we recommend that you move the DVD playback application to your notebook and start the
application again.
Ethernet Connection
My Ethernet connection is not working.
1. Be sure that the power adapter (C) is plugged into the Expansion Dock and into a working
electrical outlet, that the correct drivers are installed, and that the network cable is connected
to the Expansion Dock's Ethernet port (H).
2. On your notebook, open the Control Panel and select Network Connections. Roll the cursor
over Local Area Connection icons. One icon will display a name containing USB 2.0 Fast
Ethernet Adapter.
in the system tray.
3. Double-click on this icon. If the Connection Status shows "Connected, " the port is correctly
configured and the Ethernet connection should work properly.
4. If the status does not show "Connected, " test the cable by plugging it into the network port on
your notebook. If the status still does not indicate a connection, the problem is with the cable
or the network and is NOT related to the Expansion Dock. If the status shows "Connected, "
there may be a problem with the Expansion Dock.
Network Connection
My network connection is not working.
In order to connect to some networks, you may have to know the NIC card address for the network
card on the notebook. Follow these steps to locate the address:
1. Make sure the Expansion Dock is connected to your notebook using the USB cable (B).
2. On your notebook, open the Control Panel and select Network Connections. The following
icons are displayed: Local Area Connection, Wireless Connection (if your notebook has wireless
capabilities), and Local Area Connection x (where x is some number, for example, 2, 3, 4, etc.).
The third icon corresponds to the network connection for the Expansion Dock.
3. Right-click on that icon and select Properties.
4. On the General tab, look for the adapter name containing USB to Fast Ethernet Adapter. Roll
the cursor over the adapter name to display the NIC card address.
Audio
I cannot adjust the volume from my notebook keyboard.
If the volume control does not work using the volume control keys on your notebook, use the
mouse to adjust volume using the controls from the notebook's system tray. You can also install
the latest upgrades for your operating system to try and fix the problem; on a Windows notebook,
we recommend Windows XP Service Pack 2.
I cannot hear anything through my notebook speakers.
Some notebooks default to the USB audio when the Expansion Dock is connected, disabling your
notebook's built-in speakers. To enable the speakers:
1. Open the Control Panel and select Sounds and Audio Devices.
2. On the Audio tab, under Sound Playback, select a device that is not USB Audio.
Note: You must close the application currently using the audio device and restart it to
enable this change.
Devices
Devices on the Expansion Dock's USB ports do not operate.
You must install the software drivers (as described in Installing the Software Drivers, above) in
order for USB devices to work with Expansion Dock. If you plug a device into a USB port (B) on the
Dock before you install the drivers, your notebook will not recognize the device and the device will
not work. If the software is installed and devices do not work, follow these steps:
1. Be sure that the power adapter (C) is plugged into the Expansion Dock and into a working
electrical outlet.
2. Unplug and replug the USB cable into the same USB port. If this does not correct the problem,
plug the device into a notebook USB port. If the device still does not work, there may be a
problem with the device.
3. If the device works, plug the device into each of the Expansion Dock's USB ports (F) to verify
that it works with each. For ports that do not appear to work, test again. If some ports do not
work, there may be a problem with the Expansion Dock.
Federal Communications Commission Radio Frequency
Interference Statement
Note: The Kensington Notebook Expansion Dock with Video model no. 33367 has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
MODIFICATIONS: Modifications not expressly approved by Kensington may void the user's authority to operate the
device under FCC regulations and must not be made.
SHIELDED CABLES: In order to meet FCC requirements, all connections to equipment using a Kensington input device
should be made using only the shielded cable provided.
Declaration of Conformity Compliance Statement for the Kensington
Notebook Expansion Dock with Video
The Kensington Notebook Expansion Dock with Video model no. 33367 complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation. As defined in
Section 2.909 of the FCC Rules, the responsible party for this device is Kensington Computer Products Group,
333 Twin Dolphin Drive, Redwood Shores, CA 94065, USA, 800-535-4242.
This Class B digital apparatus complies with Canadian ICES-003.
CE Declaration of Conformity
The Kensington Notebook Expansion Dock with Video model no. 33367 has been tested in accordance with essential
requirements for CE marking. Kensington herewith confirms this product complies with all the requirements set out in
the Council Directive on the application of the laws of the member states relating to the Electromagnetic Compatibility
(89/336/EEC) and the amendments in the Council Directive 92/31/EEC and 93/68/EEC.
CAUTION: The cord on this product contains lead, a chemical known to the State of California to
800x600
1024x768
1280x768
1280x960
1280x1024
cause cancer and birth defects or other reproductive harm. Wash hands after handling.
60 70 75 85
60 75 85
60 85
60 75 85
60 70 75 85
60 75 85
60 85
60 75
Two-Year Limited Warranty
KENSINGTON COMPUTER PRODUCTS GROUP ("KENSINGTON") warrants this product against defects in material and
workmanship under normal use and service for two years from the original date of purchase. KENSINGTON, at its
option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as
evidence of the date of purchase. You will need it for any warranty service. In order to keep this warranty in effect, the
product must have been handled and used as prescribed in the instructions accompanying this warranty. This warranty
does not cover any damage due to accident, misuse, abuse or negligence. This warranty is valid only if the product is
used with the equipment specified on the product box. Please check product box for details or call KENSINGTON
technical support.
DISCLAIMER OF WARRANTY
EXCEPT FOR THE WARRANTY PROVIDED HEREIN, TO THE EXTENT PERMITTED BY LAW, KENSINGTON DISCLAIMS ALL
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF
LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE ONE-YEAR DURATION OF THIS WARRANTY.
SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY
REPAIR OR REPLACEMENT OF THIS PRODUCT, AS PROVIDED HEREIN, IS YOUR EXCLUSIVE REMEDY. KENSINGTON SHALL
NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST
REVENUES, LOST PROFITS, LOSS OF USE OF SOFTWARE, LOSS OR RECOVERY OF DATA, RENTAL OF REPLACEMENT
EQUIPMENT, DOWNTIME, DAMAGE TO PROPERTY, AND THIRD-PARTY CLAIMS, ARISING OUT OF ANY THEORY OF
RECOVERY, INCLUDING WARRANTY, CONTRACT, STATUTORY OR TORT. NOTWITHSTANDING THE TERM OF ANY LIMITED
WARRANTY OR ANY WARRANTY IMPLIED BY LAW, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS
ESSENTIAL PURPOSE, IN NO EVENT WILL KENSINGTON'S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THIS
PRODUCT. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE AND PROVINCE TO
PROVINCE.
Kensington and ACCO are registered U.S. trademarks of ACCO Brands Corporation with issued registrations and pending
applications in other countries throughout the world. The Kensington Promise is a service mark of ACCO Brands.
Windows is a registered trademark of Microsoft Corporation. All other registered and unregistered trademarks are the
property of their respective owners.
©2006 Kensington Computer Products Group, a division of ACCO Brands. Any unauthorized copying, duplicating, or
other reproduction of the contents hereof is prohibited without written consent from Kensington Computer Products
Group. All rights reserved. 4/06
Elle vous facilite la vie.
Inutile de brancher plusieurs périphériques à votre ordinateur portable chaque fois que vous
revenez à votre bureau. Grâce à une simple connexion USB, la station d'accueil Kensington
Notebook Expansion Dock with Video vous connecte instantanément à votre moniteur externe,
clavier et autres périphériques. De plus, vous pouvez placer votre ordinateur portable en haut
de l'expansion dock pour un meilleur refroidissement de votre machine.
Configuration requise
PC présentant les caractéristiques suivantes :
• Pentium® ou processeur compatible, 500 MHz minimum (1 GHz ou plus recommandé)
• Windows XP avec Service Pack 1 ou supérieur
• 128 Mo de mémoire (256 Mo recommandés)
• 30 Mo d'espace disque disponible
• Lecteur de CD-ROM ou DVD
• Port USB 2.0
Remarque : l'Expansion Dock fonctionne lorsqu'elle est connectée à un port USB 1.x sur votre
ordinateur portable ; néanmoins, les performances des périphériques connectés à l'Expansion Dock
via un port USB 1.x peuvent être compromises. La sortie vidéo de l'Expansion Dock fonctionne
UNIQUEMENT lorsque la station est connectée à un port USB 2.0 sur votre ordinateur portable.
Instructions d'installation
IMPORTANT : les périphériques connectés à l'Expansion Dock fonctionnent uniquement une fois
que l'installation est terminée. Vous devez suivre toutes les instructions d'installation avant
d'utiliser un périphérique raccordé à l'Expansion Dock.
Connexion de l'Expansion Dock à votre ordinateur portable
1. Insérez le CD (D) dans le lecteur de CD-ROM ou DVD de votre ordinateur portable.
2. Branchez l'adaptateur d'alimentation (C) dans la prise sur l'Expansion Dock. Branchez ensuite
l'adaptateur d'alimentation dans une prise de courant.
Le voyant lumineux rouge situé en regard de la prise de l'adaptateur s'allume lorsque l'Expansion
Dock est alimentée.
Remarque : laissez toujours l'Expansion Dock connectée à l'adaptateur d'alimentation
fourni avec le produit. Les fonctionnalités vidéo ne sont PAS prises en charge si l'adaptateur
d'alimentation n'est pas connecté à la station. Les performances d'autres périphériques
connectés aux ports USB de l'Expansion Dock peuvent également être limitées si l'adaptateur
d'alimentation n'est pas connecté.
3. Branchez l'extrémité carrée du câble USB (B) dans le connecteur en amont USB à l'arrière de
l'Expansion Dock. Le connecteur est indiqué par le symbole
.
4. Démarrez votre ordinateur portable.
5. Branchez l'autre extrémité du câble USB (B) dans un port USB 2.0 disponible sur votre
ordinateur portable.
Remarque : l'Expansion Dock fonctionne lorsqu'elle est connectée à un port USB 1.x sur votre
ordinateur portable ; néanmoins, les performances des périphériques connectés à l'Expansion Dock
via un port USB 1.x peuvent être compromises. La sortie vidéo de l'Expansion Dock fonctionne
UNIQUEMENT lorsque la station est connectée à un port USB 2.0 sur votre ordinateur portable.
Installation des pilotes du logiciel
Remarque : vous devez disposer de privilèges Administrateur pour installer les pilotes de
l'Expansion Dock. Si ce n'est pas le cas, déconnectez-vous de Windows et connectez-vous avec
un nom d'utilisateur ayant ces privilèges.
Une fois que vous avez connecté l'Expansion Dock à votre ordinateur portable, Windows XP la
détecte et commence à installer les pilotes. Les pilotes représentent le logiciel qui permet aux
différents composants de l'Expansion Dock (son, vidéo, etc.) de fonctionner.
Remarque : pendant l'installation des pilotes vidéo (USB-VGA), l'écran de votre ordinateur
portable risque d'être vide pendant quelques secondes. Ceci est normal.
1. L' A ssistant Nouveau matériel détecté s'ouvre. Si ce n'est pas le cas, démarrez l' A ssistant Ajout
de nouveau matériel du Panneau de configuration de votre ordinateur portable, suivez les
invites et passez à l'étape 4.
2. Si Windows demande l'autorisation de se connecter à Windows Update, sélectionnez
No, not this time, et cliquez sur Next.
3. Sélectionnez Install the software automatically [recommended], et cliquez sur Next.
4. Lorsque l'assistant a terminé d'installer le logiciel, cliquez sur Finish pour continuer.
5. Répétez les étapes 2-4 pour chaque périphérique installé à l'aide de l' A ssistant Nouveau
matériel détecté.
Remarque : visitez le site www.kensington.com pour contrôler les mises à jour de pilote et les
améliorations.
Utilisation de l'Expansion Dock
Vous pouvez connecter des périphériques au port approprié sur l'Expansion Dock lorsque votre
ordinateur portable est sous tension. Il faut quelques secondes à l'ordinateur portable pour
reconnaître le nouveau périphérique.
Ports USB 2.0
Connectez le périphérique USB à l'un des quatre ports USB de l'Expansion Dock (F). Chaque port
possède un voyant lumineux d'état qui indique l'état de ce port :
• Si aucun périphérique n'est connecté au port, le voyant est éteint.
• Si un périphérique est connecté au port et que la connexion fonctionne correctement,
le voyant lumineux s'allume en vert.
Remarque : si un périphérique USB est connecté à l'Expansion Dock et qu'il ne fonctionne pas
correctement, essayez de le faire fonctionner en le branchant directement sur l'un des ports USB
disponibles sur votre ordinateur portable.
Port Ethernet
Le port Ethernet de l'Expansion Dock est un USB 2.0-to-Fast-Ethernet adapter.
Branchez un câble réseau (vendu séparément) au port Ethernet (H) pour un accès réseau à hautes
performances. Les voyants lumineux du port Ethernet fonctionnent de la façon suivante :
• Le voyant situé à gauche du port s'allume lorsqu'il existe une connexion réseau.
• Le voyant situé à droite du port s'allume lorsqu'il existe une activité réseau.
Port vidéo
Branchez un câble VGA (vendu séparément) au port de sortie vidéo VGA (G) sur l'Expansion
Dock et à un moniteur externe. Ce câble peut être connecté et déconnecté à tout moment sans
débrancher l'Expansion Dock du port USB sur votre ordinateur portable.
Remarque : la station d'accueil Notebook Expansion dock prend en charge tous les écrans LCD
et CRT analogiques. Vous pouvez également connecter des écrans DVI-A et DVI-I à l'aide d'un
convertisseur VGA vers DVI approprié.
Vous pouvez régler des paramètres vidéo pour personnaliser votre utilisation de l'Expansion Dock
with Video ; reportez-vous à la section Réglage des paramètres vidéo pour plus d'informations.
Remarque : Il est recommandé de régler automatiquement le moniteur externe de temps en
temps pour réaligner ses paramètres avec la sortie vidéo de l'Expansion Dock. Consultez le
manuel de l'utilisateur de votre moniteur pour plus d'informations sur la procédure de réglage
automatique.
Si la sortie vidéo de l'Expansion Dock ne fonctionne pas une fois que cette dernière est connectée
correctement à un moniteur externe, le pilote vidéo (USB-VGA) n'a certainement pas été installé
correctement. Suivez les étapes ci-dessous pour vérifier que le pilote est correctement installé :
1. Débranchez le câble USB (B) de l'Expansion Dock ; laissez l'adaptateur d'alimentation (C)
connecté à l'Expansion Dock.
2. Insérez le CD (D) dans le lecteur de CD-ROM ou DVD de votre ordinateur portable.
3. Sélectionnez Démarrer, Poste de travail et double-cliquez sur le lecteur de CD-ROM ou DVD
dans lequel vous avez installé le CD.
4. Double-cliquez sur le dossier USB VGA.
5. Double-cliquez sur le fichier Setup.exe.
Remarque : pendant l'installation, l'écran devient vide plusieurs fois. Ceci est normal.
6. Une fois que les pilotes sont installés, rebranchez le câble USB (B) à l'Expansion Dock.
7. L'ordinateur détecte automatiquement le nouveau périphérique USB et l'installe dans votre
ordinateur au moyen de l' A ssistant Nouveau matériel détecté.
Déconnexion de l'Expansion Dock
Vous pouvez connecter et déconnecter l'Expansion Dock alors que votre ordinateur portable
est sous tension.
1. Si l'Expansion Dock est en train de transférer des données au moyen de l'une de ses
connexions, patientez jusqu'à ce que l'opération soit terminée.
2. Si vous êtes connecté à l'aide du port Ethernet (H), fermez la connexion réseau.
3. Sur votre ordinateur portable, cliquez sur l'icône Safely Remove Hardware
dans la
barre d'état système.
4. Sélectionnez Safely Remove USB 2.0 to Fast Ethernet Adapter.
5. Débranchez le câble USB (B) du port USB de votre ordinateur portable.
Lorsque vous débranchez le câble USB, l'affichage du moniteur externe connecté à l'Expansion
Dock devient vide.
Remarque : si la sortie vidéo de l'Expansion Dock est configurée en mode étendu (Extended
Mode) (reportez-vous à la section Modes vidéo), les fenêtres ouvertes sur le moniteur externe
sont transférées vers l'écran de l'ordinateur portable principal. Lorsque vous reconnectez
l'Expansion Dock à l'ordinateur portable, la sortie vidéo est de nouveau configurée pour le
mode Extended avec le moniteur externe. Néanmoins, les fenêtres qui étaient précédemment
sur le moniteur externe ne sont pas retransférées vers cet écran secondaire.
Modes vidéo
La sortie vidéo de l'Expansion Dock fonctionne dans deux modes :
• Mode clone (Clone Mode)
• Mode étendu (Extended Mode)
Mode clone (Clone Mode)
Ce mode effectue une copie (crée un affichage identique) de l'écran de votre ordinateur portable
au moniteur externe. Ceci est utile si vous souhaitez utiliser un écran de bureau plus grand
plutôt qu'un petit écran d'ordinateur portable, par exemple. En mode Clone, l'Expansion Dock
sélectionne automatiquement les paramètres (résolution de l'écran, qualité couleur et taux de
rafraîchissement) pour le moniteur externe qui permettent d'obtenir la meilleure résolution en
fonction des paramètres de votre ordinateur portable.
Par défaut, l'Expansion Dock utilise la sortie vidéo en mode Clone.
Remarque : si certaines icônes n'apparaissent pas sur votre moniteur externe car la taille de
l'affichage du ordinateur portable pour que l'affichage du moniteur les fasse apparaître.
Mode étendu (Extended Mode)
Ce mode vous permet de partager votre écran sur plusieurs moniteurs. Ceci fournit de nombreux
avantages pour augmenter la productivité :
• Lire le courrier électronique sur un écran, ouvrir les pièces jointes sur l'autre.
• Afficher un tableur sur deux écrans.
• Pour éditer des graphiques, agrandir la surface de travail en plaçant toutes les palettes et les
barres d'outils sur le deuxième écran.
• Laisser le bureau sur le moniteur externe et regarder un DVD sur l'écran de l'ordinateur portable.
Pour configurer l'Expansion Dock afin qu'elle utilise le mode Extended, suivez les étapes ci-dessous :
1. Positionnez la souris n'importe où sur le bureau de votre
ordinateur portable, cliquez avec le bouton droit de la
souris et sélectionnez Properties.
2. Dans l'écran Display Properties, cliquez sur l'onglet
Settings. Dans le menu déroulant Display, sélectionnez
l'option contenant USB Display Adapter (Newnham).
3. Cochez la case Extend my Windows desktop onto this
monitor.
4. Faites glissez les icônes dans la fenêtre en haut de
l'écran en fonction de l'organisation physique de l'écran
de votre ordinateur portable et du moniteur externe.
Remarque : cliquez sur Identify pour identifier les différents
moniteurs connectés à votre système et leurs positions.
5. Cliquez sur OK pour fermer l'écran Display Properties.
Basculement entre le mode Extended et le mode Clone
Si vous modifiez la sortie vidéo sur le mode Extended et
que vous souhaitez ensuite revenir en mode Clone, suivez
les étapes ci-dessous :
1. Positionnez la souris n'importe où sur le bureau de votre
mm
ordinateur portable, cliquez avec le bouton droit de la
souris et sélectionnez Properties.
2. Dans l'écran Display Properties, cliquez sur l'onglet
Settings. Dans le menu déroulant Display, sélectionnez
l'option contenant USB Display Adapter (Newnham).
3. Désélectionnez la case Extend my Windows desktop
onto this monitor.
4. Cliquez sur OK pour fermer l'écran Display Properties.
Réglage des paramètres vidéo
En mode Clone ou Extended, vous pouvez régler les paramètres vidéo décrits ci-après. En mode
Clone, les paramètres s'appliquent au moniteur de l'ordinateur portable et au moniteur externe ;
en mode Extended, vous pouvez définir des paramètres séparés pour le moniteur de votre
ordinateur portable et le moniteur externe.
• Resolution représente le nombre de pixels affichés à l'écran horizontalement et verticalement.
Une résolution supérieure signifie que vous pouvez afficher une image plus grande à l'écran
sans la faire défiler ni la déplacer latéralement.
• Color depth définit le nombre de couleurs différentes pouvant être reproduites simultanément
à l'écran. Elle est proportionnelle à la qualité de l'image.
m
• Refresh rate (également appelé " fréquence verticale ") mesure la vitesse à laquelle l'écran
entier est rebalayé. Des fréquences supérieures réduisent le scintillement car elles éclairent
les pixels plus fréquemment, diminuant ainsi la gradation provoquant le scintillement.
Vous trouverez ci-dessous une liste des taux de rafraîchissement pris en charge à différentes
résolutions et profondeurs d'échantillonnage pour la sortie vidéo de l'Expansion Dock :
Résolution
640x480
800x600
1024x768
1280x768
1280x960
1280x1024
Profondeur
16 bit
60 72 75
56 60 72 75 85
60 70 75 85
60 75 85
60 85
60 75 85
m
d'échantillonnage 32 bit
60 72 75
56 60 72 75 85
60 70 75 85
60 75 85
60 85
60 75
1. Positionnez la souris n'importe où sur le bureau de votre ordinateur portable, cliquez avec le
bouton droit de la souris et sélectionnez Properties.
2. Dans l'écran Display Properties, cliquez sur l'onglet Settings.
3. Pour modifier la résolution de l'écran ou la qualité couleur, sélectionnez les options
correspondantes à l'écran. Sélectionnez l'une des résolutions et des valeurs de qualité couleur
prises en charge dans le tableau ci-dessus. Dans le cas d'un moniteur externe, vous pouvez
également sélectionner toute résolution ou qualité couleur prise en charge par ce moniteur.
4. Pour modifier le taux de rafraîchissement, dans l'écran Display Properties, cliquez sur Advanced
puis sur Monitor.
5. Sélectionnez un taux de rafraîchissement dans la liste déroulante Screen refresh rate.
Sélectionnez un taux de rafraîchissement pris en charge pour les paramètres de résolution
et de qualité couleur, comme indiqué dans le tableau ci-dessus. Cliquez sur OK.
6. Cliquez sur OK pour fermer l'écran Display Properties.
Si vous utilisez plusieurs Expansion Docks avec un seul ordinateur (par exemple, un au bureau
et un à la maison), les paramètres vidéo pour chaque station sont enregistrés lorsque vous
déconnectez l'ordinateur portable. Vous pouvez donc configurer votre Expansion Doc
mm
m
W
m
m
m
m
mm
M
mm
mm
m
m
m
m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 33367 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kensington 33367

  • Page 1 Interference Statement ordinateur portable, cliquez avec le bouton droit de la Note: The Kensington Notebook Expansion Dock with Video model no. 33367 has been tested and found to comply with souris et sélectionnez Properties. the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- 2.
  • Page 2 KENSINGTON heeft de keuze om het onder deze garantie vallende defecte apparaat te repareren of te vervangen. Bewaar uw aankoopbewijs als bewijs van de datum van aanschaf. U hebt het nodig voor elke service onder deze garantie.

Table of Contents
