- Page 1 Translated from French to English - www.onlinedoctranslator.com INSTALLATION AND INSTRUCTION MANUAL & MAINTENANCE MONOBLOC MOBILE COLD & HOT AIR CONDITIONER Ref: 409709 – Type: YPS-12HW/3 HOTLINE...
-
Page 2: Table Of Contents
Contents Specific R290 gas warnings Important Safety Instructions 1 . Overview of the air conditioner 2. Installation requirements 3. Control/display panel and remote control p.8 p.10 4. Instructions for use p.14 5. Drainage p.15 6. Maintenance p.16 7. Troubleshooting p.17 8. -
Page 3: Specific R290 Gas Warnings
SPECIFIC WARNINGS R290 GAS Read these warnings carefully. • For the defrosting process and for cleaning, use only the tools recommended by the manufacturer. • The appliance must be installed in a location with no constant sources of ignition (for example: open flames, gas or electrical appliances in operation). -
Page 4: Important Safety Instructions
Maintenance operations and repairs requiring the assistance of other specialists must be carried out under the supervision of the person specialized in the use of flammable refrigerant gases. IMPORTANT SAFETY INSTRUCTIONS Please read this manual carefully before using the device. This appliance is designed exclusively for household use. - Page 5 Please use the accessories provided by the air conditioner • manufacturer. Otherwise, it could be damaged. Recommended operating temperatures for the air conditioner • (cooling/heating): 15-35°C / 5-27°C. This appliance can be used by children aged 8 years or over or •...

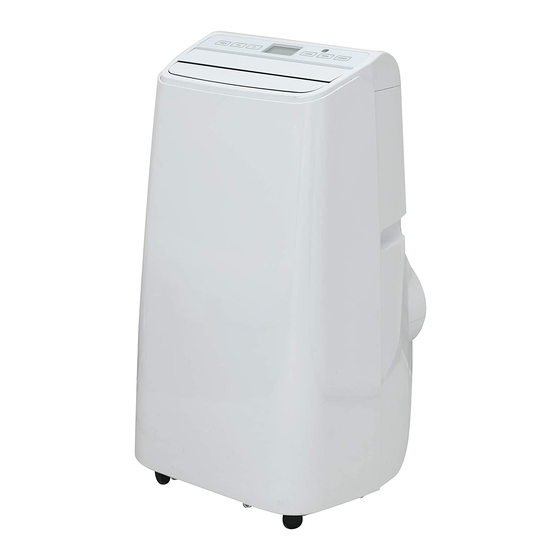

- Page 6 1. PRESENTATION OF THE AIR CONDITIONER 1. Control panel + LCD display screen 2. Protective film to be removed 3. Air outlet flaps 4. Back panel 5. Front panel 6. Casters 7. Exhaust pipe 1.5 meters 8. Window recessed panel 9.
- Page 7 2.INSTALLATION INSTRUCTIONS CAUTION: Before using the portable air conditioner, keep it upright for at least two hours. Always and imperatively move the air conditioner in a vertical position Place the air conditioner on a flat surface. Do not install the air conditioner in bathrooms and damp rooms. Place it in a dry place, and keep it at least 50 cm away from any object Installation of the exhaust duct: Screw the end of the exhaust duct stub into the exhaust port...
-
Page 8: Control/Display Panel And Remote Control
3. CONTROL/DISPLAY PANEL AND REMOTE CONTROL CONTROL/DISPLAY PANEL 1. On/Off button 2. Mode key (Cooling/Ventilation/ Dehumidification/Heating) 3. Temperature / operating time setting button 4. Fan speed button 5. TIMER button 6.LCD display screen This window displays the selected temperature and time. 7. - Page 9 CONTROLLED AIR CONDITIONER I. BY REMOTE CONTROL or BY THE CONTROL PANEL On/Off key Press the button to turn the air conditioner on or off. MODE key Successively press the MODE button on the remote control or the control panel to select the desired mode: Cooling - ventilation - Dehumidification -Heating….Cooling-…ect.
-
Page 10: Instructions For Use
To switch from degrees Fahrenheit to degrees Celsius: On the air conditioner control panel, press both buttons simultaneously to toggle between Celsius (℃)and Fahrenheit (℉). Or on the remote control press the button II. BY WIFI Refer to the WIFI application installation and user guide. 4. - Page 11 Press the fan speed button on the remote control panel or the to choose the desired heating rate: High/Medium or Low. FAN/FAN MODE Press the MODE button on the control panel remote control to select FAN mode. The indicator lights up on the air conditioner display panel. Press the fan speed button on the control panel or the to choose the desired ventilation rate: High/Medium or Low.
- Page 12 TIMER/TIMER MODE Beforehand, select the desired mode and fan speed Programming No. 1: The air conditioner turns OFF, press the button on the control panel once or the to set the activation time. remote control As for the TIMER timer light flashes on the display screen, press the keys to activate the ignition delay time (from 0 ~ 24H).
- Page 13 II- OPERATING SAFETY OF THE AIR CONDITIONER 1. Freeze protection: In cooling, dehumidifying mode, if the exhaust pipe temperature is too low, the air conditioner will automatically enter protection; if the temperature of the exhaust pipe reaches a certain temperature, the original programmed operating state of the air conditioner will be restored.
-
Page 14: Drainage
5. DRAINAGE I. Manual drain When the inner pan is filled with water, the panel display screen will show “FL” signal and the compressor will stop working automatically. Turn off the air conditioner and turn off the power to drain. Note: Please move the air conditioner carefully so as not to spill water from the pan into the air conditioner body. -
Page 15: Maintenance
6. MAINTENANCE Cleaning: Before cleaning and maintenance, turn off the air conditioner and turn off the power. 1. Clean the surface Clean the surface of the air conditioner with a damp soft cloth. Do not use detergents, chemical products, such as benzene, alcohol, petrol, etc., as there is a risk of deterioration. Avoid water splashing into the air conditioner. - Page 16 7.TROUBLESHOOTING Problems cause Solution Turn it on after connecting it to an electrical The air conditioner is not powered outlet Empty the water by draining the air conditioner, then The water tank “FL” indicator restart the air conditioner lights up The air conditioner does In cooling mode, the room does not work...
- Page 17 8.APPENDICES Fuse Settings Specification: Diameter 5 × 20mm Voltage: 250VAC Current: 3.15A Schematic diagram Capacitor Compressor Evacuation DISPOSAL OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT FROM OF END USERS IN THE EUROPEAN UNION” This symbol on the product or on the container indicates that this product may not be disposed of with general waste.
