- Page 1 SPOT PRO 100 Version UDXYGPSP100N005-EN Made in France...
- Page 2 To ensure a cleaned pool, in quit mind, we advise you to read this booklet of use before first use of your pool cleaner. You will find all required information to allow your pool cleaner SPOT PRO 100 working with the better conditions, in full security.
-
Page 3: Table Of Contents
A. Power Supply Requirements ....................5 C. Rules for safe use ......................... 5 3. How to install your SPOT PRO 100 ? ............... 8 4. How to use your SPOT PRO 100 ? ................11 A. Pool entry of the robot ....................... 11 B. -
Page 4: Introduction

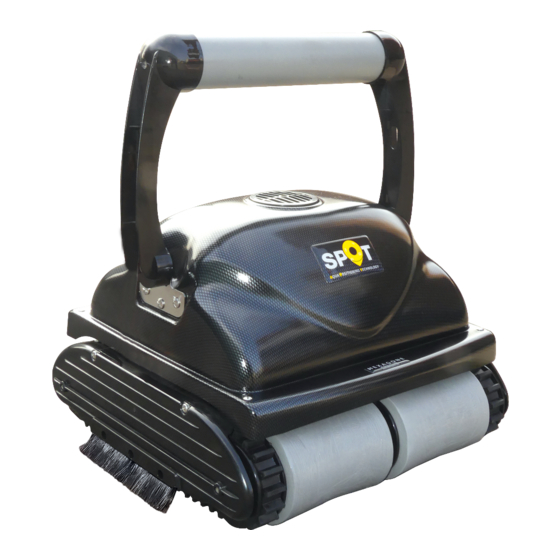

The pool vacuum cleaner SPOT PRO 100 is the professional robot that must be used only by the qualified pool technicians. The pool vacuum cleaner SPOT PRO 100 is designed for regular maintenance of your pool up to 200 m². -
Page 5: Safety Rules
• Do not use the pool vacuum cleaner robot SPOT PRO 100 if you notice a problem on a part of the robot or see a defective or missing element (pump, turbine,... - Page 6 95°F), it must be stored in the shade and in a ventilated space. • Never store the SPOT PRO 100 vacuum robot and its control box in a place where the temperature can drop below 0°C / 32°F. Absolutely protect it from frost.
- Page 7 All of these factors can contribute to lining failure. The SPOT PRO 100 pool vacuum robot does not in any way alter the quality and integrity of the pool lining. Thus, the presence of such problems in your pool is not related to the use or operation of the robotic vacuum cleaner SPOT PRO 100.
-
Page 8: How To Install Your Spot Pro 100
SPOT PRO 100 was created in accordance with the usual policy of its designers, namely the management of all parameters to control the operations of the machine and modify them, if necessary. - Page 9 B. Electrical connections For your safety and the correct operation of your SPOT PRO 100 follow the instructions below: • Place the control box at least 3.5 metres from the edge of the pool, avoiding direct exposure of the box to the sun or rain.
- Page 10 (cages, underwater games, etc.) so as not to block the normal operation of the SPOT PRO 100 vacuum robot. Turn on the SPOT PRO 100 robot following the instructions. Be sure to keep your hands and feet away from moving parts. Never place your hands or feet under the SPOT PRO 100 vacuum robot.
-
Page 11: How To Use Your Spot Pro 100
4. How to use your SPOT PRO 100 ? A. Pool entry of the robot The control box of the SPOT PRO 100 must • be placed so that the robot can reach all corners of the pool while remaining 3.5 meters from the edge. -
Page 12: Automatic Mode
B. Automatic mode The SPOT PRO 100 allows you to avoid all the minor operations that were usually required when selecting and setting up the program best suited to cleaning your pool. Now, thanks to its AQUA POSITIONING TECHNOLOGY, all programming operations are carried out by the SPOT PRO 100 automatically, without user action. - Page 13 Start-up 1. Connect the cable of pool vacuum cleaner to the control box using the black square plug, pay attention to polarization. 2. Connect the control box to the mains. 3. Wait 10 seconds for system initialization (you will see the LEDs of the 3 start buttons flashing).
- Page 14 The use of the radio control is not possible during automatic mode. By pressing the STOP button on the radio control to stop the cleaning cycle, you will stop your robot. You can then use your SPOT PRO 100 in MANUEL mode.
-
Page 15: Manuel Mode
(e.g. very high level of salinity, a permanent proliferation of algae ...) make it impossible to use your robot SPOT PRO 100 in AUTOMATIC mode. You'll see this through a very short daily program Please contact us for more details. -
Page 16: Output From The Water
Wash them with fresh water and rinse your SPOT PRO 100. 5. Roll up the cable. If a twist occurs on the cable, remove it (as you would with an extension cord). Please remove any twists from the cable (and do not just distribute the twists along the length of the cable). -
Page 17: Cleaning Of Filter
WARNING! Any manipulation on the robot absolutely requires that the robot is completely disconnected from the mains. A. Cleaning of filter We recommend that the owner of CROCODILE ROCK clean the filters after each cycle of the robot. For proper cleaning of the filter bag: 1-Turn off the pool cleaner by pressing the “I”... -
Page 18: Preventive Maintenance
See to replace the wear parts either with your dealer or by your own care after taking advice from your dealer if necessary. The well-maintained SPOT PRO 100 will definitely result in better duration, economy and safety. C. Wear parts - service life... -
Page 19: Usage Tips And Troubleshooting
Never try to repair the power cable. Contact the After-Sale Service to have it replaced with the original spare part to avoid any injury. Usage tips: Use your SPOT PRO 100 vacuum robot as often as possible: you will enjoy a pool that's always clean and the filter bag will clog slower. •... - Page 20 In case of problem: The robot glides and does not make good trajectories There may be 3 causes: • The filter bag is full or dirty: just clean it. • Although the water appears clear, there are microscopic algae, not visible to the naked eye, which make the ground slippery and prevent the robot from rolling properly.
- Page 21 D. D. The robot does not or no longer climb the walls There may be 3 reasons: • The filter is full or dirty: just clean it. NB: Your robot is equipped with a filter condition monitoring sensor. The saturation detector indicates a saturated filter when it is red. You can see by opening the filtration that the bag is not full.
-
Page 22: Your Warranty
7. Your Warranty The present conditions correspond to the French laws in force at the date of printing of this document. A. Conditions We guarantee that all materials are technically sound and free of defects of materials and manufacture and that they are consistent with the state of the art and techniques at the time of entry to the market. -
Page 23: Purpose Of The Warranty
NF EN 60335-2-41/A1 January 2005 Household and similar electrical appliances - Safety - Part 2-41 : particular requirements for pumps. Additional information relative to CE certification The pool vacuum robot SPOT PRO 100 is marked CE according to the following instructions: • Machine directive 2006/42/CE •... -
Page 24: Generic Controls
8. Generic controls Applied to the device No. series ________________________ Step Controls Operator Initials Robot Tests Trolley Test Control Box Tests Packaging control The verification of controls was carried out by Signature: Date:... -
Page 25: Spare Parts And Nomenclature
Spare parts and nomenclature A. Robot NUMBER PART NUMBER AA0002N001 ROBOT BASE K00013N001TUBULAR SPOT TROLLEY B00009N950 SPOT ARM 100-150 FULL BLACK EG0003N000 ROBOT SPOT RADIO CONTROL XYGPSP100- TRACTION V001 (SEE DETAIL ON PLAN) SEE DETAIL ON XYGPSP100-MOTOR BLOCK C0CB30N700 AUTO-FLOATING CABLE GRAY30M SPOT FB0008N000 FILTRE SUPPORT VNFE25129-4-25-A4 SCREW PAN HEAD FLAT STAINLESS STEEL 4 BY 25... -
Page 26: Trolley And Its Assembly
B. Trolley and its assembly NUMBER PART NUMBER DD0041N000 FULL WHEEL D200 GRISE KA0047N001 MOUNTING VERTICAL TUBE FOR SPOT TROLLEY KA0004N951 SPOT TROLLEY WHEEL AXLE KA0239N000 BASE VDIN933-5-70-A4 HEXAGONAL HEAD SCREW STAINLESS STEEL A4 M5 L70 VDIN933-5-50-A4 HEXAGONAL HEAD SCREW STAINLESS STEEL A4 M5 L50 VDIN985-M5-A4 STAINLESS STEEL BRAKE NUT M5 - STAINLESS STEEL A4 VDIN125A-M5-A4 VDIN1587-M5-A4 CAP NUT M5 - STAINLESS STEEL A4... - Page 27 Trolley assembly Step 2 Step 1 Step 3...
-
Page 28: Hood
C. Hood NUMBER PART NUMBER HA0002N9C0 BARE IPPO BLACK CARBON HOOD VNFE25129-4-10 SCREW PAN HEAD STAINLESS STEEL A2 - 4 BY 10 6 VDIN985-M4-A4 Lock nut stainless steel A4 M4 HA0003N000 ARTICULATION SHEET ARM ON IPPO VD0002N000 SPECIAL SCREW M8 ARM FIXATION VDIN985-M8 Lock nut stainless steel A2 M8 VDIN125A-M5-L-A4 FLAT WASHER M5 L STAINLESS STEEL A4 HB0003N300-D19-25 IR STICKER FOR SPOT... -
Page 29: Traction
D. Traction NUMBER PART NUMBER D00009N700PVA SPOT ROLLER WITH GRAY PVA DF0002N000 HEXAGONAL ROLLER AXLE QA0007N000 GUIDE PULLEY QE0012N000 D20x12 GUIDING PULLEY SPACER VDIN7985-5-50 SCREW PAN HEAD CRUCIFORM 5 BY 50 - STAINLESS STEEL A2 QE0007N000-8.2-12.0-7.5 BLACK NYLON SPACER D8.2XD12.0X7.5MM VDIN7985-5-70 SCREW CYLINDRICAL HEAD CRUCIFORM 5 BY 70 - STAINLESS STEEL DB0009N950 BLACK SPOT OVERMOLDED CRAWLER DB0005N000 TRANSMISSION BELT... -
Page 30: The Motor Block
E. The motor block NUMBER PART NUMBER PB0008N000 PLASTIC DIFFUSER M00032N000 SPOT MOTOR BLOCK QA0008N000 TOOTHED PULLEY VDIN7981-2.9-9.5 SCREW LARGE CRUCIFORM SHEET 2.9 BY 9.5 - STAINLESS STEEL A2 AF0004N000 PUMP PROTECTION GRILL PB0007N000 PLASTIC TURBINE PB0009N000 PLASTIC DIFFUSER SUPPORT YOYO VDIN7985-3-20 CRUCIFORM SCREW 3 BY 20 - STAINLESS STEEL A2 VDIN985-M3 Lock nut stainless steel A2 M3 VDIN985-M4-A4 Lock nut stainless steel A4 M4... -
Page 31: Filtration
F. Filtration NUMBER PART NUMBER JD0005N000 CROCO SPOT EVACUATION VALVE VDIN7985-6LOB-5-8-A4 JD0004N000 NON-RETURN VALVE ON CROCO SPOT G. Rollers and coatings NUMBER PART NUMBER D00009N000 CROCO ROLLER WITH BEARING DC0002N000 PVA FOAM FOR CROCO NUMBER PART NUMBER QV0004N000 PLASTIC FLAT BEARING QD0022N000 CROCO SPOT ROLLER SHUTTER VNFE25129-5-10-A4 SCREW PAN HEAD STAINLESS STEEL A4 - 5 BY 10 2 D00004N000 PLASTIC ROLLER... -
Page 32: General Conditions Of Sale Hexagone Manufacture Sas
Hexagone Manufacture S.A.S. by the Customer, regardless of the time when it may have been brought to its knowledge. The fact that Hexagone Manufacture S.A.S. does not avail itself at any given moment of any one of these GCS may not be interpreted as a waiver of the right to avail itself of this at a later date. These GCS prevail over any Customer general conditions. - Page 33 Hexagone Manufacture S.A.S. if it is made in writing, by registered letter with acknowledgement of receipt, within fifteen (15) days following the delivery date. No goods may be returned without our express agreement and goods may only be returned if fit for resale.
- Page 34 1.8. TRANSFER OF PROPERTY – OWNERSHIP RESERVE CLAUSE Hexagone Manufacture S.A.S. reserves ownership of goods sold until effective payment of the full price for the main goods and accessories, even in cases of granting of payment terms. The Customer may in no case resell, pledge or grant a guarantee on the good delivered and not fully paid for.
- Page 35 Hexagone Manufacture S.A.S. may assert to the Customer, within 48 hours after a formal notice which goes unanswered. In this case, Hexagone Manufacture S.A.S. is within its rights to seek a fixed rate of compensation of 15% of the total sale price from the Customer, as well as default interests and any legal fees incurred.
- Page 36 Find us on: www.myhexagone.com Version UDXYGPSP100N005-EN Made in France...
