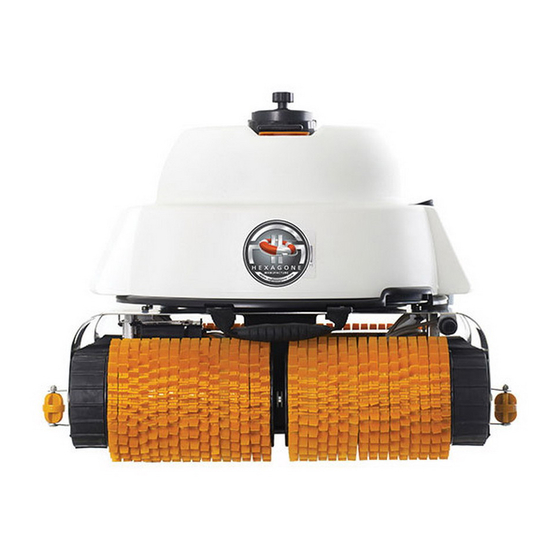

Summary of Contents for Hexagone Chrono MP3

  • Page 2 Information Brand / modèle Hexagone / Chrono MP3 REFERENCE Manufactured on the /20__ Cleaner serial number CM_____-____ XCMP3N_____ Pump serial number _______ P00012 Right engine serial number _______ M00020 Left engine serial number _______ M00020 Captor serial number _____-___ EF00__...
  • Page 3 Dear Customer, Congratulations on your purchase of a HEXAGONE robotic pool cleaner and we trust you will enjoy the benefits of your new state of the art robotic cleaner. The cleaner range has been designed, manufactured and checked with the utmost care so that you will be completely satisfied with it.
  • Page 4 Safety • Keep the robot out of the reach of children • Place the trolley so that the cleaner can reach the farest corner of the pool leaving the trolley at minimum 3.5m from pool edge. • Never let anybody going in swimming pool during pool cleaning •...
  • Page 5 Index 1. Cleaning and consumables A – Cleaning to perform B – Consumables 2. Mechanical maintenance - procedure 3. Your safety A – Conditions B – Purpose of the warranty C – Transport damage D – Compliance 4. – Exploded View And Parts List A –...
  • Page 6 Monthly : Check state of roll brace, cleaning of pump turbine (shut down the cleaner and disconnect it during this operation) and redressor, control teh battery level of remote control, check the filtration quality.  Annually : revision of motors and pump performed by Hexagone B – Consumables REFERENCE part...
  • Page 7 The revision pump consists in carrying out a standard exchange of your pump by another provided by Hexagone or one of its approved distributors. In no case, a revision exerted by your care could be regarded as a revision of manufacturer and will cancel in fact all warrabnty of your appliance.
  • Page 8 The revision engine consists in carrying out a standard exchange of your engine by another provided by Hexagone or one of its approved distributor. In no case, a revision exerted by your care could be regarded as a revision of manufacturer and will cancel in fact all warrabnty of your appliance.
  • Page 9: Your Warranty

    3 – Your warranty 7 years from date of purchase - Stainless steel chassis excluding damage due to sulphur content in water or misuse as deemed by your retailer. Stainless steel trolley – 1 year excluding misuse. 2 years from date of purchase – exept Drive and pump motors and only applies to correct method of operation and product not having been misused.
  • Page 10: Exploded View And Parts List

    4. – Exploded View And Parts List A - Cleaner www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 11 No.ARTICLE QUANTITÉ No.PIÈCE AA0104 PLATE Chrono M M00020 MOTOR BOX FB0092 FILTRATION CENTERING P00012 PUMP CHRONO D00037 ROLL FOR CHRONO M DF0031 AXIS M / DF0032 CHRONO L / DF0033 CHRONO XL EF0052N--- CAPTOR 2 SENSORS FB0090 FILTRATION PLATE F00021 FILTER CHRONO , 105 micron F00024 FILTER CHRONO , 20 micron F00027 FILTER CHRONO , 200 micron H00007 HOOD CHRONO...
  • Page 12 B – Le chariot mounting informaiton on trolley the plate with electronic box is not represented to ease the presentation Liste de pièces : Repère QUANTITÉ Référence et désignation constructeur Note 1KA0116 MAIN TUBE 1KA0115 HANDLE OF TROLLEY CHRONO 1KA0118 WHEEL AXIS 2KA0117 TUBE TO CARRY ROBOT 1KA0120 ELECTRONIC BOX PLATE 2DD0030 WHEEL...
  • Page 13 www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 14 OPTION with drum REPERE QUANTITY REFERENCE ET DESIGNATION 2 DD0030 WHEEL 1 EA0068 DRUM FOR 32M 1 KA0178 WHEEL AXIS 1 KA0180 BOX BRACKET 1 KA0192 ROBOT BRACKET 1 KA0190 RIGTH STRENGTHENER 1 KA0191 GLEFT STRENGTHENER 1 KA0189 HANDLE FOR TROLLEY www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 15 OPTION HOIST KA0037 Plateau chariot potence expert REPERE QUANTITY REFERENCE ET DESIGNATION 1 KA0034 HOIST 1 KA0020 TROLLEY BODY 1 KB0001 WINCH 2 QY0004 CLOSER 2 DD0030 WHEEL 1 KA0037 PLATE OF TROLLEY 1 KA0035 HOIST AXIS www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 16 C – Electronic box No.ARTICLE QUANTITY PART e00034 1 QW0010 electrical box - empty 4 VTF4L120 1 EEI149 rear power supply plate 1 EEG010 power supply 1 CA0016 electrical cable 1 JB0014 PG9 1 CA0014 the 10 pins male plug 1 EEI015 basis for teh 10 pins plug 1 EEF018 red switch 1 EC0031 Card Magellan HP + EC0032 Carte sound...
  • Page 17 D – Remote control No.ARTICLE QUANTITY PART 1 EG0015 Remote control Magellan 3 EEA122 Battery AAA 1 batterie cover www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 18: Maintenance Planning

    5 – Maintenance planning REVISION 1000H Date :___/__/20__ REVISION 1000H Date :___/__/20__ _____ h _____ h Hour meter  : Hour meter  : If revision by pool technician : nummer of retailer delivery note If revision by pool technician : nummer of retailer delivery note If revision by retailer, nummer of intervention note If revision by retailer, nummer of intervention note Reference or part...
  • Page 19 Date :___/__/20__ Date :___/__/20__ REVISION 1000H _____ h REVISION 1000H _____ h Hour meter  : Hour meter  : If revision by pool technician : nummer of retailer delivery note If revision by pool technician : nummer of retailer delivery note If revision by retailer, nummer of intervention note If revision by retailer, nummer of intervention note Reference or part Reference or part...
  • Page 20 6 – Notes www.myhexagone.com info@myhexagone.com Tél.+33 1 34 34 11 55...
  • Page 21 • Robot of loan dealt with We ensure the maintenance of your Hexagone robot at a cost fixes (* consumable and additional parts is not included (see contracts)) Advantages for you: you know your annual operational budget and will not have a bad surprise.
