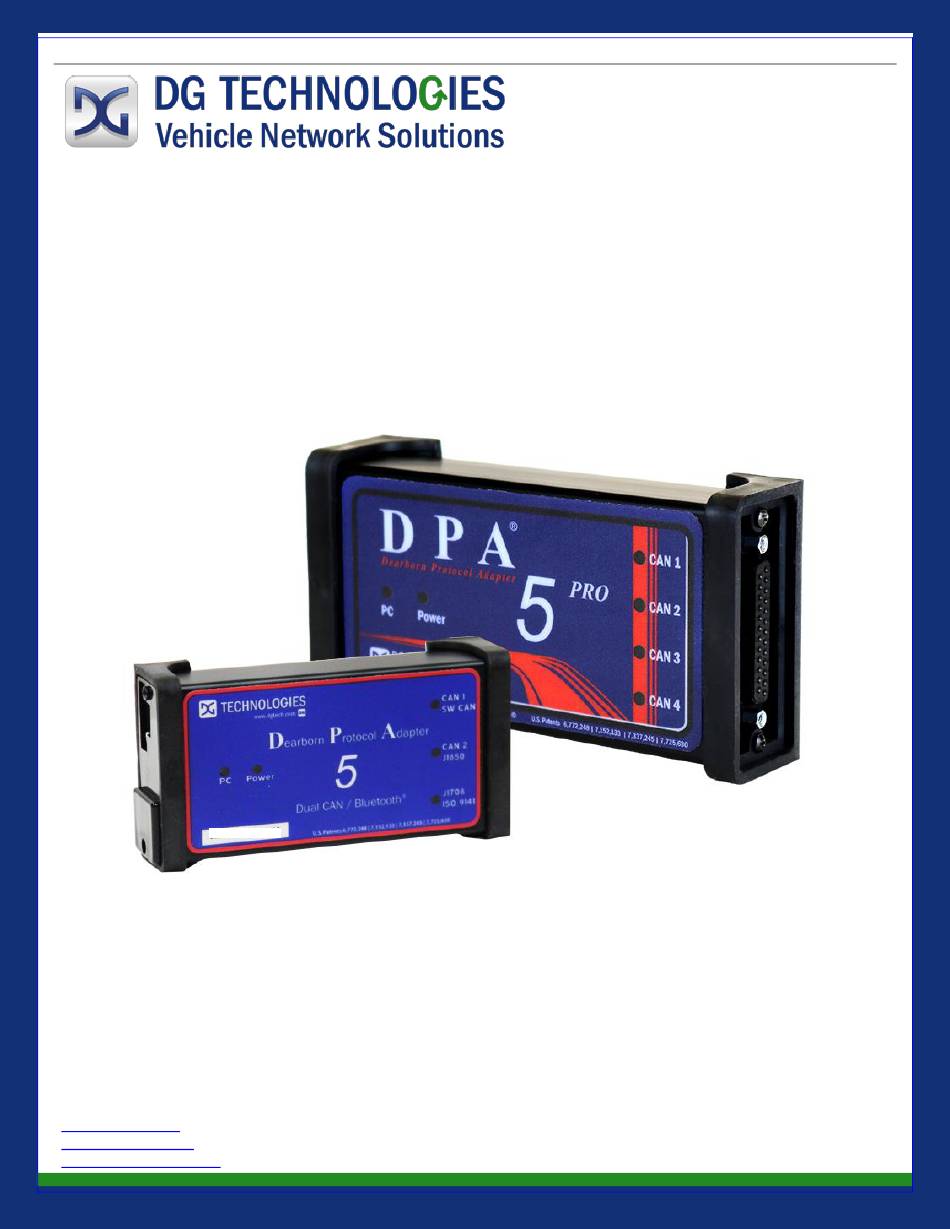

- Page 1 DPA 5 Family Installation and User Manual DG Technologies 33604 West Eight Mile Road Farmington Hills, MI 48335 Phone (248) 888-2000 Fax (248) 888-9977 www.dgtech.com sales@dgtech.com Document Revision: 1.0.2 techsupp@dgtech.com Document Date: October 9, 2019 © 2019 DG Technologies, Inc.
- Page 2 No license is granted, by implication or otherwise, for any patents or other rights of DG or of any third party. DPA® and the DG® logo are registered trademarks of DG Technologies. Other products that may be referenced in this manual are trademarks of their respective manufacturers.
-
Page 3: Table Of Contents
OMPONENT PPLICATIONS LLISON ATON APPENDIX A. TECHNICAL SUPPORT AND RETURN MERCHANDISE AUTHORIZATION (RMA) ..27 ECHNICAL UPPORT (RMA) ETURN ERCHANDISE UTHORIZATION APPENDIX B. WARRANTY INFORMATION AND LIMITATION STATEMENTS ........28 ARRANTY NFORMATION Page 3 of 31 © 2017-2019 DG Technologies... - Page 4 IMITATION TATEMENTS APPENDIX C. FCC AND CERTIFICATION INDUSTRY CANADA INFORMATION ....... 30 NDUSTRY ANADA APPENDIX D. LIST OF ACRONYMS USED IN THIS DOCUMENT ............31 Page 4 of 31 © 2017-2019 DG Technologies...
-
Page 5: Introducing The Dpa 5 Family
DPA 5 PRO case Quick Start Guide Carrying Case Please note that DG Technologies provides customizable kits, so what you receive may vary. 1.1.1 Protocol LED Indicators RED = CAN1 GREEN = SW CAN... -
Page 6: Dpa 5 Dual Can
DPA 5 PRO case Quick Start Guide Carrying Case Please note that DG Technologies provides customizable kits, so what you receive may vary. 1.2.1 Protocol LED Indicators RED = CAN1 GREEN = SW CAN RED = CAN2... -
Page 7: Communication Led Indicators
International® InTune Vansco VMMS International® Master Diagnostics ZF-Meritor TransSoft Any application claiming RP1210 compliance should work if the application and adapter both support the same protocol(s) and operating system(s). Page 7 of 31 © 2017-2019 DG Technologies... -
Page 8: Standards And Protocols Supported
CAN (Raw CAN) J1850VPW (GM Class II) ISO15765 GMLAN (HSCAN, SWCAN) ISO14230 (KWP2000) ISO9141-2 2.3 Additional Protocols Supported by Native Drivers J2411 (GM SWCAN) ALDL Page 8 of 31 © 2017-2019 DG Technologies... -
Page 9: Dpa 5 Physical And Electrical Details
Service Tool Applications). Item Requirement IBM-Compatible Processor 1GHz or Faster USB Port USB Version 1.1 or Higher Operating System Windows 7 (32-bit or 64-bit) Windows 8 (32-bit or 64-bit) Windows 10 (32-bit or 64-bit) Page 9 of 31 © 2017-2019 DG Technologies... -
Page 10: Getting Started With The Dpa 5 Products
FAQ pages at www.dgtech.com/faqs. If you receive this Windows Security screen, check the Always trust software from DG Technologies and press the Install button. Otherwise, the driver installation will fail. -
Page 11: Check If The Dpa Has Power
Not all OEM applications save the adapter configuration! Some make the user selects the adapter to be used every time the application is opened. If You See These Terms Select This Vendor DG Technologies DPA 5 Multi Application DGDPA5MA Manufacturer Adapter Manufacturer The description of the tool can vary widely depending upon what part of the vendor ini file that the application is displaying. -
Page 12: Allison Doc
To find out if your vehicle/equipment is CDL or a standard protocol (J1708/ATA, J1939), you should look at the diagnostic connector for that equipment in the service manual. Page 12 of 31 © 2017-2019 DG Technologies... -
Page 13: Cummins Insite
3.10 Cummins PowerSpec 1. Start Program 2. Click on Advanced 3. Click Settings 4. Datalink Adapter: a. DG Technologies DPA 5 Multi Application 5. Device List: a. Select Device Name 6. Datalink Protocol: a. Auto Detect (or choose protocol for your engine) 7. -
Page 14: Dana Diagnostic Tool
1. Start program 2. Under Adapter Selection, choose DG Technologies DPA 5 Multi Application: DG DPA 5 Pro (MA) USB, USB or DG Technologies DPA 5 Multi Application: DG DPA 5 Pro (SA) USB, USB (or DPA 5 Pro #[Bluetooth ID] Bluetooth) 3. -
Page 15: Volvo/Mack Premium Tech Tool (Ptt) - Version
2. Select Settings from the PTT menu 3. Go to the Communication Unit tab: 4. Highlight DG Technologies DPA 5 Single Application USB or DG Technologies DPA 5 Multi Application USB. 5. Verify radio button in default column is selected 6. -
Page 16: International Truck And Engine
1. Select NavKal icon from desktop 2. Enter username and password (if required) 3. Select Connection Select COM Link DG Technologies DPA 5 Multi Application select your tools Device Name select J1708 or J1939 depending on engine type 4. - Page 17 1. Select ServiceMaxx icon from desktop 2. Enter username and password (if required) 3. Select Tools Select COM Link DG Technologies DPA 5 Multi Application select your tools Device Name select J1939 or J1708 depending on engine type.
-
Page 18: Setting Up Your J2534 Vehicle Oem Applications
The devices will be listed in a new dialog which a drop-down selection. Select the tool you are going to use. Then select the OK button to confirm the selection. DPA 5 J2534 Config Utility – Select Device Page 18 of 31 © 2017-2019 DG Technologies... -
Page 19: General Setup For J2534 Oem Applications
In general, there will be a screen that will appear at some point that allows a user to select a J2534-compliant Vendor and Device for the reflashing event. When you see this type of screen, choose DG Technologies and/or the DPA 5. -
Page 20: Troubleshooting Guide
DG Update is an application that is installed with your DPA drivers. It will run (by default) once every 30 days and will keep you up to date with the latest versions of drivers for all your DG Technologies products. With this application running... -
Page 21: Successful Connect - Update Available
DG server showing the most current versions. Should an install be out of date the color of the row will be red. 5.4 Successful Connect – Update Available Out of date message box Page 21 of 31 © 2017-2019 DG Technologies... -
Page 22: Advanced Settings - Setting Default Time For Check For Updates
Settings button. The advanced settings dialog box will be displayed. To turn off the checking prompt, set the value to 0 (zero). Otherwise, you can set the number of days between checks. Page 22 of 31 © 2017-2019 DG Technologies... -
Page 23: Firmware Update
You can use the AVT utility after connecting the DPA to a power source. Select the MD/HD button from the AVT utility launcher. Start DGTech Utilities Adapter Validation Tool Page 23 of 31 © 2017-2019 DG Technologies... - Page 24 A USB connection to upgrade the firmware is required. When one is available you will be able to perform an update at that time. Page 24 of 31 © 2017-2019 DG Technologies...
- Page 25 After you have finished installing the Windows device drivers you can begin using your DPA. If the Automatic Firmware Update option is on, every time you connect to the DPA the drivers check to see if a newer version of Page 25 of 31 © 2017-2019 DG Technologies...
-
Page 26: Dg-Dpa5-9Obdii-Cable - For Volvo Ptt And Other Obdii Applications
Eaton, Allison, Meritor-WABCO, Bendix, etc. A user cannot connect to PTT with this adapter cable in place!!! This cable is used in conjunction with the DG-DPA5-9OBDII-CABLE. Page 26 of 31 © 2017-2019 DG Technologies... -
Page 27: Appendix A. Technical Support And Return Merchandise Authorization (Rma)
For users in the United States, technical support is available from 9 a.m. to 5 p.m. Eastern Time. You may also fax or e-mail your questions to us. For prompt assistance, please include your voice telephone number and the serial number located on the back of your DPA. DG Technologies Technical Support Phone: (248) 888-2000... -
Page 28: Appendix B. Warranty Information And Limitation Statements
Cables (both USB and vehicle) are warranted for 90 days. DG Technologies will, at its option, repair or replace, at no cost to the customer, products which prove to be defective during the warranty period, provided the defect or failure is not due to misuse, abuse, or alteration of the product. - Page 29 Michigan in all disputes arising out of or relating to the use of this device. Contact Please direct all inquiries to: DG Technologies 33604 West 8 Mile Road Farmington Hills, MI 48335 Phone (248) 888-2000 Fax (248) 888-9977 Page 29 of 31 © 2017-2019 DG Technologies...
- Page 30 Changes not expressly approved by DG Technologies, Inc. to the DPA 5 could void the user's authority to operate the DPA 5. The following is a sample rear label from the DPA 5 depicting the FCC and IC identifiers.
- Page 31 Application Programming Interface Adapter Validation Tool Controller Area Network Compact Disk CD-ROM Compact Disk - Read Only Memory DG Technologies DG Technologies Protocol Adapter Diagnostic Trouble Codes Identification International Standards Organization Light Emitting Diode On Board Diagnostics Original Equipment Manufacturer...
