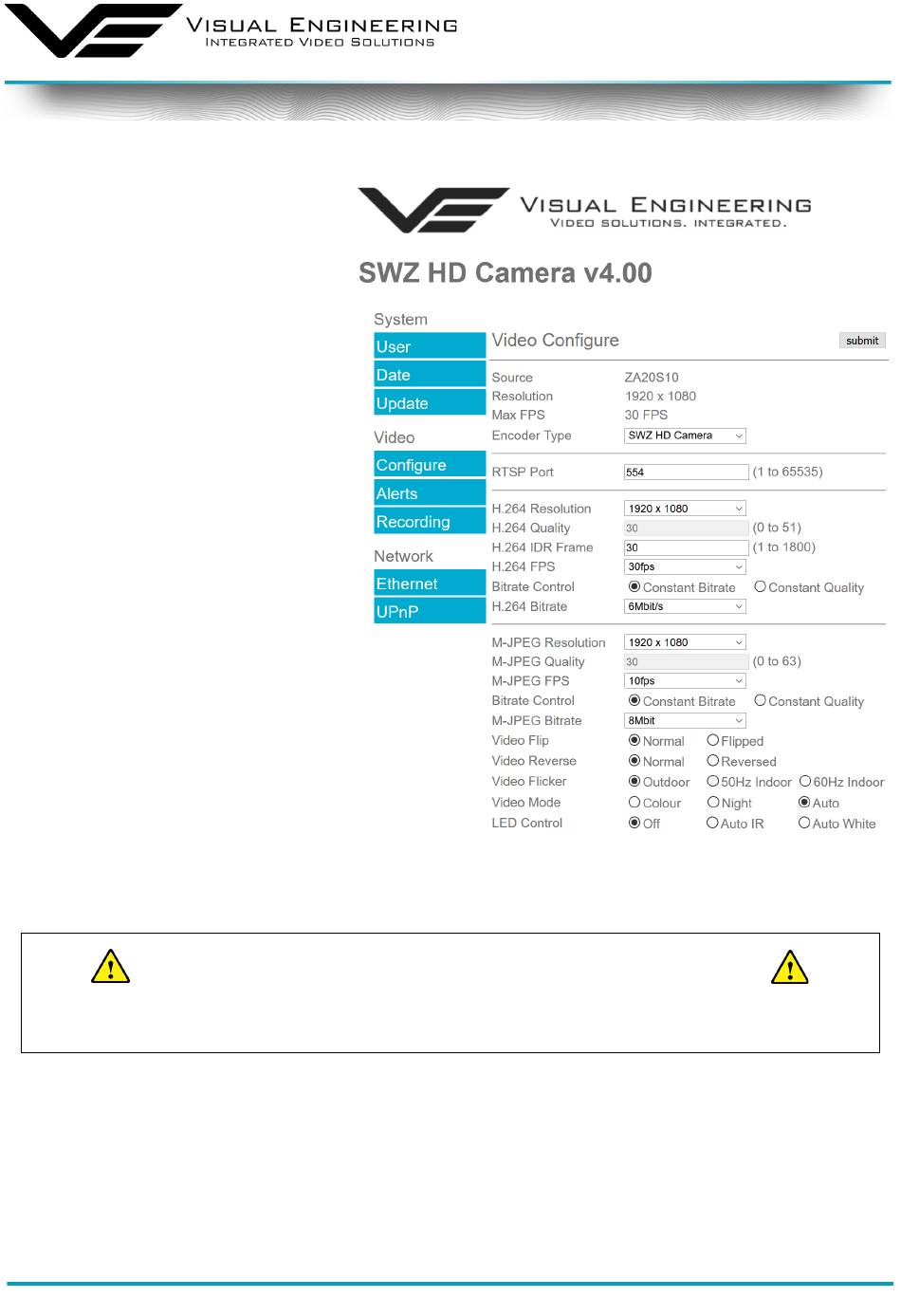

The Video Page is where the
camera's IP encoder parameters
can be configured.
The encoder supports two
encoding formats, H�264 and
MJPEG� The choice of the format
is initiated by the user when the
video stream is started�
To initiate a H�264 stream from
a camera with an IP address of
192�168�1�195 the URL is:
rtsp://192.168.1.195/h264
To initiate an MJPEG stream from
a camera with an IP address of
192�168�1�195 the URL is:
rtsp://192.168.1.195/jpeg
It is possible to change the
Encoder Type to any one of the
following options:
• HD IP Camera
• PAL Input
• NTSC Input
• Guardian Node
• SWZ HD Camera
• LVDS Input 25Hz
• LVDS Input 29�97Hz
• SDI Input 25Hz
• SDI Input 29�97Hz
For normal operation it is not necessary to adjust the Encoder Type.
For correct camera operation it is important that the Encoder Type matches the hardware
configuration. For the SWZ HD Camera this is always the SWZ HD Camera type.
The RTSP Port is the port number the IP video stream will be transmitted on, this has the default
port number 554, which can be configured to another port number as required.
