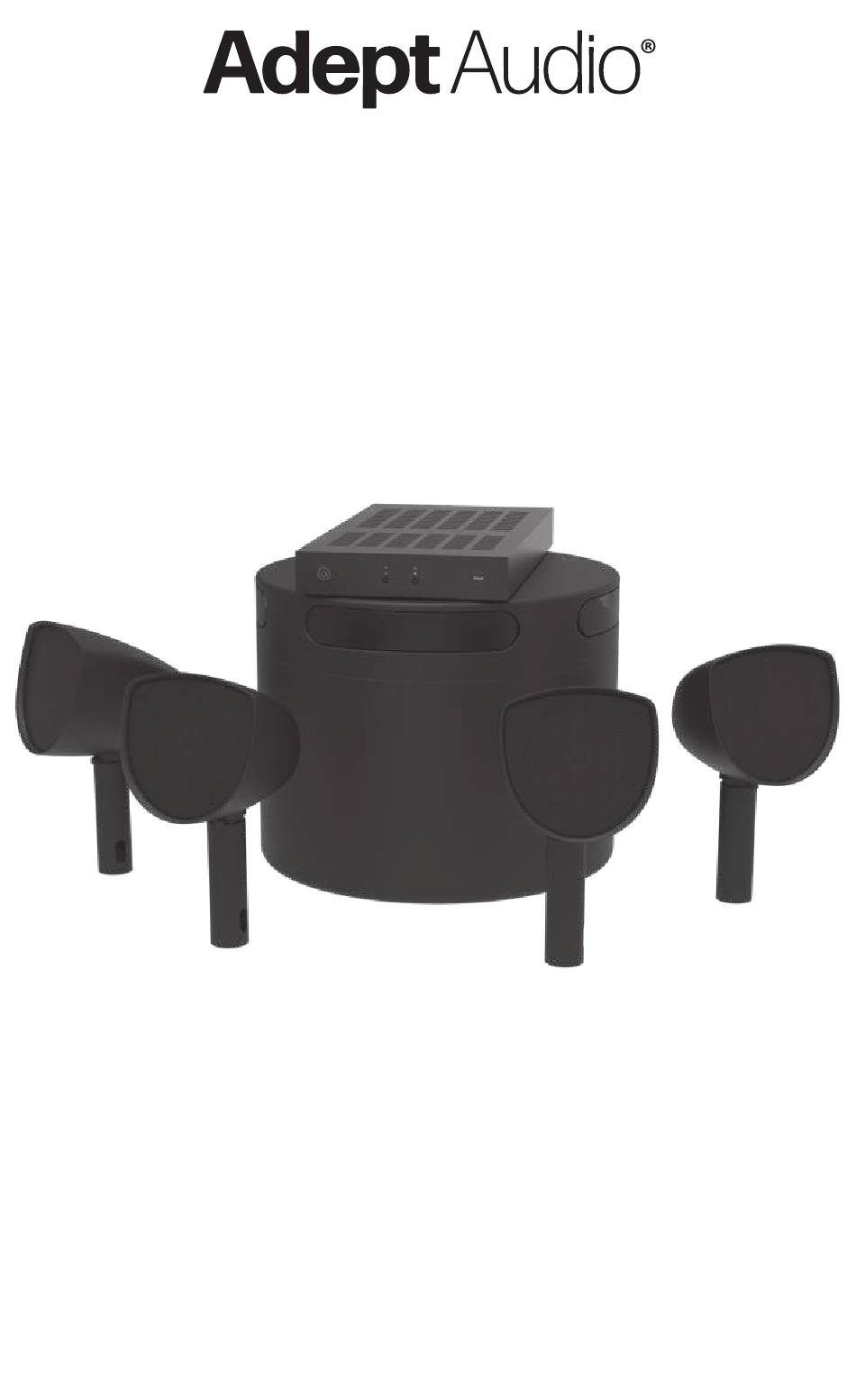

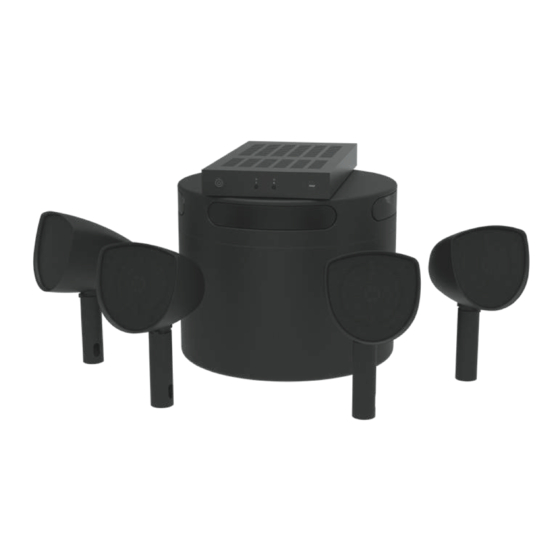

- Page 1 LSCAPESYS Landscape Speaker System • LSAT4 Satellite Speakers • AMP200 DSP Amplifier • LSUB10 Subwoofer Installation Manual...
-
Page 2: Table Of Contents
Thank you for buying Adept Audio Landscape Loudspeakers. These speakers were designed and tuned by the same engineers who invented multiple speaker satellite/subwoofer outdoor sound systems. They’re built to install easily and quickly, and to sound fantastic day in and day out for years to come. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Read these instructions • Keep these instructions • Heed all warnings • Follow all instructions • Do not use apparatus near water • Clean only with dry cloth • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions •... - Page 4 • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been dropped or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
-
Page 5: Warranty
WARRANTY Adept Audio warrants to the original retail purchaser only that this Adept Audio product will be free from defects in materials and workmanship, provided the speaker was purchased from an Adept Audio authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Adept Audio’s discretion. -
Page 6: What's Included
WHAT’S INCLUDED (4) LSAT4 Satellite Speakers (1) LSUB10 with Mounting Spikes Subwoofer (1) AMP200 (1) AC Power Cord (12) Waterproof DSP Amplifier Wire Nuts (2) Rack Ears (8) Screws... -
Page 7: Tools Needed
TOOLS NEEDED • Speaker Wire (Burial Grade) • Wire Stripper • Precision Screwdriver • Shovel • Trenching Shovel (Optional) • Rubber Mallet (Optional) SPEAKER CABLE CHOICE Be sure to use burial-grade speaker cable for any cables that will be buried underground. If the cables will be run through walls (such as running from the speaker system to an amplifier installed indoors), make sure your cables are CL3-rated for in-wall use. -
Page 8: Installing The Speakers
INSTALLING THE SPEAKERS Positioning and installing the satellite speakers The satellite speakers may be positioned so that sound is evenly dispersed around the outdoor space, or you can create as many as four individual stereo pairs to focus sound on certain parts of the outdoor space, such as a patio or play area. - Page 9 Running the speaker cables Run the left and right speaker cables from the amplifier to the subwoofer location. (See Diagram 2 on page 10) From the subwoofer location, extend the left speaker cable to the left satellite speakers and the right speaker cable to the right satellite speak- ers using a parallel connection.
- Page 10 Diagram 2 Left side Right side wiring Left Side Black Black White Green Black Black L– SPEA SUB OUT BRIDGED IN(L) EQ PRESET AUTO OPTICAL OPTICAL +12V UPDATE TRIGGER IN POWER VOLUME VOLUME...
- Page 11 Right Side Black Black Black Black Black R– 100-120V~60Hz/220-240V~50Hz 400W AKER Wire Nuts O ON FUSE T6.3AL/250 V To Speaker From Ampli er To Remaining Speakers...
-
Page 14: Connecting And Adjusting The Amplifier
CONNECTING & ADJUSTING THE AMPLIFIER POWER VOLUME VOLUME 100-120V~60Hz/220-240V~50Hz 400W SPEAKER SUB OUT BRIDGED IN(L) EQ PRESET AUTO ON OPTICAL OPTICAL +12V UPDATE TRIGGER IN FUSE T6.3AL/250 V Connections Strip ¼" of jacket off the left and right speaker cables from the speakers, and insert them into the respective location on the Phoenix connector supplied with the amp, making sure to connect left to left, right to right, positive to “+”... -
Page 15: Testing The System
EQ PRESET: Flat – EQ bypassed EQ1 – High Freq & 0dB <150Hz EQ2 – High Freq & -2dB <150Hz EQ3 – High Freq & +2dB <150Hz EQ4 – High Freq & +5dB <150Hz Sub – Subwoofer (low frequencies only) Impedance Switch The AMP200 has an impedance switch with two settings: 4/8 ohms, and 8 ohms (bridged). -
Page 16: Troubleshooting
If the spare speaker works but the Landscape speaker doesn’t, contact Adept Audio. No sound from all the right-channel or all the left-channel speakers: Check to make sure the source device is connected to the input of the AMP200. -
Page 17: Specifications
SPECIFICATIONS LSAT4 Satellite Speakers • 4¼" Injection-Molded Polypropylene Woofers • 3/4" PEI Dome Tweeters • Frequency Response: 120Hz - 20kHz • Weather & UV Resistant ABS Enclosure • Dimensions: 5.8" x 5.6" x 7. 1 " (147 x 142 x 180 mm) •... -
Page 18: Notes
NOTES... -
Page 20: Technical Assistance
If you are considering returning the product, it’s required that you contact Adept Audio prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide instructions and support for the return process.
