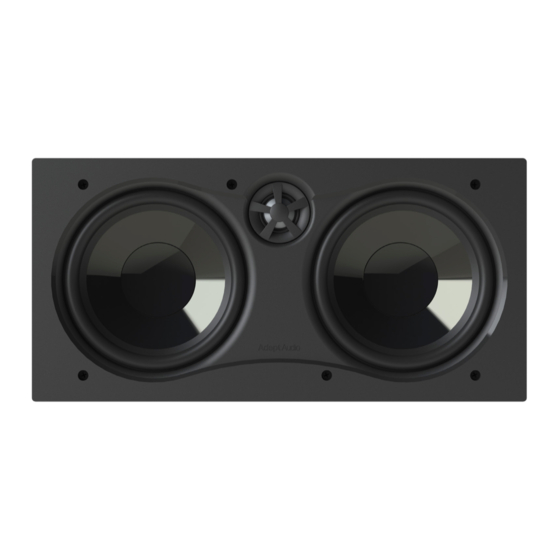

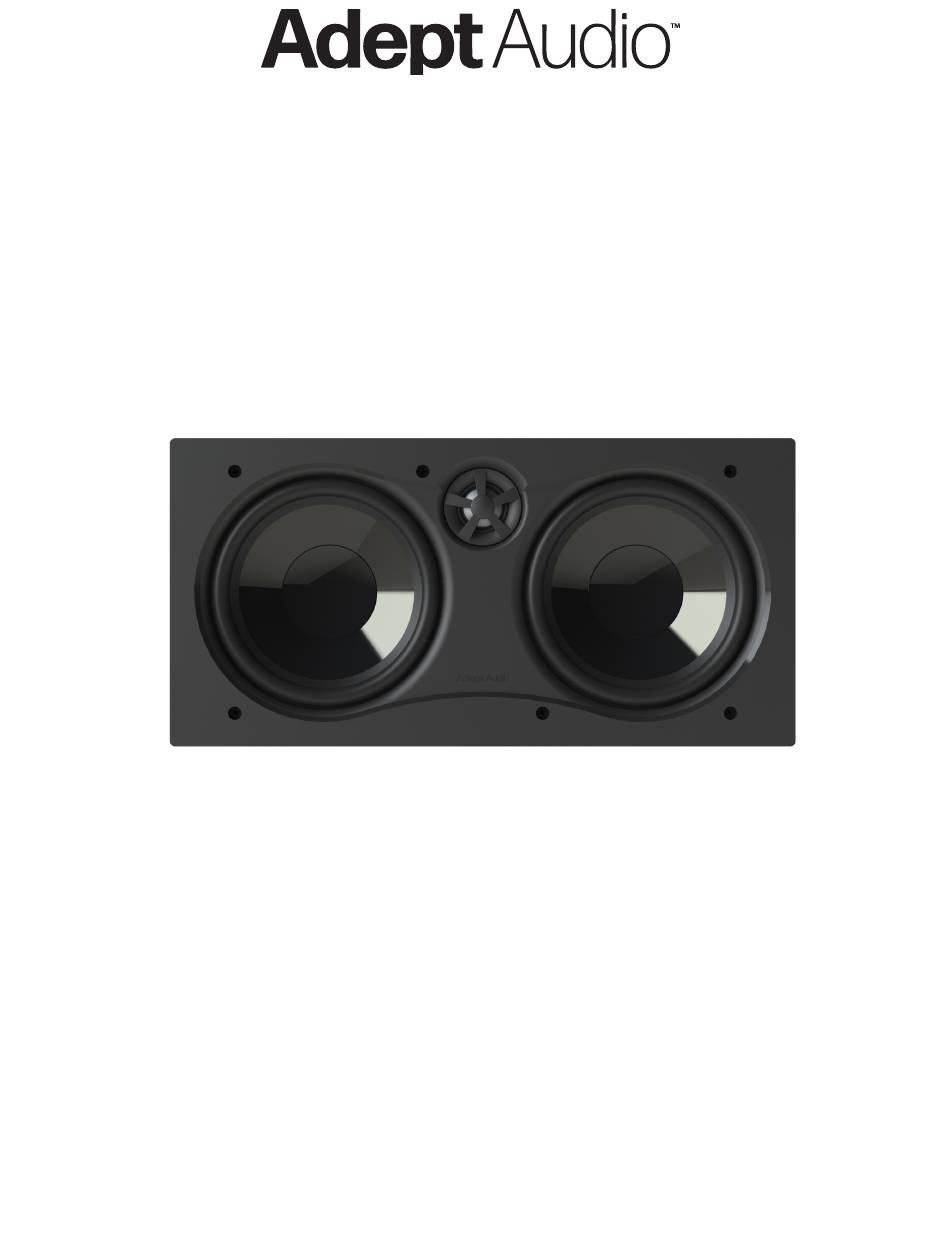

- Page 1 In-Wall Speaker Installation Manual IWLCR56 • IWLCR66 • IW62...
-
Page 2: Table Of Contents
In-Wall Speaker Installation Manual Thank you for buying Adept Audio In-Wall LCR Speakers. We believe that all of our loudspeakers sound really excellent. And that’s because they’re designed and voiced by guys who have been focusing on architectural speakers for some of the biggest brands over the last 30 years. -
Page 3: Warranty
Adept Audio authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Adept Audio’s discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 4: What's Included
In-Wall Speaker Installation Manual What’s Included Speaker • Manual • Template Tools You’ll Need • Drywall Saw • Speaker Wire • Pencil • Wire Stripper • Measuring Tape • Screwdriver • Drill • Drill Bit 1/ 8 ”(3mm) • Stiff Wire •... -
Page 5: Speaker Placement
6 inches to 1 foot below or above the screen. In a 5.1 or 7.1 surround sound system, you can use whatever speakers you like: the IWLCR56 or IWLCR66 in-wall LCRs, the IW62 standard in-wall, or any... -
Page 6: Installing The Speakers
In-Wall Speaker Installation Manual Installing the Speakers When you’ve decided on the locations for all of the speakers, use the template to trace a circle lightly in pencil where each hole should be. (If you don’t have a template, check the Specifications section for cutout sizes.) If you’re unsure on whether there may be obstacles (such as pipes or wires) where you plan on installing the speaker, drill a 1/8 inch hole in the center of the rectangle, then put a bent coat hanger through the hole to feel around. - Page 7 Aiming the Tweeter The IWLCR56 and IWLCR66 use a pivoting tweeter that can be pointed toward the listening area. To move the tweeter, press lightly on the edge. Be careful not to touch the tweeter dome. Point the tweeter toward the primary listening seat.
-
Page 8: Specifications
In-Wall Speaker Installation Manual Specifications IW62 IWLCR56 IWLCR66 6 ½” Polypropylene Woofer Dual 5” Injection-Molded Graphite Dual 6 ½” Injection-Molded Graphite 1” Pivoting Silk-Dome Tweeter (IMG) Woofers (IMG) Woofers 1” Pivoting Aluminum-Dome Tweeter 1” Pivoting Aluminum-Dome Tweeter Power Handling: 150 Watts... -
Page 9: Troubleshooting
(but other speakers connected to that amp do work), unplug the AC cable to the amp, wait 5 minutes, then plug it back in and try the speaker again. If it still doesn’t work, contact Adept Audio. - Page 10 In-Wall Speaker Installation Manual NOTES...
- Page 11 In-Wall Speaker Installation Manual NOTES...
- Page 12 © 2019 Origin Acoustics, LLC. All rights reserved.
