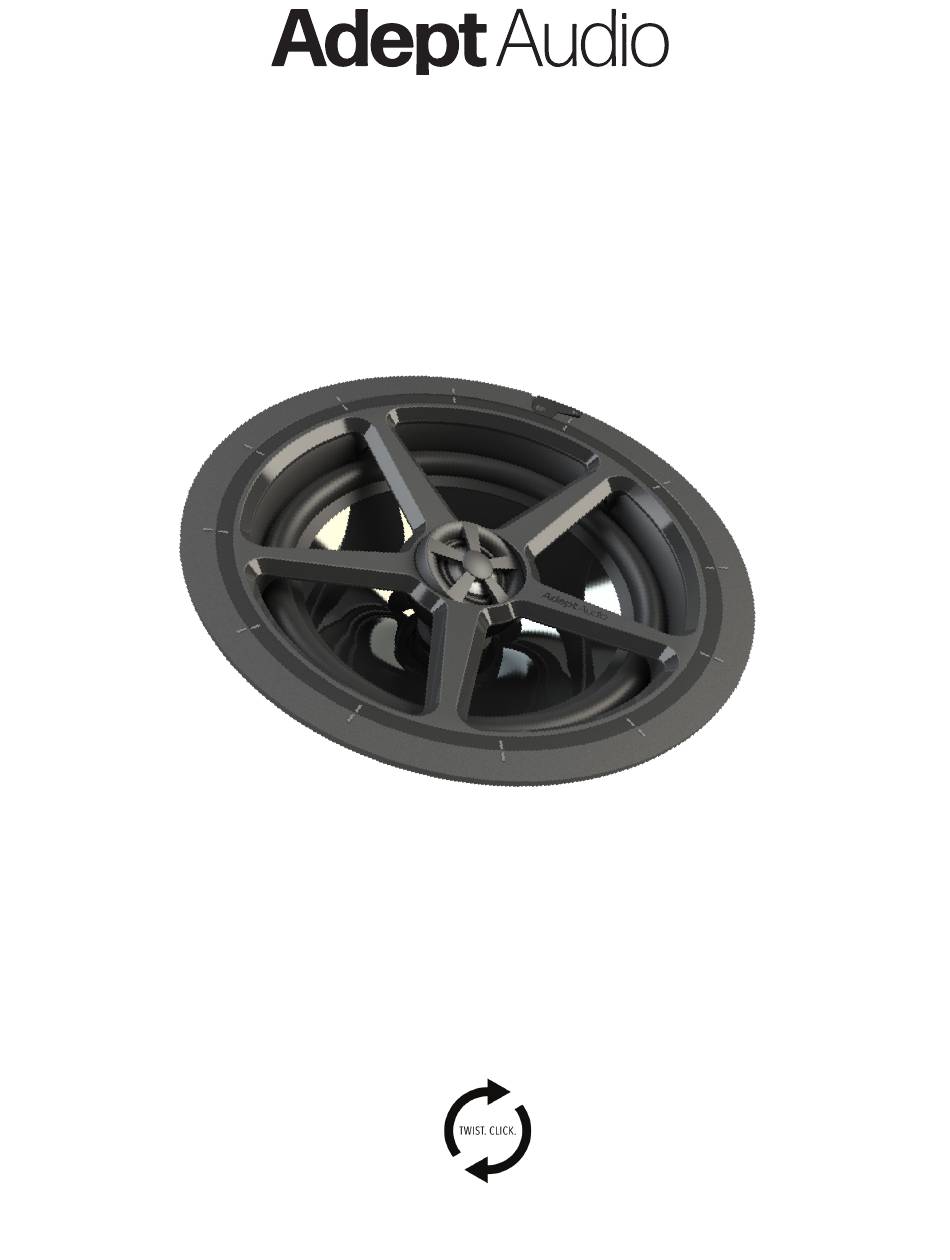

- Page 1 ® Ceiling Speaker Installation Manual IC62 • IC64 • IC66 • IC82 • IC86 • IC62TT • ICLCR62 • ICLCR66 • ICLCR86...
-
Page 2: Table Of Contents
Ceiling Speaker Installation Manual ® Thank you for buying Adept Audio Ceiling Speakers. We believe that all of our loudspeakers sound really excellent. And that’s because they’re designed and voiced by guys who have been focusing on architectural speakers for some of the biggest brands over the last 30 years. -
Page 3: Warranty
Adept Audio authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Adept Audio’s discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. -
Page 4: What's Included
Ceiling Speaker Installation Manual What’s Included Speaker • Manual • Template “In the Ring” mounting system requires no tools. Tools You’ll Need • Drywall Saw • Speaker Wire • Pencil • Wire Stripper • Measuring Tape • Screwdriver • Drill •... -
Page 5: Speaker Placement
Ceiling speakers (IC62, IC64, IC66, IC82, IC86) Standard Adept Audio ceiling speakers can go practically anywhere in almost any ceiling, provided the existing infrastructure (vents, ducts, electrical, joists, pipes, etc.) does not interfere with the speaker placement. If you’re running them in mono, simply position them at a distance that provides adequate coverage of the space, typically with the speakers 10-20 feet apart. -
Page 6: Installing The Speakers
Installing the ring Adept Audio’s “In the Ring” mounting system requires no tools. Remove the speaker from its round, ring-shaped bezel, then place the bezel into the hole cut in the ceiling. Each of the four mounts has two finger hooks. Put your first and second (index and middle) fingers into the hooks, press your thumb against the bezel ring or ceiling, then slide the red mount down until the bezel ring is pressed firmly against the ceiling. - Page 7 Ceiling Speaker Installation Manual Installing the speaker in the bezel ring Once the speaker cable connections are made, lift the speaker into the bezel ring with the tweeter and woofer pointing toward the floor, and twist it clockwise until it clicks into place. Step 1 Fit the loudspeaker into the trim-out ring.
-
Page 8: Specifications
Ceiling Speaker Installation Manual Specifications IC66 IC62 IC64 6 ½” Polypropylene Woofer 6 ½” Injected-Molded Graphite (IMG) Woofer 6 ½” Injected-Molded Polypropylene (IMPP) Woofer 1” Pivoting Silk-Dome Tweeter 1” Pivoting Aluminum-Dome Tweeter 1” Pivoting Teteron-Dome Tweeter Power Handling: 85 Watts... - Page 9 Ceiling Speaker Installation Manual Specifications IC62TT ICLCR62 6 ½” Polypropylene Woofer 6 ½” Polypropylene Woofer Dual 1” Silk-Dome Tweeters 1” Pivoting Silk-Dome Tweeter Power Handling: 80 Watts Power Handling: 100 Watts Frequency Range: 50Hz-20kHz Frequency Range: 50Hz-20kHz Sensitivity: 93dB SPL, 1 W, 1 m (3.3 ft) Sensitivity: 91dB SPL, 1 W, 1 m (3.3 ft) Impedance: 6 ohms Impedance: 6 ohms...
-
Page 10: Troubleshooting
(but other speakers connected to that amp do work), unplug the AC cable to the amp, wait 5 minutes, then plug it back in and try the speaker again. If it still doesn’t work, contact Adept Audio. - Page 11 NOTES...
- Page 12 ® © 2019 Origin Acoustics, LLC. All rights reserved.
