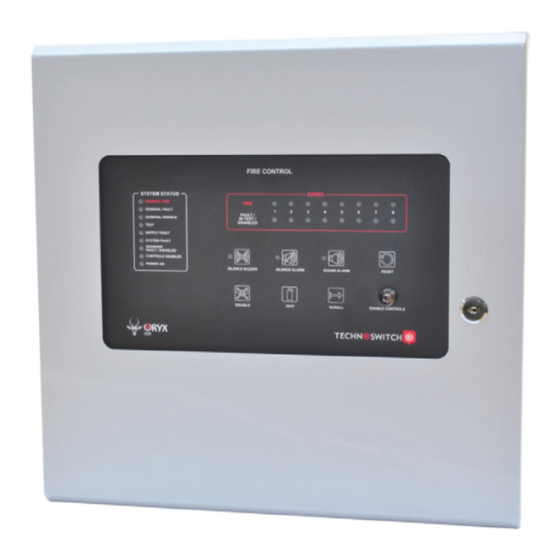

technoswitch ORYX200 Series Installation & Operation Manual
  1. Manuals
  2. Brands
  3. technoswitch Manuals
  4. Control Panel
  5. ORYX200 Series
  6. Installation & operation manual

technoswitch ORYX200 Series Installation & Operation Manual

Standard & weatherproof technoswitch conventional ire control panels
Hide thumbs Also See for ORYX200 Series:
Table of Contents

Advertisement

Quick Links

ORYX200 RANGE
Standard & Weatherproof
Technoswitch Conventional
Fire Control Panels
Rev 03.04
PRMAN-0037 ORYX200 Fire Panel Range Rev 03.04 200220.docx
E&OE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORYX200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for technoswitch ORYX200 Series

Summary of Contents for technoswitch ORYX200 Series

  • Page 1 ORYX200 RANGE Standard & Weatherproof Technoswitch Conventional Fire Control Panels Rev 03.04 PRMAN-0037 ORYX200 Fire Panel Range Rev 03.04 200220.docx E&OE...

  • Page 2: Table Of Contents

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL INDEX SPECIFICATIONS ___________________________________________________________________________ 1 INTRODUCTION _______________________________________________________________________ 3 1.1. STANDARDS _____________________________________________________________________________ 3 1.2. CAUTIONS AND WARNINGS ________________________________________________________________ 3 1.3. DESCRIPTION ____________________________________________________________________________ 4 1.4. EN 54 FUNCTIONS ________________________________________________________________________ 4 1.5. INSTALLATION APPROVALS ________________________________________________________________ 5 1.5.1.
  • Page 3 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL General Faults _______________________________________________________________ 33 Power Supply Faults __________________________________________________________ 33 Short Circuit _________________________________________________________________ 34 Low Resistance Fault __________________________________________________________ 35 Incorrect EOL Resistor _________________________________________________________ 36 High Resistance Fault _________________________________________________________ 37 False Fire Alarms and Activations ________________________________________________ 38 Normal Operating Range _______________________________________________________ 39 WARRANTY__________________________________________________________________________ 39 DISCLAIMER _________________________________________________________________________ 39...

  • Page 4: Specifications

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL SPECIFICATIONS Item Specification Detail Part Numbers ORYX202; ORYX204; ORYX208; ORYX202-W; ORYX204-W; ORYX208-W; ORYX202-WDIN; ORYX204-WDIN; ORYX208-WDIN Enclosure Mild Steel IP30, Matt Light Grey (ANP 37035) Dimensions H x W x D (mm) ORYX202 &...
  • Page 5 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL Item Specification Detail Zone Fire Relays ORYX202 2 rated 30 V AC/DC, 1 A maximum ORYX204 4 rated 30 V AC/DC, 1 A maximum ORYX208 8 rated 30 V AC/DC, 1 A maximum Inputs 2 fully monitored as per below 3k3 Ω...

  • Page 6: Introduction

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL INTRODUCTION 1.1. STANDARDS This range of Conventional Fire Alarm Control Panels have been designed to comply with the following standards:  EN 54-2: 1997 +A1:2006 Control and Indicating Equipment ...

  • Page 7: Description

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL This Fire Alarm Control Panel is compliant with the requirements of EN 54 parts 2 and 4 (1998). Where appropriate, reference is made in this manual to the relevant sections of the EN 54 standard for clarification and to ensure that the installation is compliant with the requirements of EN 54.

  • Page 8: Installation Approvals

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL In addition to the mandatory requirements of EN 54 Part 2, the Control and Indicating Equipment (CIE) supports the following optional features with requirements: Outputs to Fire Alarm Devices The CIE has provision for connection to Fire Alarm Devices.

  • Page 9: Installing The Enclosure

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.7. INSTALLING THE ENCLOSURE The panel is heavy when the batteries are installed. Use the appropriate fixing hardware to secure the panel to the wall. Observe recommended lifting practices to guard against spinal injury. See table below for maximum weights: Maximum Overall Maximum...
  • Page 10 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL Firstly, remove the required knockouts for the installation wiring. There are sufficient knockouts on the top of the Standard Enclosure for all installation wiring. In addition, there are knockouts at the top of the back wall, if required, for rear entry cabling.
  • Page 11 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL FIGURE 4 ORYX208 Standard Panel FIGURE 5 ORYX202 & ORYX204 Weatherproof Panel PRMAN-0037 ORYX200 Fire Panel Range Rev 03.04 200220.docx E&OE - 8 -...

  • Page 12: Wiring Installation

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL FIGURE 6 ORYX208 Weatherproof Panel 1.8. WIRING INSTALLATION All electrical wiring installation work should be carried out in accordance with the code of practice or applicable national standards appropriate to the country of installation. To maintain electrical integrity all zone, input, output and communication line wiring should be segregated from the AC Mains wiring and be wired using cable with insulation suitable for the application.
  • Page 13 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL FIGURE 7 Internal Arrangement Showing Recommended Cable Routing for the ORYX202 & ORYX204 Panels FIGURE 8 Internal Arrangement Showing Recommended Cable Routing for the ORYX208 Panel PRMAN-0037 ORYX200 Fire Panel Range Rev 03.04 200220.docx E&OE - 10 -...
  • Page 14 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.8.1.1. WEATHERPROOF PANEL WITH DIN RAIL TERMINATION OPTION For the Weatherproof Enclosure with DIN Rail mounted modules it is recommended that the routing arrangement shown in FIGURE 9 and FIGURE 10 be followed. External wiring indicated in section 1.8.3 Battery Positioning &...
  • Page 15 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL FIGURE 11 4 Zone Terminal Connection Layout of Weatherproof Panel with DIN Rail FIGURE 12 8 Zone Terminal Connection Layout of Weatherproof Panel with DIN Rail 1.8.1.2. WEATHERPROOF PANEL WITHOUT DIN RAIL OPTION For the Weatherproof Enclosure without DIN Rail mounted modules, it is recommended that the routing arrangement shown in FIGURE 13 be followed.

  • Page 16: Ac Mains Wiring

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL FIGURE 14 Internal Arrangement Showing Recommended Routing of Cables without the DIN Rail Mounted Modules in the ORYX208 Weatherproof Panel 1.8.2. AC MAINS WIRING Route the high voltage Mains AC wiring into the enclosure at the upper right corner only.

  • Page 17: Battery Positioning & Wiring

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.8.3. BATTERY POSITIONING & WIRING FIGURE 16 Standard Panel Battery Positioning for the ORYX202 & ORYX204 Panel FIGURE 17 Weatherproof Panel Battery Positioning for the ORYX202 & ORYX204 Panel PRMAN-0037 ORYX200 Fire Panel Range Rev 03.04 200220.docx E&OE - 14 -...
  • Page 18 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL The panel requires 2x (two) 12 V DC batteries connected in series for standby operation. The battery harness is already pre-fitted. Use the Red & Black leads of the provided harness to connect the batteries to the BATT +VCC and BATTGND terminals on the PSU.

  • Page 19: Psu Configuration

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.8.4. PSU CONFIGURATION The internal power supply is a high efficiency switch-mode power supply with an input AC voltage range of 100 – 240 V AC. The power supply provides the following: ▪...
  • Page 20 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.8.4.1. PSU LED INDICATIONS The power supply continuously monitors the AC supply, battery connection, battery charging voltage and output supply voltage and will bring up the appropriate Fault conditions should these be outside of specifications. These faults will be indicated by the respective LEDs on the Power Supply PCB –...

  • Page 21: Fault Relays / Outputs

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL When current draw is reduced to below 1.8 A, the 27.5 V DC output will restore automatically after 30 seconds into BOOST MODE condition. The general fault relay will remain on. When current draw is reduced to below 1.2 A, the relay and charger will restore automatically within 30 seconds.

  • Page 22: Hard Reset Function

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.8.6. HARD RESET FUNCTION FIGURE 22 Hard Reset ▪ Hard Reset All LEDs on the PSU will switch on for ± 1 second then off, showing the action has successfully been completed.

  • Page 23: Aux Dc Supply Output

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.9.2. AUX DC SUPPLY OUTPUT There is a 27.5 V DC auxiliary output, limited to 500 mA. The Auxiliary output is separately isolated from the base card fuse. Should the Auxiliary output draw more than 500 mA, the output will shut down and the AUX 24 V DC Fault LED will be solid on.

  • Page 24: Manual Call Points

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.9.4. MANUAL CALL POINTS Manual Call Points may be wired together with conventional detectors in a fire zone. The control panel requires an alarm resistance of between 400 – 800 Ω to be switched across the detection circuit to trip the fire zone into alarm condition.

  • Page 25: Input Circuits

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL This voltage may be high enough to cause some electronic sounders to produce a low sound. This can be muted by simply connecting a 5V6 Zener diode at each sounder – check the polarity (see diagram). Some of these Zener diodes are supplied with the panel.

  • Page 26: Repeater Connection

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 1.9.7. REPEATER CONNECTION A maximum of 7 (seven) ORYX Repeaters can be connected to an ORYX Fire Panel via the RS485 Communication Bus. The total cable run on the Communication Bus must not exceed 1200 metres. The DIL Switch on the ORYX FACP is used to set the repeater count on the Communication Bus.

  • Page 27: Battery Standby Calculation

    The above calculation is in accordance with the recommendations in SANS10139. An electronic (Excel) version of the battery calculator is available for download from our website www.technoswitch.co.za (direct link Battery Calculator).

  • Page 28: Operation

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL OPERATION 2.1. INTRODUCTION 2.1.1. ACCESS LEVELS The panel operation is protected from inadvertent and erroneous misuse by means of three access levels. These levels are as follows: ▪ Level 1: Untrained User – An Untrained User will only be able to silence the buzzer. ▪...
  • Page 29 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 2.1.2.1. PANEL CONTROLS The Fire Alarm Control Panel offers the following manual controls: Symbol Function Description Used to reset the fire panel from Test, Fire and Fault conditions. Reset Also used as a quick exit during Test or Disable mode.
  • Page 30 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 2.1.2.2. PANEL INDICATIONS The following LED indicators are provided: Zone Indications Status Description Flashing Red The panel has detected a fire alarm condition on a fire zone. Fire (1 per zone) Steady Red The fire alarm has been silenced.

  • Page 31: Enable Controls

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 2.1.2.3. INTERNAL FAULT INDICATIONS Internal Fault Status Description Indications No AC supply to the fire alarm control panel. Steady Yellow AC Fault Can be confirmed on PSU Fault indication. Steady Yellow The auxiliary 24 V DC output has a fault.

  • Page 32: Enabling / Disabling Of Zones

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 2.1.5. ENABLING / DISABLING OF ZONES ▪ The following procedure is used to disable a zone: The General Disable LED and Zone 1 Fault /In Test / Disable LED will both flash Yellow.

  • Page 33: One-Man Walk Test Mode

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 2.1.8. ONE-MAN WALK TEST MODE ▪ The following procedure is used to put a zone into Test Mode: The Test LED and Zone 1 Fault /In Test / Disable LED will both flash Yellow.

  • Page 34: Service And Maintenance

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL SERVICE AND MAINTENANCE 3.1. MAINTENANCE SCHEDULE This equipment should be maintained in accordance with the regulations and codes appropriate to the country and location of installation. The following is recommended if no other regulations apply. 3.1.1.

  • Page 35: Replacement Of Components

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL 3.2. REPLACEMENT OF COMPONENTS In general, all the component parts used in the construction of the panel have been selected for long life and reliability. However, certain components may require to be changed on a regular service basis. The details of these are as follows: 3.2.1.

  • Page 36: Appendices

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL APPENDICES 4.1. APPENDIX 1 – TROUBLESHOOTING The following table provides a guideline to fault-finding on the ORYX panel and devices connected to the product. The values below should not be used to design a system or as alternative values to the specifications of this product. Due to varying resistive tolerances on electronic components, the ranges indicated in the table below will vary between each panel.

  • Page 37: Short Circuit

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL Short Circuit Event Measurement Code Possible Cause Action Required Description Resistance Voltage The input or output is measuring Zone 1 Short Check cabling and routes for < 50 Ω 0 V DC the indicated resistance range, Circuit...

  • Page 38: Low Resistance Fault

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL Low Resistance Fault Event Measurement Code Possible Cause Action Required Description Resistance Voltage The input or output is measuring 51 Ω – 6.6 V DC – Zone 1 Low Check Cabling and routes for the indicated voltage or 140 Ω...

  • Page 39: Incorrect Eol Resistor

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL Incorrect EOL Resistor Event Measurement Code Possible Cause Action Required Description Resistance Voltage The input or output is measuring 960 Ω – 22.9 V DC – Zone 1 Double the indicated voltage or Ensure correct value EOL is in 1k8 Ω...

  • Page 40: High Resistance Fault

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL High Resistance Fault Event Measurement Code Possible Cause Action Required Description Resistance Voltage The input or output is measuring Zone 1 Open Check cabling and routes for > 4k7 Ω >...

  • Page 41: False Fire Alarms And Activations

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL False Fire Alarms and Activations Event Measurement Code Possible Cause Action Required Description Resistance Voltage The input or output is measuring 150 Ω – 12.6 V DC – Ensure all areas are free of false Z1 Fire the indicated voltage or 950 Ω...

  • Page 42: Normal Operating Range

    Alternatively, please contact your local Sales Office for further information. DISCLAIMER Although the contents of our product literature have been prepared with the greatest care, Technoswitch can accept no liability whatsoever for any direct or indirect damages of any kind that may arise due to either errors or omissions in them, or amendments to products or other specifications following publication.

  • Page 43: Revision Information

    ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL REVISION INFORMATION Revision Date Issued Reason for Change Reference Rev 01.00 20160909 New Document Rev 02.00 20161207 ORYX208, Weatherproof wiring and new Enclosure images added ENGCH-0056 Rev 03.00 20170404 New PCB-PSU2A-EN functionality added ENGCH-0064 Rev 03.01...
  • Page 44 ORYX202 ORYX204 ORYX208 Conventional Fire Panel – INSTALLATION & OPERATION MANUAL HEAD OFFICE — JOHANNESBURG +27 (0)11 794 9144 info@technoswitch.co.za Cussonia Park, 3 Ridge Road, Laser Park, Johannesburg PO Box 1752, Randpark Ridge, South Africa, 2156 CAPE TOWN +27 (0)21 948 4575 Tyger Terraces II, Block 2B, DJ Wood Street, Bellville Business Park Cnr Mike Pienaar Blvd &...
