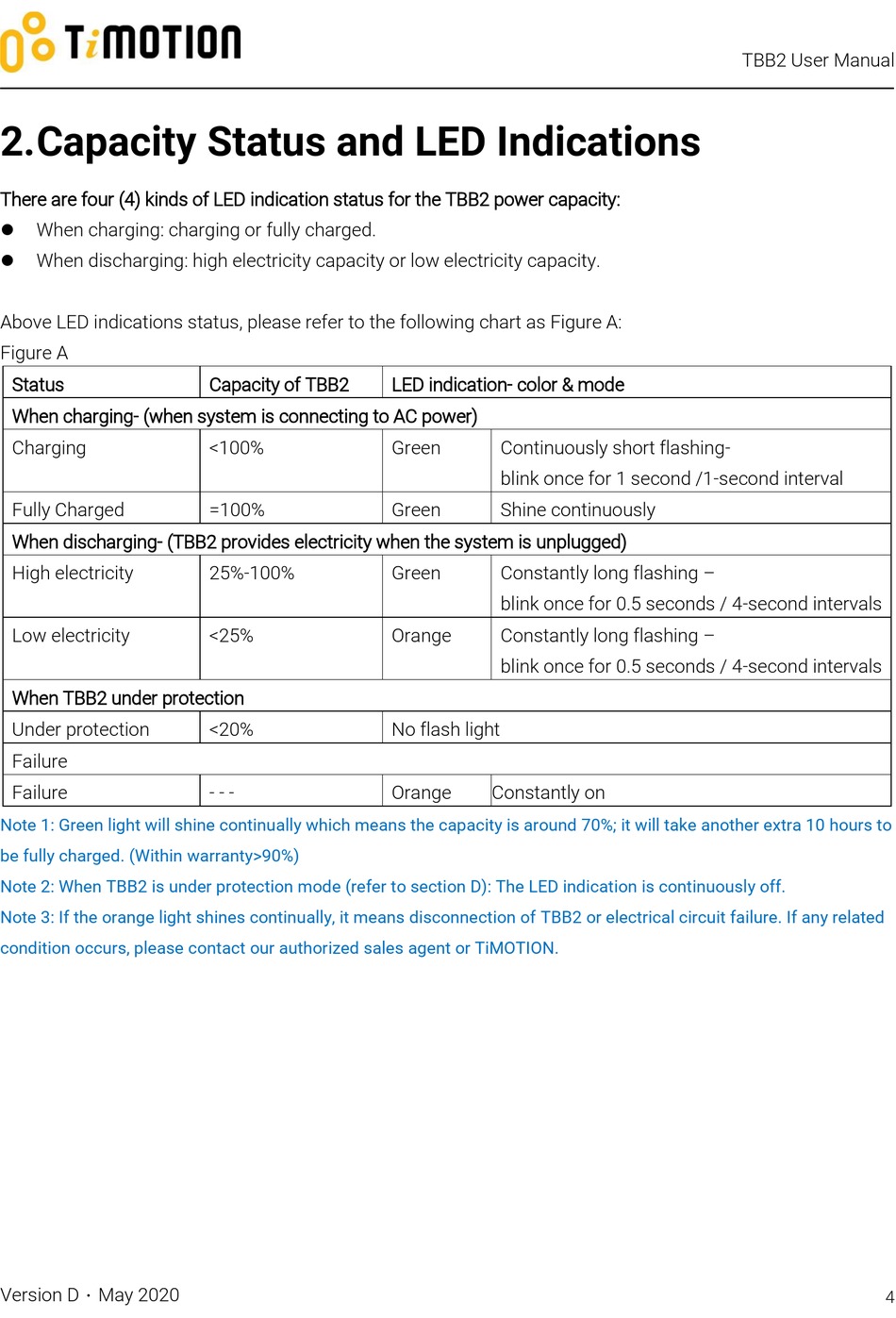

2. Capacity Status and LED Indications

There are four (4) kinds of LED indication status for the TBB2 power capacity:
When charging: charging or fully charged.

 When discharging: high electricity capacity or low electricity capacity.
Above LED indications status, please refer to the following chart as Figure A:
Figure A
Status
When charging- (when system is connecting to AC power)
Charging
Fully Charged
When discharging- (TBB2 provides electricity when the system is unplugged)
High electricity
Low electricity
When TBB2 under protection
Under protection
Failure
Failure
Note 1: Green light will shine continually which means the capacity is around 70%; it will take another extra 10 hours to
be fully charged. (Within warranty>90%)
Note 2: When TBB2 is under protection mode (refer to section D): The LED indication is continuously off.
Note 3: If the orange light shines continually, it means disconnection of TBB2 or electrical circuit failure. If any related
condition occurs, please contact our authorized sales agent or TiMOTION.
Version D．May 2020
Capacity of TBB2
<100%
=100%
25%-100%
<25%
<20%
- - -
LED indication- color & mode
Green Continuously short flashing-
blink once for 1 second /1-second interval
Green Shine continuously
Green Constantly long flashing –
blink once for 0.5 seconds / 4-second intervals
Orange Constantly long flashing –
blink once for 0.5 seconds / 4-second intervals
No flash light
Orange Constantly on
