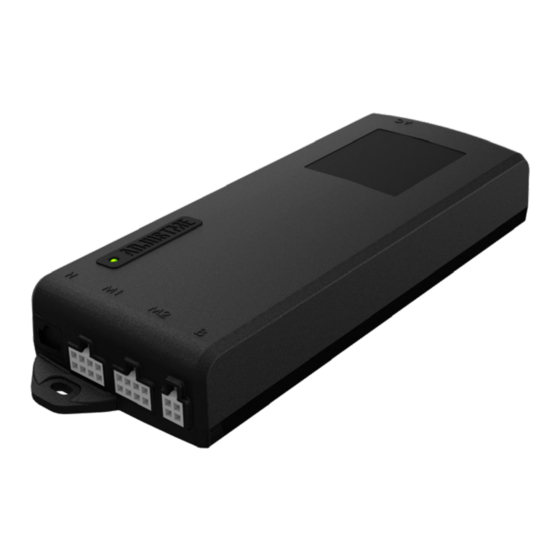

Timotion ADJUSTME TC15P Datasheet

Data sheet for TC15P/TC15S
Control box
Dimension (L x W x H)
MCU
Switching Power Supply
Power consumption in standby < 0.1 W
Wake up time
Works with TEKxx
Max load, complete frame
Rated input
Rated output
Power consumption in use
Duty cycle
Connection of actuators
Lifetime
Soft start/stop function
Sensi Touch, Built-in**
Pre-set of min/max height
Error tracing
Exchangeable AC cable
Safety functions
Wireless charger
USB Charger
Bluetooth App, Built-in
Bluetooth App, Dongle
Sensi Touch, Dongle**
Battery
Programmer
* No standby facility - no wake up time
** Note: ➊ Sensi touch is blocked for the first 30 mm (in both directions) to prevent unintended activation caused by eventually unsynchronization in the start-up phase.
➋ For sensi touch to work properly the control box MUST be fixed to the frame
info@adjustme.eu | www.adjustme.eu | © 8/2020 by ADJUSTME | All rights reserved | A part of
TC15 P
240 x 94 x 39,6 mm
STC15F2K48AS
SPM-120Q SPM-120Q
< 0.1 W (bluetooth) < 0.1 W
0.1 second < 0.4 second
01-03-04/TL25
120 KG/80 KG
AC 100 - 240V 50/60Hz
32 V
Full load: 280 W / Average: 160 W
10%, Max 1 min. run / 9 min. stop
2 columns
10.000 cycles
15 mm
Drive back: 50 mm
✔
✔
✔
Overload/overcurrent protection
Overheat protection
Unbalance protection
Optional
Optional
Optional
Optional
Optional
Optional
Optional
TC15 S
240 x 94 x 39,6 mm
STC15F2K48AS
SPM-73Q SPM-73
< 0.5 W *
0.1 second (0.1 second)
01-03-04/TL25 N/A
100 KG/60 KG N/A
AC 100 - 240V 50/60Hz
32 V
Full load: 180 W / Average: 120 W
10%, Max 1 min. run / 9 min. stop
2 columns
10.000 cycles
15 mm
Drive back: 50 mm
✔
✔
✔
Overload/overcurrent protection
Overheat protection
Unbalance protection
Optional
Optional
Optional
Optional
Optional
N/A
Optional
Group 1
