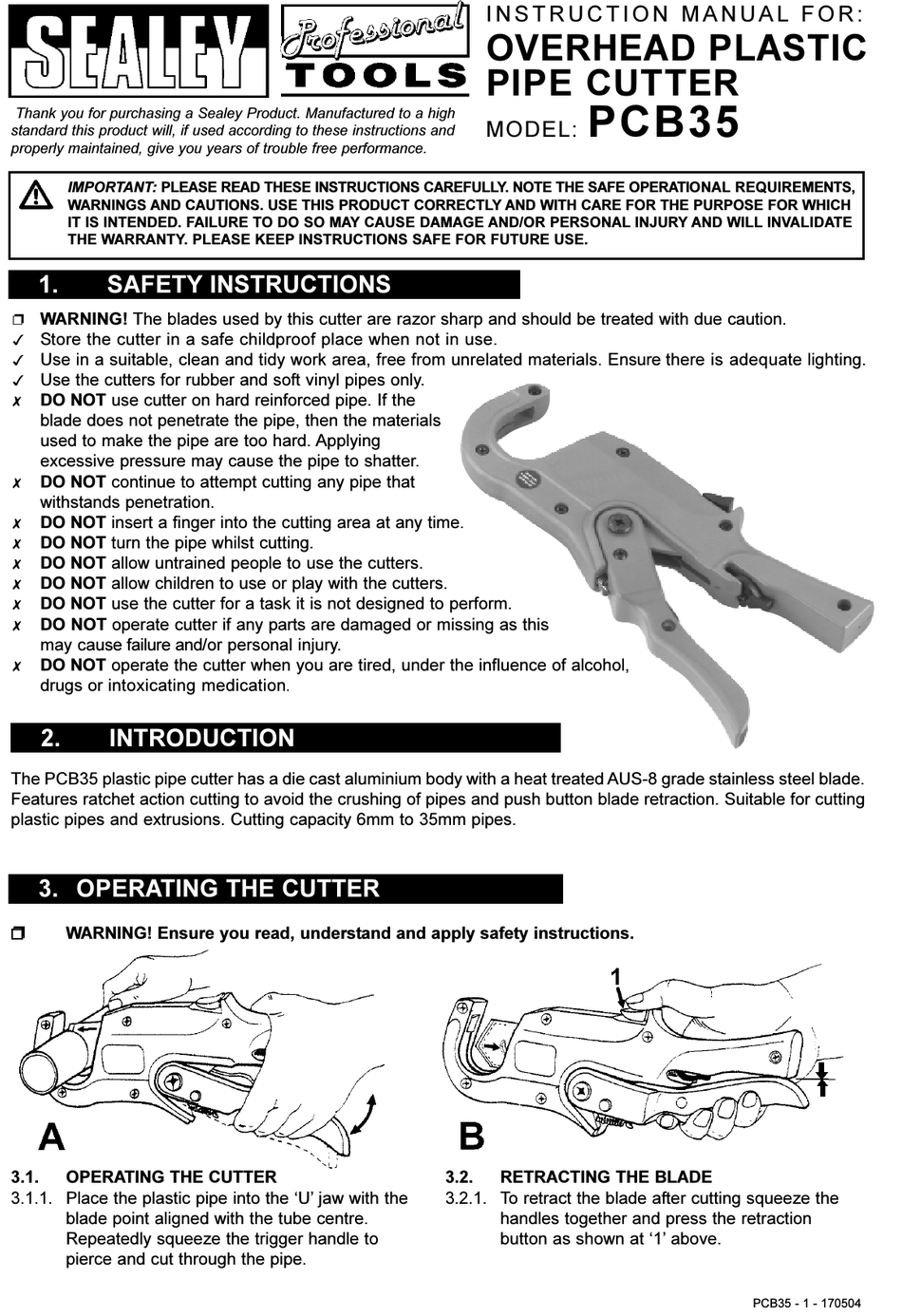

Sealey PCB35 Instruction Manual

Thank you for purchasing a Sealey Product. Manufactured to a high
standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! The blades used by this cutter are razor sharp and should be treated with due caution.
p
Store the cutter in a safe childproof place when not in use.
3
Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
3
Use the cutters for rubber and soft vinyl pipes only.
3
DO NOT use cutter on hard reinforced pipe. If the
7
blade does not penetrate the pipe, then the materials
used to make the pipe are too hard. Applying
excessive pressure may cause the pipe to shatter.
DO NOT continue to attempt cutting any pipe that
7
withstands penetration.
DO NOT insert a finger into the cutting area at any time.
7
DO NOT turn the pipe whilst cutting.
7
DO NOT allow untrained people to use the cutters.
7
DO NOT allow children to use or play with the cutters.
7
DO NOT use the cutter for a task it is not designed to perform.
7
DO NOT operate cutter if any parts are damaged or missing as this
7
may cause failure and/or personal injury.
DO NOT operate the cutter when you are tired, under the influence of alcohol,
7
drugs or intoxicating medication
2. INTRODUCTION

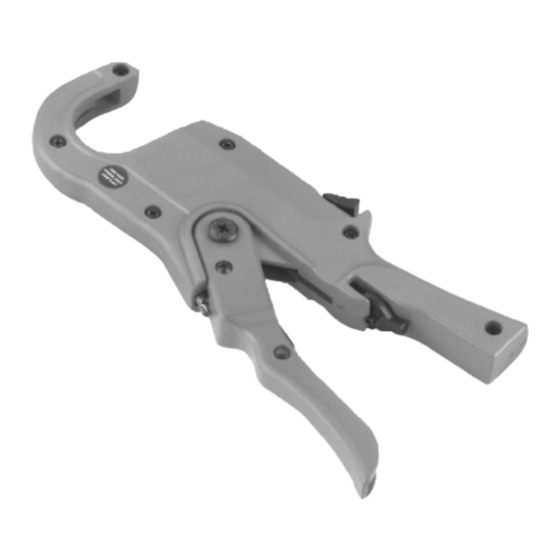

The PCB35 plastic pipe cutter has a die cast aluminium body with a heat treated AUS-8 grade stainless steel blade.
Features ratchet action cutting to avoid the crushing of pipes and push button blade retraction. Suitable for cutting
plastic pipes and extrusions. Cutting capacity 6mm to 35mm pipes.
3. OPERATING THE CUTTER
WARNING! Ensure you read, understand and apply safety instructions.
p
p
3.1. OPERATING THE CUTTER
3.1.1. Place the plastic pipe into the ‘U’ jaw with the
blade point aligned with the tube centre.
Repeatedly squeeze the trigger handle to
pierce and cut through the pipe.
.
3.2.
3.2.1. To retract the blade after cutting squeeze the
I N S T R U C T I O N M A N U A L F O R :
OVERHEAD PLASTIC
PIPE CUTTER
PCB35
MODEL:
RETRACTING THE BLADE
handles together and press the retraction
button as shown at ‘1’ above.
PCB35 - 1 - 170504
