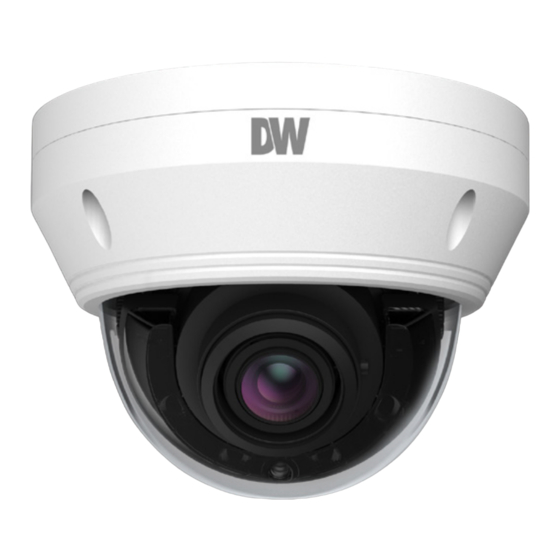

Digital Watchdog MEGAPIX DWC-MV95WiATW Quick Start Manual

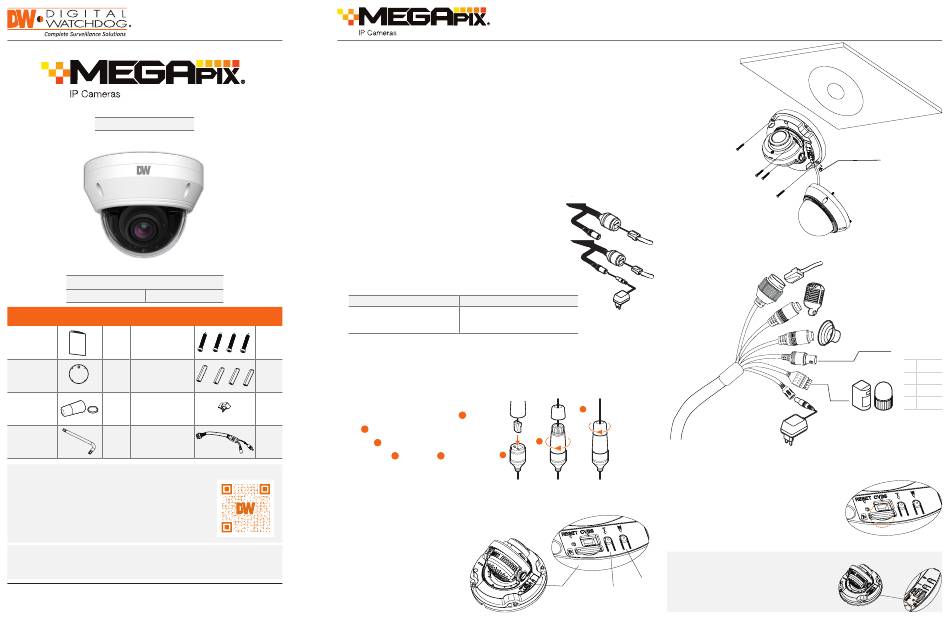

Quick Start Guide
DWC-MV95WiATW
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick setup
and Tapping Screws
1 set
Installation PA 4x25 – 4pcs
Guides
Mounting Plastic Plugs
1
Template – 4pcs
Waterproof
1 set Rubber Plug
Cap
Hexagonal 2 nd CVBS Local
Wrench 0.11" 1 Testing Output
(3mm) and DC12V Input
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line
cover to be damaged. This may cause a breakdown or fire.
3. For the installation process, remove the dome cover from the
camera base using the included wrench.
4. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – POWERING THE CAMERA
Pass the wires through and make all the necessary connections. See
STEP 4 for more information.
1. NETWORK CONNECTIONS – Using a PoE Switch or
PoE Injector, connect the camera using an Ethernet
cable for both data and power.
2. NETWORK CONNECTIONS – Not using PoE Switch or
PoE Injector, connect the camera to the switch using an
Ethernet cable for data transmission and use a power
adapter to power the camera.
Power requirements
DC12V, PoE
(IEEE 802.3af class 3).
Adapter not Included.
1 set
STEP 3 – INSTALLING THE CAMERA
1 set 1. Mount the camera to the mounting surface using the included screws
and anchors.
2. To use the camera's waterproof wiring:
1
a. Install the LAN cable into
b. will be assembled
a
to with a 1/4 turn.
1 set b
c. Thread
3. Adjust the camera's tilt and angle.
a. Pan and rotation: 0 ~ 345°
b. Tilt: 0 ~ 77°
4. Adjust the camera's zoom using the T and W buttons
at the base of the camera.
5. Place the dome cover on the camera
using the wrench to tighten the
screws on the dome.
digital-watchdog.com
Power consumption
<9W
.
a
b
tightly to .
c b a
STEP 4 – CABLING
Use the diagram below to properly connect power, network, alarm input
and outputs and audio to the camera.
c
STEP 5 – MANAGING THE SD CARD
1. To install the camera's SD Card, locate the SD card slot at the base of
the camera module.
2. Insert a class 10 SD/SDHC/SDXC card into
the SD card slot by pressing the SD card
until clicks.
3. To remove the SD card, press the card
inward until it clicks to release it from the card slot.
Resetting the camera: To reset the camera, use the tip of a
paper clip or a pencil and press the reset
button at the base of the camera.
Zoom-
Pressing the button for five (5) seconds
Zoom+
will initiate a camera-wide reset of all
the settings, including network settings.
Quick Start Guide
Rubber Plug
Network
Audio Input
Audio Output
Local Monitor Output
1 COM
2 OPEN
3 INA
4 GND
Alarm Input/Output
Power
